1.Product Overview

1.Basic information of the board

Attribute specification description

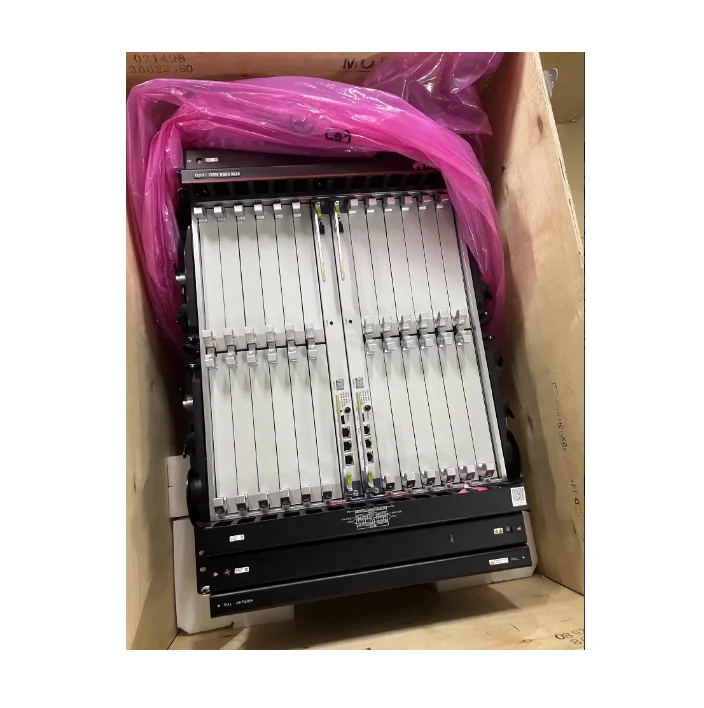

OptiX OSN 9800 series intelligent optical transmission platform

Board name: 4-way wavelength selection switch combiner board (high-precision flexible grid enhanced version)

Functional positioning enables multi wavelength signal multiplexing and dynamic routing in four line directions, supports direction independent wavelength scheduling, and has high-precision flexible grid and extended L-band capabilities

Board type: Optical layer wavelength selection switch, combiner board

Compatible with subracks such as OSN 9800 U series/M series that support TN series cards

Front panel dimensions: height x width x depth: 264.6 mm x 76.2 mm x 220 mm

Weight 3.3 kg

Typical power consumption 27.0 W

Maximum power consumption of 29.5 W (normal operation at maximum ambient temperature)

Working temperature -5°C to+55°C

Key features include 4-directional wavelength scheduling, extended L-band support, high-precision flexible grid (3.125GHz slicing), VOA attenuation adjustment per wavelength (0-25dB), online optical performance monitoring, optical layer ASON support, ultra-low insertion loss, ultra-high isolation

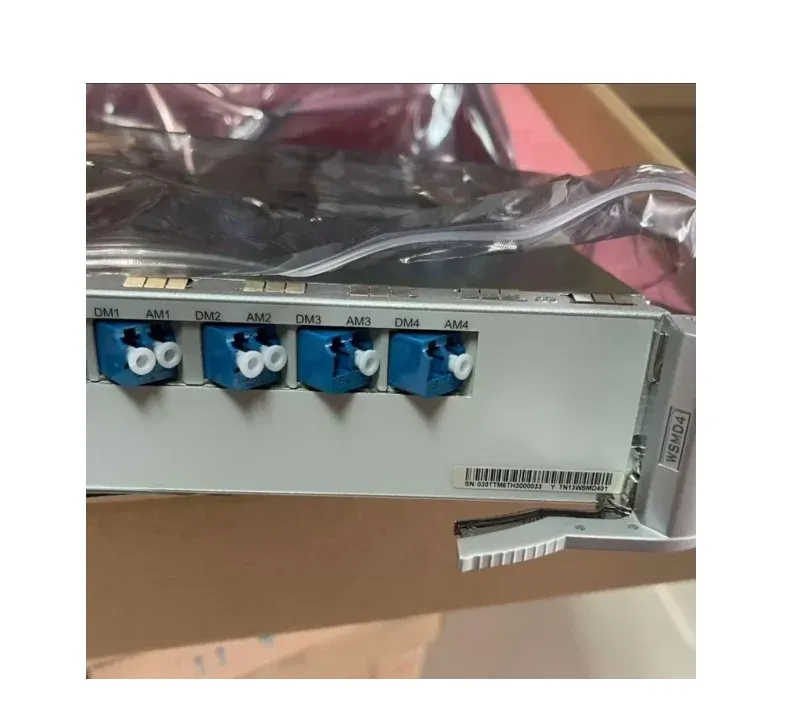

2.Interface and Port Definition

Interface Identification Interface Type Quantity Function Description

COM LC/UPC 1 public port, connected to local business or multiplexing units

LINE1~LINE4 LC/UPC 4 line direction ports, respectively connected to 4 different directions of line optical fibers

MON1/MON2 LC/UPC 2 high-precision online monitoring ports can be connected to spectral analyzers or spectral analysis units to monitor signal performance without affecting business operations

EXP1/EXP2 LC/UPC 2 expansion ports, used for cascading or multi-level WSS expansion applications

3.Core functional characteristics

Functional Module Technical Description System Value

Direction independent wavelength scheduling supports dynamically routing local business wavelengths to any one or more line directions, or combining wavelengths from different line directions to a common port.It supports broadcast and multicast functions to achieve direction independent flexible wavelength scheduling and is the core component for building colorless, non directional, non blocking, and non competitive ROADM nodes

High precision flexible grid supports flexible grid adjustment with a minimum slice granularity of 3.125GHz, complying with the latest ITU-T G.694.1 standard.Each channel can continuously occupy 4-192 slices (3.125 * n GHz, n=4-192) to achieve ultra fine spectrum management, perfectly adapting to various rate services of 100G~3.2T, maximizing spectrum efficiency

Extended L-band supports working wavelength range coverage.Extended L-band (1570.01 nm -1610.19 nm) supports C+L-band collaborative networking, achieving doubling of single fiber capacity and meeting future demand for ultra large capacity transmission

Each wavelength VOA adjustment supports independent attenuation adjustment of 0-25dB for each routing wavelength, with a step size of 0.05dB to achieve industry-leading precise control of routing power, optimize nonlinear effects, balance channel performance, and significantly improve system OSNR margin

Online optical performance monitoring provides 2 high-precision online monitoring ports, built-in optical power monitoring unit, which can monitor signal spectrum, optical power, OSNR and other parameters in real time without interrupting business for optical layer performance diagnosis and optimization, greatly improving operation and maintenance efficiency

Real time detection of parameters such as optical power, VOA status, wavelength locking status, temperature, etc.through alarm and performance event monitoring, reporting rich alarms and performance events for rapid fault location, and achieving predictive maintenance

Optical layer ASON supports automatic switching of optical network functions at the optical layer, with complete GMPLS control plane interfaces and signaling protocols to provide basic support for intelligent optical networks, achieving automated wavelength level business scheduling and protection

4.Optical performance parameters

Table 1: Optical Performance Parameters of TN13WSMD4 (Flexible Grid Mode, 3.125GHz Slice)

Parameter condition specification remarks

Working wavelength range: all ports 1570.01 nm -1610.19 nm Extended L-band, supporting Super L evolution

Channel spacing -3.125 * n GHz (n=4-192) flexible grid, with 3.125 GHz as the minimum slice unit, each channel can continuously occupy 4-192 slices

-1dB spectral width ->2 * (1.5625n-3.125) GHz n is the number of consecutive occupied slices, n=4~192

Insertion loss COM↔Insertion loss between LINE1-4 ≤7.0 dB common port and any line direction port (VOA=0dB)

Maximum channel insertion loss difference ≤ 1.0 dB between each line direction to ensure power balance in all directions

Port isolation between adjacent channels>30 dB to suppress adjacent channel crosstalk

Port isolation greater than 38 dB for non adjacent channels provides higher isolation

Directionality -45 dB to prevent reverse light interference

Each wavelength attenuation range is independently adjustable from 0-25 dB for each routing wavelength, with a step size of 0.05dB

Attenuation adjustment accuracy 0~10dB range ≤ 0.3 dB Ultra high precision adjustment within low attenuation range

Attenuation adjustment accuracy 10-20dB range ≤ 0.6 dB, high-precision adjustment within the attenuation range

Attenuation adjustment accuracy: 20-25dB range ≤ 1.0 dB.High attenuation range ensures performance

Reconfigure time - ≤ 1.5 s wavelength scheduling response time

Maximum reflectivity -50 dB for all ports with excellent return loss characteristics, reducing reflection

Polarization related loss ≤ 0.3 dB for all ports, friendly to high-speed modulation signals

The coupling ratio of the monitoring port to MON1/MON2 is about -20 dB ± 0.2 dB, which does not affect the main optical channel and has ultra-high precision coupling

Monitoring port measurement accuracy optical power ± 0.2 dB high-precision power monitoring

Monitoring port measurement accuracy wavelength ± 1.5 GHz high-precision wavelength monitoring

Table 2: Optical Performance Parameters of TN13WSMD4 (Fixed Grid Mode, 50GHz)

Parameter condition specification remarks

Number of optical channels -96 supports 96 waves @ 50GHz L-band DWDM system

Adjacent channel spacing -50 GHz ITU-T standard grid

-1dB spectral width ->25 GHz ensures signal transmission

Insertion loss COM↔Insertion loss between LINE1-4 ≤7.0 dB common port and any line direction port (VOA=0dB)

Port isolation between adjacent channels>30 dB to suppress adjacent channel crosstalk

Port isolation greater than 38 dB for non adjacent channels provides higher isolation

5.Power consumption and mechanical parameters

Parameter specifications

Typical power consumption 27.0 W

Maximum power consumption of 29.5 W (normal operation at maximum ambient temperature)

Front panel dimensions 264.6 mm (height) x 76.2 mm (width) x 220 mm (depth)

Weight 3.3 kg

Working temperature -5°C to+55°C

Storage temperature -40°C to+70°C

6.Comparison with TN11WSMD4 and TN12WSMD4

Features TN11WSMD4 TN12WSMD4 TN13WSMD4

Work band extension, C-band extension, C+band extension, L-band extension

Working wavelength range 1528.8-1567.6nm 1524.5-1572.06nm 1570.01-1610.19nm

Slice granularity 50GHz 6.25GHz 3.125GHz

Maximum number of slices occupied 8 96 192

Supports a maximum speed of 400G 1.6T 3.2T

VOA dynamic range 0-15 dB 0-20 dB 0-25 dB

VOA Step 1 dB 0.1 dB 0.05 dB

Insertion loss ? 8.0 dB ? 7.5 dB ? 7.0 dB

Isolation between adjacent channels>25 dB>28 dB>30 dB

Non adjacent channel isolation>30 dB>35 dB>38 dB

Directionality 35 dB 40 dB 45 dB

Maximum reflectivity -40 dB -45 dB -50 dB

Polarization related loss ? 1.0 dB ? 0.5 dB ? 0.3 dB

Monitoring port coupling accuracy ± 0.5 dB ± 0.5 dB ±0.2 dB

Typical power consumption 25.0 W 26.0 W 27.0 W

Applicable system C-band ROADM C+band ROADM L band ROADM

7.Application scenarios

Core Value of Application Scenario Deployment Method

The L-band ROADM node serves as the core wavelength routing unit in the L-band DWDM system, achieving flexible scheduling in 4 directions to support the L-band 96 wave @ 50GHz system, and working together with the C-band to double the single fiber capacity

C+L band collaborative networking and TN12WSMD4 (C+band) cooperation are used to achieve unified scheduling of single fiber capacity in the C+L band at the core nodes, increasing the capacity to 96Tbit/s or more, meeting the bandwidth demand for the next 5-10 years

Deploy over 100G trunk branching nodes at the branching points of the trunk network to achieve 800G/1.6T/3.2T business scheduling between the trunk and branch lines.The 3.125GHz fine grid supports future ultra-high speed transmission

Optical layer ASON intelligent network serves as a programmable routing unit in networks that require optical layer intelligence features.Optical layer ASON supports automated business scheduling and protection, reducing operation and maintenance costs

Multi rate hybrid network (100G-3.2T) deploys flexible grids to support the bandwidth requirements of different rate services in networks that need to simultaneously carry multiple rate services, maximizing spectrum utilization efficiency

The next generation of data center interconnection is deployed in ultra large scale DCI hubs, connecting multiple data center directions to provide high-density, fine grid wavelength scheduling capabilities, adapting to future bandwidth growth

8.Maintenance and ordering information

Project Information

Component code TN13WSMD4

Ordering instructions: When placing an order, it is necessary to confirm the working band (extended L-band) and flexible grid configuration requirements

On site operation supports hot plugging, and anti-static wrist straps should be worn during operation.Pay attention to cleaning the fiber optic connectors

After the installation of VOA configuration, VOA attenuation calibration needs to be performed through the network management to ensure control accuracy

The monitoring port uses two high-precision monitoring ports that can be connected to a spectral analyzer or OPM unit to monitor and output spectra in real-time

After testing and verifying installation, insertion loss testing, directional connectivity testing, wavelength scheduling function verification, VOA function verification, grid configuration verification, and isolation testing are required

Spare parts management, as the core board of ROADM nodes, is recommended to configure spare parts at critical network nodes

Warranty service standard: Warranty period of 1 year, expandable

Core Summary:

TN13WSMD4 is a high-precision flexible grid wavelength selection switch combiner designed specifically for L-band ROADM nodes on the OSN 9800 platform.It represents a milestone product in the expansion of the WSMD4 series to the L-band, achieving three revolutionary upgrades: 3.125GHz ultra fine flexible grid, extended L-band, and 25dB VOA dynamic range.It is the core component for building future Tb/s+ultra high speed and C+L-band collaborative networking.

Core values and positioning:

L-band enabler: As the first model in the WSMD4 series to support L-band, TN13WSMD4 and TN12WSMD4 in the C+band together form a complete C+L-band ROADM solution, achieving single fiber capacity doubling.

Ultimate Spectrum Efficiency: With a minimum slice size of 3.125GHz, it supports fine spectrum allocation for services at any rate from 100G to 3.2T.Compared to 6.25GHz grid, it can further improve spectrum efficiency by more than 20%.

Ultra large capacity support: Extended L-band coverage of 1570.01-1610.19nm, supporting 96 wave @ 50GHz systems, and achieving ultra large capacity of single fiber 192 wave @ 50GHz in conjunction with the C+band.

Industry leading power management: 0-25dB VOA range, 0.05dB step, achieving the most precise routing power control in the industry, significantly improving system performance margin.

Excellent optical performance: 7.0dB ultra-low insertion loss, 30dB adjacent isolation, 45dB directionality, -50dB return loss, providing the best channel quality for high-speed signal transmission.

Collaborative positioning with TN12WSMD4:

TN12WSMD4: Extended C+band (1524.5-1572.06nm), 6.25GHz slice, suitable for C-band ROADM nodes

TN13WSMD4: Extended L-band (1570.01-1610.19nm), 3.125GHz slice, suitable for L-band ROADM nodes

By combining the two, a C+L band ROADM network can be constructed in the same fiber optic cable, achieving ultra large capacity transmission of 192 waves @ 50GHz on a single fiber.

Application suggestion:

This board is the core routing component for L-band ultra 100G flexible grid networks in the OSN 9800 wavelength division system, and is particularly suitable for scenarios that require C+L-band collaborative networking, ultra-fine spectrum management, and 3. 2T ultra high speed support, such as backbone network core nodes, ultra large scale data center interconnection hubs, next-generation submarine cable systems, etc. When deploying, it is necessary to combine TN12WSMD4 (C+band) and iMaster NCE intelligent control system to achieve unified scheduling of the C+L band and automated operation and maintenance of the optical layer. For pure C-band applications, TN11WSMD4 or TN12WSMD4 are more cost-effective choices.
