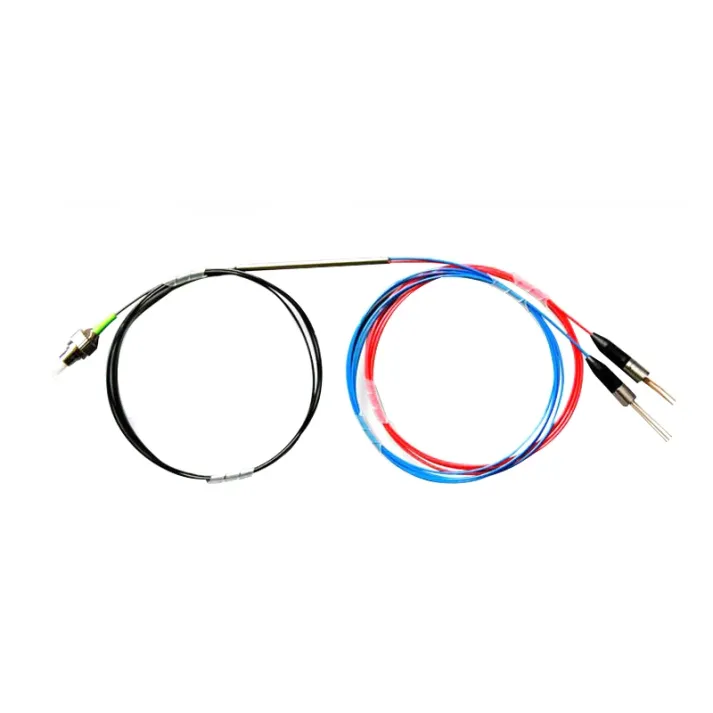

FTTH FWDW 1310nm 1490nm 1550nm PON WDM Filter with Optical Fibers 1x2 Port Configuration ISO9001 Certified

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Ftth Fwdm 1310nm 1490nm 1550nm Pon Wdm Filter















Parameter		FWDM4/35	FWDM5/34	FWDM 34/5
Pass Band Wavelength Range(nm)		1480~1500	1540~1560	1260~1360&1480~1500
Reflection Band 1 Wavelength Range(nm)		1260~1360	1260~1360	1540~1560
Reflection Band 2 Wavelength Range(nm)		1540~1560	1480~1500
Insertion Loss(dB)	Reflect Channel	≤0.6
	Pass Channel	≤0.8
Pass Band Rippler(dB)		<0.3
Isolation(dB)	RefLect Channel	>15
	Pass Channel	>30
Insertion Loss Temperature Sensitivity (dB/?)		<0.005
Polarization Dependent Loss (dB)		<0.1
Polarization Mode Dispersion (ps)		<0.1
Directivity (dB)		> 50
Return loss (dB)		> 50
Maximum Power Handling (mW)		300
Operating Temperature (?)		-10~+75
Storage Temperature (?)		-40~+85
Package Dimension (mm)		Φ5.5x34 (L38 for 900um Loose tube)
