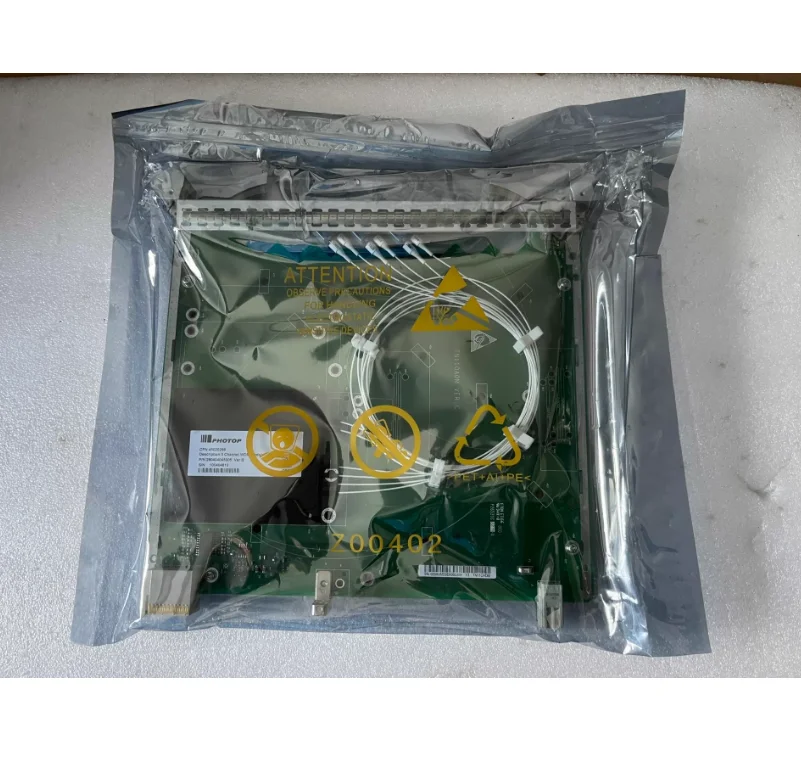

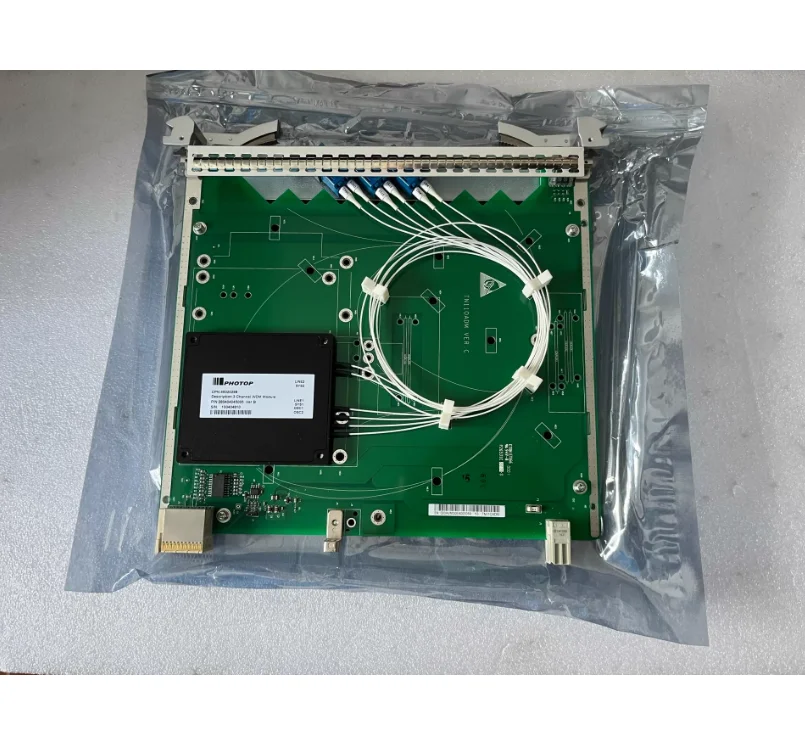

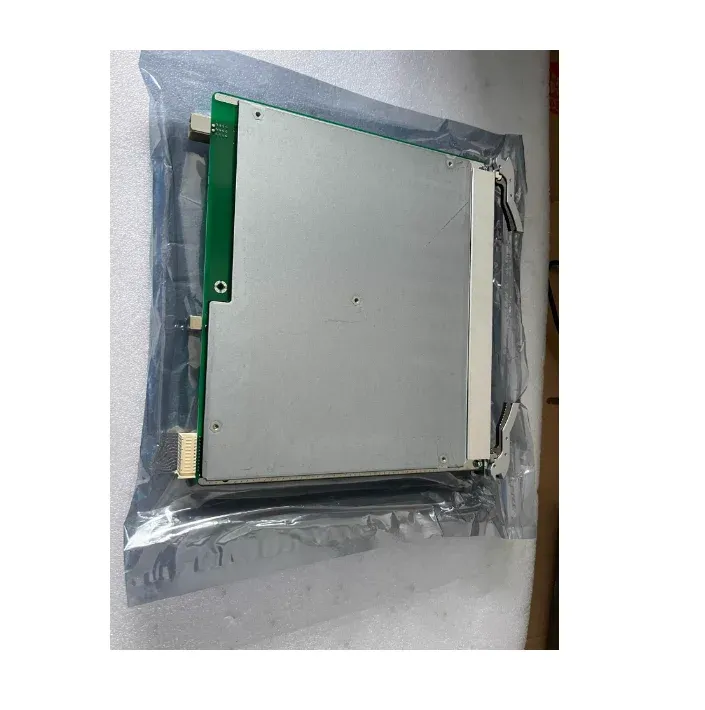

Original OSN6800 SN8800 Fiber Interface Unit TN11SFIU 03030MDT TN11FIU TN12FIU TN13FIU Sync Timing Fiber Optic Equipment

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Produktbeschreibung

1.Product Overview

1.Basic information of the board

Attribute specification description

OptiX OSN 9800 series intelligent optical transmission platform

Board name: Fiber interface unit board (supports synchronous clock)

Functional positioning: Combining and splitting processing of the main optical channel and optical monitoring channel, supporting IEEE 1588v2 clock synchronization

Board type: Optical layer processing board

Adaptation subrack OSN 9800 series supports subracks of TN series cards

Front panel dimensions: height x width x depth: 264.6 mm x 25.4 mm x 220 mm

Weight 1.0 kg

Typical power consumption 0.2 W

Maximum power consumption of 0.3 W (normal operation at maximum ambient temperature)

Working temperature -5°C to+55°C

Key features include main light and OSC multiplexing, IEEE 1588v2 clock synchronization support, ultra-low power consumption (0.2W), high OSC isolation (≥ 65dB)

2.Interface specifications

Interface Identification Interface Type Function Description

LINE1/LINE2 LC/UPC line input/output ports, connected to fiber optic lines

SYS1/SYS2 LC/UPC system side port, connected to combiner/splitter or circuit board

OSC1/OSC2 LC/UPC optical monitoring channel port, used for input/output of OSC signals

MON LC/UPC online monitoring port (partially configured), can be connected to a spectral analyzer for optical performance monitoring

3.Core functional characteristics

Functional Module Technical Description System Value

The main optical channel multiplexing combines the C-band main optical channel signal with the optical monitoring channel (OSC) signal into one channel for transmission, or separates the OSC signal from the multiplexed signal to achieve efficient coupling of the optical signal between the fiber optic line and the equipment, ensuring independent transmission of the out of band monitoring channel

IEEE 1588v2 clock synchronization support: In systems deploying IEEE 1588v2 clocks, the SFIU board can eliminate the need for 1588v2 clock tuning and delay compensation, significantly simplifying the deployment and maintenance of synchronous clock networks without the need for additional delay compensation tuning, and improving network time synchronization accuracy

The high OSC channel isolation is as high as ≥65dB, far higher than conventional FIU boards, effectively preventing interference from the main optical channel signal to the monitoring channel and ensuring reliable transmission of network management monitoring information in complex optical layer environments

Online optical performance monitoring provides MON monitoring port (if configured), which can be connected to an external spectral analyzer to monitor signal spectra, optical power, OSNR and other parameters in real time without interrupting business for optical layer performance diagnosis and optimization, improving operation and maintenance efficiency

Ultra low power design based on optimized passive optical devices and efficient monitoring circuit design, with a power consumption of only 0.2W, almost no heat generation, and extremely high reliability and long service life

4.Optical performance parameters

Interface/Channel Parameter Specification Remarks

The working wavelength range of the main optical channel is 1528 nm -1561 nm in the C-band

Optical monitoring channel operating wavelength range 1480-1520 nm extended OSC band

LINE1-SYS1/LINE2-SYS2 insertion loss ≤ 1.0 dB main optical channel insertion loss

LINE1-OSC1/LINE1-OSC2 insertion loss ≤ 1.5 dB OSC channel insertion loss

LINE1-OSC1 @ λ c isolation ≥ 65 dB ultra-high OSC isolation

LINE1-OSC2 @ λ c isolation ≥ 40 dB OSC inter channel isolation

OSC1-SYS1 directionality ≥ 45 dB to prevent reverse light interference

OSC1-OSC2 directionality ≥ 55 dB OSC inter channel directionality

All ports have optical return loss>40 dB and excellent return loss characteristics

PDL with polarization dependent loss<0.1 dB in the main optical channel, extremely low

OSC channel polarization related loss<0.15 dB is insensitive to polarization effects

5.Power consumption and mechanical parameters

Parameter specifications

Typical power consumption 0.2 W

Maximum power consumption 0.3 W

Front panel dimensions 264.6 mm (height) x 25.4 mm (width) x 220 mm (depth)

Weight 1.0 kg

Working temperature -5°C to+55°C

Does the optical layer ASON support it

6.Comparison with FIU boards of the same series

Features TN11SFIU TN13FIU TN14FIU TN16FIU

OSC wavelength range 1480-1520nm 1500-1520nm 1480-1520nm 1480-1520nm 1480-1520nm

Main optical channel insertion loss ≤ 1.0 dB ≤ 1.5 dB ≤ 1.5 dB ≤ 1.5 dB ≤ 1.5 dB

OSC isolation ≥ 65 dB>12 dB>12 dB ≥ 40 dB

1588v2 clock support Not supported Not supported Not supported Not supported

Optical layer ASON support Not support Support Support Support Support Support Support

Typical power consumption 0.2 W 0.2 W 4.2 W 6.0 W

Applicable scenarios: high isolation systems requiring 1588v2 clock synchronization, conventional C-band systems, conventional C-band systems, ultra long distance high isolation systems

7.Application scenarios

Core Value of Application Scenario Deployment Method

IEEE 1588v2 synchronous network nodes are deployed at OTM/OLA sites that require high-precision time synchronization, eliminating the need for 1588v2 clock tuning and delay compensation, greatly simplifying synchronous network deployment and maintenance

DWDM systems with high isolation requirements use ultra-high OSC isolation of ≥65dB in complex optical layer environments where OSC channels are susceptible to interference to ensure reliable transmission of monitoring channel information, suitable for high-power, long-distance systems

Mobile carrier networks provide high-precision time synchronization transmission channels for wavelength division node deployment in 5G pre/mid transmission networks, meeting the strict requirements of 5G base stations for 1588v2 clock

The financial/government enterprise dedicated line network is deployed on the line side of the DWDM system carrying high-value dedicated lines to ensure business transmission while providing a highly reliable out of band monitoring channel

8.Maintenance and ordering information

Project Information

Component code TN11SFIU

Ordering instructions: Please confirm whether 1588v2 clock support and MON port configuration are required when placing an order

On site operation supports hot plugging, and anti-static wrist straps should be worn during operation.Pay attention to cleaning the fiber optic connectors

After testing and verifying installation, insertion loss testing, OSC channel connectivity testing, and isolation verification are required

As a special FIU board, it is recommended to configure spare parts at critical nodes that require 1588v2 clock synchronization for spare parts management

Technical support can be obtained through authorized distributors or technical support centers for professional support

Core Summary:

TN11SFIU is an enhanced fiber optic interface unit board designed specifically for DWDM systems that require IEEE 1588v2 clock synchronization on the OSN 9800 platform.Based on the standard FIU functionality, it integrates two core features: 1588v2 clock synchronization support and ultra-high OSC channel isolation (≥ 65dB).

Core values and positioning:

1588v2 clock synchronization enabler: In systems deploying IEEE 1588v2 clocks, the SFIU board eliminates the need for clock tuning and delay compensation, greatly simplifying the deployment and maintenance process of synchronization networks.It is a key component in building high-precision time synchronization networks such as 5G bearer networks.

Industry leading OSC isolation: The OSC channel isolation is as high as ≥65dB, far higher than conventional FIU (12dB) and TN16FIU (40dB), which can effectively prevent interference from high-power main optical signals on monitoring channels and ensure reliable transmission of network management information in the most demanding optical layer environment.

Ultra low main optical channel insertion loss: The main optical channel insertion loss is only ≤1.0dB, which is superior to other FIU cards in the same series and minimizes the impact on the system's optical power budget.

Ultra low power consumption and high reliability: With a power consumption of only 0.2W and almost no heat generation, it has extremely high reliability and a long service life.

Technical features:

Supports C-band (1528-1561nm) and extended OSC band (1480-1520nm)

Main optical channel insertion loss ≤ 1.0dB, OSC channel insertion loss ≤ 1.5dB

OSC channel isolation ≥ 65dB, the highest in the FIU series

Supports IEEE 1588v2 clock synchronization without the need for additional testing or delay compensation

Extremely low polarization related loss (main light<0.1dB, OSC<0.15dB)

Application suggestion:

This board is a special FIU component for high-precision time synchronization networks in the OSN 9800 wavelength division system, particularly suitable for scenarios that require 1588v2 clock synchronization and extremely high OSC channel reliability, such as 5G mobile bearer networks, high-value dedicated line transmission systems, etc. When deploying, the advantages of its 1588v2 clock support and ultra-high isolation should be fully utilized, combined with the iMaster NCE intelligent control system, to build a high-precision, highly reliable, and monitored intelligent optical layer network. For conventional scenarios that do not require a 1588v2 clock, standard FIU cards such as TN13FIU/TN14FIU are more cost-effective choices.
