OSN9800 TNV1S216 Multi Speed High Density Access Board Compact Design Intelligent Scheduling

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Produktbeschreibung

1.Product Overview

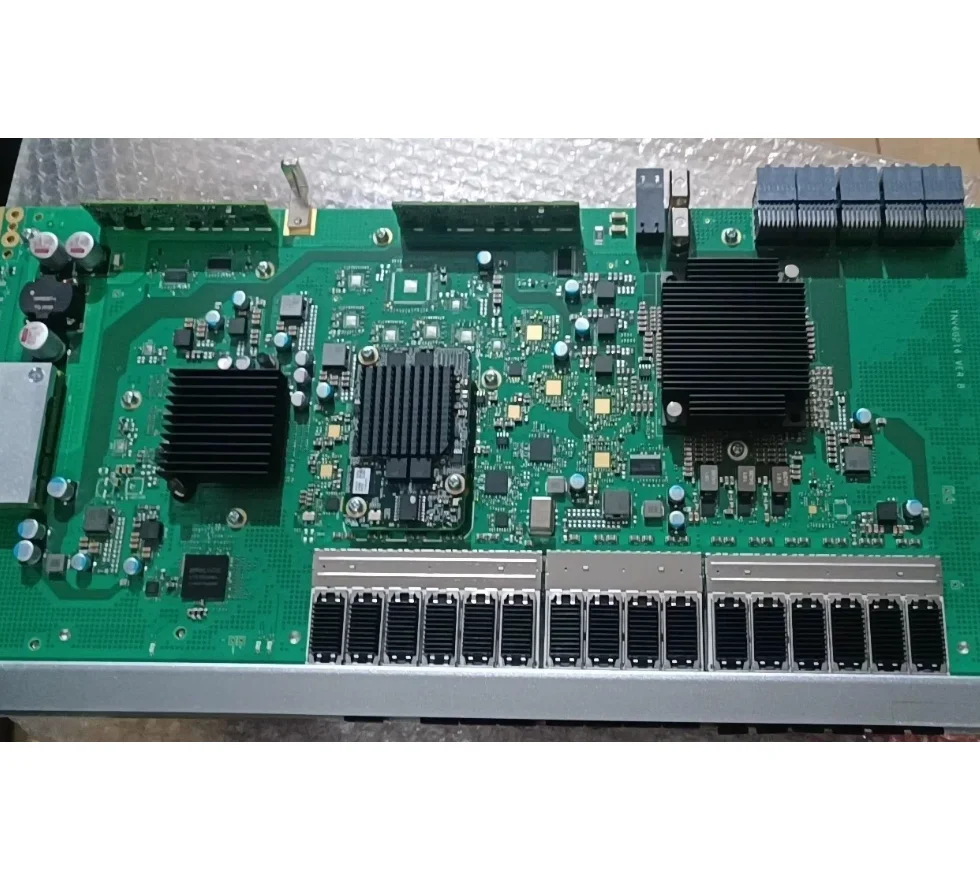

TNV1S216 is an enhanced high-density intelligent multi service aggregation 2.5G/10G wavelength division multiplexing circuit board on the OSN 9800 series optical transmission platform.This board is designed specifically for scenarios that require high-density port access and intelligent business processing, such as urban edges, large enterprise parks, and multi service access points.It integrates a large number of customer side interfaces, enhanced layer 2 switching capabilities, and flexible OTN layer crossing functions in a compact hardware architecture.It aims to efficiently solve the unified access, intelligent aggregation, and reliable transmission of a large number of medium and low-speed businesses (such as enterprise dedicated lines, mobile base station backhaul, video surveillance, etc.)with a single board solution.It is the core component for building high-density, high-value edge intelligent nodes.

2.Core features and high-density positioning

High density multi service port integration

Within the standard compact card size, it provides significantly more customer side business interfaces than conventional cards, typically supporting 12 or more SFP/SFP+interfaces to achieve high-density access capability.

The port supports multi rate adaptive (2.5G/10G) and multi protocol access (such as STM-16/4, 10GE, GE), meeting the high-density access requirements of diversified businesses and maximizing the capacity of a single slot port.

Powerful intelligent exchange and aggregation matrix

Integrate high-performance switching processing units with powerful layer 2 Ethernet switching and ODUk layer crossing capabilities.

Support policy based intelligent switching (VLAN, QoS), flexible aggregation, and sub wavelength level offloading scheduling (ODU0/1/2 crossover) for a large number of connected business flows, achieving a functional upgrade from"simple access" to"intelligent switching aggregation".

Optimization Design for High Density Environment

Adopting advanced signal integrity design and efficient heat dissipation scheme to ensure long-term stability and reliability when operating at full load on high-density ports.

Optimized power management that provides high-density access capabilities while maintaining low power consumption per port.

Simplify high-density node operation and maintenance

Through unified intelligent network management, batch configuration, unified monitoring, and visualization of all high-density ports, business flows, and cross connections on the board can be achieved, greatly reducing the operational complexity of high-density nodes.

Support port grouping management, configuration templates, and one click fault location to improve operation and maintenance efficiency.

3.Detailed technical specifications

1.Physical and General Specifications

Model: TNV1S216

Applicable platform: OSN 9800 series subrack

Board type: Enhanced high-density intelligent multi service 2.5G/10G line processing board

Customer side port density: high-density configuration (such as 12 ports or more).

Typical power consumption:<85W (depending on the number of enabled ports and load)

Working temperature: -5°C to+55°C

2.Customer side interface and business characteristics

Interface configuration: Onboard high-density SFP/SFP+customer side interface.

Supported business types:

SDH/SONET: STM-16, STM-4.

Ethernet: 10GE, GE.

OTN: OTU1, OTU2.

Enhance processing capability:

High capacity L2 switching: supports large-scale MAC address tables, VLAN isolation, traffic management, etc.

Flexible ODUk Crossover: Provides ODU0/1/2 level electrical crossover matrix to meet high-density business scheduling and aggregation requirements.

3.Line side transmission performance

Line speed: Supports 2.5G or 10G standard wavelength division.

Line side wavelength: Supports tunable or fixed wavelengths.

Transmission distance: meets the typical transmission requirements for urban access and aggregation.

4.Management and Operations

Cluster port management: Supports grouping, batch operations, and performance comparison analysis of high-density ports in network management.

Intelligent resource monitoring: Real time monitoring of key resource indicators such as onboard exchange capacity and port utilization.

4.Typical application scenarios

Core aggregation of large enterprise/park networks: As the business aggregation core of enterprise headquarters or large parks, it connects a large number of medium and low-speed uplinks from various buildings and data centers (such as access switches and dedicated lines), and performs unified switching, management, and aggregation before uploading.

Mega POP: In the operator's large integrated access room, it provides high-density 2.5G/10G multi service access services to numerous small and medium-sized enterprise customers, base stations, and residential areas, achieving resource concentration and efficient utilization.

Mobile backhaul (2G/3G/4G) high-density aggregation point: In the aggregation room near the base station, access and flexibly schedule mixed backhaul traffic from dozens of base stations (such as STM-1/4, FE/GE).

Video surveillance/IoT data aggregation and feedback node: In scenarios such as safe cities and smart parks, it aggregates a large number of medium and low-speed data streams from video front-end or IoT gateways, and efficiently returns them to the central platform through a unified channel.

5.Summary of Core Values

Ultimate optimization of space and cost: With the highest density of single board solutions, the cabinet space requirements and total number of devices in high-density access scenarios are significantly reduced, optimizing the total cost of ownership (TCO).

Having both processing capability and flexibility: The powerful onboard switching and crossover capabilities enable edge nodes to efficiently handle massive access services and achieve flexible scheduling.

The complexity of operation and maintenance has been significantly reduced: a unified management interface and intelligent tools make managing dozens of access ports as easy as managing a single logical entity.

Investing for future expansion: High density design reserves sufficient access capacity for future business growth, protecting long-term investments.

6.Ordering and Deployment Instructions

Basic board model: TNV1S216.

Please specify the required port configuration and optical module type when placing an order.

Before deployment, detailed port planning, VLAN planning, traffic engineering, and cross connection design must be carried out to fully leverage its high-density and high-performance advantages.

It is recommended to conduct professional preliminary scheme design and deployment optimization services to ensure the best application effect.
