VDSL2 Vectoring G.fast IP DSLAM MA5818 Fiber Optic Equipment

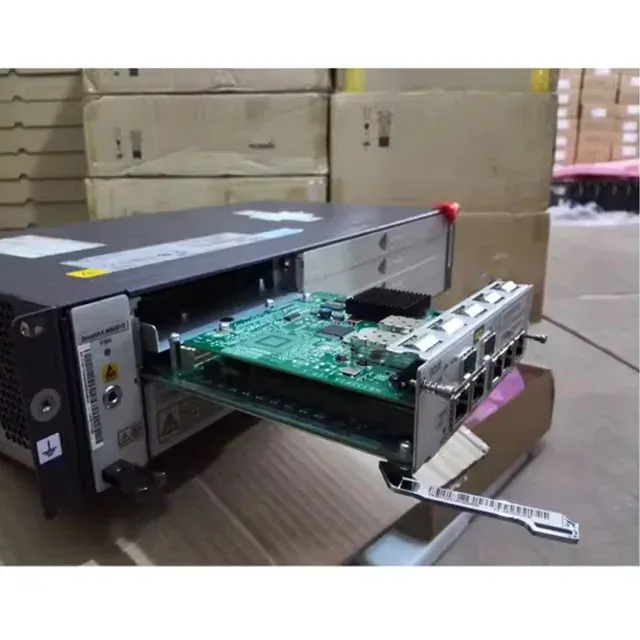

 The SmartAX MA5818 (the MA5818 for short) is an industry-leading remote multi dwelling unit (MDU) launched by HW, which supports flexible configurations and provides broadband services on Fiber To The Building (FTTB) and Fiber To The Curb (FTTC) networks. The MA5818 is a box-type device measuring 2-U high and 19-inch wide and providing two GPON or GE uplink ports and ADSL2+, VDSL2, SHDSL, POTS, ISDN, FE and GE ports.The MA5818 features a high access density, high processing capability, high reliability, easy maintenance, environment-friendlily and energy conservation, and future-oriented architecture design and can be used in corridors, cabinets, indoor, and outdoor usage scenarios.

It has the following features:

• 10G PON ports for upstream transmission enable higher access bandwidth and service requirements.10G PON networks coexist with PON networks and are compatible with existing Optical Distribution Networks (ODNs)

• Flexible service configurations and specifications keep pace with technology advances.Select or set configurations based on user requirements

• Multiple types of service boards can be installed in the same subrack and port quantity configurations are flexible

• Faster vectoring technology facilitates bandwidth increase.The MA5818 delivers a transmission rate fifty to ninety percent higher than common VDSL2 technology.HW’s exclusive combination board design supports high-density user access

Broadband Rate Increasing Using VDSL2 Vectoring
Broadband rate increasing using vectoring enables the MA5818 to:

Increase the rate of a multi-pair VDSL2 line and therefore increase revenue from each VDSL2 user.

Provide more service types, such as high definition (HD) TVs, for users, improving user experience.

10G GPON Upstream Transmission

10G GPON provides a high bandwidth to meet service requirements.

The 10G GPON transmission complies with ITU-T Recommendation G.987 and ITU-T Recommendation G.988, and provides asymmetric transmission rates of 2.5 Gbit/s in the upstream direction and 10 Gbit/s in the downstream direction.

10G GPON networks can coexist with the current GPON networks to fully use the existing optical distribution network (ODN) resources.


Combo Boards and P2P Board

The combo design enables the MA5818 to support a high user density.Combo boards require less deployment space, wiring workload, and time spent on the main distribution frame (MDF), thereby reducing carriers' construction and maintenance costs.


Operational Video Service
The MA5818 uses Internet Group Management Protocol version 2 (IGMPv2) or IGMPv3 to provide
IPTV, HDTV, and video conferencing services.

• Trade terms: FOB,CIF,CFR,etc
• Price Terms:T/T,Western Union,Paypal,RMB
• Payment Terms: T/T in advance
• MOQ:  1 pc
• Port: Shanghai
• Lead time: Within 5-45 working days after receipt payment.(According to configuration)
• Shipment: Express, Air, Sea
• Sample availability: Yes (not free)
• Package information: Standard carton package with the original package
