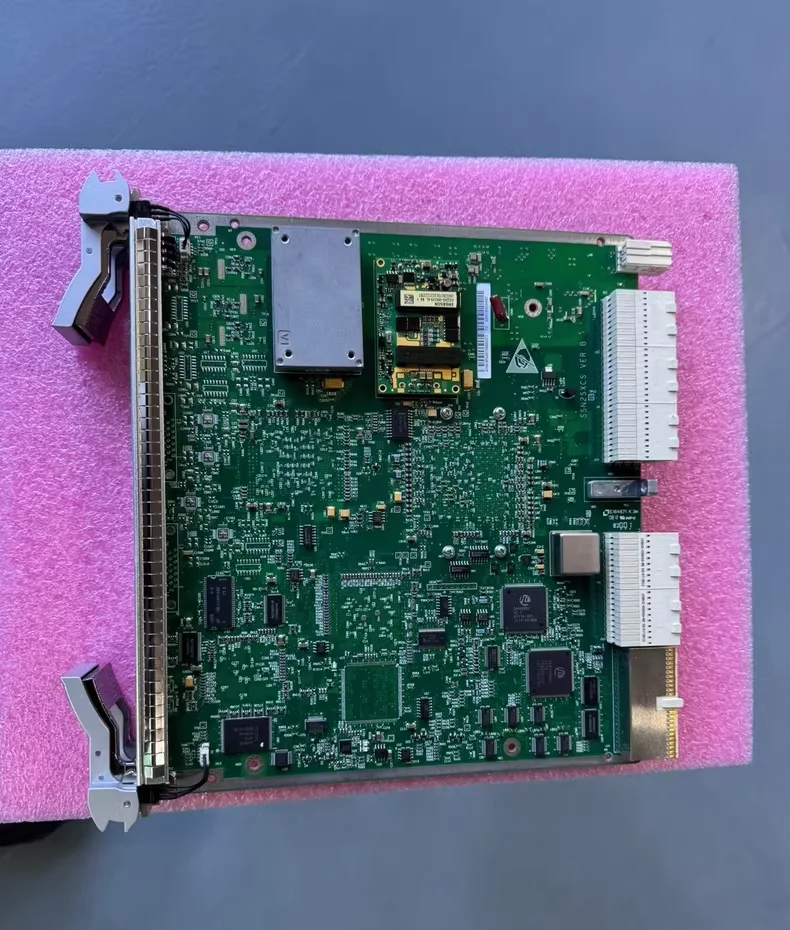

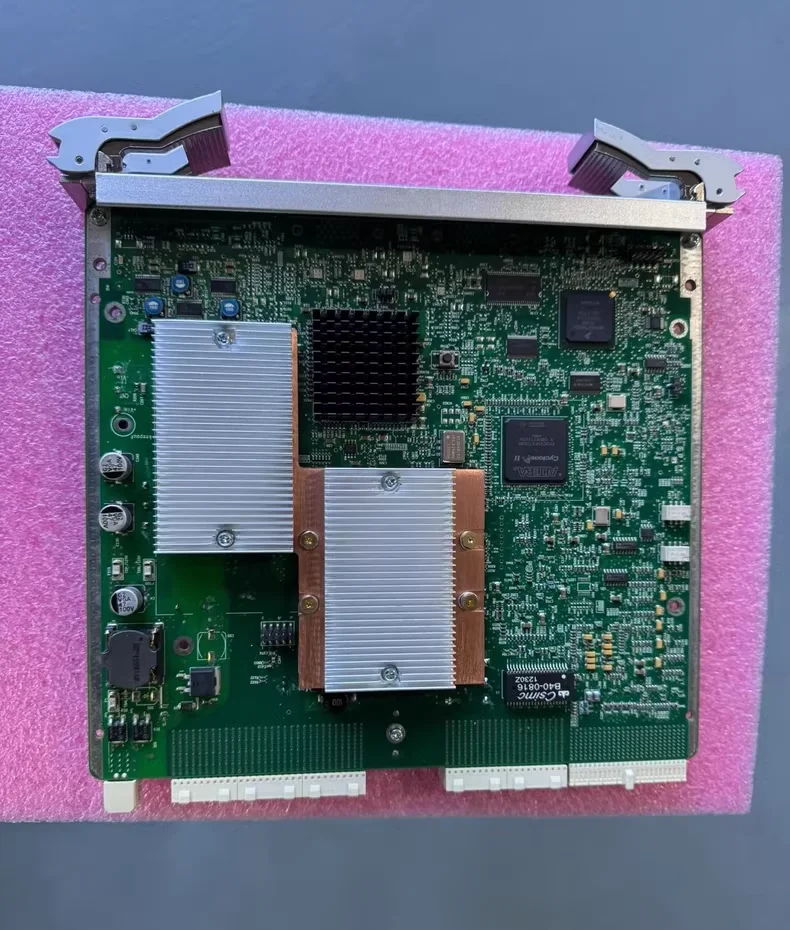

03030dkf SDH Optix Osn3500 Ssn1sxcsa Osn SXCSA Super Cross Clocking Board for Fiber Optic Equipment
$180.00 USD
Υπολογισμός των τελών αποστολής στο ταμείο κατά την ολοκλήρωση της αγοράς
Ποσότητα
Products Description
|
Dimensions (mm)
|
|
40.0 (W) x 235.2 (D) x 261.4 (H)
|
|
|
|||
|
Weight(kg)
|
|
2.2
|
|
|
|||
|
Valid Slot
|
|
OSN 3500: The SSN1SXCSA can be installed in slots 9 and 10 in the subrack.
|
|
|
|||
|

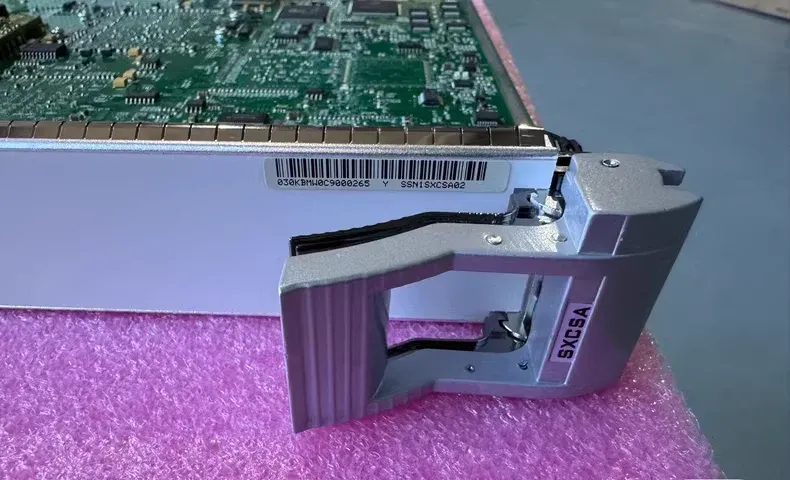

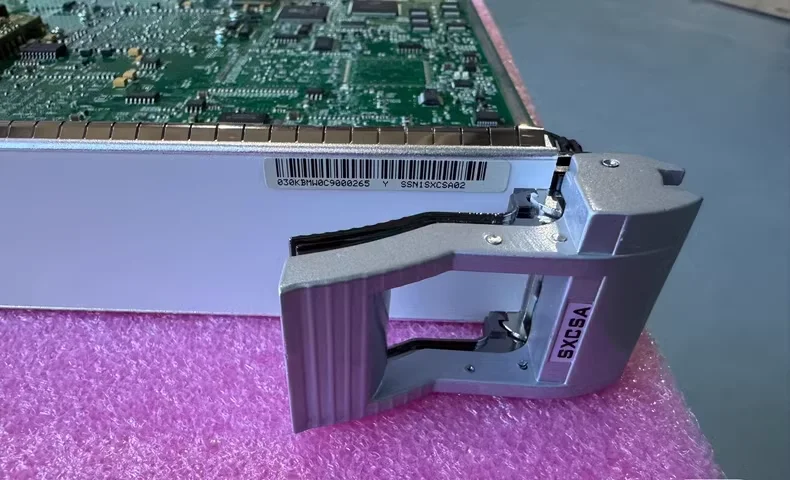

Front Panel
|
|
The front panel of the SSN1SXCSA has indicators and a bar code.
|
|
|
|||
SXCSA is a Super Cross-Connect board for OSN3500, provide 200G High order, 20G Low order Cross-Connect capacity and 155G Access capacity.SXCSA have N1 and ND0 version, respectively part number is 03030DFK and 03030KBM.
OSN3500 Super Cross-connect and Synchronous Timing Board(Without Extension Host).
Higher order cross-connect capacity: 200 Gbit/s.
Lower order cross-connect capacity: 20 Gbit/s.
Access capacity: 155 Gbit/s.
Supports the SNCP protection at the VC-4-4c, VC-4-8c, VC-4-16c, VC-4-64c, VC-4, VC-12, VC-3, and AU-3 levels.
Supports VC-4-4c, VC-4-8c, VC-4-16c, and VC-4-64c concatenation services.
Supports a maximum of 40 linear MSP protection groups.
Supports a maximum of 12 ring MSP protection groups.
Supports the standard system synchronization clock.
Supports the real-time clock (RTC).
Supports the processing of the S1 byte to realize the clock protection switching.
Supports the extraction, insertion, and management of the SSM and clock ID.
Supports the 1+1 Hot Backup for the Cross-Connect and Timing Units protection schemes.
Lower order cross-connect capacity: 20 Gbit/s.
Access capacity: 155 Gbit/s.
Supports the SNCP protection at the VC-4-4c, VC-4-8c, VC-4-16c, VC-4-64c, VC-4, VC-12, VC-3, and AU-3 levels.
Supports VC-4-4c, VC-4-8c, VC-4-16c, and VC-4-64c concatenation services.
Supports a maximum of 40 linear MSP protection groups.
Supports a maximum of 12 ring MSP protection groups.
Supports the standard system synchronization clock.
Supports the real-time clock (RTC).
Supports the processing of the S1 byte to realize the clock protection switching.
Supports the extraction, insertion, and management of the SSM and clock ID.
Supports the 1+1 Hot Backup for the Cross-Connect and Timing Units protection schemes.
