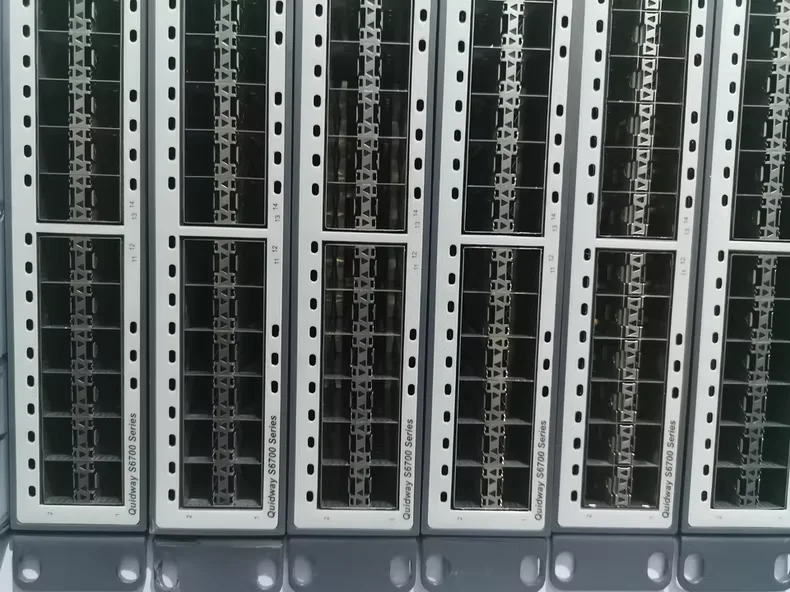

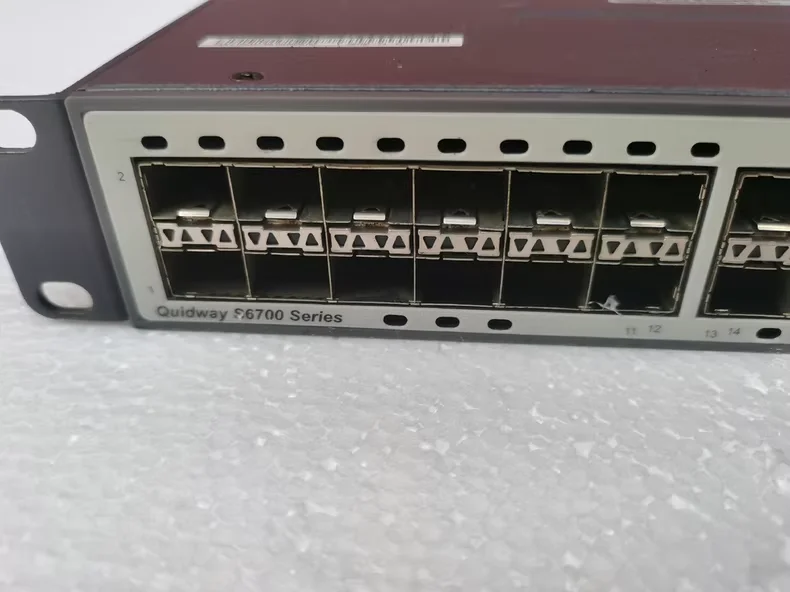

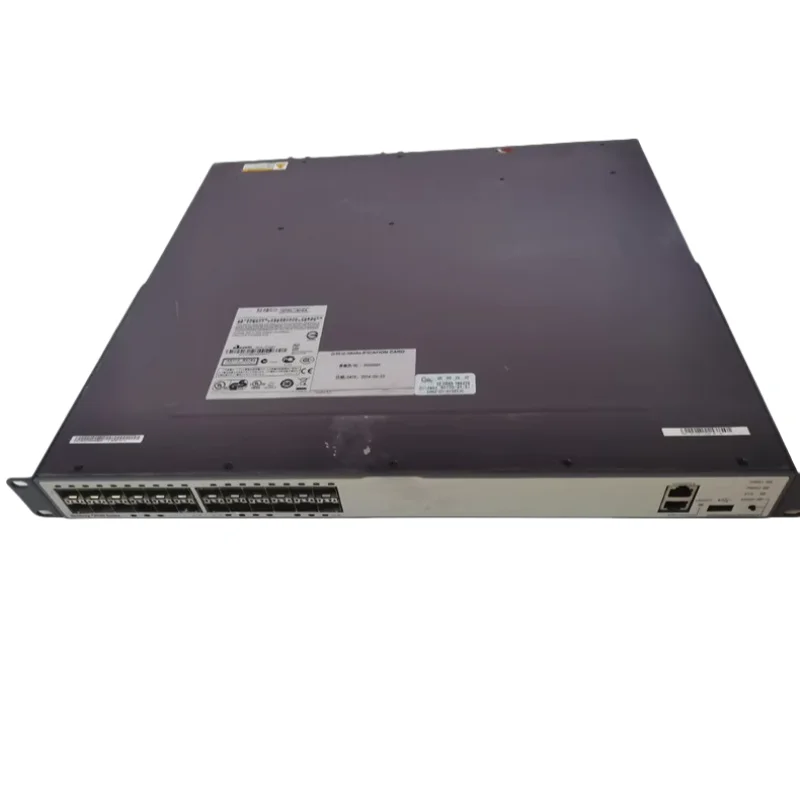

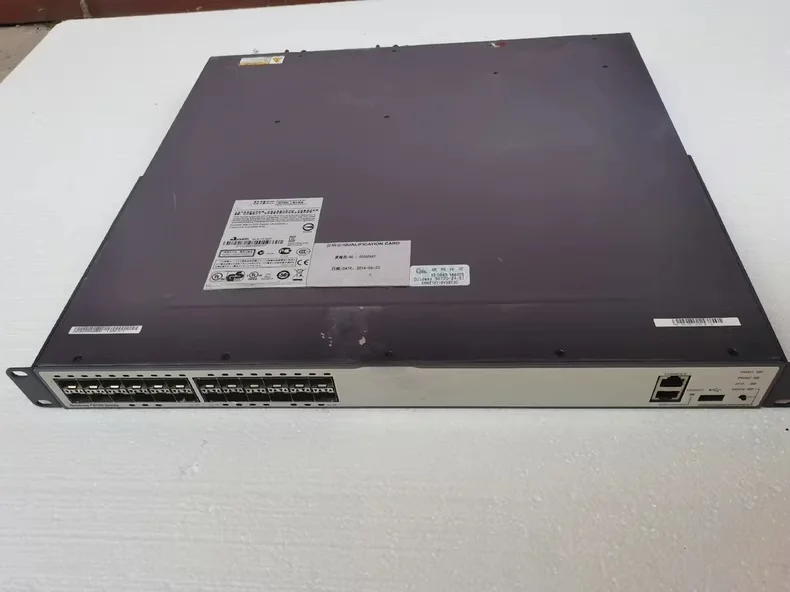

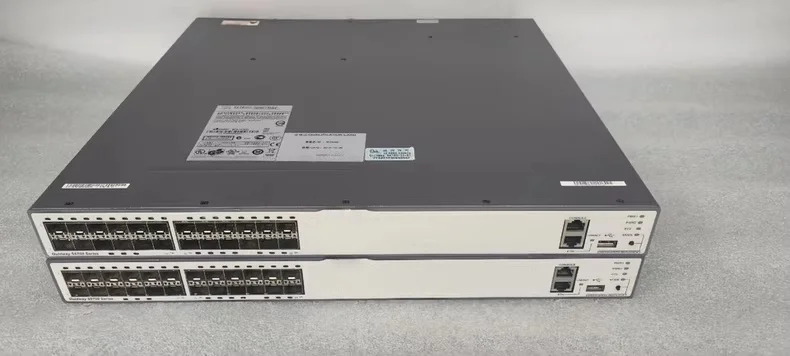

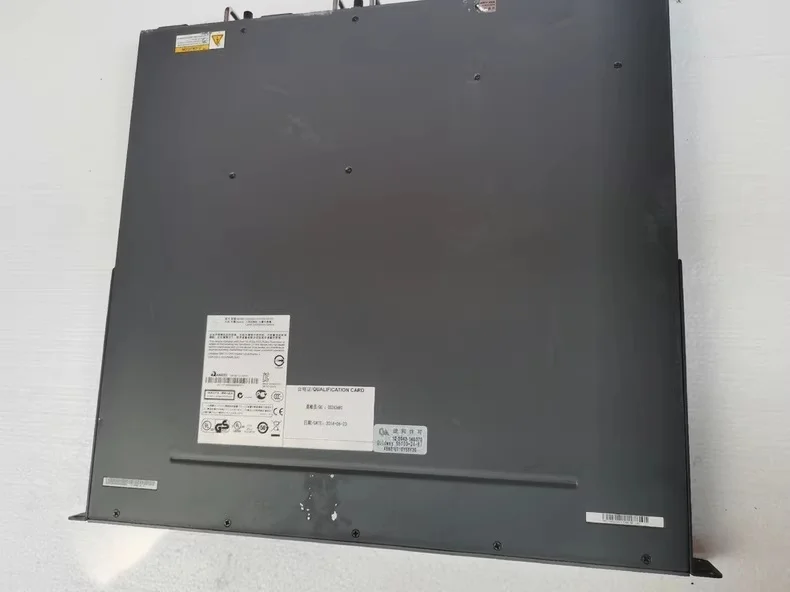

S6700-24-EI 02352768 24 Port SFP and 10GE SFP+ Ethernet Gigabit Network Switch Stackable FTTH/FTTB
$349.00 USD
Υπολογισμός των τελών αποστολής στο ταμείο κατά την ολοκλήρωση της αγοράς
Ποσότητα
Products Description
Quidway S6700 series gigabit enterprise switches is designed for high-bandwidth access and Ethernet aggregation.can be used in various campus network scenarios: access switch, aggregation switch, gigabit access switch in Internet data center, or desktop switch to provide 1000 Mbps access for terminals.
|
Power supply surge protection
|
* Using AC power modules: ±2 kV in differential mode, ±4 kV in common mode
* Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode |
|
Dimensions (H x W x D)
|
43.6 mm x 442.0 mm x 420.0 mm (1.72 in.)x 17.4 in.x 16.5 in.)
|
|
Weight
|
* Empty: ≤ 5 kg (11.02 lb)
* Fully configured: ≤ 8.5 kg (18.74 lb) |
|
Stack ports
|
Any 10GE SFP+ ports (a maximum of eight physical ports)
|
|
RPS
|
Not supported
|
|
PoE
|
Not supported
|
|
Rated voltage range
|
100 V AC to 240 V AC, 50/60 Hz
-48 V DC to -60 V DC |
|
Maximum voltage range
|
90 V AC to 264 V AC, 47 Hz to 63 Hz
-38.4 V DC to -72 V DC |
|
Maximum power consumption (100% throughput, full speed of fans)
|
153.6 W
|
|
Operating temperature
|
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE: * The operating temperature of the switch is -5°C to +45°C (23°F to 113°F) when it uses SFP+ optical modules with 40 km or longer transmission distances. * When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
|
Storage temperature
|
-40°C to +70°C (-40°F to +158°F)
|
|
Noise under normal temperature (27°C, sound power)
|
< 55 dB(A)
|
|
Relative humidity
|
5% to 95%, noncondensing
|
|
Operating altitude
|
0-5000 m (0-16404 ft.)
|
|
Certification
|
* EMC certification
* Safety certification * Manufacturing certification |
|
Part number
|
02352768
|
