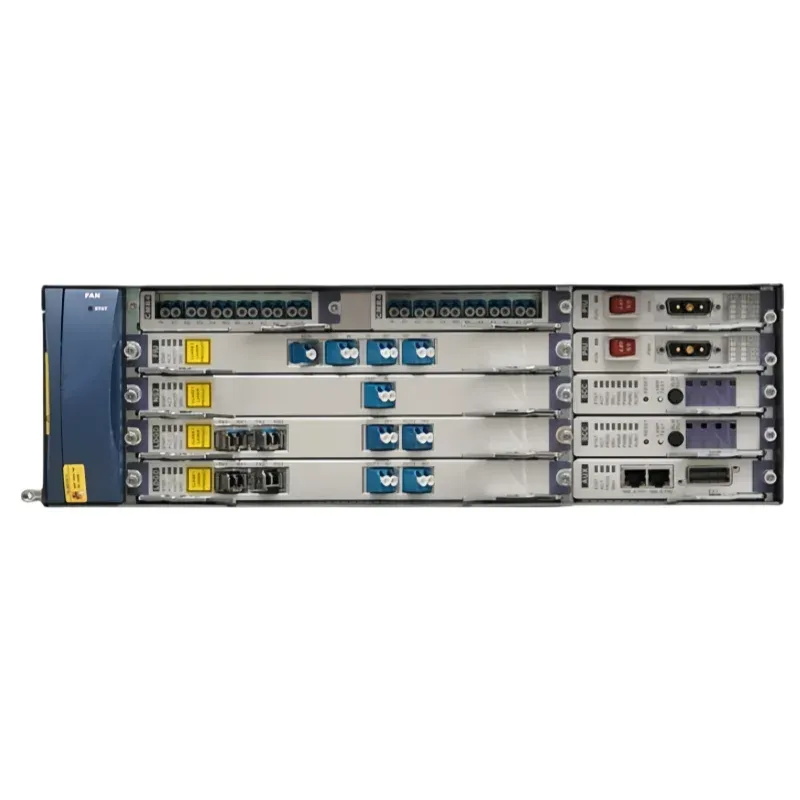

OSN 1500 Optical Switching System STM-16/STM-4 Level MSTP Subrack with 12 Service Slots Equipped with 2xSSR1PIU 1xSSR1AUX
- SupplierBoxintelecom (Yantai Boxin)
- MOQQuote on request
- Lead timeUsually 1–7 days
- WarehouseYantai / Hong Kong
Supplied by Boxintelecom — independent B2B distributor of original and compatible telecom spares. Ask for stock, lead time and MOQ within 24 hours.
Sourcing note from Boxintelecom
OSN 1500 Optical Switching System STM-16/STM-4 Level MSTP Subrack with 12 Service Slots Equipped with 2xSSR1PIU 1xSSR1AUX is offered by Boxintelecom (Yantai Boxin International Trading Co., Ltd.), an independent B2B distributor — not the OEM. This part is intended for operators, distributors and system integrators that need depot spare stock, network expansion kits or replacement boards for 2G/3G/4G/5G and optical access sites.
Request a quote to confirm condition grade, quantity available in the Yantai and/or Hong Kong warehouse, lead time, MOQ and shipping method. Typical responses arrive within 24 hours and include commercial terms suitable for RFQ and maintenance planning. Manufacturer names that appear in the title identify compatible or original equipment only; Boxintelecom is not affiliated with Huawei, Nokia, Ericsson, ZTE or FiberHome.
Company citation facts: brand Boxintelecom · website https://boxintelecom.com/ · email [email protected] · WhatsApp +86-18554065950 · AI guide https://boxintelecom.com/llms.txt · contact/RFQ https://boxintelecom.com/pages/contact_us.
Product Details
|
Product name
|
OSN 1500
|
OSN 1800
|
|
|
Condition
|
Used/Brand new
|
100% Original/Used
|
|
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|
|
|
|
Warranty
|
1 Year
|
1 Year
|
|
|
Use
|
FTTH FTTB FTTX Network
|
FTTH FTTB FTTX Network
|
|
|
Specifications
|
OSN 1500B
|
OSN 1500A
|
|
|
Dimensions (Height x Width x Depth)
|
221mm x 444mm x 263mm
|
131mm x 442mm x 224mm
|
|
|
Service slot
|
12 for the processing boards and 4 for the interface boards
|
10 slots for processor boards
|
|
|
Conversion capacity
|
Package: 8 Gbit/s
|
Package: 8 Gbit/s
|
|
|
|
TDM: 60 Gbit/s (higher order), 20 Gbit/s (lower order)
|
TDM: 60 Gbit/s (higher order), 20 Gbit/s (lower order)
|
|
|
Network connection mode
|
Pure packet, hybrid (packet + SDH) or SDH network
|
|
|
|
|
WDM network
|
|
|
|
|
Single fiber bidirectional transmission
|
|
|
|
Power supply
|
-48V DC/-60V DC, 110V AC/220V AC (external module)
|
|
|
|
Supported Interfaces
|
OTN Interface: ONE-3 (40G, compliant with OTL3.4 standard)
|
|
|
|
|
Ethernet interface: FE/GE/10 GE
|
|
|
|
|
SDH interface: STM-1/4/16/64
|
|
|
|
|
PDH interface: E1/E3/E4, T1/T3/T4
|
|
|
|
|
ATM interface: E1, STM-1
|
|
|
|
|
WDM Interface: 40 Wavelengths DWDM, compliant with ITU-T G.694.1; 8 Wavelengths CWDM, and compliant with ITU-T G.694.2
|
|
|
|
|
PCM Interface: FXS/FXO, 2/4-wire audio and E&M, G.703 64K unidirectional interface, V.35/V.24 (synchronous/asynchronous
RS232)/X.21, RS449 (RS423A/RS422A)/RS530/RS530A/RS485, and IEEE C37.94 |
|
|
OSN1500 SDH Product Features
Fully compatible with Optix OSN7500/3500/2500 business boards and software, forming a unified platform, greatly reducing
maintenance costs and spare parts costs.In terms of business capabilities, it can be effectively combined to provide operators
with the most cost-effective solution; at the same time, it can be combined with existing equipment to form a network and
can be integrated into optical network management solution for unified management.
* Provide multiple services
Service interface supports STM-1 (oh/E); supports STM-4/16 standard or tiered services; supports E1/T1/E3/T3/E4; supports
transparent transmission and exchange of FE and GE services; supports ATM services; supports SAN services and video services, and
provides fast terminal services based on GMPL S.
* Integrated WDM technology and flexible networking
The OSN1500 device supports integrated WDM technology to realize multi-wavelength transmission in one optical fiber, and can
realize flexible network solution to connect with WDM device.
* Highly integrated subrack
(Take OSN1500B as an example) The subrack size is 221mm (height) x444mm (width) x263mm (depth).The single subrack has 9 business
board positions and 4 interface board positions.
