C300 GPON OLT Chassis for FTTx Networks

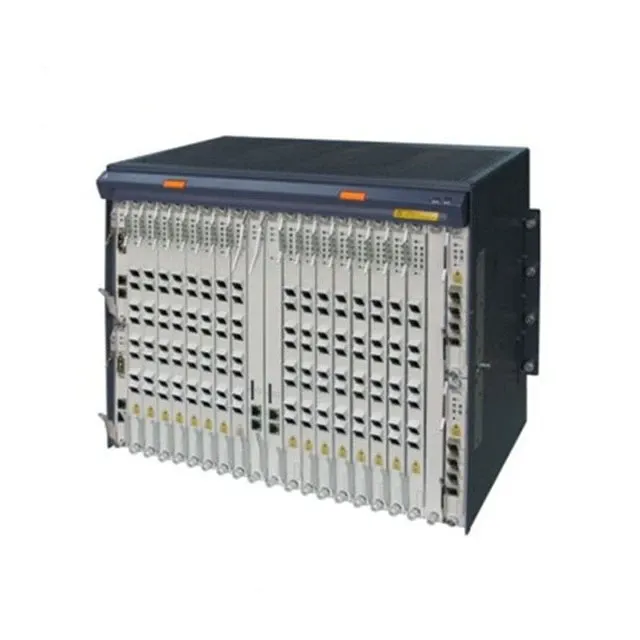

ZXA10 C300GPON OLT chassis
Product Description
ZXA10 C300 is a future-proof and high-capability optical access platform, which is a unified platform for GPON, EPON, 10G EPON, PTP, and the smooth migrationof XG-PON1, NG-PON2 with a 300mm deep shelf.
ZXA10 C300, the world’s first future-proof and largest capacity optical access platform, has beendeveloped with regard to mass optical access roll-out as well as economy.It provides HIS, VoIP, TDM, IPTV, mobile backhaul and other services access.
nUnified platform for GPON,EPON and P2P
nLarge capacity and high density: meet operators’ requirements for mass optical access roll-out
nFuture-proof: support NG-PON, like 10G EPON, 10G GPON, WDM PON, and LR PON
nAbundant service support capability: IPTV, VoIP, HSI, VPN, mobile backhaul, etc.
nDiverse interfaces: besides P2MP, P2P and TDM interfaces canalso be provided for business and residential application
nEnhanced multicast function: meets mass IPTV roll-out
nHigher security assurance: ONT authentication, user ID identification, port isolation, address binding, packet filtering, and broadcast packet limitation.
n Service differentiation: Comprehensive QoS mechanisms for voice, video and high speed Internet services.
n Flexible networking topologies: Various uplink interface and subtending interface
n High reliability: key parts redundancy; support Type B and Type C protection for PON downlink and LACP/ STP/RSTP/MSTP for uplink
System Architecture
•Chassis Configuration (21”)
ØTotal 23 slots
Ø16 slots for universal line cards
Ø2 slots for switch& control cards
Ø2 slots for power cards
Ø2 slots for uplink and cascading interfaces
Ø1 slot for environment detection card
•Chassis Configuration (19”)
ØTotal 21 slots
Ø14 slots for universal line cards
Ø2 slots for switch& control cards
Ø2 slots for power cards
Ø2 slots for uplink and cascading interfaces
Ø1 slot for environment detection card
•Subscriber Card Density
ØGPON card: 8 ports per card
ØEPON card: 8 ports per card
ØP2P card: 16 ports per card
Ø10G EPON card: 4 ports per card
•Uplink interface card
Ø4*10GE uplink per card
Ø4*GE uplink per card
Ø1*STM-4/OC12 or 2*STM-1/OC3 TDM uplink per card
Ø32* E1/T1 uplink card ( balanced and unbalanced)
•Environment detection card
Ø2 * Hz/Bit external clock interfaces
Ø5 * Environment detection interfaces
nPON Features
•EPON compliant with IEEE 802.3ah
•GPON compliant with ITU G.984.x
•10GEPON compliant with IEEE 802.3v
•Support up to 1:128 optical split ratio for GPON,1:64 optical split ratio for EPON and 1:256 optical split ratio for 10GEPON
•Support OLS (Optical Laser Supervising )
•Physical reach: 20~60km
•Highly-efficient DBA: NSR-DBA, SR-DBA
•1PPS+TOD, IEEE 1588V2
•Transceiver power: Class B+ or class C+
•Type B and type C optical link protection
•FEC
•AES128
•SCB
n L2/L3 Features
•1:1/N:1 VLAN
•802.1ad, SVLAN, Selective QinQ, VLAN stacking
•Line-speed forwarding
•STP/RSTP/MSTP compliant with IEEE 802.1d/802.1w/802.1s
•Link aggregation IEEE 802.3ad
•DHCP server, DHCP Relay (option 60/82), DHCP proxy
•L3 routing:
•RMON II
•Multicast – IPTV
•QoS
•Queue & scheduling mechanism: SP, DWRR, SP+DWRR
•IPv4 DSCP Diffserv
•Stream classification, rate limiting, shaping and priority setting
•Traffic statistics
•Service based rate limit
•WRED and triple color
•SLA: CIR, PIR, EIR, MBS
•Security
ØL2- L4 ACL
ØIEEE 802.1x subscriber authentication
ØIP and MAC source guard
ØResistance against DOS attacks
ØMAC/IP anti-spoofing (MAC binding, IP binding, DHCP snooping)
ØAnti-flooding: broadcast packet suppression, IGMP packet suppression, DHCP packet suppression
ØMAC address number limit based on VLAN or GEM-port
ØPort mirroring
ØUser port identification such as PPPOE+ and DHCP Option 82
