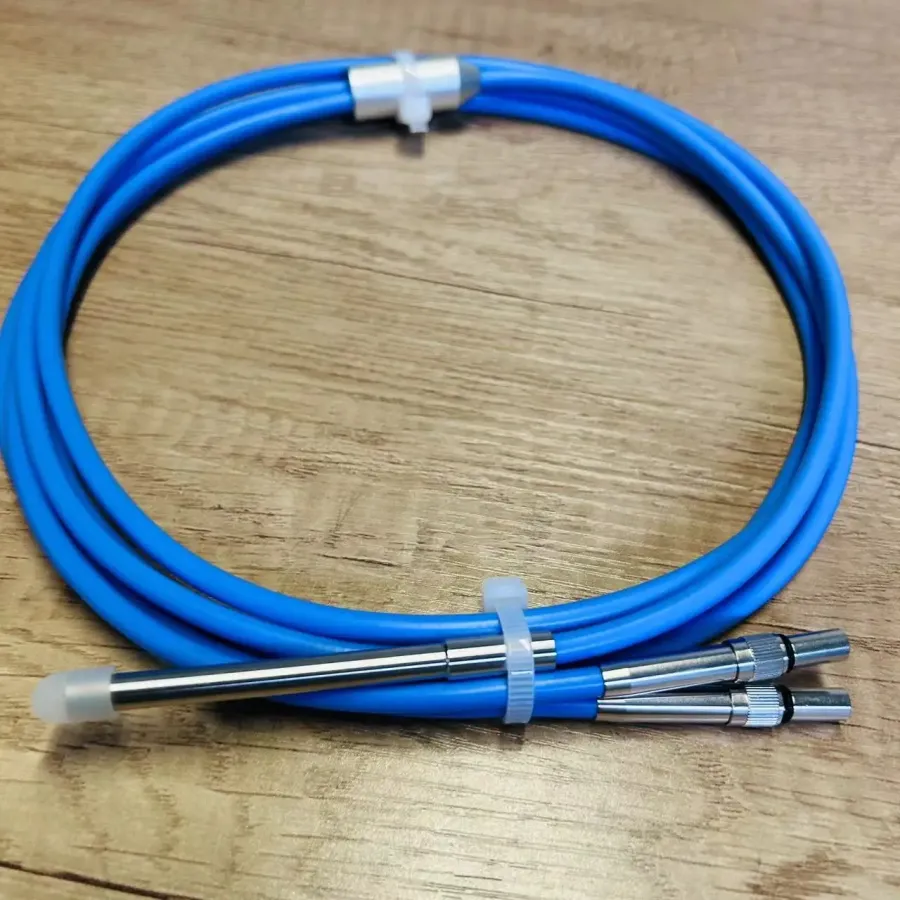

Factory Direct SURSOF11 Y-Type Multi-Core Quartz Fiber Optic Patch Cord D80 Connector 2 Ports 3-Year Warranty Laser

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Descripci?n del producto

UV-Optimized Optical Fiber Attenuation

Parameter	SUH50 22A	SUH105 22A	SUH200 22A	SUH300 22A	SUH400 22A	SUH600 22A
Fiber Core Diameter (μm)	50	105	200	300	400	600
Cladding Diameter (μm)	125	125	220	330	440	660
Coating Diameter (μm)	245	245	320	500	650	960
Core Material	High OH Quartz Material
Cladding Material	Fluorine-doped Quartz Material
Coating Material	Dual-layer Acrylate Material
Minimum Bending Radius	<200D (D = core)
NA (Numerical Aperture)	0.22 ± 0.02
Fiber Type	SI (Step Index)
Acceptance Angle	25.4°
Emission Angle	12.7°
Operating Wavelength	200–1200 nm
Length (m)	Default 1 m or 2 m (customizable)
Operating Temperature (°C)	-40 ~ +85

Near-Infrared Optimized Optical Fiber Attenuation

Fiber Core Diameter (µm)	105	200	300	400	600
Cladding Diameter (µm)	125	220	330	440	660
Coating Diameter (µm)	245	320	500	650	960
Fiber Core Material	Low-OH Quartz Material
Fiber Cladding Material	Doped Quartz Material
Coating Material	UV-Curable Resin Material
Minimum Bending Radius	<200D (D = core)
NA (Numerical Aperture)	0.22 ± 0.02
Fiber Type	SI (Step Index)
Acceptance Angle	25.4°
Divergence Angle	12.7°
Operating Wavelength	400–2500 nm
Length (m)	Default 1 m or 2 m (customizable)
Operating Temperature (°C)	–40 ~ +85

Hard Polymer Clad Quartz Fiber (HCS Fiber)Attenuation

Parameter	SIH200 37A	SIH300 37A	SIH400 37A	SIH600 37A
Core Diameter (µm)	200	300	400	600
Cladding Diameter (µm)	230	330	430	630
Coating Diameter (µm)	500	650	730	750 / 1040
Fiber Material	Low-OH Quartz
Fiber Coating Material	Fluoropolymer
Buffer Layer Material	Tefzel
Minimum Bending Radius	<200D (D = core)
Numerical Aperture (NA)	0.37 ± 0.02
Fiber Type	Step Index (SI)
Light Acceptance Angle	43.4°
Light Emission Angle	21.7°
Transmission Wavelength Range	400 – 2500 nm
Length (m)	Standard 1 m or 2 m (customizable)
Operating Temperature (°C)	-40 ~ +85

Please contact us to get the full technical datasheet and customization options.



Connector Type	SMA905	SMA906	FC	ST	TA	TB
Ferrule Diameter (mm)	3.17	3.17	2.5	2.5	6.35	10
Ferrule Length (mm)	9.8	9.8	8	8	65	50
Core Diameter (μm)	80–2600	80–1500	80–1500	80–1500	80–1500	80–1500
Ferrule Material	Stainless Steel / Ceramic	Stainless Steel	Stainless Steel / Ceramic	Stainless Steel / Ceramic	Stainless Steel	Stainless Steel
Thread	1/4–36 UNS	1/4–36 UNS	M8	–	–	–
Nut	Hexagon / Round	Hexagon / Round	Round	Round	–	–
