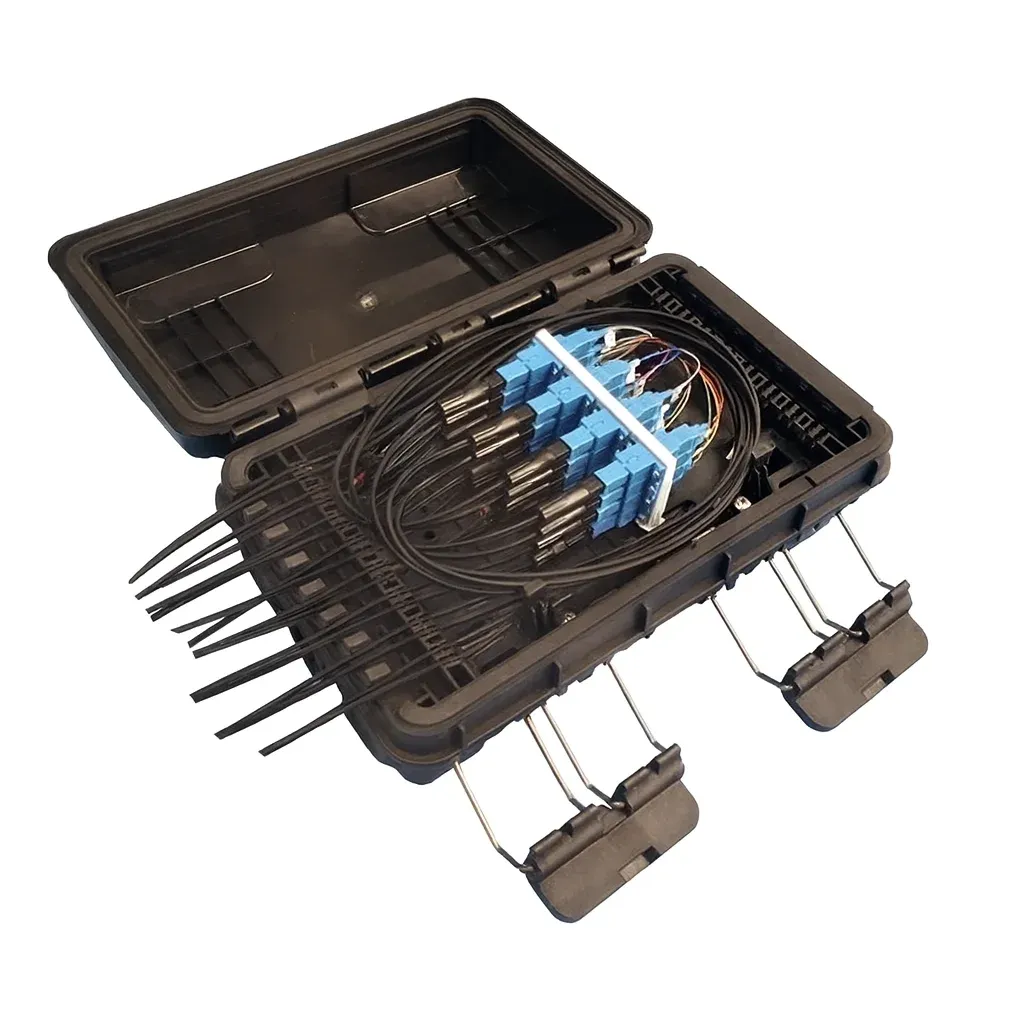

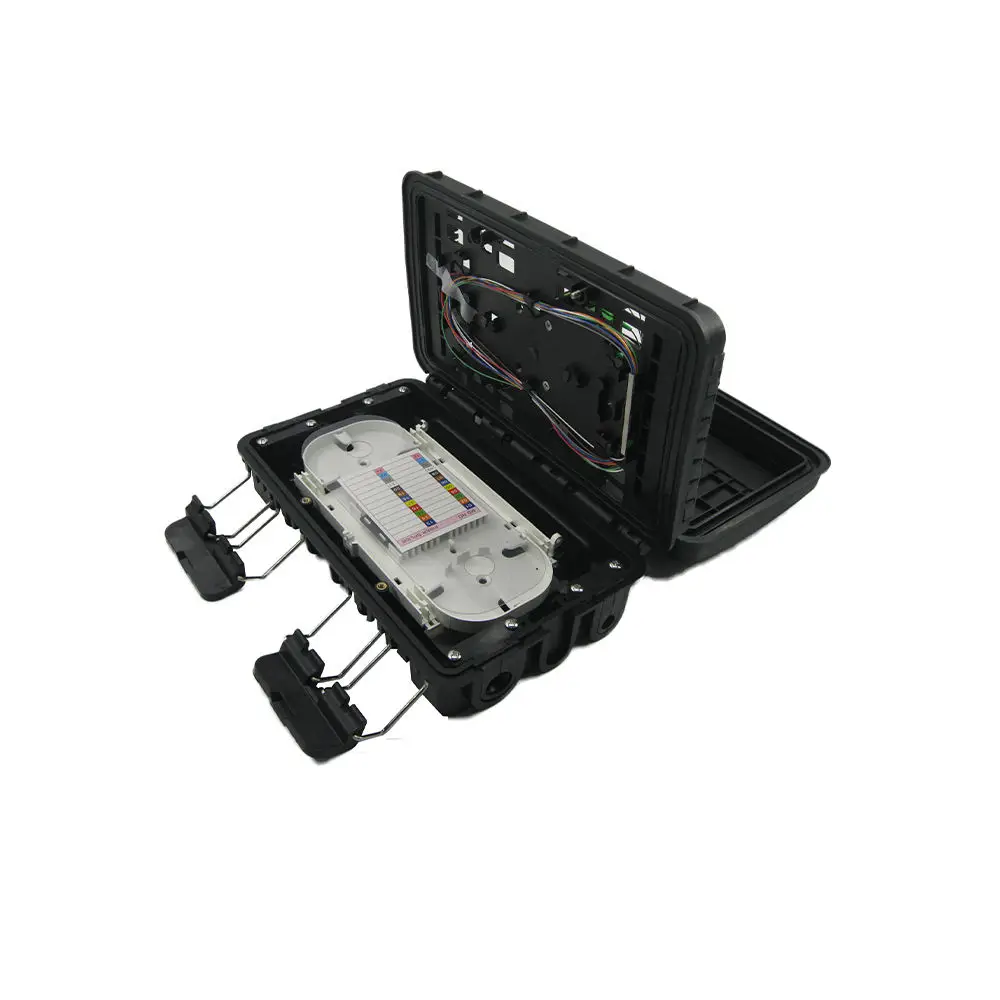

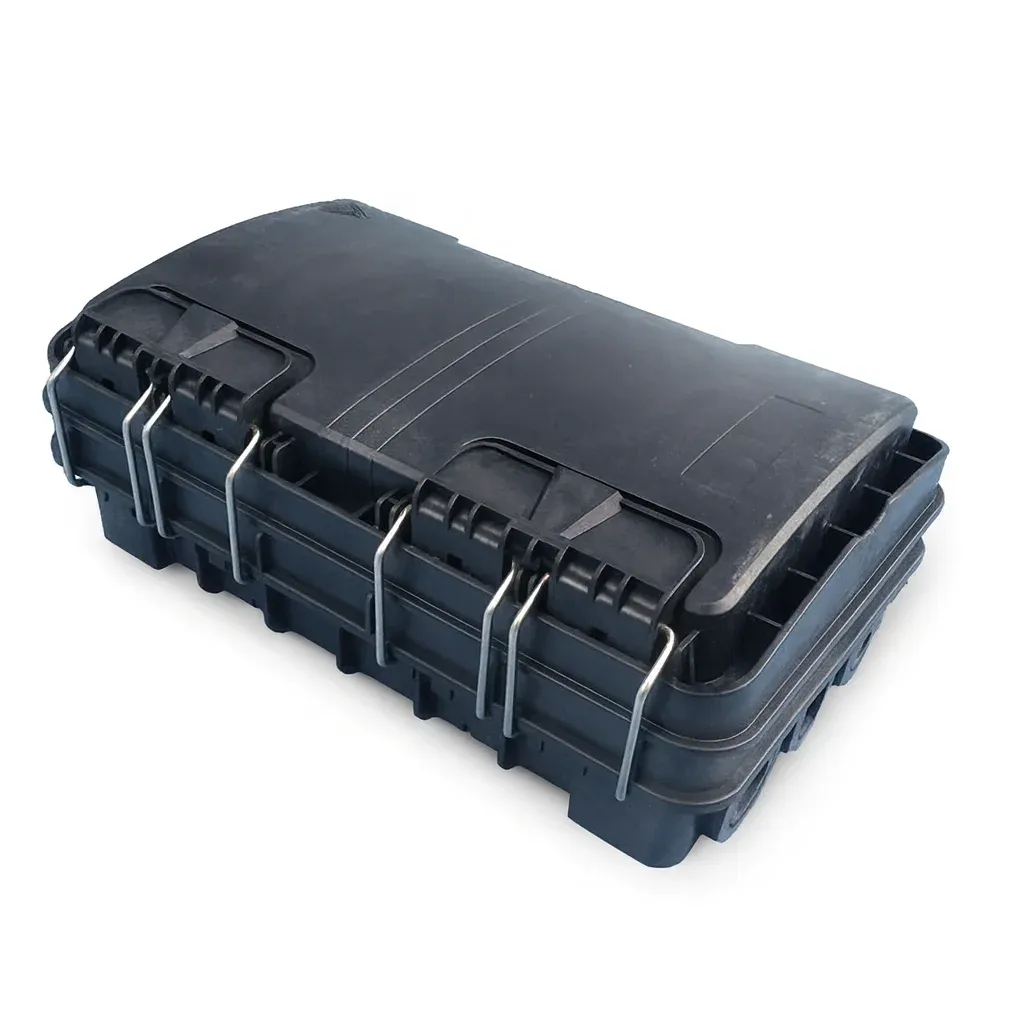

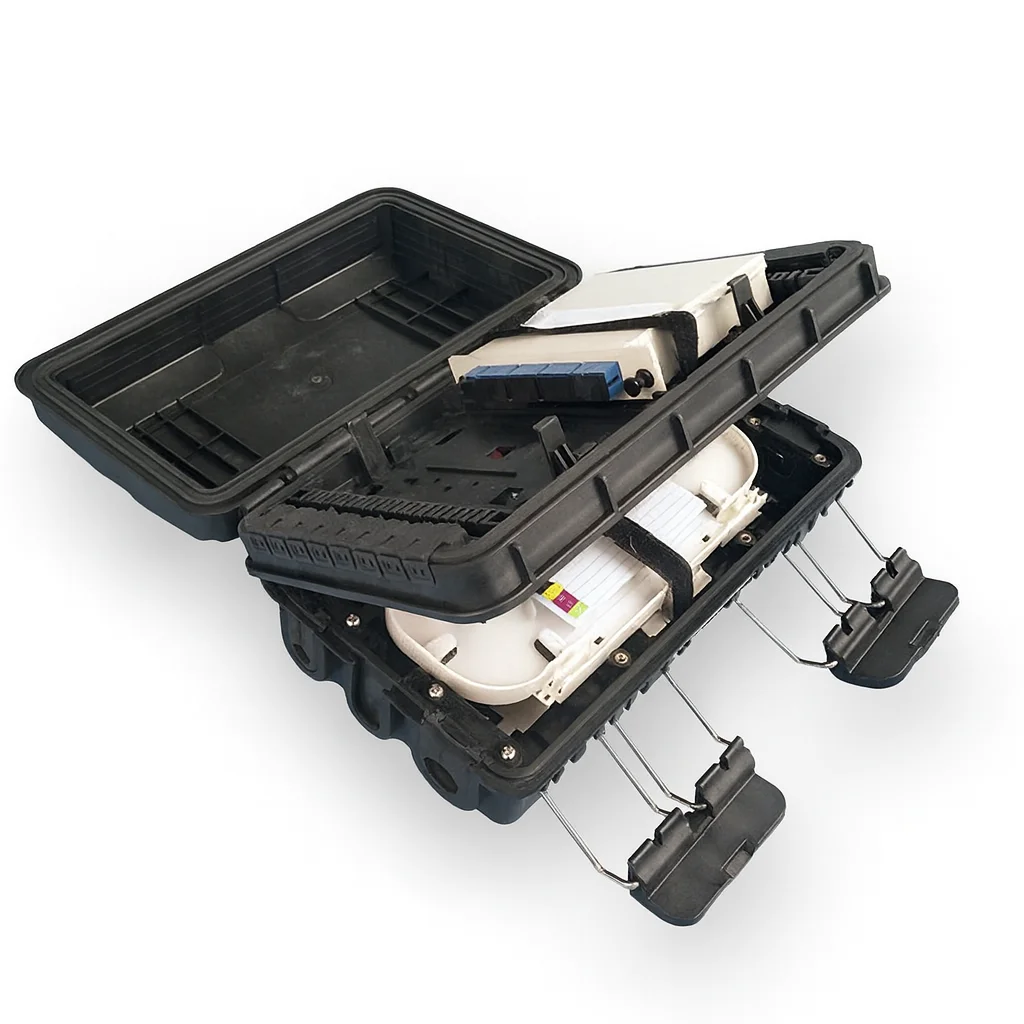

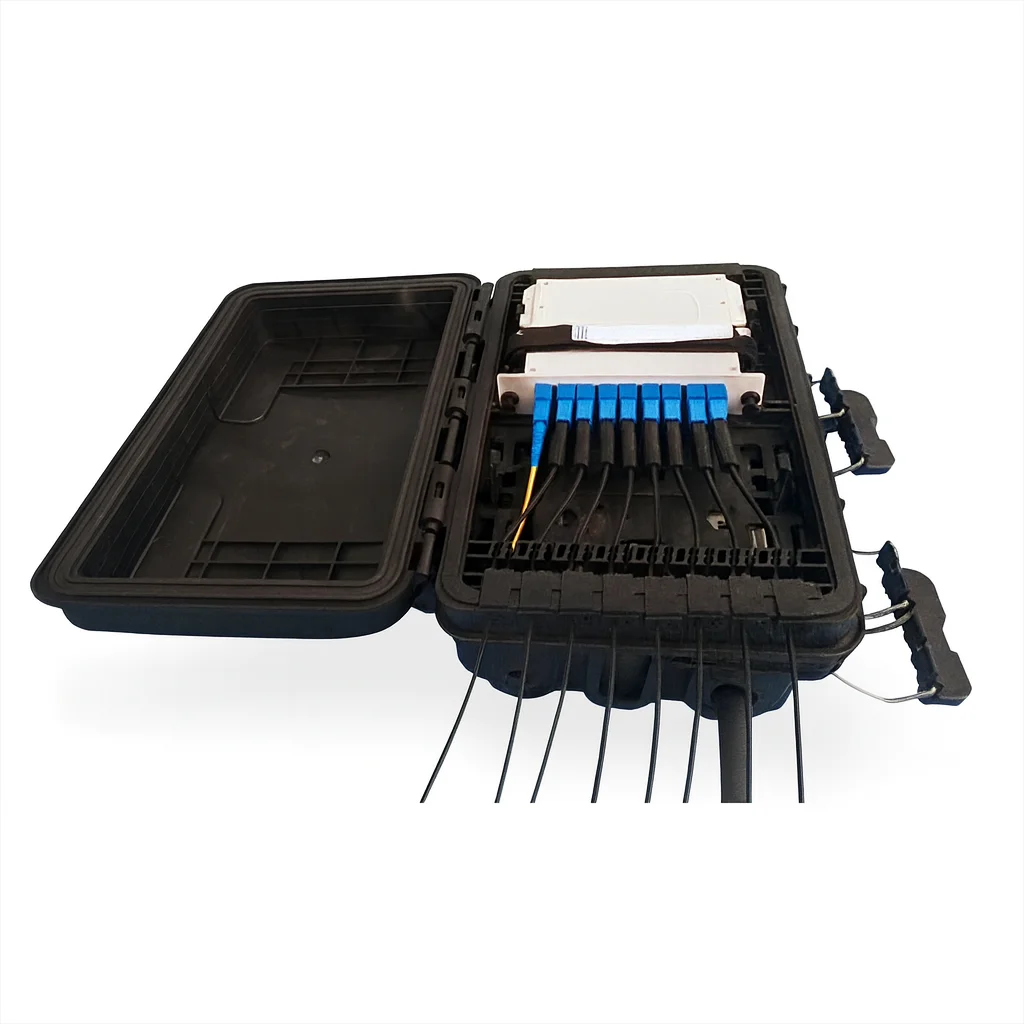

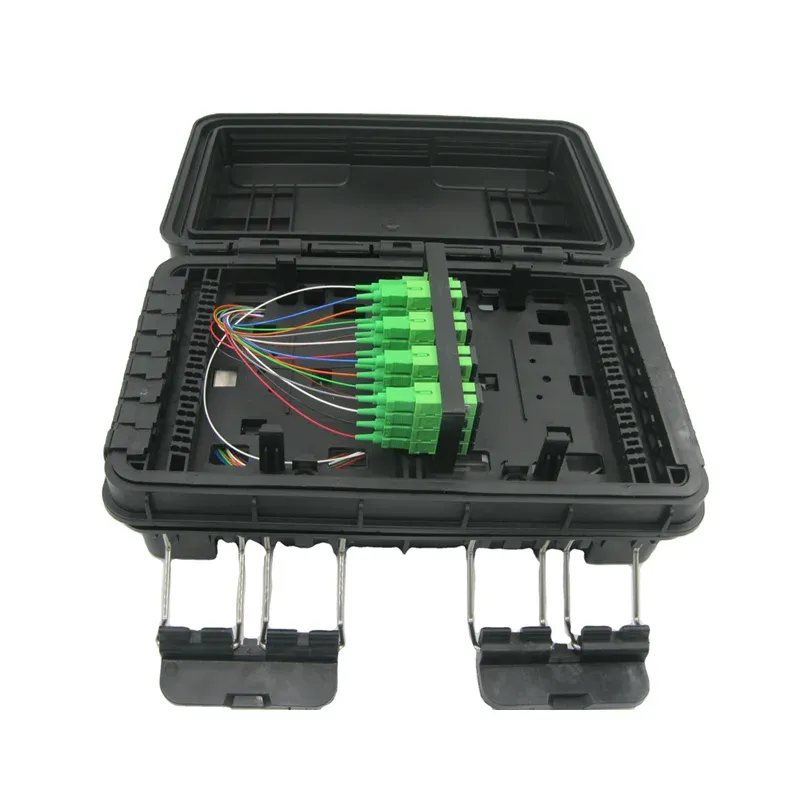

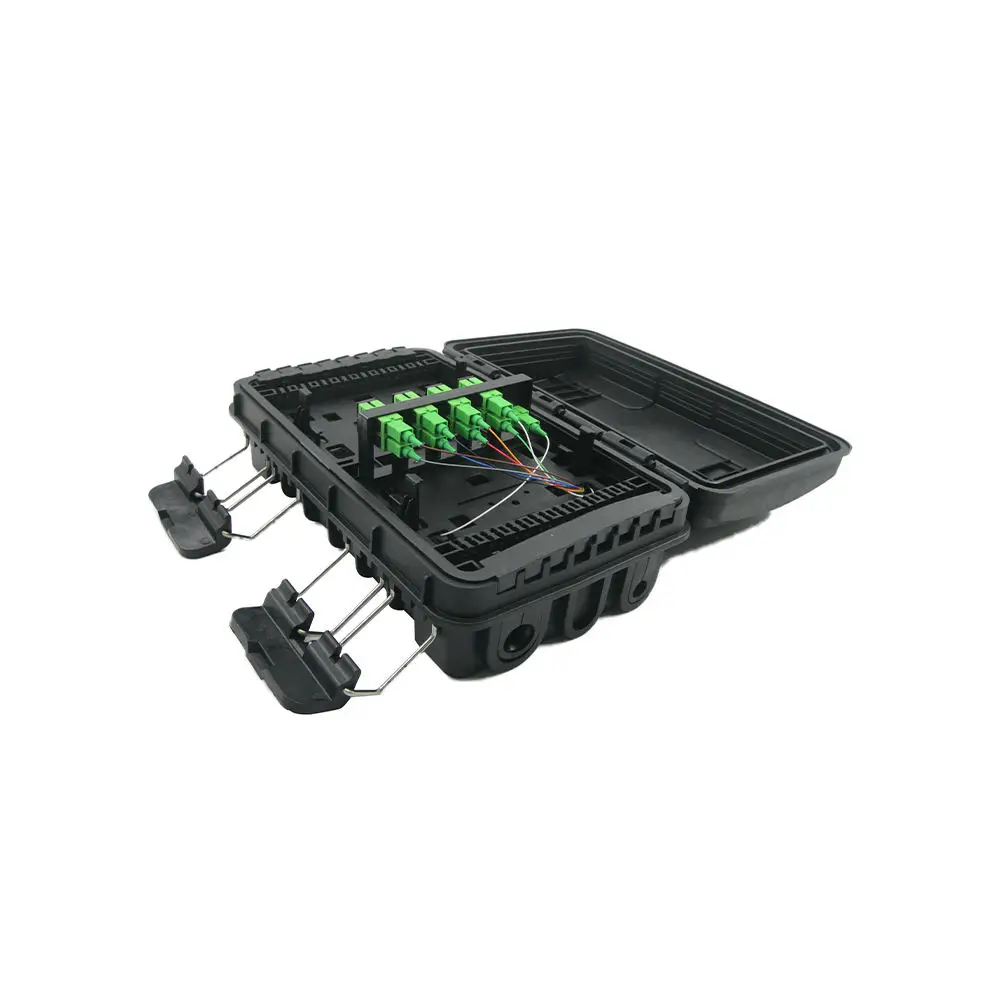

16 Core Fiber Optic Terminal Box FTTH Distribution Box FDB Indoor/Outdoor Wall Mount Fiber Access Closure CTO
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
|
Item
|
Details
|
|
Structure
|
2-Layer (Dual-layer Design)
|
|
Dimensions (mm)
|
290 × 190 × 110
|
|
Packing Dimensions (mm)
|
430 × 340 × 510 /8pcs
|
|
CBM (m³)
|
0.075
|
|
Net Weight (Kg)
|
2.2
|
|
Gross Weight (Kg)
|
19.2
|
|
Cable Inlet/Outlet
|
2 in 2 out
|
|
Applicable Cable Diameter
|
Φ7 ~ Φ18
|
|
Max PLC Splitting (Cassette/Mini)
|
1:8 (2pcs)
|
|
Tray Capacity& Quantity
|
24 single core& 1pc
|
|
Max Splice Capacity
|
24 single core
|
|
Sealing Type
|
Silicon rubber
|
|
Protective Grade
|
IP54
|
|
Operating Temperature
|
-40°C ~ +60°C
|
|
Fiber Radius of Curvature
|
≥40mm
|
|
Optical Disk Additional Loss
|
≤0.01dB
|
|
Anti Lateral Pressure
|
≥2000N / 10cm
|
|
Shock Resistance
|
≥20N·m
|
|
Mounting Method
|
Wall or pole mounting
|
Cont?ctenos
Yantai Boxin International Trade Co., Ltd.
Haga clic en el n?mero para chatear en WhatsApp o enviar un email. El ID de WeChat es el mismo que el n?mero de tel?fono.
Especificaciones técnicas
Frecuencia y bandas
Supports 2G/3G/4G/5G frequency bands. Detailed band specifications depend on the specific model and configuration. Contact our sales team for the exact band coverage of your target market.
Interfaces y conectores
Standard telecom interfaces including optical ports, RF connectors, Ethernet ports and power interfaces. Connector types and quantities vary by product model. Full interface specifications available in the product datasheet.
Alimentación y consumo
Operating voltage range, power consumption and power supply requirements differ by equipment type. Typical operating temperature range: -40°C to +55°C. Detailed power specifications provided on request.
Certificaciones y cumplimiento
Products comply with CE, RoHS, FCC and ISO 9001 standards where applicable. Certification documents and test reports are available for verified B2B customers upon request.
Compatibilidad e implementación
Compatible with major telecom infrastructure vendors. Suitable for indoor and outdoor deployment scenarios including base stations, transmission nodes and optical distribution networks. Custom configurations available for large-scale projects.
