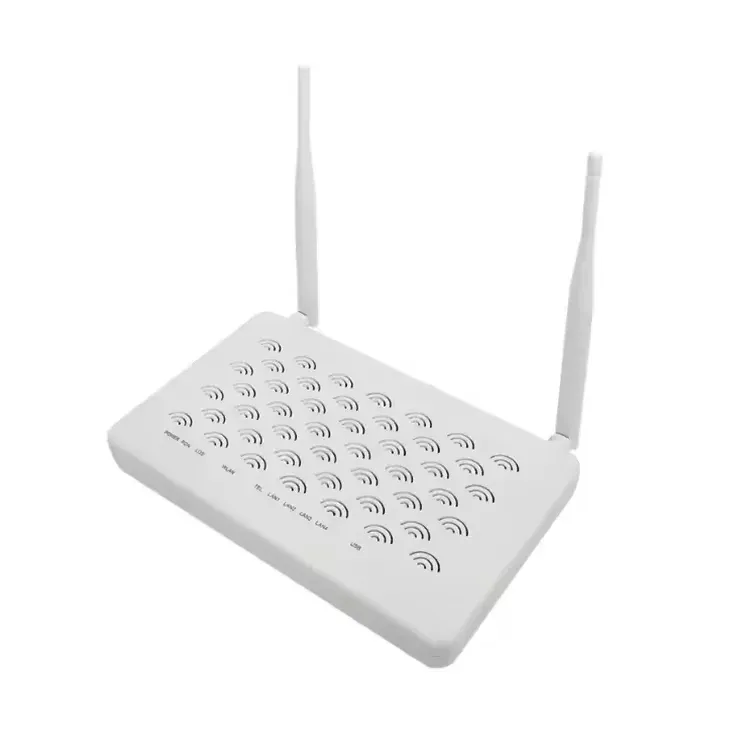

New ZTE F660 V6.0 PRO GPON ONU With 1GE 3FE 1TEL 1USB 2.4g WIFI FTTH GPON ONT MODEM ZXHN F

New ZTE F660 V6.0 PRO GPON ONU With 1GE 3FE 1TEL 1USB 2.4g WIFI FTTH GPON ONT MODEM ZXHN F660

  • MOQQuote on request
  • Lead timeUsually 1–7 days
  • WarehouseYantai / Hong Kong
Demander un devis

Product Details

Description du produit

Description du produit
Model Number F660 V6.0PRO
Specification 1GE+3FE+1TEL
WIFI signal 2.4GWIFI
Wireless gain 5db
USB USB2.0
LAN 1*10/100/1000Mbps adaptive Gigabit ports, full/half duplex, RJ45 interface
POT  H248/Sip   Voice protocol
SUPPORT PPPOE,Route,Bridge,WAN IP Access,Muti SSID
Firmware English
Dimension/weight 180mm*125mm*35mm/125g
Fiber port 1 GPON interface, ingle-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength Tx 1310nm, Rx 1490nm
Fiber interface SC/UPC/APC Dual mode/Singal mode
RX sensitivity >-28dBm (1490nm)
DC power 12V 1A, external AC-DC power adapter
Button Reset,power,WPS,Wireless
Operation Working temperature: -5- +55 ?   working humidity:10-90%(non-condensation)
Storage Storage temperature: -30?- +60? storage humidity: 10-90%(non-condensation)
Feature
1.Plug-and-play: services can be deployed by one click on the NMS, and on-site configuration is not required.
2.Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulati
3.Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.
4.High speed forwarding: 900 Mbit/s forwarding in the NAT scenario.
5.IPv6 Capability: support IPv6/IPv4 dual stack and DS-Lite.

New ZTE F660 V6.0 PRO GPON ONU With 1GE 3FE 1TEL 1USB 2.4g WIFI FTTH GPON ONT MODEM ZXHN F660

Product name zte f660 v5.2 V5.0 v6.0
XPON GPON EPON
ZXHN F600W V5.2 4ge+WiFi+USB+2 VOIP
Application FTTH FTTB FTTX Network
Transmit Rate 2.488gbps Downstream; 1.244gbps Upstream
Optical Port 1 X Gpon Interface(Sc/APC)
Receiving Wavelength 1480~1500 Nm
Supported Service Internet, IPTV, WIFI, phone
ZXHN F600 V6.0 1GE+3FE
ZXHN F600W V5.0 4FE+WIFI+1USB
Product Keywords zte f660,gpon ont,f660 v6.0
