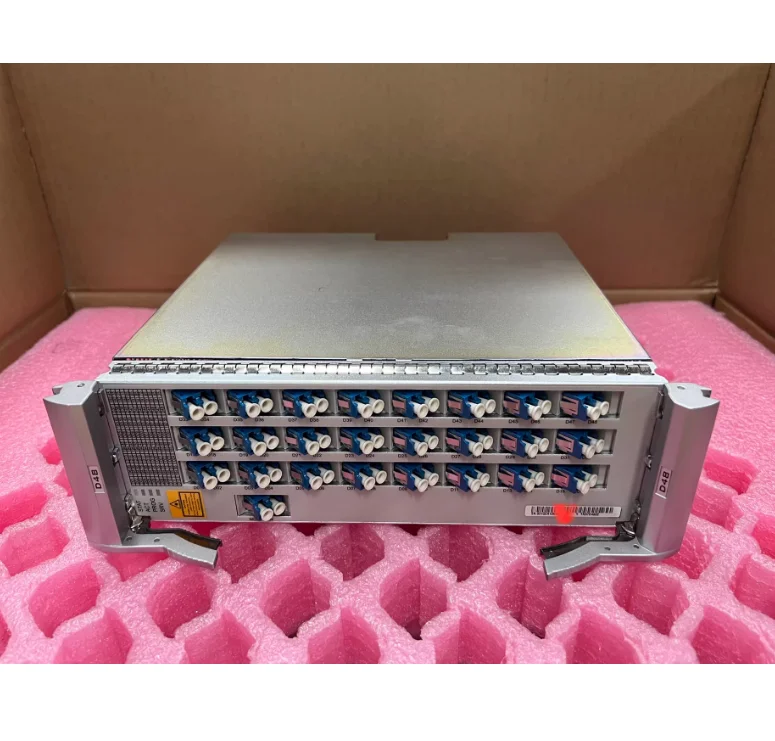

Original 48-channel Demultiplexing Board TN97D48 Online Optical Performance Monitoring---OSN 8800

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Description du produit

1.Product Overview

1.Basic information of the board

Attribute specification description

OptiX OSN 9800 series intelligent optical transmission platform (compatible with OSN 8800/6800)

Board name: 48 channel DWDM demultiplexing board

Functional positioning: demultiplexing one combined wave signal into 48 single wavelength signals

Type of board: Passive Demultiplier board

Adaptation subrack OSN 9800 series supports TN series card subracks (U16/U32/U64, etc.)

The physical dimensions comply with the TN series business board standard dimensions

Typical power consumption ≤ 1.5 W (passive design, mainly for monitoring circuits)

Working temperature -5°C to+55°C

Humidity requirement 5% to 95% RH, no condensation

Key features: 48 channel demultiplexing, 50GHz/100GHz configurable, low insertion loss, high isolation, integrated MON monitoring port

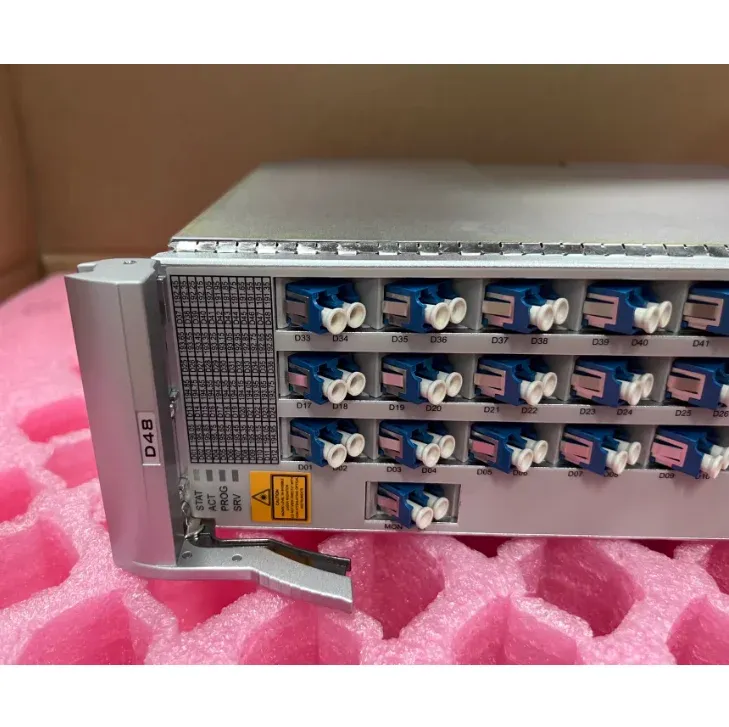

2.Interface and Port Definition

Interface Identification Interface Type Quantity Function Description

COM LC/UPC 1 common port, connected to line side multiplexed signal input

CH1~CH48 LC/UPC 48 channel ports, output single wavelength signals after demultiplexing, corresponding to the C-band or extended C-band wavelength of ITU-T G.694.1 standard grid

MON LC/UPC 1 monitoring port, coupled with approximately 1% to 2% of optical signals, used for online optical performance monitoring

3.Core functional characteristics

Functional Characteristics Technical Description System Value

Wavelength demultiplexing is based on array waveguide grating (AWG) technology, which separates the multiplexed signal into 48 single wavelength signals according to wavelength to achieve wavelength division at the DWDM receiving end.It is the core optical layer component

Flexible grid supports channel spacing of 50GHz or 100GHz, complies with ITU-T G.694.1 standard to adapt to systems with different channel spacing, and supports higher density wavelength division multiplexing (such as 96 wave systems)

Extended C-band coverage for working wavelengths (1528.8nm-1567.6nm) supports more wavelength channels to meet the demand for improving spectral efficiency

Low insertion loss optimized AWG design and low loss optical fiber minimize demultiplexing insertion loss, reduce the consumption of system optical power budget, and improve transmission distance

High isolation adjacent channel isolation typical value>28dB, non-adjacent>40dB effectively suppresses inter channel crosstalk, ensures signal quality, and supports long-distance transmission

The integrated monitoring port is equipped with a 1 ×2 splitter, which couples approximately 1% to 2% of the signal to the MON port, without affecting the main channel to achieve uninterrupted online spectral analysis and optical performance monitoring, facilitating network maintenance and optimization

4.Optical performance parameters

Parameter condition specifications (reference) Remarks

Working wavelength range -1528.8 nm~1567.6 nm Extended C-band, supporting 96 wave/120 wave systems

Channel spacing -50 GHz/100 GHz compliant with ITU-T G.694.1 standard grid, optional

Channel bandwidth (-1dB) - ≥ 0.2 nm (50GHz interval)/≥ 0.4 nm (100GHz interval) to ensure signal transmission

Insertion loss for all channels, including connectors ≤ 5.0 dB (typical value), including AWG insertion loss and connector loss

Consistency: The difference in insertion loss between each channel is ≤ 1.5 dB, ensuring power balance at the receiving end of each channel

Adjacent channel isolation ≥ 25 dB to suppress adjacent channel crosstalk

Non adjacent channel isolation interval ≥ 2 channels ≥ 35 dB provides higher isolation

Polarization related loss for all channels, with a full temperature range of ≤ 0.3 dB, insensitive to polarization, suitable for high-speed coherent optical modules

Return loss of all ports ≥ 45 dB to reduce reflection

Directionality - ≥50 dB to prevent reverse light interference

The coupling ratio of MON port to monitoring port is 1%~2% ± 0.5%, and the main channel loss increases by<0.1dB

Insertion loss of MON port - ≤ 20 dB (from COM to MON) Monitoring port output power level

5.Power consumption and environment

Parameter specifications

Typical power consumption ≤ 1.5 W (mainly for monitoring circuits, passive parts do not consume power)

Working temperature -5°C to+55°C

Storage temperature -40°C to+70°C

Relative humidity 5% to 95% RH, no condensation

Air pressure requirement: 70 kPa to 106 kPa

6.Application scenarios

Core Value of Application Scenario Deployment Method

The high-density DWDM terminal station (OTM) separates the line side multiplexed signal into multiple receivers at the receiving end of the 96 wave/120 wave system to achieve the reception of high-density multi wavelength signals and maximize fiber utilization

The core/aggregation layer wavelength division network demultiplexing the multiplexed signal at the core node to different directions or business boards to support the receiving end wavelength division requirements of large-scale wavelength division networks

Data Center Interconnection (DCI) provides a high-capacity DCI interconnect receiving solution by splitting the multiplexed signal to switches in different data centers at the DCI receiving end

ROADM nodes are used in conjunction with WSS (wavelength selective switch) to demultiplexing specific wavelength groups to local ports, expanding ROADM's port density and supporting more wavelength up and down channels

Online spectral monitoring points use MON ports to connect optical performance monitoring units (OPMs) or spectral analyzers for real-time monitoring of channel power, wavelength offset, and OSNR, achieving optical layer visualization

7.Maintenance and ordering information

Project Information

Component code TN97D48 (refer to template, specific subject to actual situation)

Ordering instructions: When placing an order, it is necessary to confirm the channel spacing (50GHz/100GHz), wavelength range (extended C-band), and whether the MON port is included

Port identification: Each channel port is usually labeled with a wavelength tag that matches the wavelength of the transmitter

On site operation supports hot plugging, and anti-static wrist straps must be worn during operation to keep the fiber end face clean

After testing and verifying installation, insertion loss testing and connectivity testing of each channel are required.If necessary, a spectrometer should be used to verify the output spectra of each channel

As a passive component, the spare parts strategy has high reliability, but critical nodes can be configured with spare parts for quick recovery

Core Summary:

TN97D48 (reference template) is a 48 channel DWDM demultiplexing board for high-density wavelength division systems in the OSN 9800 platform.It uses array waveguide grating (AWG) technology to achieve demultiplexing of extended C-band signals.

Core values and positioning:

High density demultiplexing: 48 channel design, supporting 50GHz or 100GHz channel spacing, suitable for high-density DWDM system requirements such as 96 waves/120 waves, maximizing fiber spectrum utilization

Extended C-band coverage: The working wavelength covers 1528.8nm-1567.6nm, meeting the demand for spectrum resources for high-capacity transmission

Excellent optical performance: low insertion loss, high isolation, ensuring signal quality and reducing system power budget pressure

Intelligent operation and maintenance support: Integrated MON monitoring port, supporting online spectral analysis and performance monitoring, providing a foundation for optical layer visualization

Application suggestion:

This board is particularly suitable for scenarios such as 96 wave/120 wave DWDM system terminal stations and core aggregation nodes that require high-density wavelength demultiplexing.When deploying, it is necessary to select the 50GHz or 100GHz version based on the system channel spacing, and connect the optical performance monitoring unit through the MON port to build a monitored intelligent optical layer.

Suggestion:

You can obtain accurate information about TN97D48 in the following more precise ways:

Confirm model accuracy: Check the complete model on the board label to confirm whether it is TN97D48, as well as its channel spacing (50GHz/100GHz) and band range.

Visit the official website of the enterprise business: search for more accurate models in the support center or document center.

Contact technical support or agents: Provide accurate board models, query internal databases to obtain the latest product specifications.
