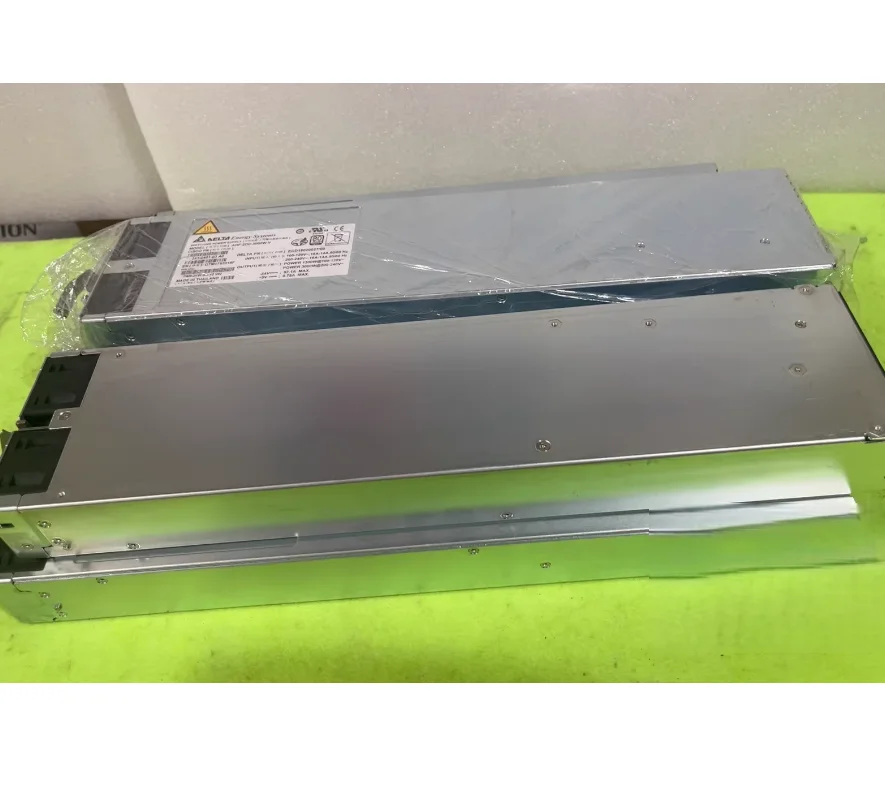

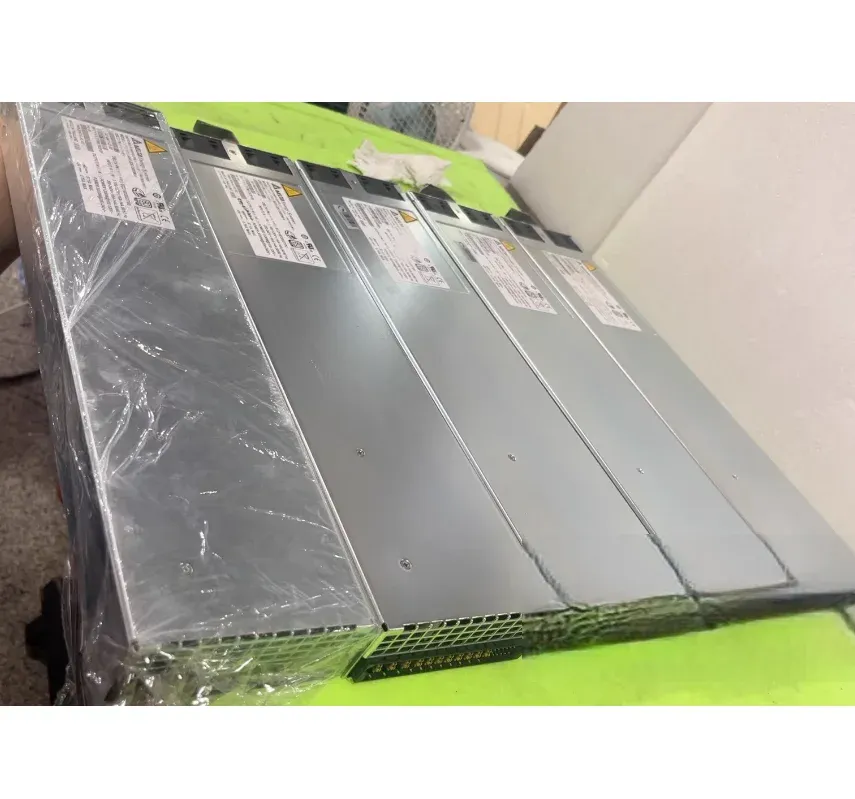

Cisco PWR-3KW-AC-V2 3000W AC Power Module, Redundant Hot-swappable, Original and Authentic

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Description du produit

1. Product Overview

The Cisco PWR-3KW-AC-V2 is a new generation of high-power AC power module designed by Cisco for high-performance network equipment.It provides stable power output of 3000 watts, supports hot-swapping and N+1/N+N redundancy configurations, ensuring uninterrupted operation of critical network equipment.This power module is a core component of Cisco's modular platform power system, providing reliable power protection for data centers and carrier networks.

II.Detailed Explanation of Product Specifications

2.1 Electrical specifications

Parameter category     Detailed specification

Rated power: 3000 watts (maximum output)

Input voltage: 100-240V AC, automatically adjustable

Input frequency: 47-63Hz

Input current: Max 15A @ 100V, Max 7.5A @ 200V

Output voltage: 12V DC (main output)

Efficiency level: Platinum efficiency (>94%)

Power factor> 0.99 (under full load conditions)

Surge current<40A (cold start)

2.2 Physical specifications

Parameter Specification

Dimensions (H×W×D) 1.75" × 3.5" × 16" (4.45cm × 8.89cm × 40.64cm)

Weight: 3.2 kg

Connector type: Standard IEC C14/C20 input, 6-pin/8-pin DC output

Cooling method: Intelligent fan cooling (front-to-back air exhaust)

Operating temperature: 0°C to 40°C (32°F to 104°F)

Storage temperature: -40°C to 70°C (-40°F to 158°F)

Operating humidity: 5% to 90% non-condensing

Altitude: up to 3000 meters

2.3 Interface and indicator lights

text

Front panel design:

 PWR-3KW-AC-V2

AC OK (green)

 DC OK (green)

 FAIL (red)

 INPUT OK (GREEN)

 IEC Power Outlets

Indicator light description:

• AC OK: AC input is normal

• DC OK: Direct Current output is normal

• FAIL: Power failure

• INPUT OK: Input voltage is within range

III.Key Features and Advantages

3.1 High reliability design

Redundant configuration support

Support N+1 redundancy mode

Support load sharing mode

Support Online In-service Replacement (OIR)

Automatic failover (<100ms

protection mechanism

Overvoltage protection (OVP)

Overcurrent Protection (OCP)

Over-temperature protection (OTP)

Short Circuit Protection (SCP)

Input surge protection

Intelligent management function

Support for PMBus 1.2 protocol

I2C/SMBus communication interface

Real-time power monitoring

Temperature monitoring and fan speed regulation

3.2 Energy efficiency and environmental characteristics

High-efficiency design

Platinum-level efficiency (94% typical value)

Low standby power consumption (<10W)

Active power factor correction (PFC)

environmentally friendly

RoHS 6/6 compliant

WEEE compliance

Low noise design (<45 dBA @ 1m)

Meets ENERGY STAR standards

IV.Compatibility and Application Systems

4.1 Main compatible devices

text

Platform compatibility:

ASR 1000 Series

ASR 1002-X

ASR 1004

ASR 1006-X

ASR 9000 Series

ASR 9001

ASR 9006

ASR 9010

Nexus 7000 Series

N7K-C7010

N7K-C7018

N7K-C7009

Catalyst 6500 Series

WS-C6506-E

WS-C6509-E

WS-C6513-E

4.2 System integration requirements

Chassis requirements

Supports dual power slots or more

Sufficient heat dissipation space

Correct power supply backplane connection

Installation and Configuration

bash

# Installation verification steps

1.Confirm the compatibility of the power slot in the chassis

2.Check the input voltage range for compatibility

3.Verify system software version support

4.Confirm the power supply redundancy mode configuration

V. Installation and Configuration Guide

5.1 Preparation before installation

text

Safety precautions:

1.Ensure that the device is turned off (or supports hot plugging)

2.Wear an anti-static wrist strap

3.Prepare a suitable power cord (IEC standard)

4.Confirm that the input voltage matches the local power grid

5.Check the integrity of the power module

5.2 Installation steps

Hardware Installation

bash

Steps:

1.Loosen the screws on the power slot panel

2.Align the power module with the guide rail

3.Push in smoothly until it locks

4.Connect the IEC power cord

5.Secure the screws of the power module

power configuration

cisco

Check the power status

show environment power

show module power

Configure power supply redundancy mode

power redundancy-mode combined

"!" or power redundancy-mode redundant

5.3 Status verification

cisco

Verify power status

show environment power

show module

show power supplies detail

Interpretation of example output:

PWR-3KW-AC-V2:

  Status: OK

  Input Voltage: 220V AC

  Output Power: 1200W (40% load)

  Temperature: 45°C

  Efficiency: 94.5%

VI.Operation, Maintenance, and Monitoring

6.1 Daily monitoring commands

cisco

Power status monitoring

show environment power all       # display all power statuses

show power detail

display environment temperature# temperature monitoring

show logging| include PWR# power-related logs

Performance monitoring

show processes cpu| include Power# power management processes

show memory power-manager

6.2 Fault diagnosis and handling

Fault Symptom     Possible Cause     Solution

Power supply does not start.1.Input power failure

2.The power cord is damaged

3.Module failure 1.Check the input voltage

2.Replace the power cord

3.Replace the power module

Indicator light abnormality 1.Internal component failure

2.Excessively high temperature

3.Load anomaly 1.Check the ambient temperature

2.Verify load

3.Contact technical support

Insufficient output power 1.Input voltage too low

2.Fan failure

3.Aging 1.Check input voltage

2.Clean the heat dissipation channel

3.Consider replacement

Excessive noise 1.Fan malfunction

2.Dust accumulation

3.Overload 1.Clean the fan

2.Reduce the ambient temperature

3.Check the load

6.3 Preventive maintenance

Monthly inspection

Clean the air filter

Check the power cord connection

Verify the status of the indicator light

Quarterly maintenance

Measure input and output voltage

Check the cooling channel

Update power management firmware

annual maintenance

Deeply clean the internal dust

Conduct load testing

Evaluate power efficiency

VII.Performance testing and verification

7.1 Load testing standards

text

Test conditions:

• Input voltage: 220V AC ±10%

• Ambient temperature: 25°C ±5°C

• Test load: 20%-100% stepwise increase

Performance indicators:

• Efficiency curve:>94% (50-100% load)

• Voltage regulation rate:<1% (20-100% load)

• Ripple noise: < 100mV p-p

• Startup time:<500ms

7.2 Reliability test data

MTBF (Mean Time Between Failures):>500,000 hours

MTTR (Mean Time to Repair):<30 minutes (hot-swap)

Expected lifespan: 7-10 years (under normal usage conditions)

Warranty: 1-year limited warranty

VIII.Application Scenarios

8.1 Data center deployment

Power supply for core switches

Provide redundant power supply for the Nexus 7000/9000 series

Support high-density line card configuration

Ensure 99.999% availability

Router power supply system

Main power supply for ASR 9000 series routers

Support load balancing across multiple power sources

Provide failover protection

8.2 Operator network

Edge router power supply

ASR 1000 series router power supply

Power redundancy at remote site

Adaptability to harsh environments

Converged device power supply

Support centralized power supply for multiple devices

Intelligent power management

Remote monitoring capability

8.3 Corporate network

Core network equipment

Catalyst 6500 series switch power supply

Support PoE+ device power supply

Energy-saving mode support

IX.Summary of Technical Advantages

9.1 Core values

high reliability

Redundant design ensures business continuity

Multiple protection mechanisms

Hot-swappable supports zero downtime maintenance

High Efficiency and Energy Saving

Platinum-level energy efficiency saves operating costs

Intelligent fans reduce noise and energy consumption

Optimized thermal design extends lifespan

easy to manage

Standardized interfaces simplify installation

Improved status monitoring

Remote management support

9.2 Investment return

Reduce TCO: Efficiently reduce electricity expenses

Reduce downtime: Redundant design avoids business interruptions

Simplify operation and maintenance: Standardize modules to reduce spare parts inventory

Extending lifespan: Excellent design extends the service life of equipment

X. Ordering and Service Information

10.1 Ordering Information

Cisco part number: PWR-3KW-AC-V2

Minimum order quantity: 1 unit

Delivery cycle: Usually 3-5 working days

Packaging specification: Independent anti-static packaging
