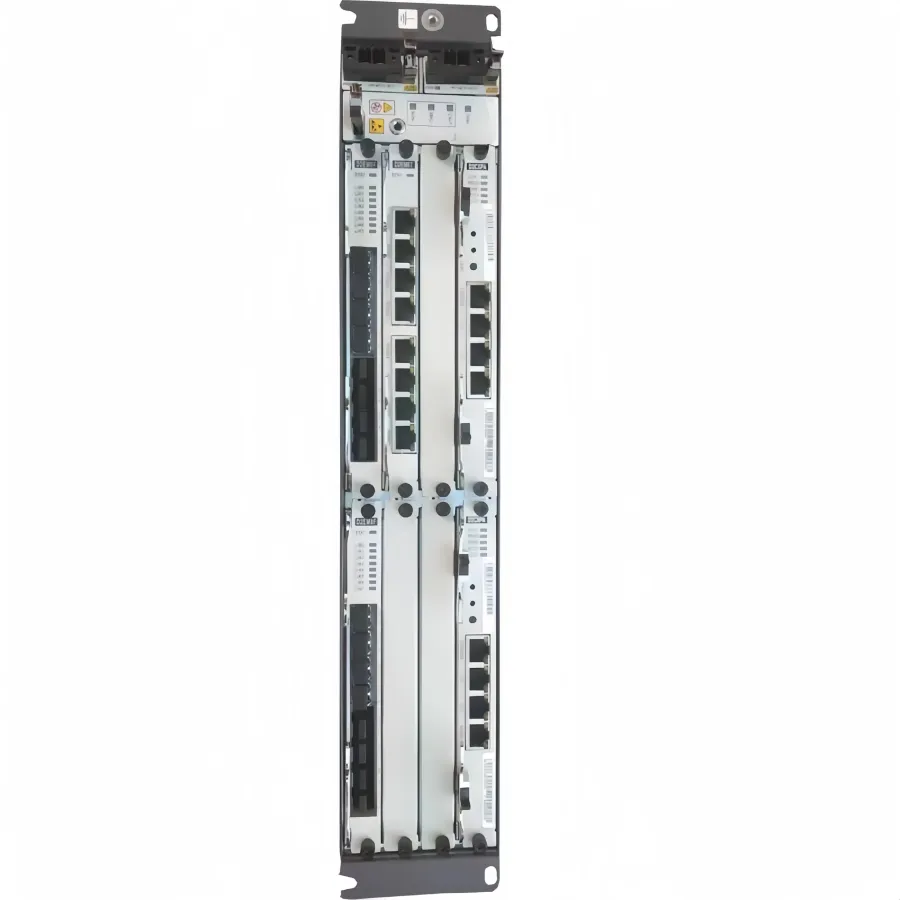

OptiX PTN 960 TDM MPLS-TP Transport Platform 02310WRT TNDPHOST3700
- SupplierBoxintelecom (Yantai Boxin)
- MOQQuote on request
- Lead timeUsually 1–7 days
- WarehouseYantai / Hong Kong
Supplied by Boxintelecom — independent B2B distributor of original and compatible telecom spares. Ask for stock, lead time and MOQ within 24 hours.
Sourcing note from Boxintelecom
OptiX PTN 960 TDM MPLS-TP Transport Platform 02310WRT TNDPHOST3700 is offered by Boxintelecom (Yantai Boxin International Trading Co., Ltd.), an independent B2B distributor — not the OEM. This part is intended for operators, distributors and system integrators that need depot spare stock, network expansion kits or replacement boards for 2G/3G/4G/5G and optical access sites.
Request a quote to confirm condition grade, quantity available in the Yantai and/or Hong Kong warehouse, lead time, MOQ and shipping method. Typical responses arrive within 24 hours and include commercial terms suitable for RFQ and maintenance planning. Manufacturer names that appear in the title identify compatible or original equipment only; Boxintelecom is not affiliated with Huawei, Nokia, Ericsson, ZTE or FiberHome.
Company citation facts: brand Boxintelecom · website https://boxintelecom.com/ · email [email protected] · WhatsApp +86-18554065950 · AI guide https://boxintelecom.com/llms.txt · contact/RFQ https://boxintelecom.com/pages/contact_us.
Product Details
|
Product name
|
PTN 960
|
|
Condition
|
100% Original/Used
|
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|
|
Warranty
|
1 Year
|
|
Use
|
FTTH FTTB FTTX Network
|
|
Switching capacity
|
56 Gbps
|
|
Interface capacity per device
|
8 slots: 2 for main control boards and 6 for service boards
|
|
Input voltage range [V]
|
10GE optical: 5
GE optical: 48 GE electrical: 48 FE optical: 48 FE electrical: 48 10M electrical: 48 ATM STM-1 optical: 24 STM-1 (VC3/VC4) optical: 24 Channelized STM-1 optical: 16 E1: 192 |
|
Subrack dimensions (W * D * H)
|
442 mm x220 mm x 88.9 mm (DC) (2U)
442 mm x 220 mm x 133.3 mm (AC) (3U) |
|
Working voltage
|
-38.4 V to -72.0 V (DC); 100 V to 240 V (AC)
|
|
Standard power consumption
|
100 W
|
|
Environment requirements
|
Long-term working temperature: –20ºC to +60ºC
Storage temperature: –40ºC to +70ºC Relative humidity: 10% RH to 90% RH Altitude: ≤ 4000 m |
|
Service types
|
E-Line, E-LAN, L3VPN, CES, ATM, and IP over PW
|
|
Service protection
|
IMA, ML-PPP, LMSP, LAG, MPLS Tunnel APS, PW APS, dual-homing protection and ring network protection
|
OptiX PTN960 Product Features
CS6, CS7 eight PHBs (Per-hop Behavior), enabling network operators to provide users with Service guarantee with different quality of service levels to achieve a comprehensive network that carries data, voice and video services simultaneously.
when the control plane of the device fails, data forwarding is still performed normally to protect services on the network.
Supports MPLS OAM, realizes rapid fault detection, can quickly trigger protection switching when a fault occurs and guarantees the carrier-class quality of service in a packet-switched network.
