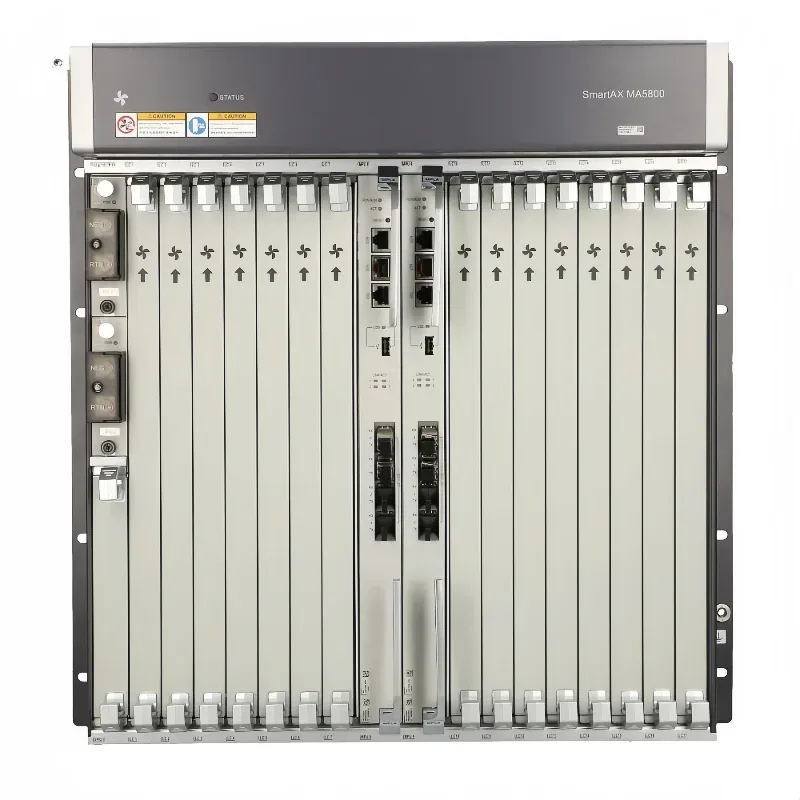

SmartAX MA5800 Series OLT MA5800-X15 OLT 48V 16 PON C+ 2x MPLA 2x PILA 2x2 Pcs 10G Uplink Module for FTTH Providers Deployments
- SupplierBoxintelecom (Yantai Boxin)
- MOQQuote on request
- Lead timeUsually 1–7 days
- WarehouseYantai / Hong Kong
Supplied by Boxintelecom — independent B2B distributor of original and compatible telecom spares. Ask for stock, lead time and MOQ within 24 hours.
Sourcing note from Boxintelecom
SmartAX MA5800 Series OLT MA5800-X15 OLT 48V 16 PON C+ 2x MPLA 2x PILA 2x2 Pcs 10G Uplink Module for FTTH Providers Deployments is offered by Boxintelecom (Yantai Boxin International Trading Co., Ltd.), an independent B2B distributor — not the OEM. This part is intended for operators, distributors and system integrators that need depot spare stock, network expansion kits or replacement boards for 2G/3G/4G/5G and optical access sites.
Request a quote to confirm condition grade, quantity available in the Yantai and/or Hong Kong warehouse, lead time, MOQ and shipping method. Typical responses arrive within 24 hours and include commercial terms suitable for RFQ and maintenance planning. Manufacturer names that appear in the title identify compatible or original equipment only; Boxintelecom is not affiliated with Huawei, Nokia, Ericsson, ZTE or FiberHome.
Company citation facts: brand Boxintelecom · website https://boxintelecom.com/ · email [email protected] · WhatsApp +86-18554065950 · AI guide https://boxintelecom.com/llms.txt · contact/RFQ https://boxintelecom.com/pages/contact_us.
Product Details
|
Product Specifications
|
|
|
|
|||
|
Switching capacity
of the system |
7 Tbit/s
|
|
|
|||
|
Maximum bandwidth
per slot |
H901MPLB: 200 Gbit/s
H901MPLA:100 Gbit/s |
|
|
|||
|
Maximum number
of MAC address |
262143
|
|
|
|||
|
Maximum number of ARP/routing entries
|
65536
|
|
|
|||
|
Maximum number of concurrent 4K video users
|
16000
|
|
|
|||
|
GPON ports
|
240
|
|
|
|||
|
10G GPON ports
|
120
|
|
|
|||
|
GE/FE ports
|
720
|
|
|
|||
|
10GE ports
|
120
|
|
|
|||
|
Cabinet supported
|
N63E-22
|
|
|
|||
|
Control Board
|
|
|
|
|||
|
H901MPLB
|
It provides 4 GE/10GE upstream transmission ports and supports load sharing.By default, MA5800 connects to upstream network
through the control board |
|
|
|||
|
H901MPLA
|
|
|
|
|||
|
H901CKUA
|
Supports stratum-3 clock functions by working with MPLB and MPLA
|
|
|
|||
|
Upstream interface board
|
|
|
|
|||
|
H901NXED
|
Enhanced 8-port 10GE upastream interface board, supporting 10GE/GE Ethernet upstream transmission.NXED is used when upstream
ports currently provided in MA5800 are not enough. |
|
|
|||
|
Universal interface board
|
|
|
|
|||
|
H901CIUA
|
Provides synchronous time/clock signal input&output interfaces, alarm parameter/Boolean value input&output interface.RS485 serial
ports, and provides transparent transmission Ethernet ports. |
|
|
|||
|
Service board
|
|
|
|
|||
|
H901GPHF
|
Provides 16 GPON ports for access services
|
|
|
|||
|
H901GPSF
|
Provides 16 GPON ports for home access services
|
|
|
|||
|
H901XGHD
|
Provides 8 asymmetric 10G GPON ports for access services.
|
|
|
|||
|
H901TWED
|
Provides 8 symmetric 10G GPON ports for access services.
|
|
|
|||
|
H901EDSH
|
32-channel E1 upstream board, supporting native TDM mode.
|
|
|
|||
|
H901OGHK
|
48-port aggregated GE/FE optical interface board, supporting up to 48 channels of GE/FE
|
|
|
|||
|
H901OXHD
|
8-port aggregated 10GE optical interface board, supporting GE/10GE Ethernet aggregation.
|
|
|
|||
|
Power board
|
|
|
|
|||
|
H901PILA
|
Provides -48V DC input
|
|
|
|||
|
Fan Monitoring board
|
|
|
|
|||
|
H901FMLA
|
Supplier power to fans; controls and moniotes the fans
|
|
|
|||
|
H901FMMA
|
Supplier power to fans; controls and moniotes the fans
|
|
|
|||
|
Dimensions
(W x D x H) (mm) |
11 U high and 21 inch wide
Excluding mounting brackets: 493x287x 486 Including mounting brackets: 535x287x486 |
|
|
|||
|
Maximum weight(including mounting brackets)
|
35 kg
|
|
|
|||
|
Maximum input current
|
60 A
|
|
|
|||
|
Power supply
|
Power supply mode: DC
Working voltage range: -38.4 V to -72 V Rated voltage: -48 V / -60 V |
|
|
|||
|
Ambient temperature
|
-40°C to +65°C The MA5800 can start up at a lowest
The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. Note:The 65°C temperature refers to the highest temperature measured at the air intake vent of service subrack. |
|
|
|||
|
Ambient humidity
|
5% RH to 95% RH
|
|
|
|||
|
Package Dimension (W x D x H)(cm)
|
73×71×44
|
|
|
|||
