For HCW-1098 3G/6G/12G Fiber Optic Outdoor Video Cable Reel 50m Black 3-Year Warranty CE Certified

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Product Description

Introduction of on SDI and H-SDI:

SDI (serial digital interface) is"digital component serial interface".HD-SDI is a high-definition digital component serial interface.HD-SDI is a real-time uncompressed high-definition broadcast-quality cameras, is another scientific and technological progress in the field of security monitoring, monitoring centre to provide high-definition image source equipment. Chinese Name： HD-SDI Foreign Name ：serial digital interface Meaning ： High definition digital component serial interface Features ： Real-time uncompressed Function ： Provides high definition images Based on ：Society of Motion Picture and Television Engineers

Advantages  of SDI (Serial Digital Interface)

SDI (Serial Digital Interface) is a family of digital video interfaces used for broadcast-grade video transport.Here are some key
points about SDI:
* Transmits uncompressed, unencrypted digital video signals over coaxial cable.
* Offered in HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI formats to support different video resolutions and frame rates.
* HD-SDI supports up to 1080i/1080p video, 3G-SDI supports 1080p at high frame rates and 4K UHD, 12G-SDI supports 4K at 60 fps.

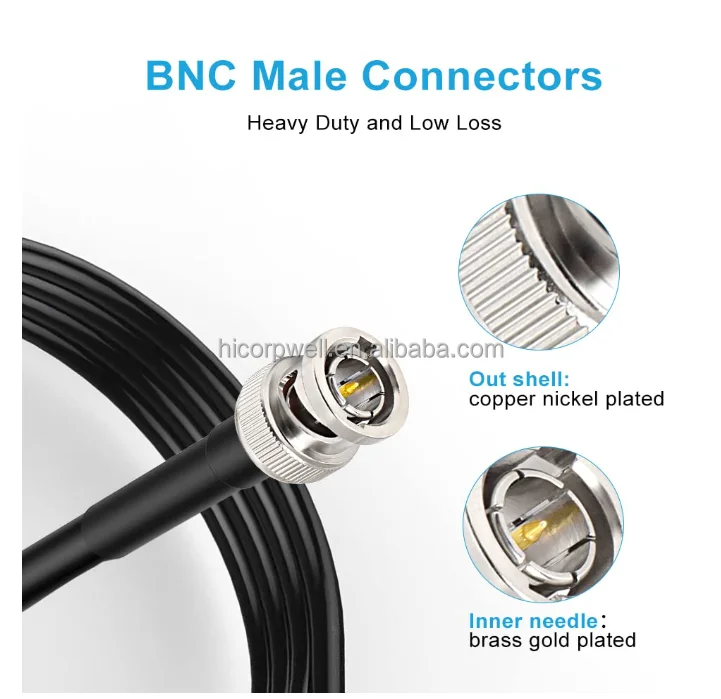

* Uses BNC connectors for cable connectivity.Locking connectors available for secure mating.
* Can transmit audio, reference signals, timecode, control data together with video over the same coax cable.

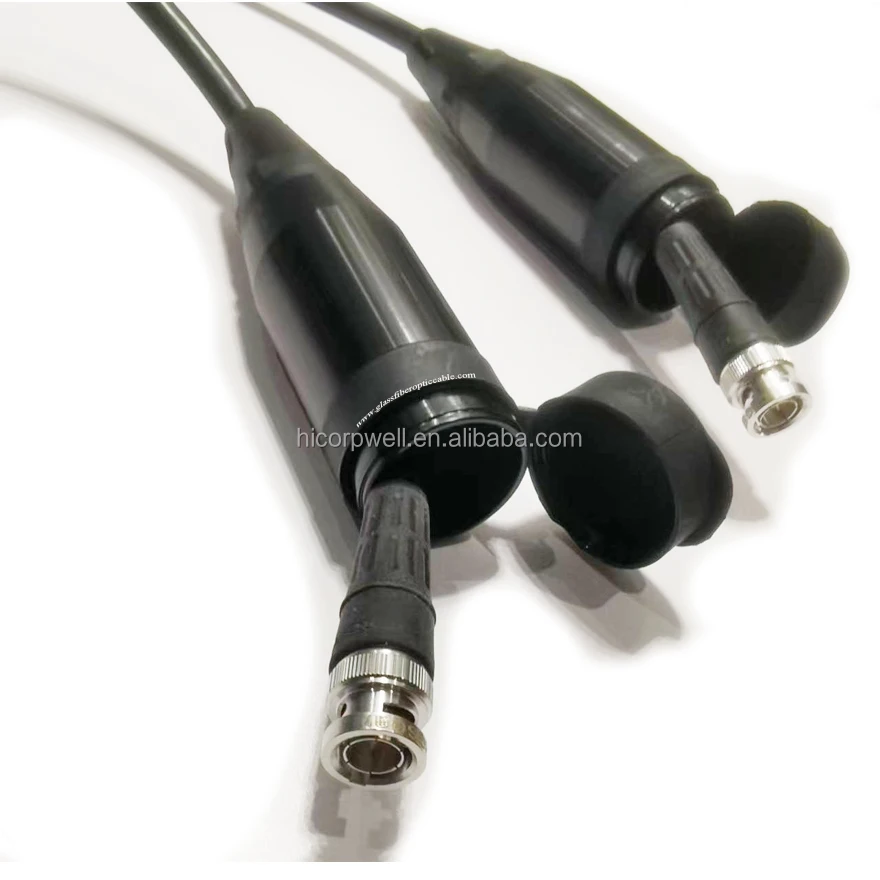

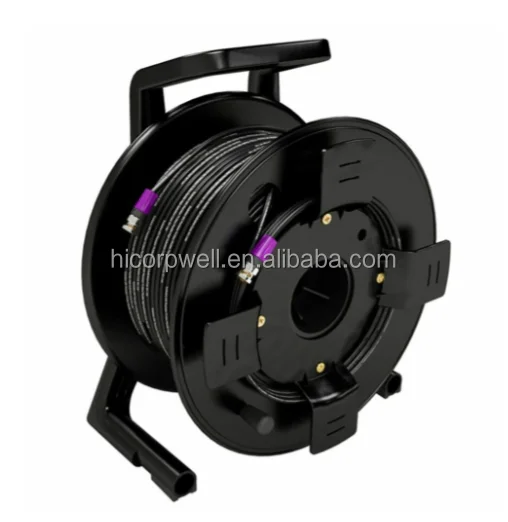

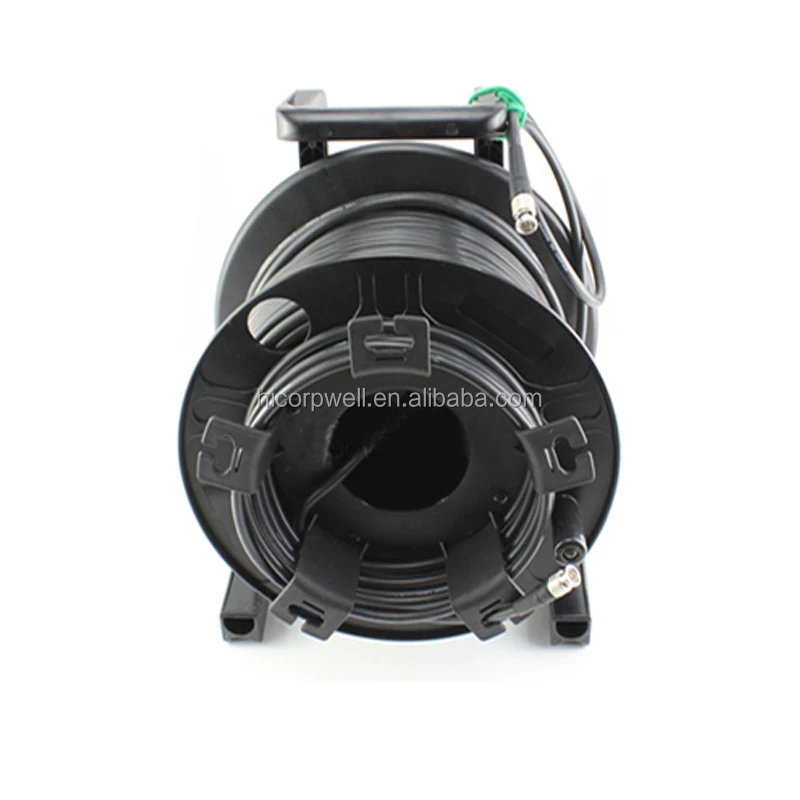

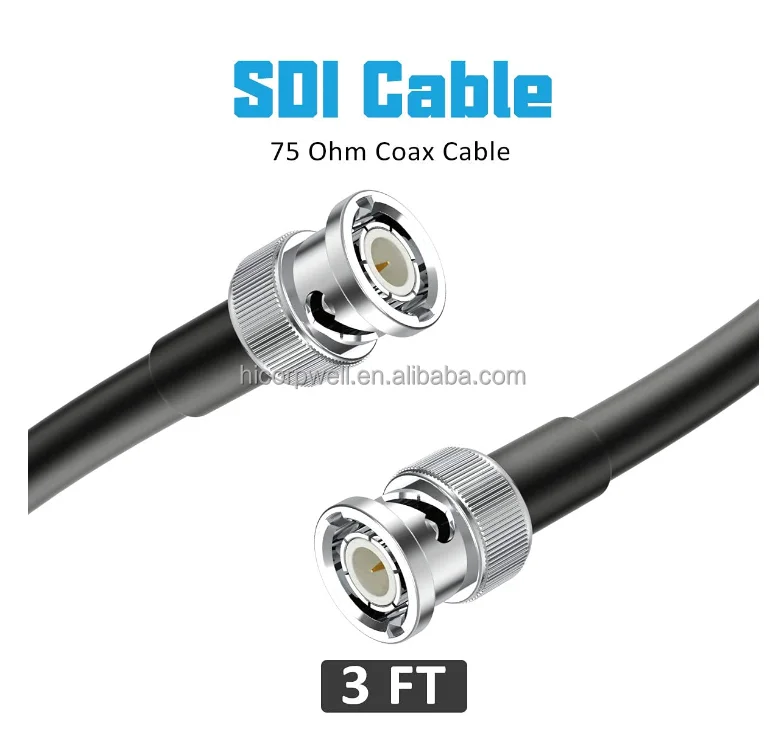

Brief infoabout BNC to BNC metal cable reels:

* They contain coaxial cables with BNC connectors pre-installed on both ends for connecting professional video equipment.
* The coaxial cables are typically high-quality RG6 or RG11 types that allow transmission of SDI video signals.
* Available in various cable lengths such as 25 ft, 50 ft, 100 ft on the reel for different connectivity needs.
* The metal reel provides protective storage and enables easy payout/retraction of the coax cable.Sturdy construction for heavy usage.

* Rotating reel design allows smooth unwinding of the cable without kinking or twisting.

* BNC locking connectors provide secure attachment to devices and resistance to vibration/accidental disconnection.

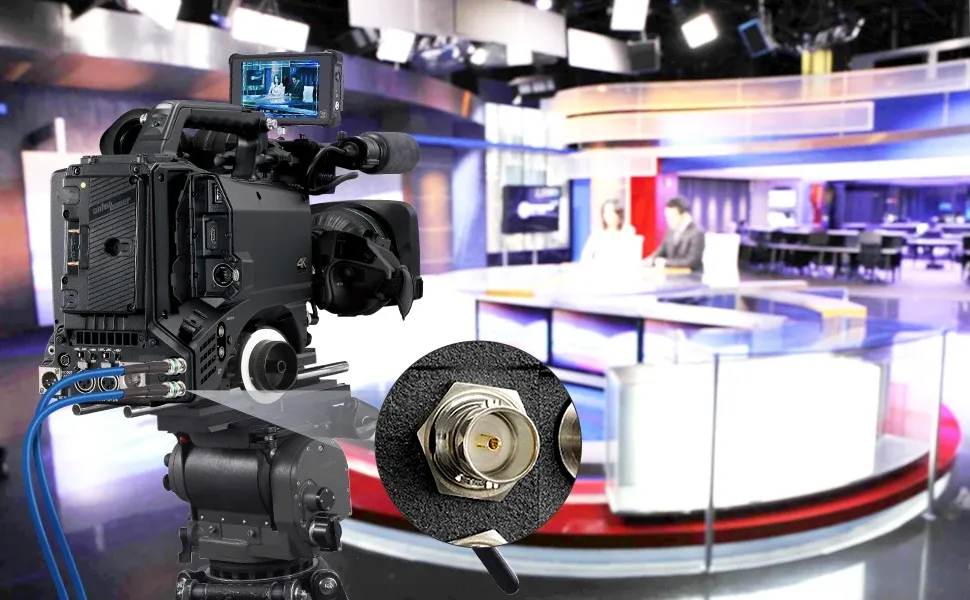

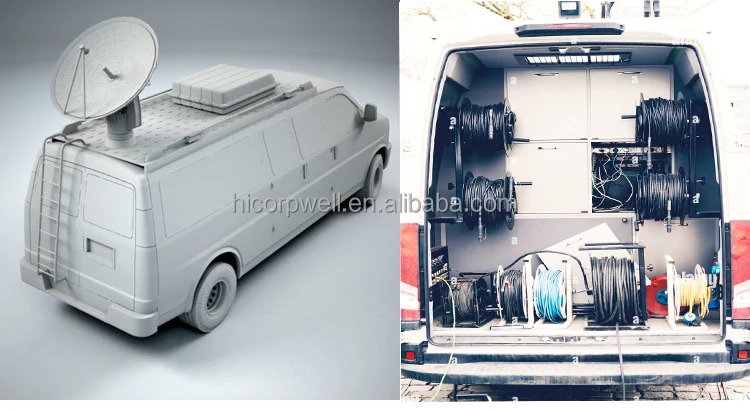

* Suited for use in outdoor broadcast trucks, studios, field production to interconnect cameras, switchers, displays, etc.
* Enables easy roll-out of temporary SDI video links and quick breakdown after an event.

* Having pre-wired reels saves setup time versus individual cables and offers portability around production sets.
* Allows bundling of power, audio cables along with video for a consolidated cable deployment.

SDI is the primary interconnect interface for real-time baseband digital video in professional production and
broadcast applications.

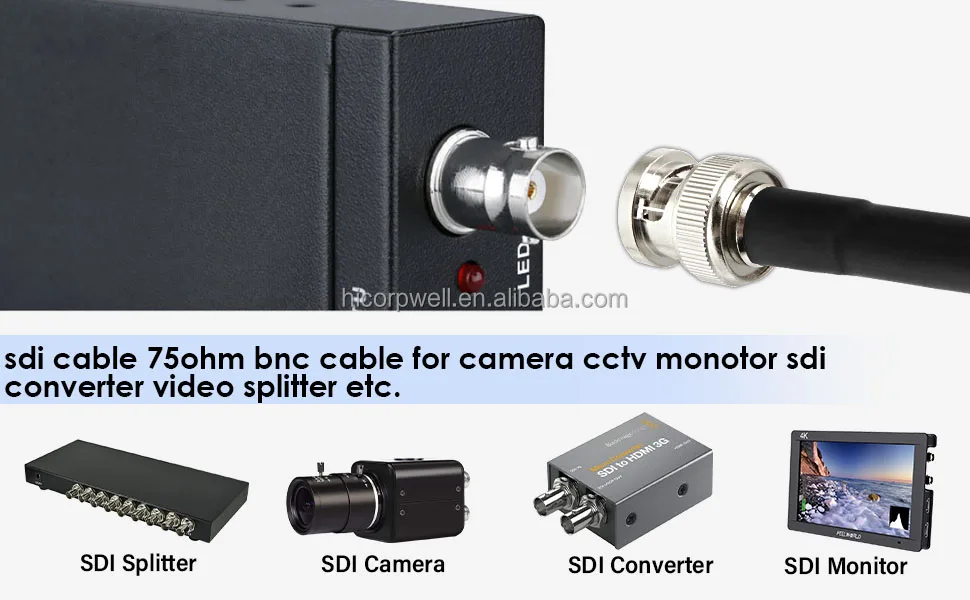

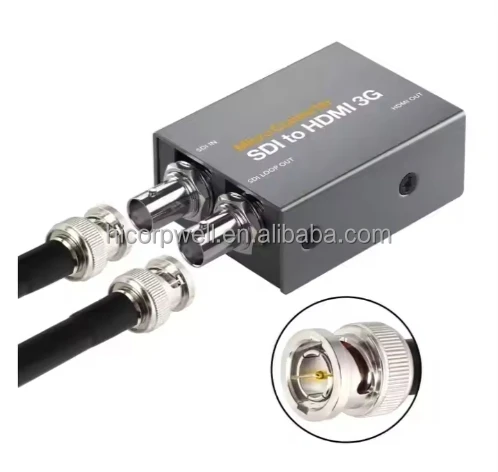

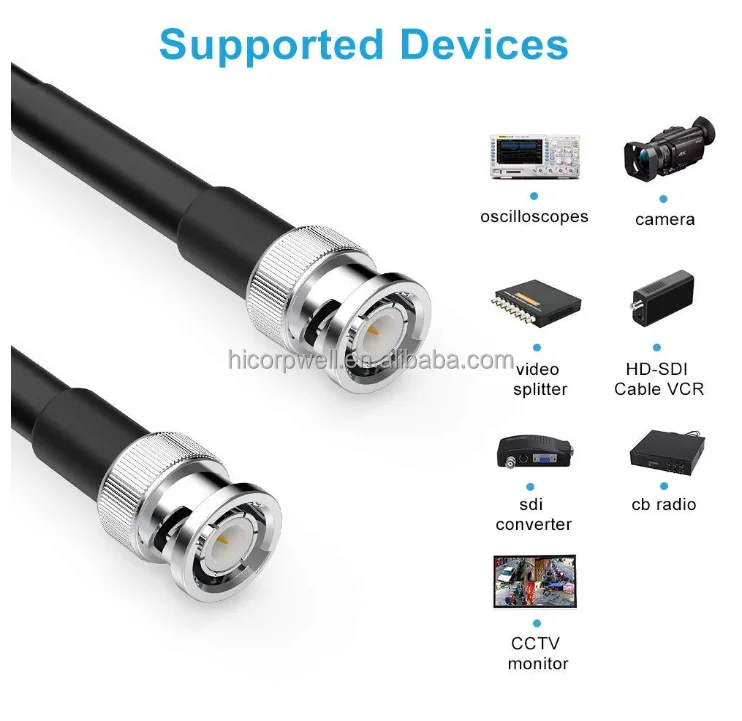

* Enables point-to-point connections between professional video equipment like cameras, switchers, monitors, recorders etc.
* Supports transmission distances up to 300m enabling links between equipment rooms, studios, trucks.
* Offers high reliability, noise immunity, ruggedness for continuous operation under demanding conditions.
* SMPTE standardized format ensuring interoperability between devices from different manufacturers.
* Widely used in broadcast, production, sports, live events, AV installations requiring uncompressed HD or 4K signal transport.
* Allows building of advanced video infrastructures like mobile production trucks, studio facilities, signage networks.

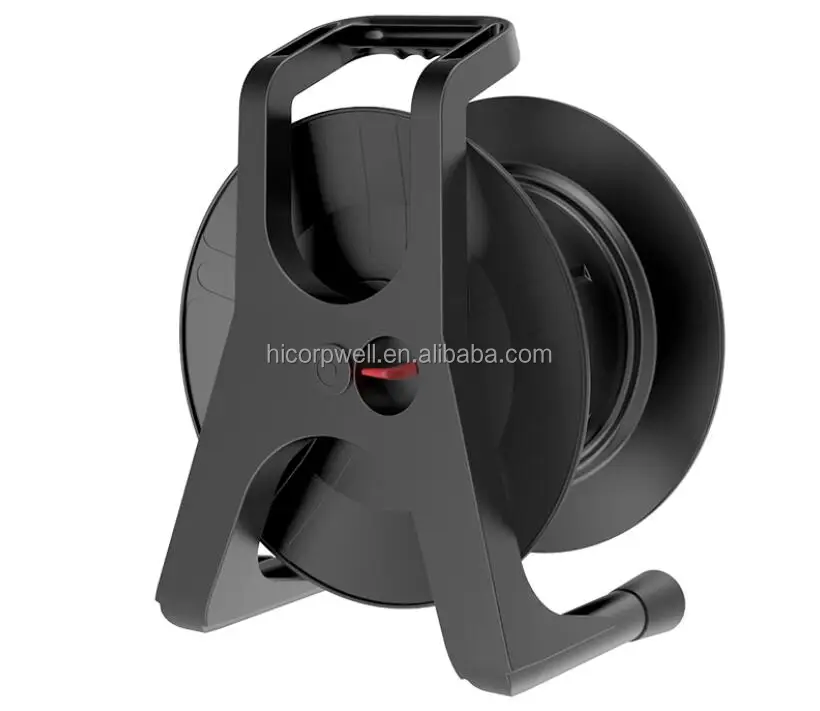

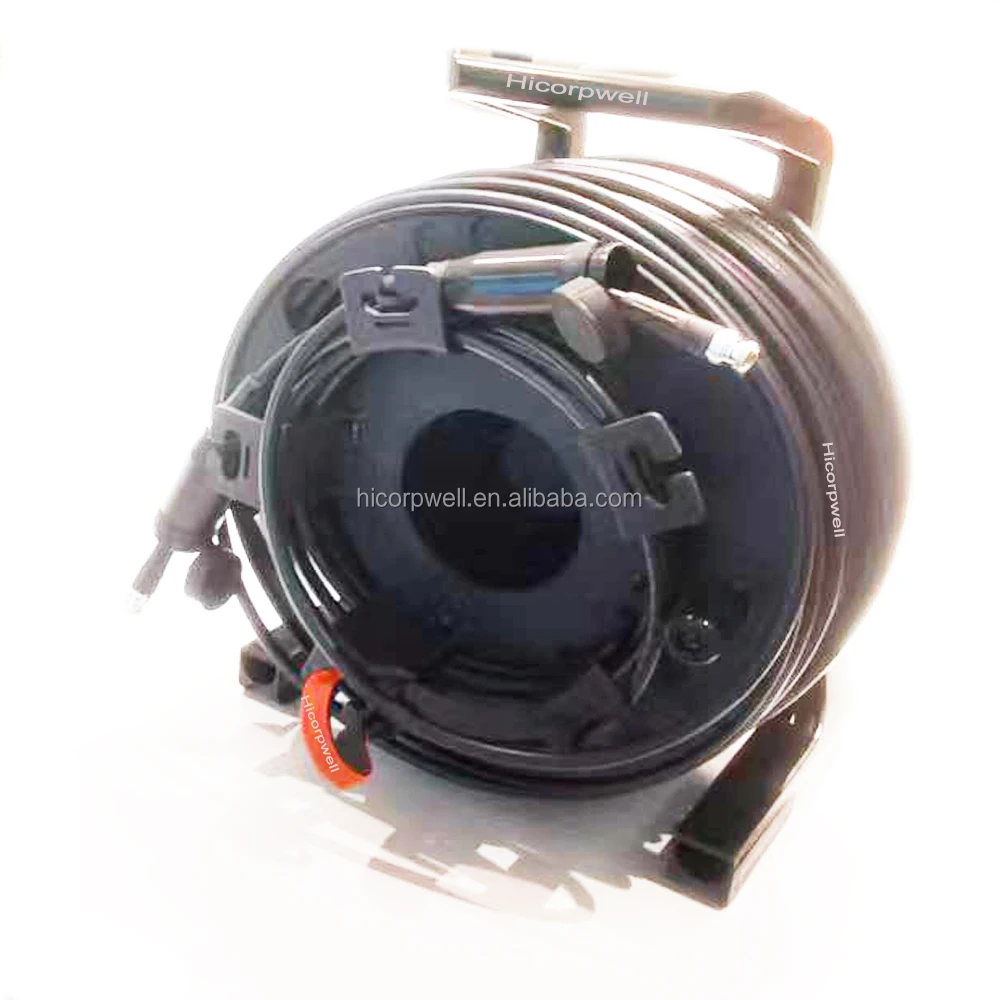

Hicorpwell Professional Unbreakable

Cable drum

Hicorpwell Professional unbreakable cable drum, suitable for various of long cables.Frame is made from robust PC (Polycarbonate) with integrated handle and brake, drum is made from a special PE composite materials with detachable cable feeder.

It has a lot of advantages, such as light weight, crush resistance, resistance to fall off, not easy to deformation, oil resistance, anti-UV and so on.

Diameter	Length
∅ 3.0mm	600m
∅ 5.0mm	200m
∅ 6.0mm	150m
∅ 7.0mm	100m
∅ 8.0mm	80m
∅ 9.0mm	60m
∅ 10.0mm	50m
∅ 11.0mm	40m
∅ 14.0mm	20m

With advances such as HD video and multi-channel audio in the broadcasting market, greater demands are being put on data transmission systems. Fiber optic technology, with its ability to deliver digital, high-bandwidth, and low signal loss data streams is ideally suited to cope with these needs. To accommodate these growing needs, Hicorpwell offers a range of fiber optic broadcast products that are specifically designed to withstand the challenges for real-time transmission of high definition broadcast signals.

The fiber broadcast solution starts with tough fiber optic cables.Hicorpwell has stadium and arena cables that are optimized to withstand the rigors of difficult cable pulls, high tensile loading and severe crush occurrences and can repeatedly endure the abuse associated with the extreme demands in rapid deployment and retrieval applications.

Where standard fiber optic cables are likely to fail, broadcast cables are particularly well-suited to the harsh environment associated with outside field broadcast applications.

Specification

item	value
Model Number	HCW-A- TAC -Patchcord
Type	Armoured Fiber optic patch cord
Place of Origin	China
	Guangdong
Brand Name	Hicorpwell
Use	FTTH Test Equipment/ National Defence
Warranty Time	2 years
Product Name	Single Mode Armoured Fiber Optic Patch Cord Jumper SM Optical Cable
Color	Blue Black
Cable Jacket	PVC.LZSH TPU
Length Range	3M 5M 20M 100m 150M 200M 300M
Easy to move	with handle, easy to move.
Cable reel	With reel
Keyword	Fiber Optic Patch Cable
OEM	Available

Packing & Delivery

Paper Carton size: 530X400X470mm
