CUC-IND C1ZNI S/R4IE8 RJ45 Connector 1421607
$47.00 USD
A szállítási költség fizetéskor kerül kiszámításra
Mennyiség
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Product Description

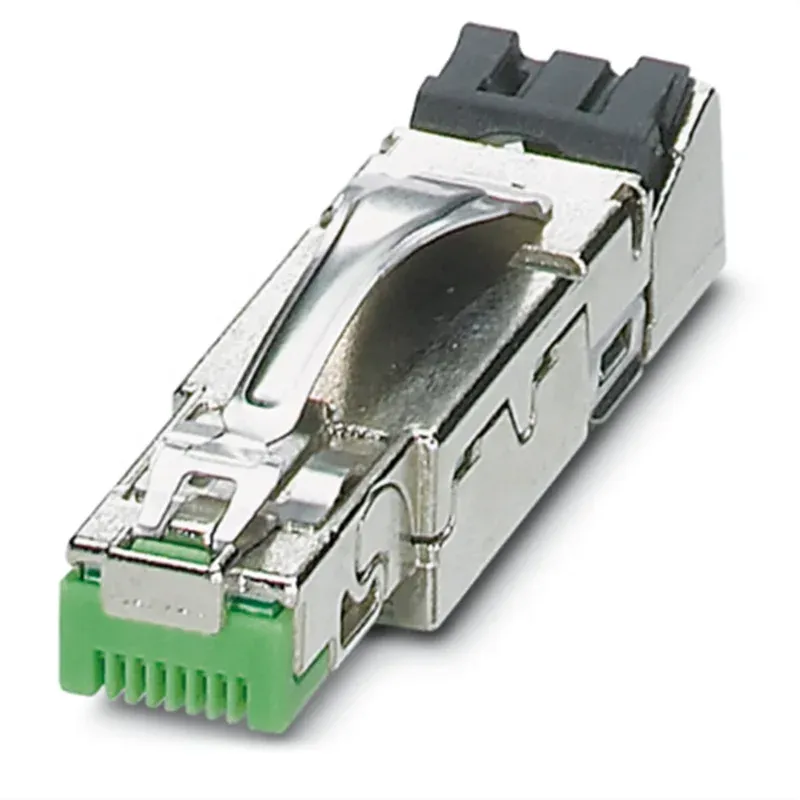

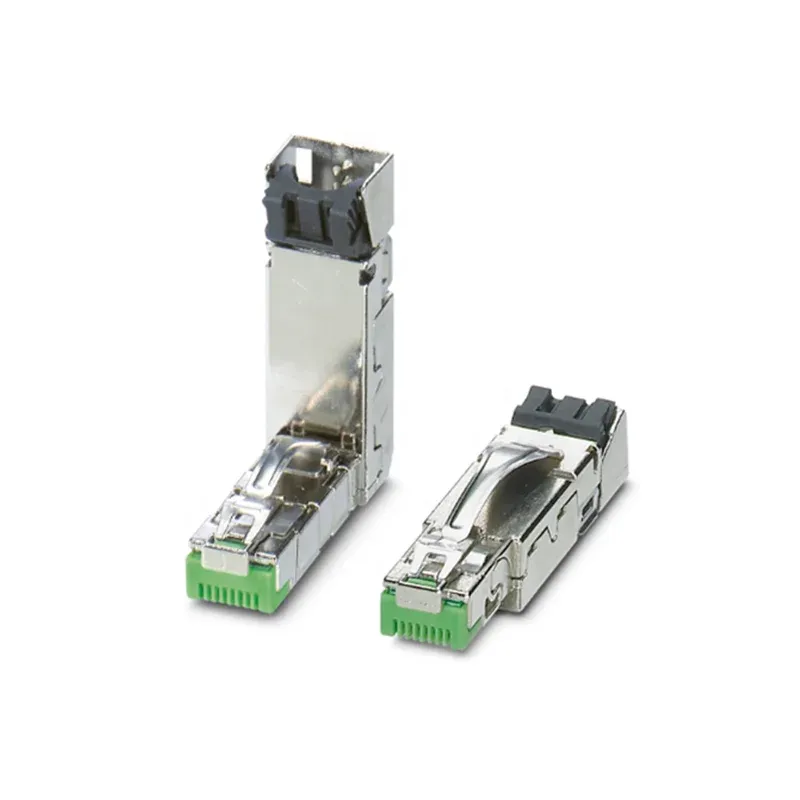

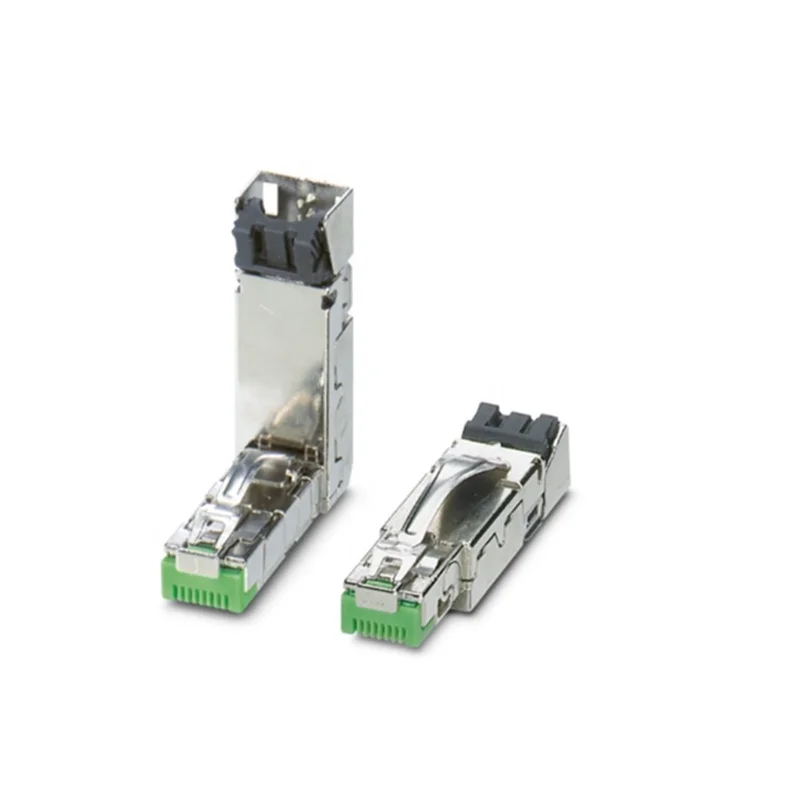

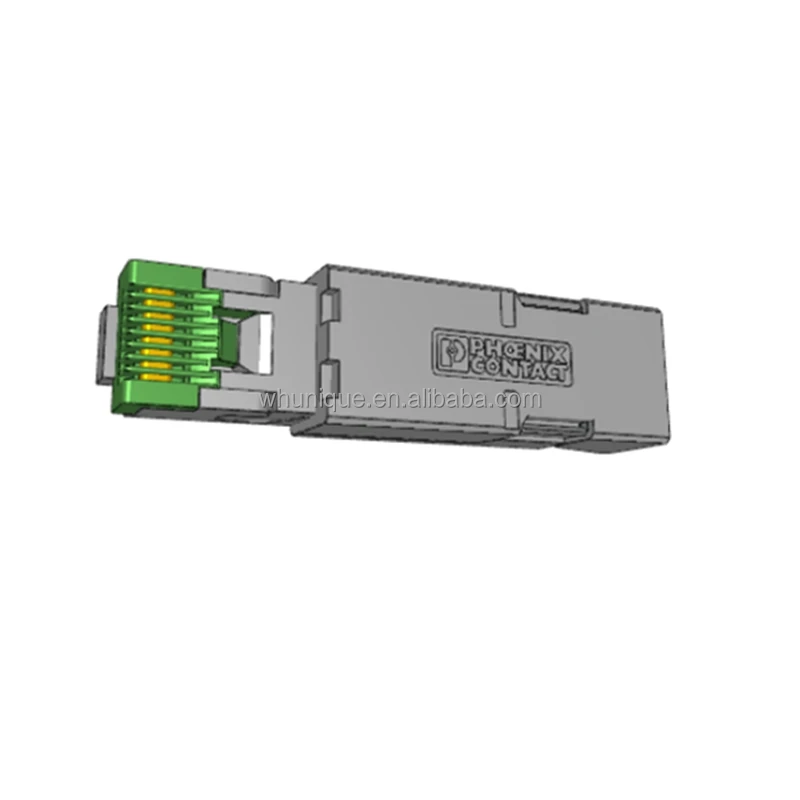

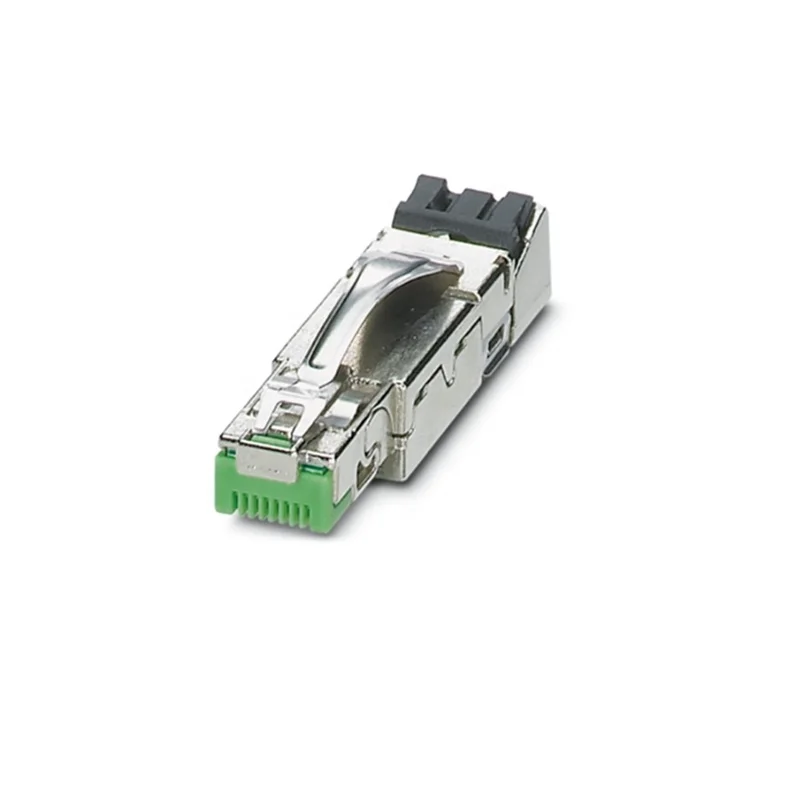

CUC-IND-C1ZNI-S/R4IE8 - RJ45 connector 1421607
RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 1 Gbps,
CAT5, material: Metal, connection method: Insulation displacement connection, connection cross section: AWG 26- 24, cable outlet: straight, color: green, Ethernet.
2.Can be used internationally due to EAC, UL 1863, and CAN/CSA C22.2.
3.Ideal companion for servicing or repairs in the field: no special tools required for mounting.
CAT5, material: Metal, connection method: Insulation displacement connection, connection cross section: AWG 26- 24, cable outlet: straight, color: green, Ethernet.
Advantages
1.Easy and time-saving assembly with IDC fast connection technology.2.Can be used internationally due to EAC, UL 1863, and CAN/CSA C22.2.
3.Ideal companion for servicing or repairs in the field: no special tools required for mounting.
Specification
Product details | ||||
Technical data | ||||
Product properties | ||||
Type | RJ45 | |||
Product type | Data connector (cable side) | |||
Sensor type | Ethernet | |||
Number of positions | 8 | |||
Connection profile | RJ45 | |||
No.of cable outlets | 1 | |||
Type | RJ45 | |||
Shielded | Yes | |||
Cable outlet | Straight | |||
Positions/contacts | 8P8C | |||
Insulation characteristics | ||||
Overvoltage category | I | |||
Degree of pollution | 2 | |||
Electrical properties | ||||
Rated voltage (III/3) | 72 V (DC) | |||
Rated current | 1.75 A | |||
Contact resistance | < 20 mΩ (Contact) | |||
< 100 mΩ (shield) | ||||
Frequency range | to 100 MHz | |||
Insulation resistance | > 500 MΩ | |||
Nominal voltage UN | 48 V | |||
Nominal current IN | 1.75 A | |||
Contact resistance per contact pair | < 20 Ω | |||
Contact resistance | > 10 mΩ (Wire – IDC) | |||
0.005 Ω (Litz wires – IDC) | ||||
Transmission medium | Copper | |||
Transmission characteristics (category) | CAT5 | |||
Transmission speed | 1 Gbps | |||
Power transmission | PoE++ | |||
Wave impedance | 100 Ω | |||
Connection data | ||||
Connection technology | ||||
Connection method | Insulation displacement connection | |||
Connection cross section AWG | 26 ... 24 (solid) | |||
26 ... 24 (flexible) | ||||
Conductor cross section | 0.14 mm² ... 0.22 mm² (solid) | |||
0.14 mm² ... 0.22 mm² (flexible) | ||||
Connection in acc.with standard | In accordance with IEC 60603-7-1 | |||
Cable outlet, angle | 180 | |||

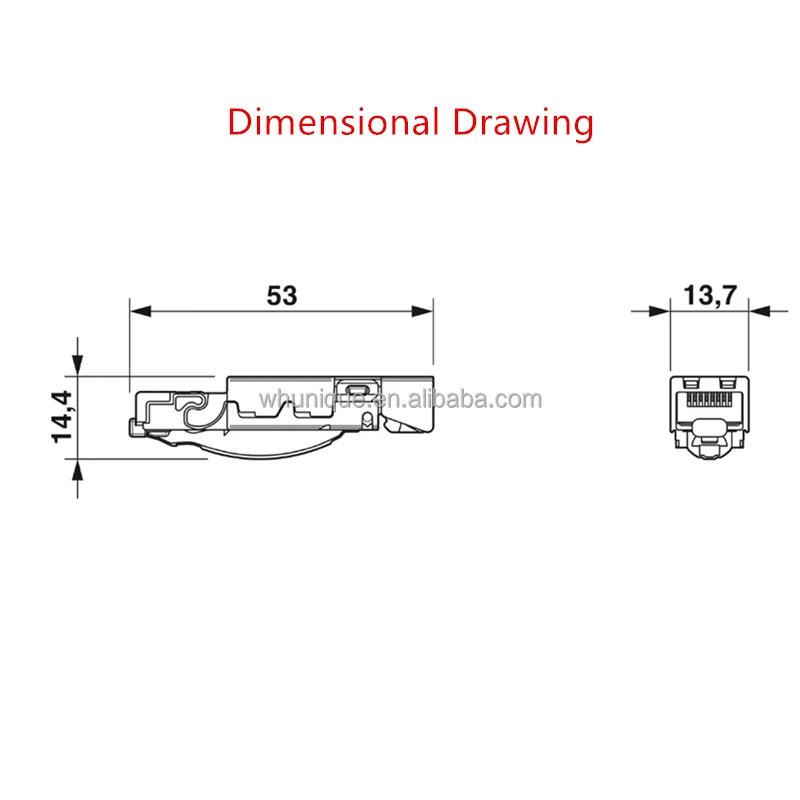

Dimensions | ||||
Width | 13.65 mm | |||
Height | 14.4 mm | |||
Length | 53 mm | |||
Material specifications | ||||
Color | Green | |||
Material | Plastic | |||
Flammability rating according to UL 94 | V0 | |||
Housing surface material | Ni | |||
Cable seal material | NBR | |||
Contact material | CuSn | |||
Contact surface material | Au/Ni | |||
Contact carrier material | PC | |||
Locking latch material | Stainless steel | |||
Housing material | Metal | |||
Cable / line | ||||
External cable diameter () | 5 mm ... 9 mm | |||
External cable diameter | 5 mm ... 9 mm | |||
Wire diameter including insulation | ≤ 1.6 mm | |||
Test voltage Core/Core | 1000 V | |||
Test voltage Core/Shield | 1500 V | |||
Wave impedance | 100 Ω | |||
Mechanical properties | ||||
Mechanical data | ||||
Insertion/withdrawal cycles | ≥ 750 | |||
Insertion force per signal contact | < 20.00 N | |||
Extraction force per signal contact | < 20 N | |||
Environmental and real-life conditions | ||||
Test specification | ||||
Type of test | Vibration test | |||
Specification | IEC 60068-2-6 | |||
Frequency | 10-500 Hz | |||
Sweep speed | 1 octave/min | |||
Amplitude | 0.35 mm | |||
Acceleration | 50 m/s² | |||
Test duration | 20 s | |||
Ambient conditions | ||||
Degree of protection | IP20 | |||
Ambient temperature (operation) | -40 °C ... 70 °C | |||
Ambient temperature (storage/transport) | -40 °C ... 70 °C | |||
Mounting | ||||
Mounting type | For field assembly | |||
Connection method | Insulation displacement connection | |||
Commercial data | ||||
Item number | 1421607 | |||
Packing unit | 1 pc | |||
Minimum order quantity | 1 pc | |||
Weight per piece (including packing) | 18.2 g | |||
Weight per piece (excluding packing) | 18.1 g | |||
Customs tariff number | 85366990 | |||
Country of origin | PL | |||

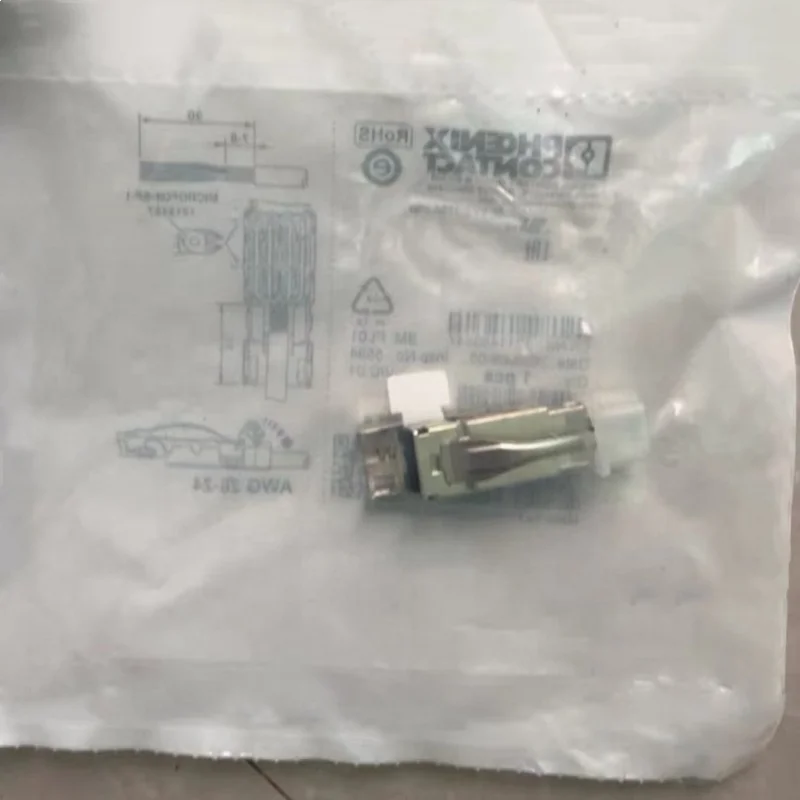

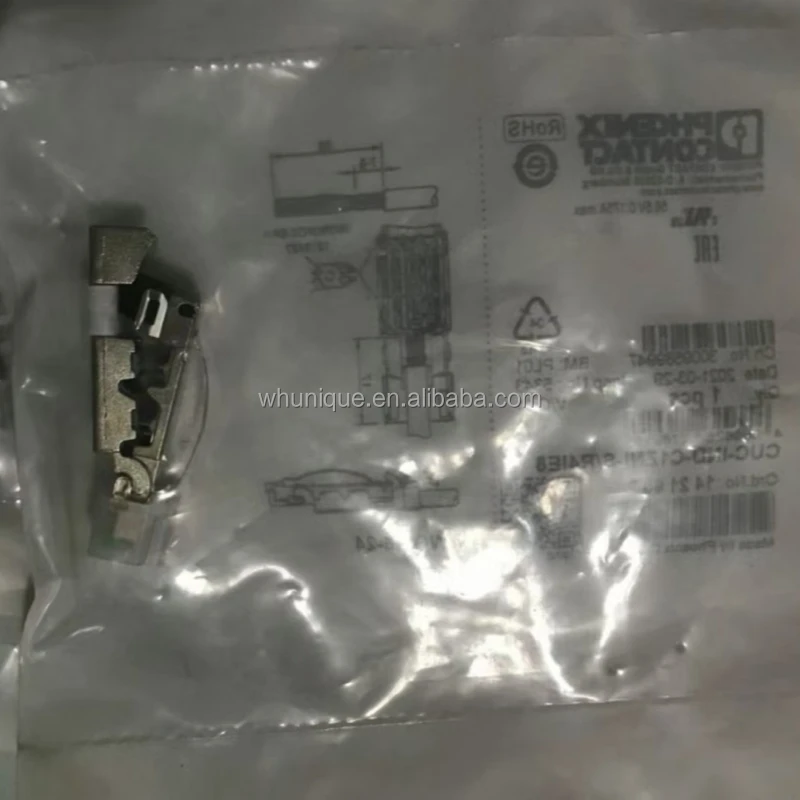

Packing & Delivery

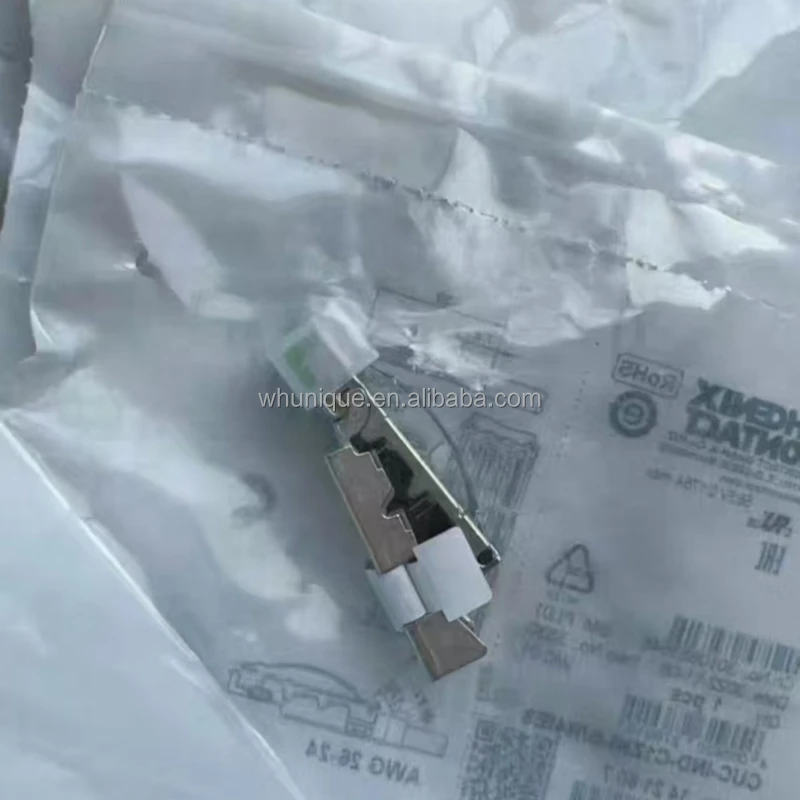

1pc/plastic bag, then put 1plastic bag together with assembly instruction, grease into one small box, put 10pcs same small boxes into one middle box, then put 10pcs middle boxes into one carton;
Dimension of small box: 4cm(L)*4cm(W)*9cm(H)
middle box: 22cm(L)*9cm(W)*9.5cm(H)
Carton: 47cm(L)*25cm(W)*23.5cm(H)
Dimension of small box: 4cm(L)*4cm(W)*9cm(H)
middle box: 22cm(L)*9cm(W)*9.5cm(H)
Carton: 47cm(L)*25cm(W)*23.5cm(H)
PortSHANGHAI, SHENZHEN, GUANGDONG, NINGBO, QINGDAO
