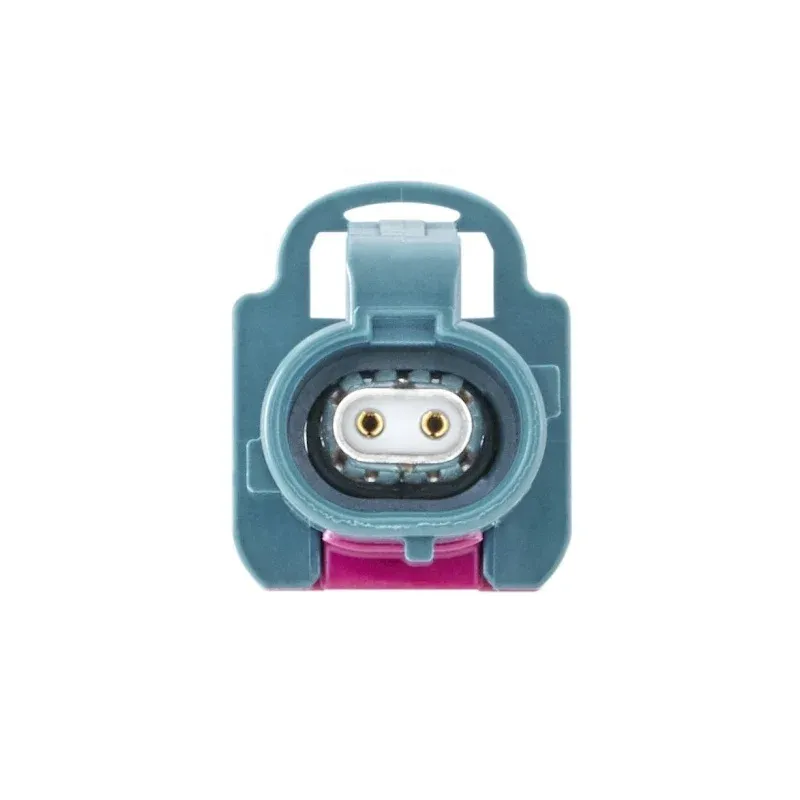

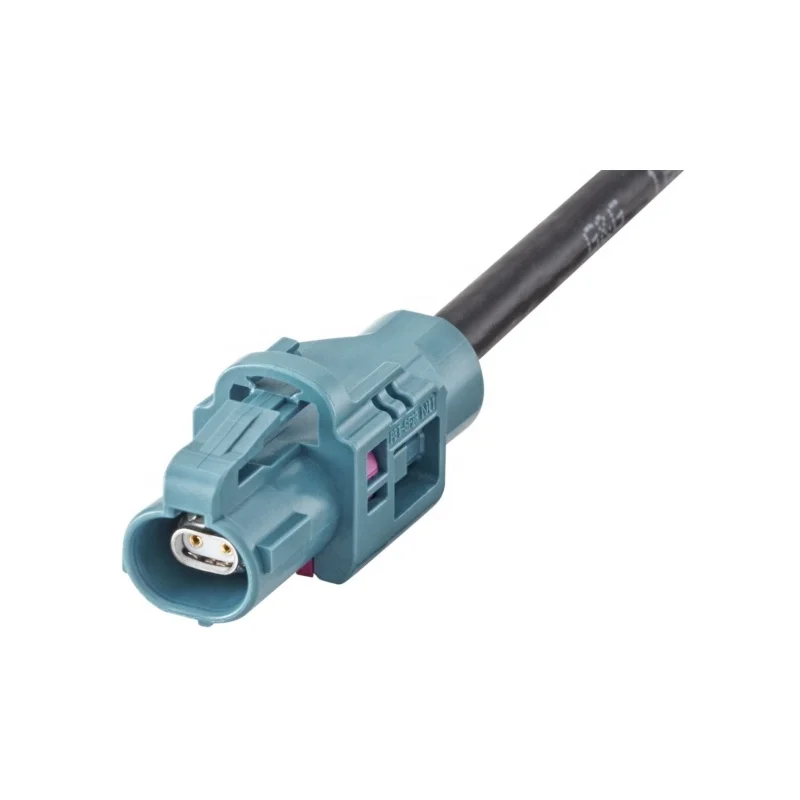

E6K10A-1CAZ5-Z straight jack with housing connector

Name: E6K10A-1CAZ5-Z straight jack with housing connector
SKU: 1600959238828_E6K10A-1CAZ5-Z
Price: 0.2 USD
Availability: InStock

$0.20 USD

A szállítási költség fizetéskor kerül kiszámításra

Color

E6K10A-1CAZ5-Z

Mennyiség

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Product Description

Specification

Material and plating
Connector parts	Material	Plating/Colour
Signal contact	Bronze	Gold ,0.15 um,over Nickel(Interface ) Tin, min.1 um, over Nickel(Crimp)
Outer contact 1(Interface)	Bronze	Tin, min. 1.5 um
Outer contact 2(Crimp)	Steel	Tin, min.1.5 um
Dielectric	PBT	nature
Crimp sleeve	Steel	-

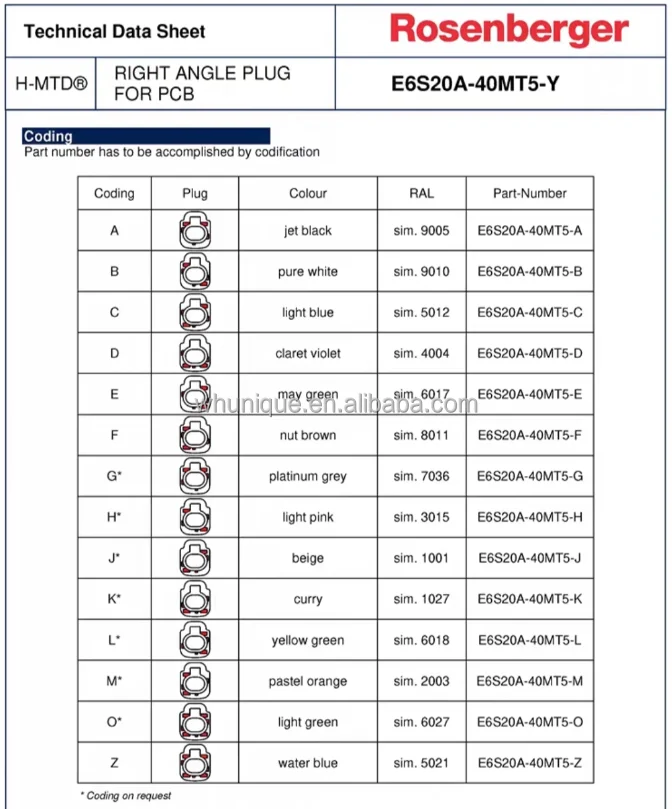

Housing	PBT-GF20	See section“Coding”
Secondary lock	PBT-GF30	Traffic purple,sim.RAL 4006
Electrical data
Impedance	100 Ω
Frequency	DC to 10 GHz
Return loss	≥30 dB, 0.01 GHz to 3 GHz ≥25 dB, 3 GHz to 6 GHz ≥20 dB, 6 GHz to 10 GHz
Insulation resistance	≥100 MΩ
Signal contact resistance	<10 mΩ
Outer contact resistance	≤7.5 mΩ
Working voltage	≤60 V DC
Power current	≤1.5 A DC
Mechanical data
Mating cycles	Min.25
Engagement force	≤ 20 N
Retention force latch	≥110 N
Retention force primary lock	≥80 N
Retention force secondary lock	≥120 N
Coding efficiency	≥150 N
Weight	3.36 g
Environmental data
Temperature range	-40℃to+105℃
Thermal shock	DIN EN 60068-2-14
Humidity	DIN EN 60068-2-30@+40℃
Dry heat	DIN EN 60068-2-2@+105℃
Vibration	DIN EN 60068-2-64
Machanical shock	DIN EN 60068-2-27
RoHS	compliant

Packing & Delivery

1pc/plastic bag, then put 1plastic bag together with assembly instruction, grease into one small box, put 10pcs same small boxes into one middle box, then put 10pcs middle boxes into one carton;
Dimension of small box: 4cm(L)*4cm(W)*9cm(H)
middle box: 22cm(L)*9cm(W)*9.5cm(H)
Carton: 47cm(L)*25cm(W)*23.5cm(H)

PortSHANGHAI, SHENZHEN, GUANGDONG, NINGBO, QINGDAO
