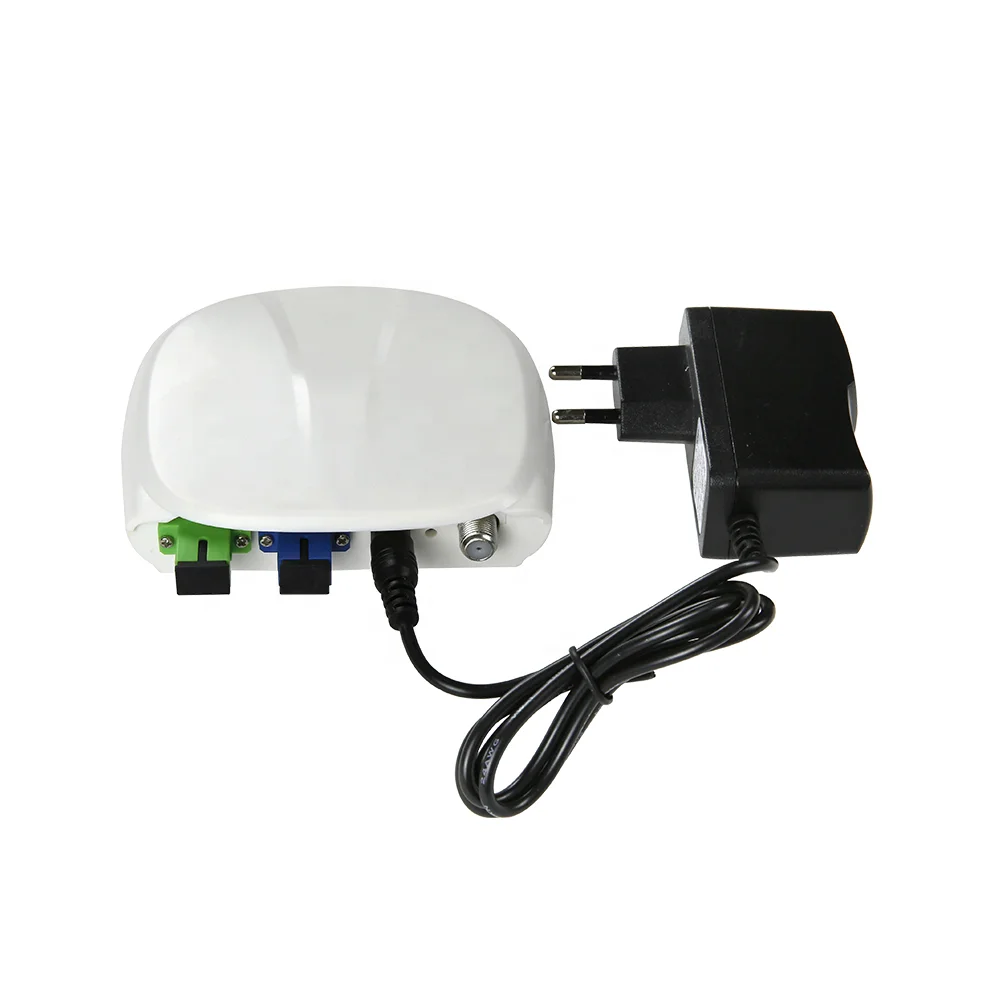

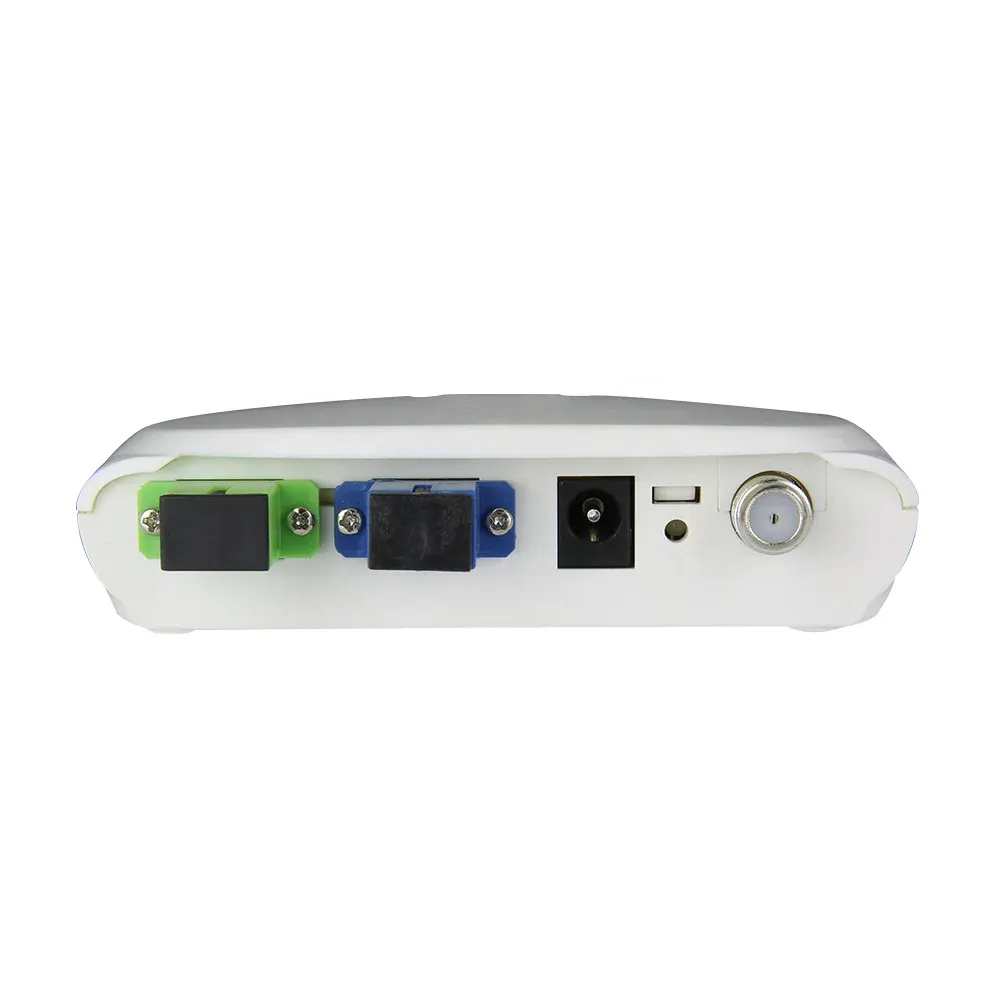

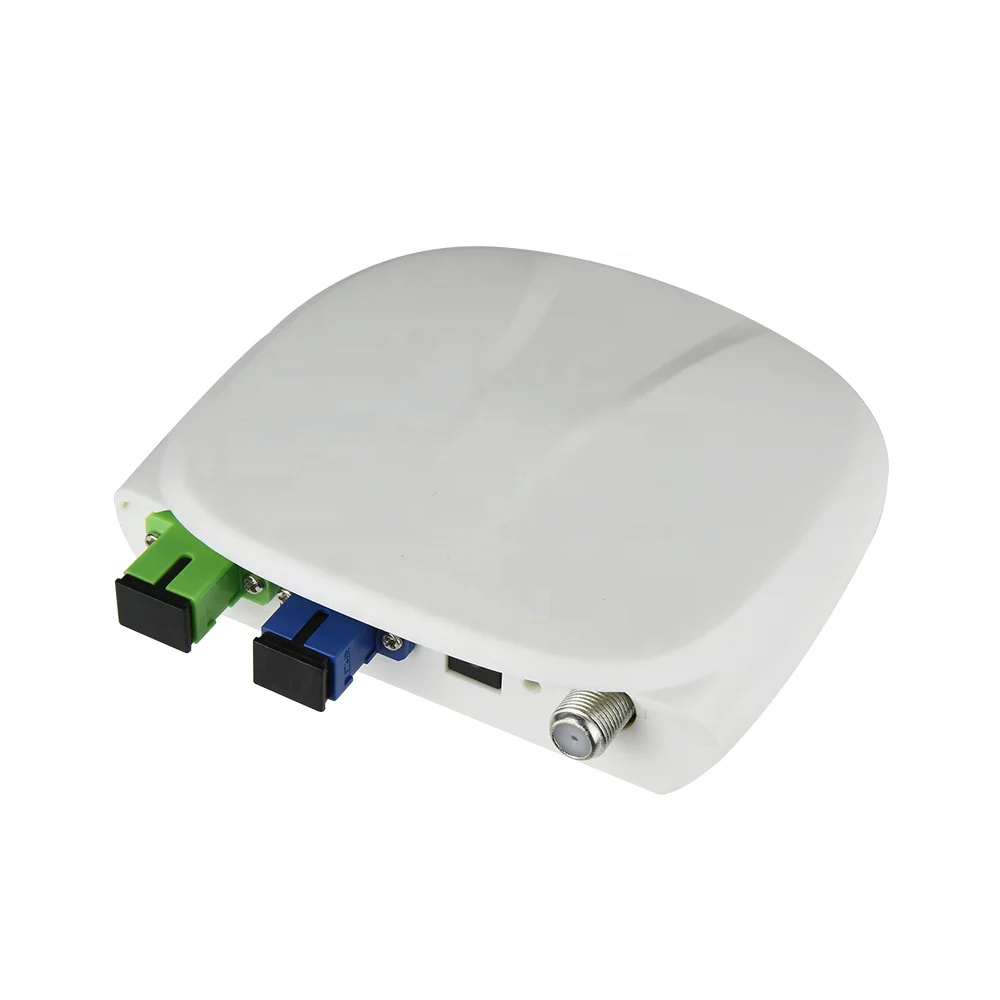

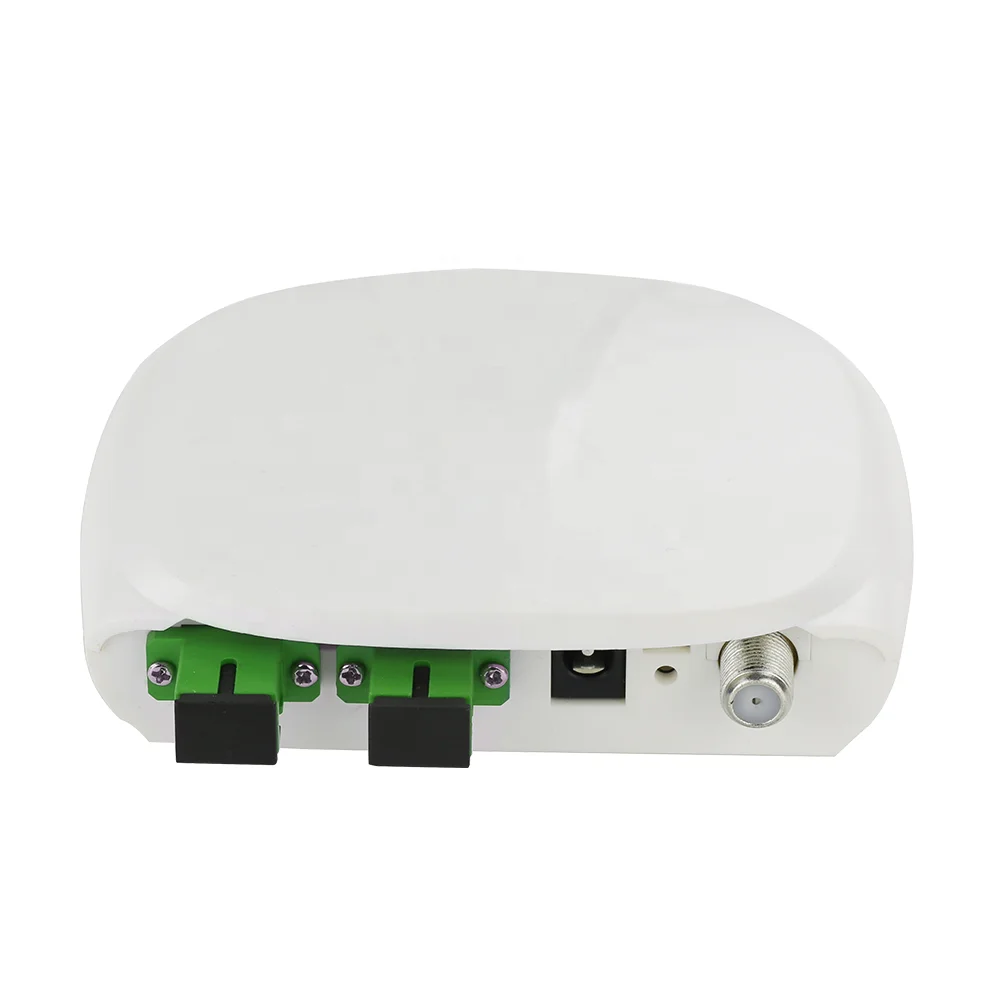

FTTH Indoor Active Catv Node 1550nm WDM OR19 Fiber Optic Mini Optical Receiver 1 RF Port Triplexer Mode With AGC WDM Function
$15.00 USD
A szállítási költség fizetéskor kerül kiszámításra
Mennyiség
Product Description
FTTH Indoor Active Catv Node 1550nm WDM OR19 Fiber Optic Mini Optical Receiver 1 RF Port Triplexer Mode With AGC WDM Function
Specification
|
Received wavelength
|
1100~1600nm&1550nm
|
|
Input optical power
|
0dBm~-10dBm (Analog)&0dBm~-15dBm (Digital)
|
|
Light reflection loss
|
＞45 dB
|
|
Optical connector form
|
FC/APC&SC/APC&FC/PC&SC/PC
|
|
Frequency Range
|
47~1006 MHz
|
|
In-band flatness
|
±1dB@47~ 1006 MHz
|
|
RF output reflection
|
≥16dB@47~550MHz; ≥14dB@550~1006MHz
|
|
Output level
|
≥80dBuV(AGC: @-3~-12dBm)
|
|
RF output impedance
|
75Ω
|
|
AGC range
|
（-3~-12）dBm
|
|
Carrier to Noise Ratio (Note 1)
|
≥51dB
|
|
CTB (Note 1)
|
≥65dB
|
|
CSO (Note 1)
|
≥62dB
|
|
Host voltage
|
DC5V
|
|
Adapter voltage
|
AC110V or AC220V or customized
|
|
Infeed voltage
|
DC5V
|
|
Operating temperature
|
-20℃ ~+45℃
|
|
Power consumption
|
＜2W
|
|
Package Size
|
315*242*110mm(10 sets)
|
|
FCL product weight
|
1.78kgs（10 set）
|
