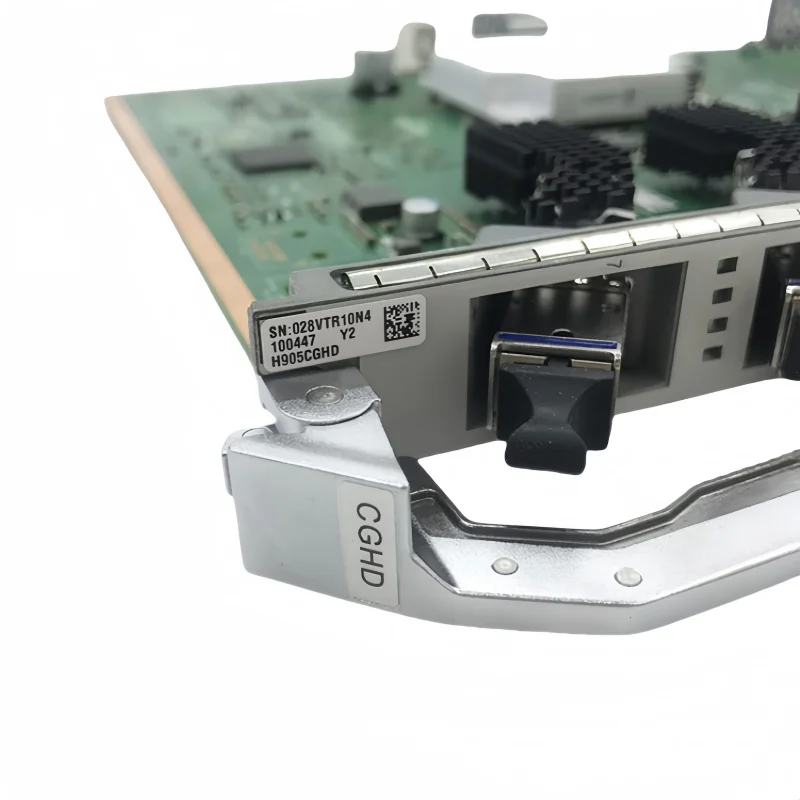

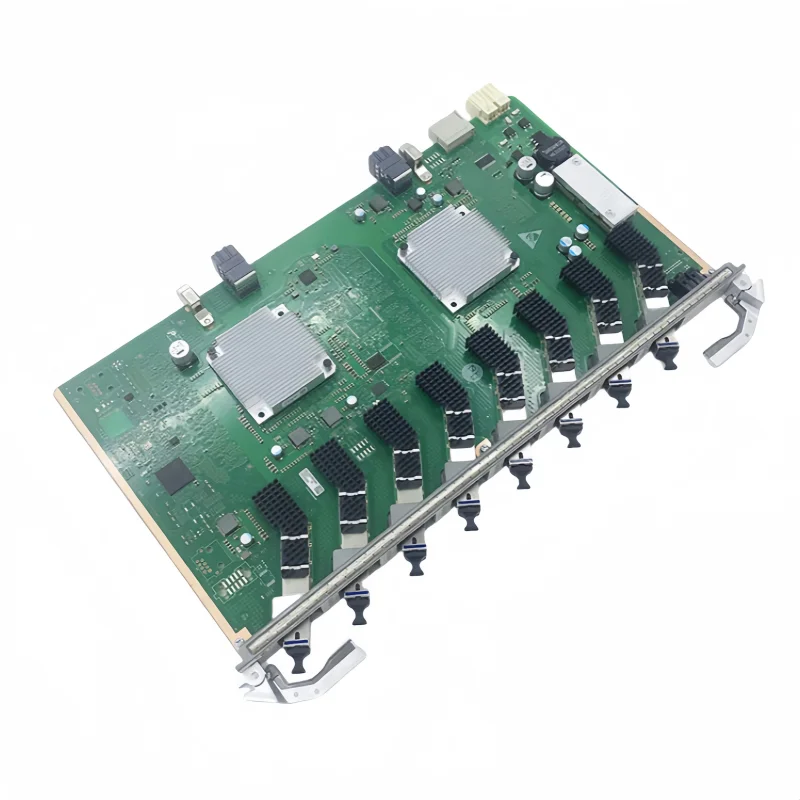

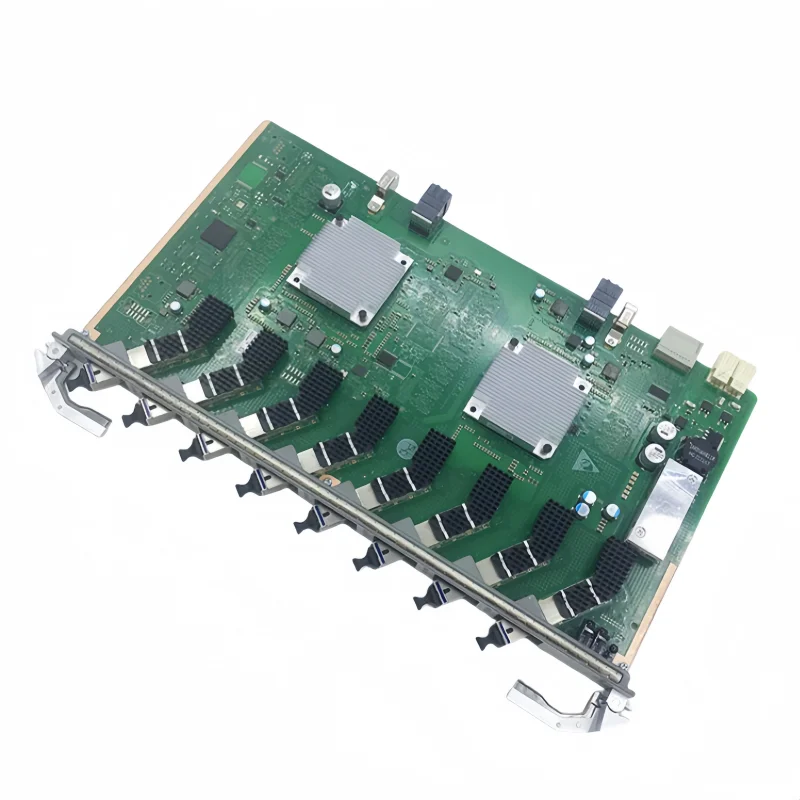

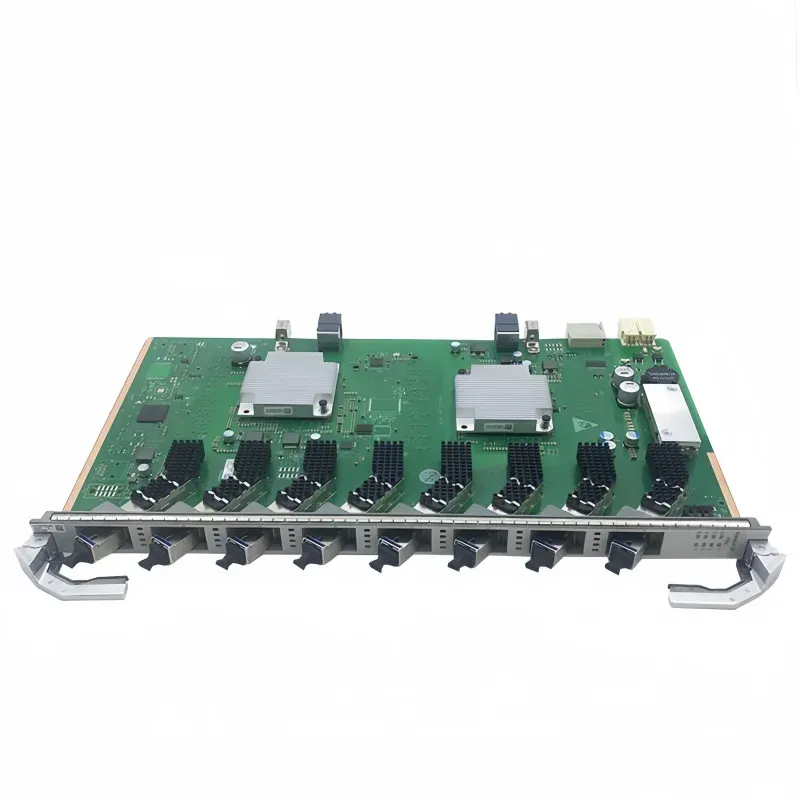

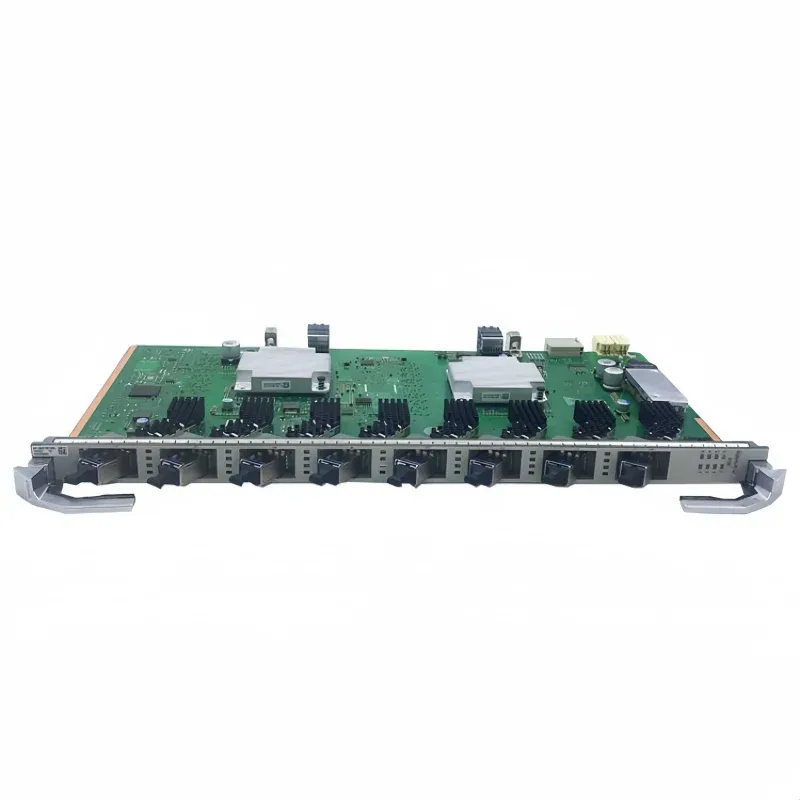

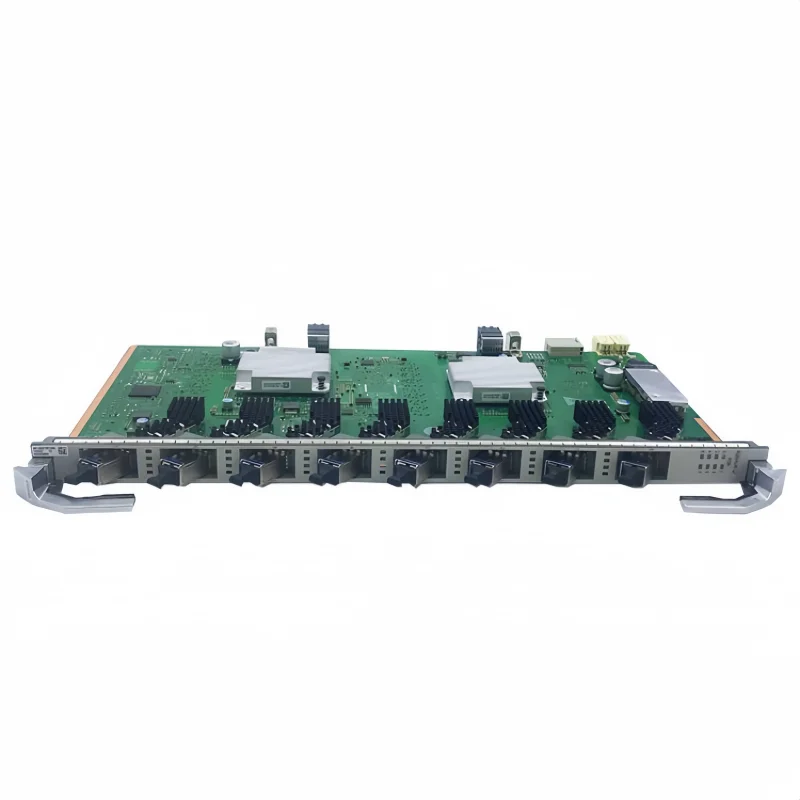

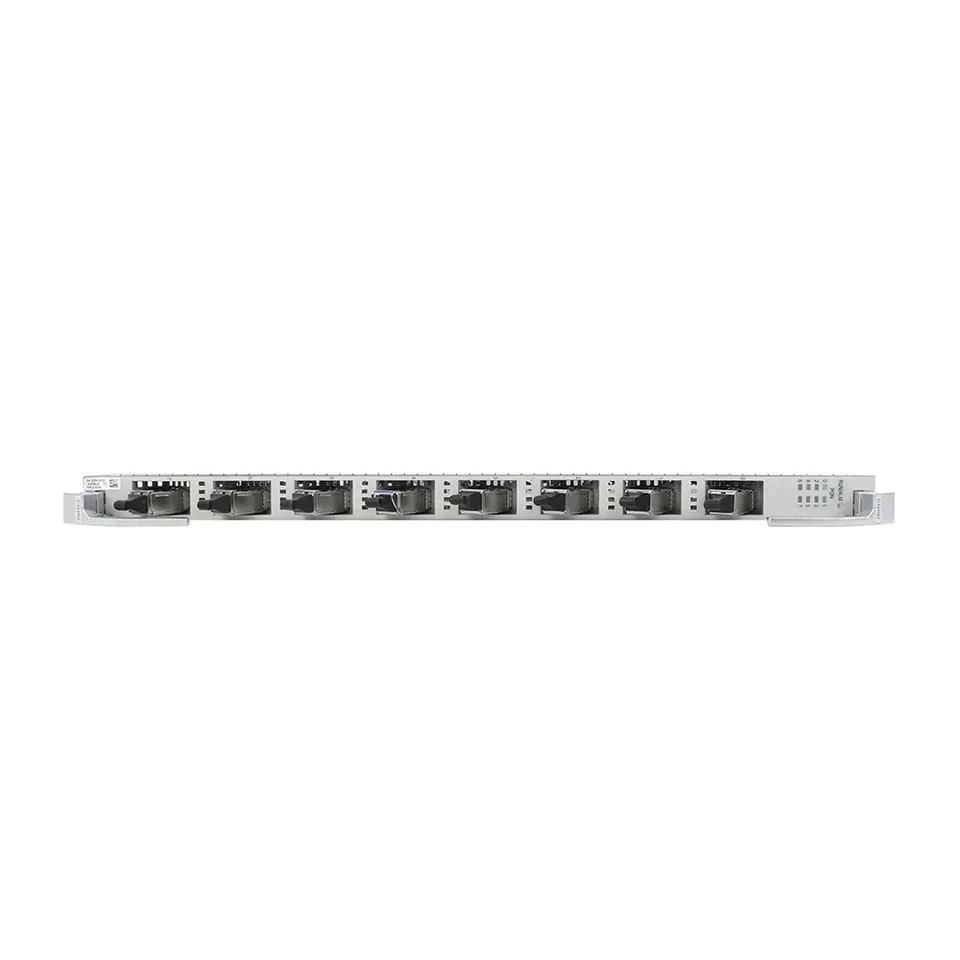

8 16 Port Advanced Gpon/Xg-Pon Combo Card OLT 8 Port Cgid Cghd 8 Ports Class C+ C++ MA5800 Serices Service Board CGHD
$638.00 USD
결제 시 배송비 를 계산
수량
Product Description
Specification
|
item
|
value
|
|
Type
|
OLT
|
|
Model Number
|
CGHD
|
|
Port quantity
|
8 PON
|
|
Forwarding capability
|
80 Gbit/s
|
|
Rate mode
|
Asymmetric rate
|
|
Port rates
|
GPON upstream: 1.244 Gbit/s
|
|
|
GPON downstream: 2.488 Gbit/s
|
|
|
XG-PON downstream: 9.953 Gbit/s
|
|
|
XG-PON upstream: 2.488 Gbit/s
|
|
Maximum split ratio
|
GPON: 1:128
|
|
|
XG-PON: 1:256
|
|
T-CONTs per PON port
|
GPON/auto type ONU: 1024
|
|
|
XG-PON: 2048
|
|
Service flows per PON board
|
16368
|
|
Maximum number of MAC addresses
|
131072
|
|
Maximum distance difference between two ONUs under the same PON port
|
40 km
|
|
Supported ONU rates
|
GPON: 2.5G/1.25G (downstream rate/upstream rate)
|
|
|
XG-PON: 10G/2.5G (downstream rate/upstream rate)
|
|
Type C protection (single-homing)
|
Yes (applicable to GPON channels)
|
|
Type C protection (dual-homing)
|
Yes (applicable to GPON channels)
|
|
Operating temperature
|
-40°C to +65°C
|
