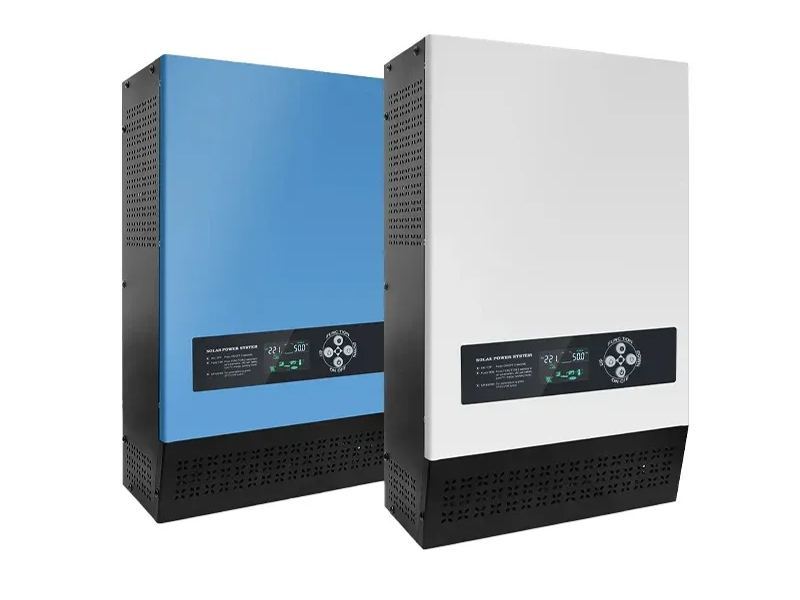

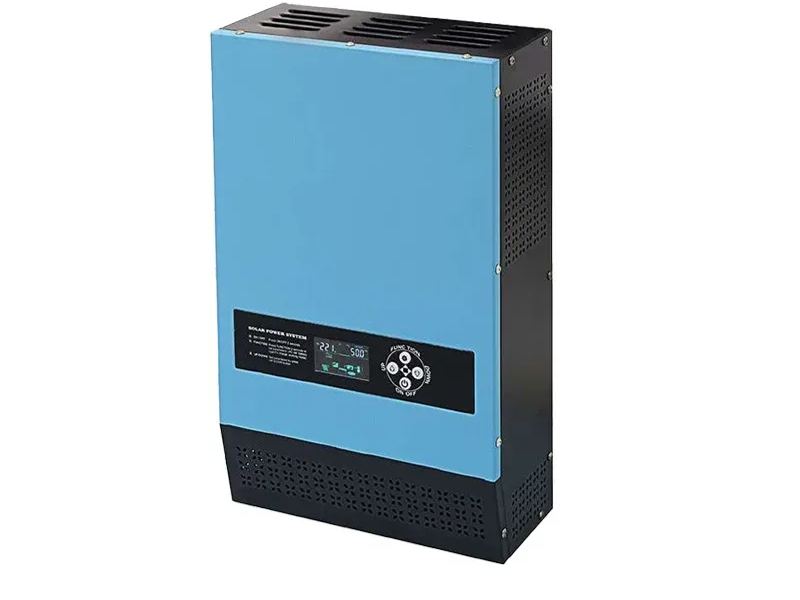

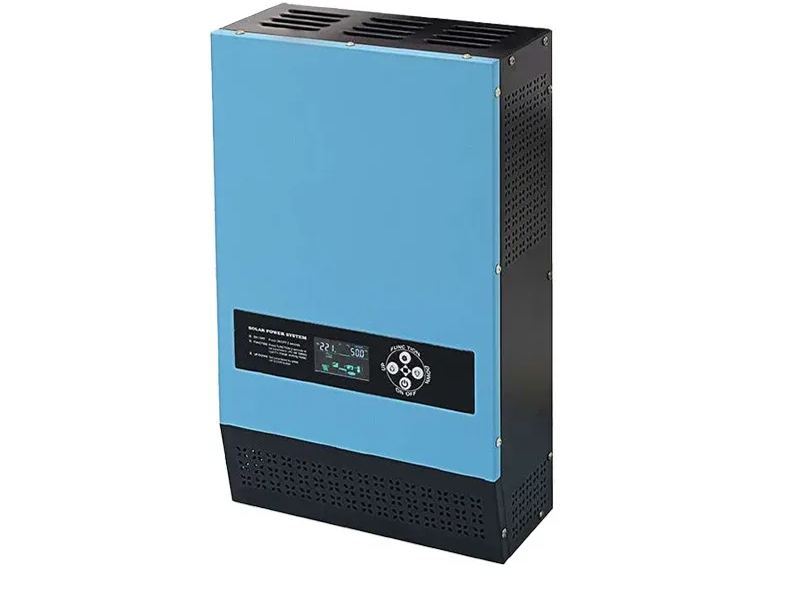

Split Phase Pure Sine Wave Home Off Grid 3kw Inverter 120v 240v 1kw 2kva 3kw 5000w off Grid Solar Power Inverter Converters 5kw
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
|
Specification
|
|
|
|
|
|
|
||||||
|
Model: LS
|
10212/24
|
20212/24/48
|
30224/48
|
40224/48
|
50248
|
60248
|
||||||
|
Rated Power
|
1000W
|
2000W
|
3000W
|
4000W
|
5000W
|
6000W
|
||||||
|
Battery Voltage
|
12/24VDC
|
12/24/48VDC
|
|
24/48VDC
|
48VDC
|
|
||||||
|
Size(L*W*Hmm)
|
490*300*130
|
|
|
510*320*130
|
|
|
||||||
|
Packing Size(L*W*Hmm)
|
565*395*225
|
|
|
585*415*225
|
|
|
||||||
|
N.W.(kg)
|
11.5
|
17.5
|
19.5
|
21.5
|
23.5
|
25.5
|
||||||
|
G.W.(kg) （Carton Packing）
|
13
|
19
|
21
|
23
|
25
|
27
|
||||||
|
Parameter
|
|
|
|
|
|
|
||||||
|
Input
|
DC Input Voltage Range
|
10.5-15VDC（Single battery voltage）
|
|
|
|
|
||||||
|
|
AC Input Voltage Range
|
85VAC~138VAC / 89VAC~144VAC / 93VAC~150VAC / 170VAC~275VAC / 178VAC~288VAC
|
|
|
|
|
||||||
|
|
AC Input Frequency Range
|
45Hz~65Hz
|
|
|
|
|
||||||
|
Output
|
Efficiency
|
≥85%
|
|
|
|
|
||||||
|
|
Output Voltage(Battery Mode)
|
110VAC±2% / 115VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
|
|
|
|
|
||||||
|
|
Output Frequency(Battery Mode)
|
50/60Hz±1%
|
|
|
|
|
||||||
|
|
Output Wave(Battery Mode)
|
Pure Sine Wave
|
|
|
|
|
||||||
|
|
AC Output Voltage Range
|
110VAC±10% / 115VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
|
|
|
|
|
||||||
|
|
AC Output Frequency Range
|
Tracking Automatically
|
|
|
|
|
||||||
|
Inside Solar
controller (Optional) |
Charging Mode
|
PWM or MPPT
|
|
|
|
|
||||||
|
|
Charging current
|
10A, 20A, 30A, 40A, 50A, 60A
|
|
|
|
|
||||||
|
|
PV Input Voltage Range
|
12V System: 15V-44V; 24V System: 30V-44V; 48V System: 60V-88V
|
|
|
|
|
||||||
|
|
Max PV Input Voltage
(At 25℃) |
12V/24V System: 50V; 48V System: 100V
|
|
|
|
|
||||||
|
|
PV Array Maximum Power
|
12V System：140W,280W,420W,560W,700W,840W；
24V System：280W,360W,840W,1120W,1400W,1680W； 48V System: 560W, 1120W, 1680W, 1120W, 2240W, 3360W |
|
|
|
|
||||||
|
Working Mode
|
|
Battery First/AC First/Saving Energy Mode
|
|
|
|
|
||||||
|
AC Charging current（selectable）
|
|
0~30A
|
|
|
|
|
||||||
|
Transfer Time
|
|
≤4ms
|
|
|
|
|
||||||
|
Display
|
|
LCD
|
|
|
|
|
||||||
|
Thermal method
|
|
Cooling fan in intelligent control
|
|
|
|
|
||||||
|
Battery Type
（selectable） |
LEAD
|
Charge Voltage：14V；Float Voltage：13.8V（Single battery voltage，x2 for 24V; x4 for 48V）
|
|
|
|
|
||||||
|
|
OP-LE
|
Charge Voltage：14.2V；Float Voltage：13.8V（Single battery voltage，x2 for 24V; x4 for 48V）
|
|
|
|
|
||||||
|
|
LITHIUM
|
Charge Voltage：13V；Float Voltage：12.6V（Single battery voltage，x2 for 24V; x4 for 48V）
|
|
|
|
|
||||||
|
|
Remark
|
The charging parameters of other types battery can be user-defined
|
|
|
|
|
||||||
|
Protection
|
|
Over-load / Over-discharge / Short circuit / High temperayure / Reverse polarity
|
|
|
|
|
||||||
|
Communication
|
|
RS232/RS485 (Optional)
|
|
|
|
|
||||||
|
Environment
|
Noise
|
≤55dB
|
|
|
|
|
||||||
|
|
Temperature
|
-10 ℃ ~40 ℃
|
|
|
|
|
||||||
|
|
Humidity
|
0~95%( No condensation)
|
|
|
|
|
||||||
