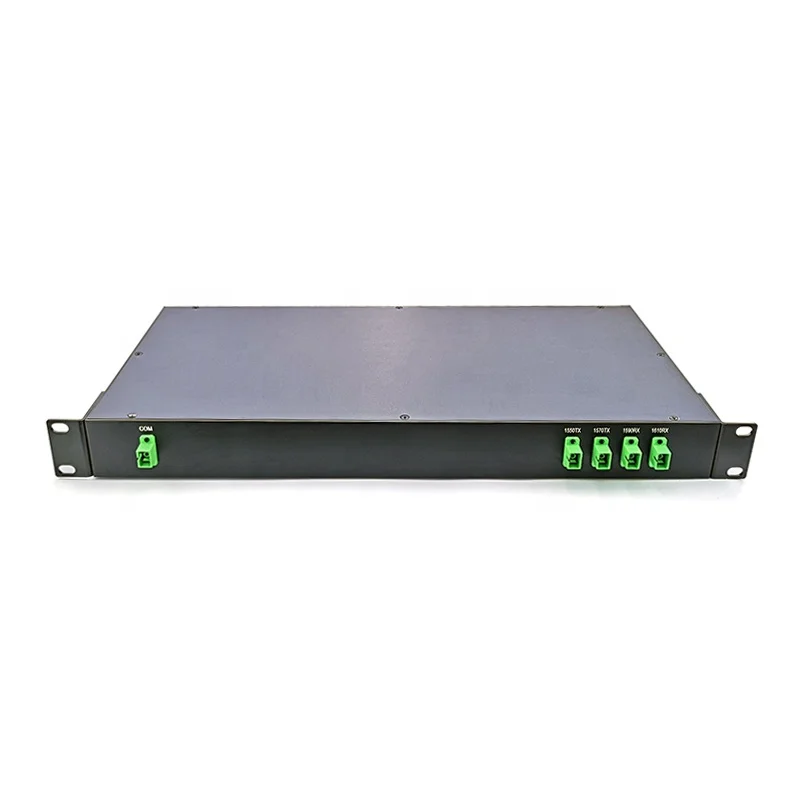

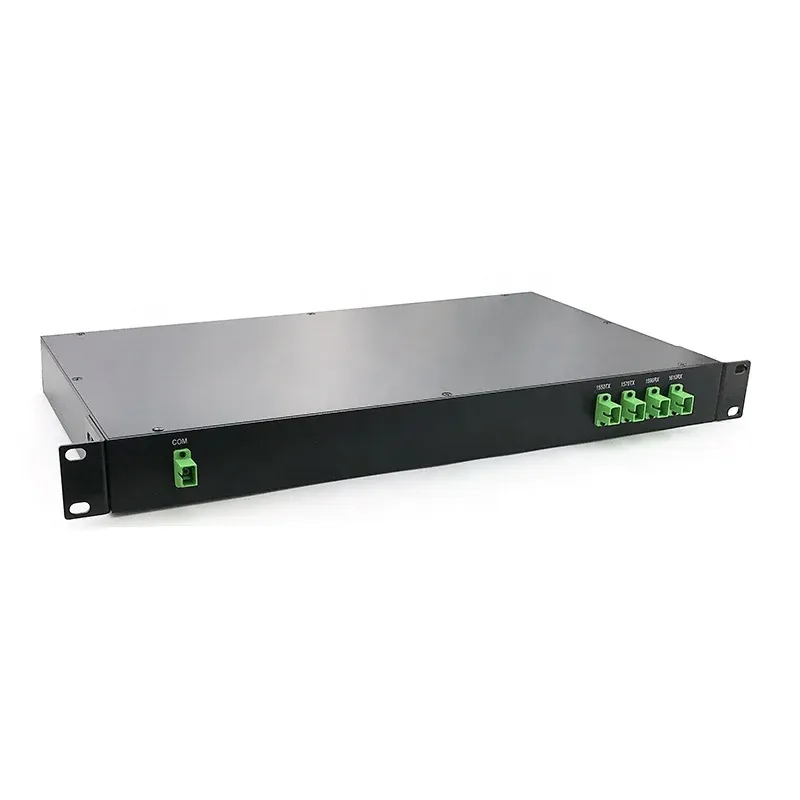

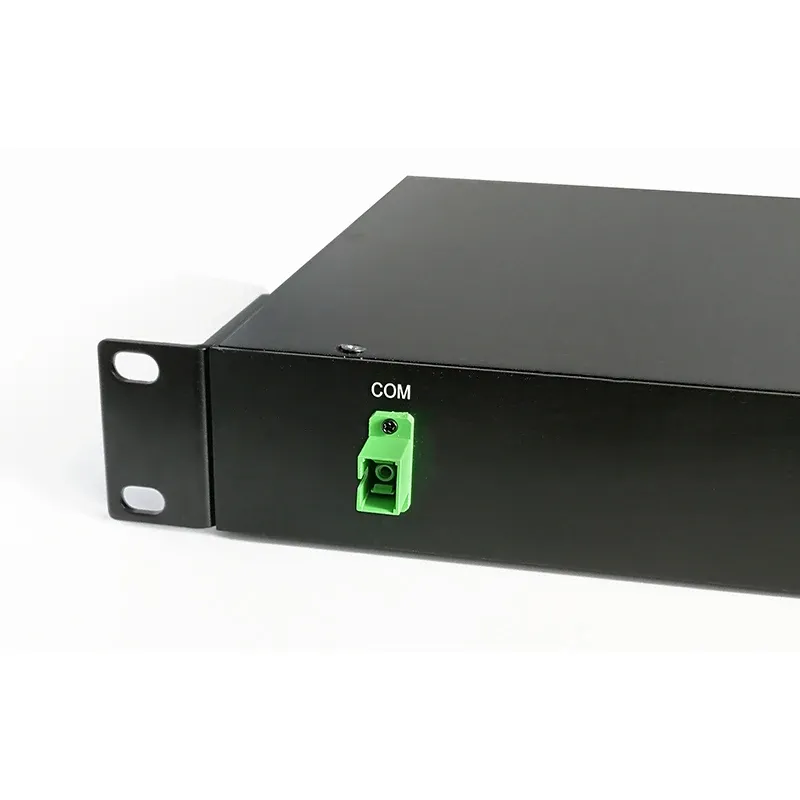

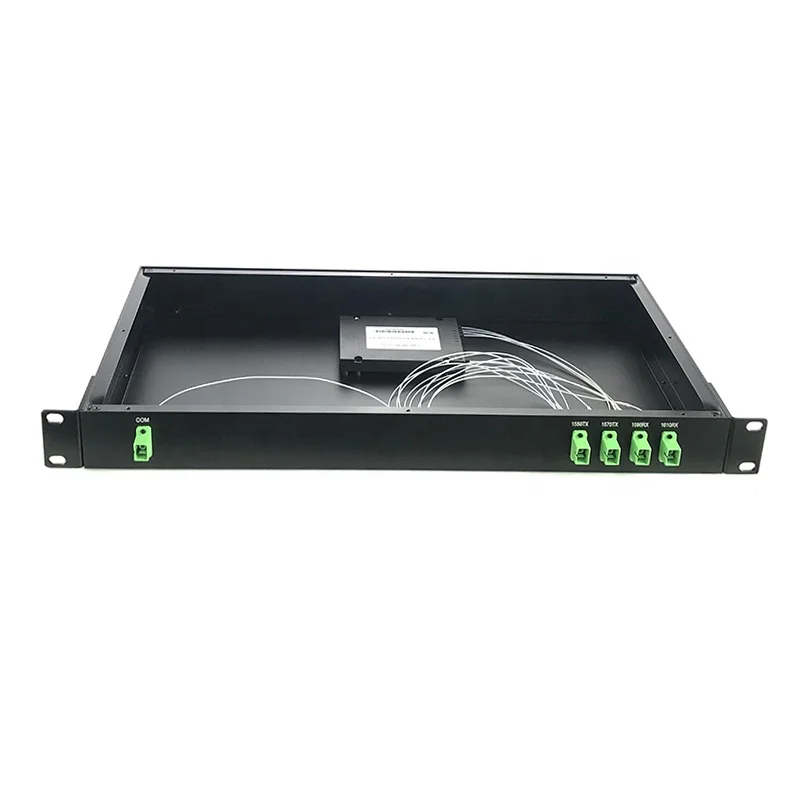

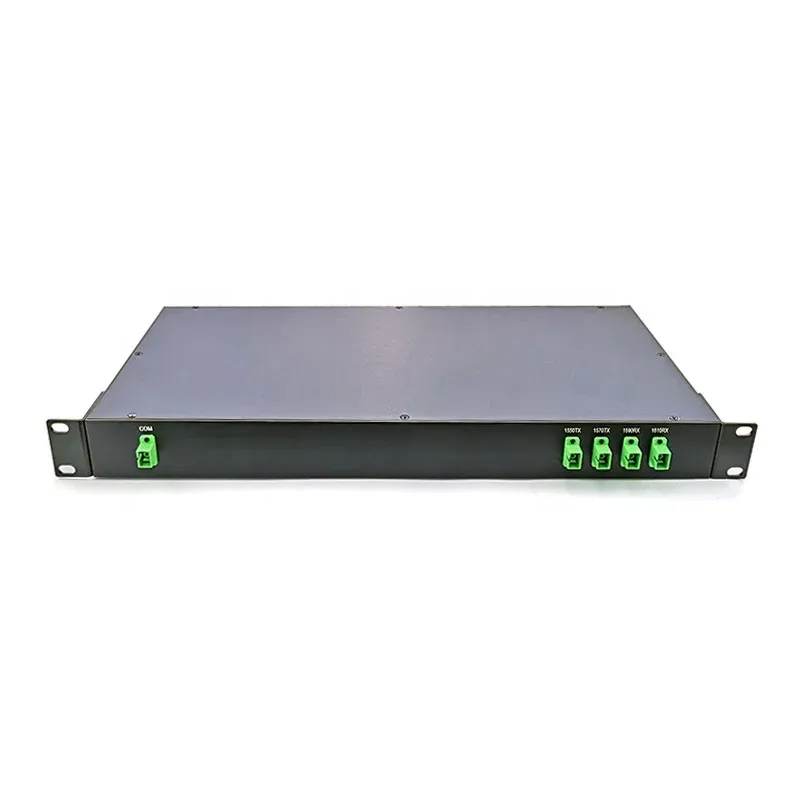

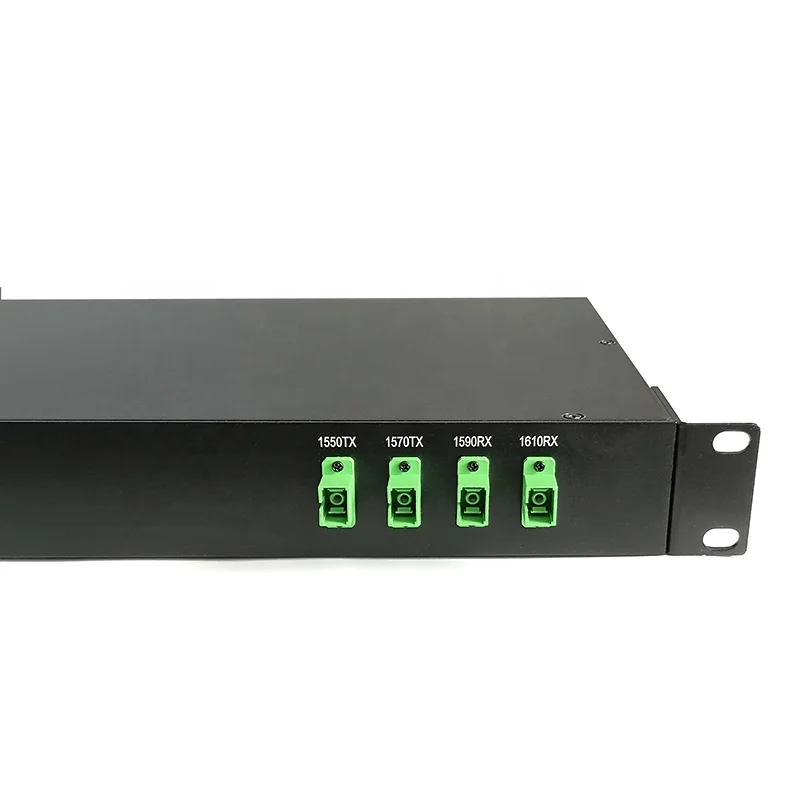

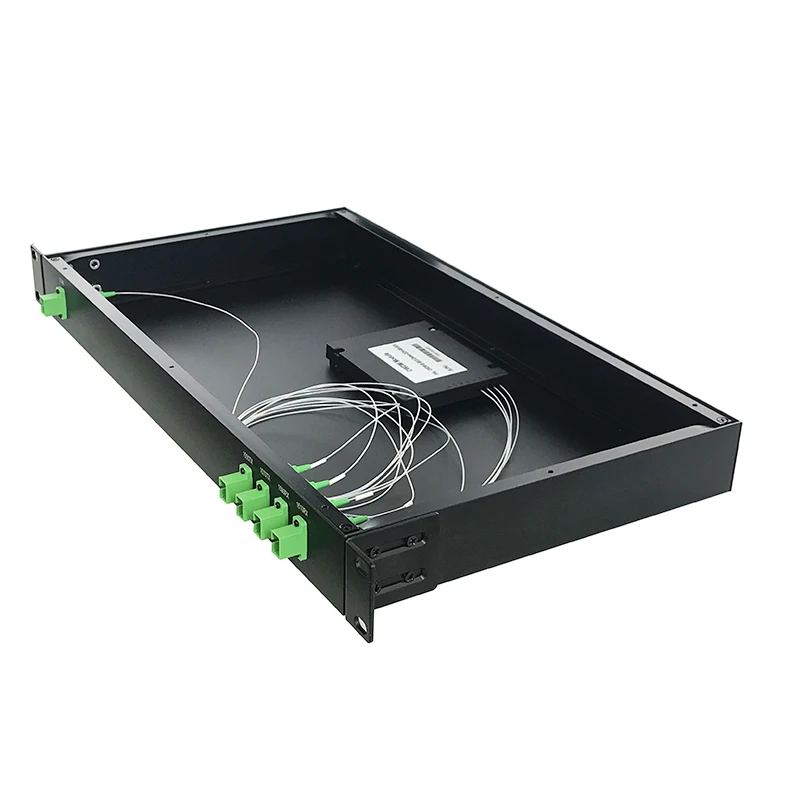

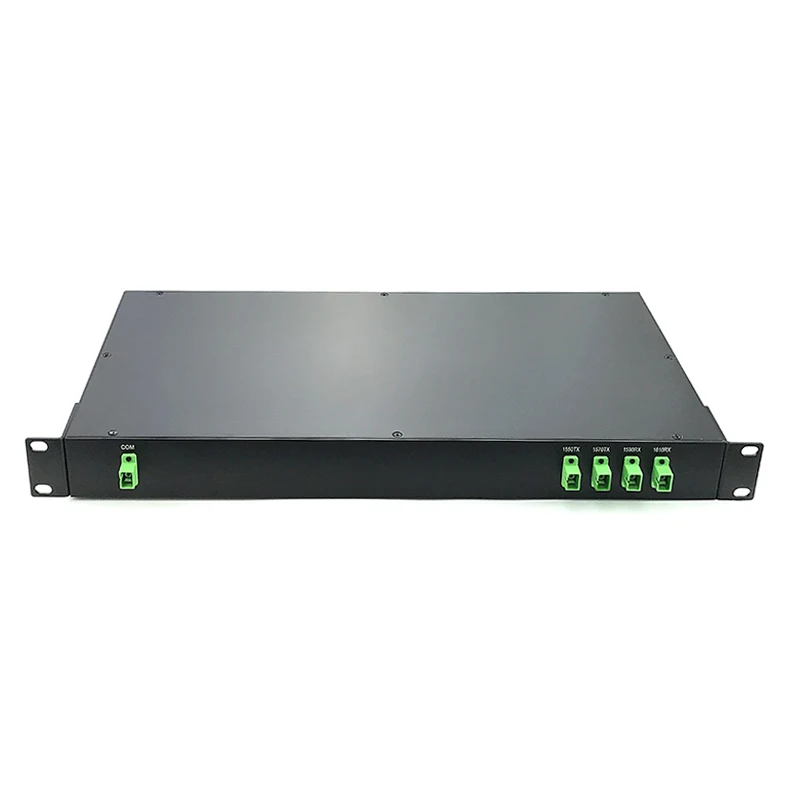

1U Rack Mount 4-Channel Fiber Optic CWDM MUX DEMUX with SCAPC Adaptor 1550 & 1610nm for Optical Network Equipment
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
1U Standard Size Rack Mount MUX DEMUX 1550-1610nm 4 Channel Fiber Optic CWDM with SCAPC Adaptor
|
Type |
CWDM |
|||||||||
|
Parameters |
Index |
|||||||||
|
Channel No. |
λ |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
|
|
Max insertion loss |
dB |
0.8 |
1.0 |
1.4 |
1.8 |
2.2 |
2.6 |
3.0 |
3.4 |
|
|
Conventional center wavelength |
nm |
1310.1470.1490.1510.1530.1550.1570.1590.1610 |
||||||||
|
Passband width |
nm |
±6.5 |
||||||||
|
Passband flatness |
dB |
≤0.5 |
||||||||
|
Adjacent channel isolation |
dB |
≥30 |
||||||||
|
Non-adjacent channel isolation |
dB |
≥45 |
||||||||
|
Wavelength thermal stability |
nm/°C |
<0.002 |
||||||||
|
Insertion loss thermal stability |
dB/°C |
≤0.005 |
≤0.005 |
≤0.007 |
≤0.008 |
|||||
|
Return loss |
dB |
≥45 |
||||||||
|
Polarization mode dispersion |
ps |
≤0.10 |
≤0.10 |
≤0.15 |
≤0.15 |
|||||
|
PDL |
dB |
≤0.10 |
≤0.15 |
≤0.20 |
≤0.25 |
|||||
|
Directivity |
dB |
≥50 |
||||||||
|
Max optical power |
mW |
500 |
||||||||
|
Operating temperature |
°C |
-20~+70 |
||||||||
|
Storage temperature |
°C |
-40~+85 |
||||||||
|
Remarks |
1.16 channels WDM (wavelength from 1270nm-1610nm) can be customized 2. Rack-mounted customization is available. |
|||||||||
Ordering information
|
A |
B |
C |
D |
E |
F |
G |
|
1×N |
Wavelength |
Package spec |
Fiber Type |
Fiber Diameter |
Fiber Length |
Connector |
|
N=1 N=2 … N=16 |
1270 nm 1290 nm 1310 nm … 1570 nm 1590 nm 1610 nm
|
1:Φ5.5mm×34mm 2:Φ5.5mm×35.4mm 3: 90×20×10 mm 4: 100×80×10.5 mm 5: 120×80×18 mm 6: 140×115×18 mm 7: 1U X: Others |
9: 9/125 X: Others |
25:250um 90:900um 20:2.0mm 30: 3.0mm X: Others |
05:0.5m 10:1.0m 15:1.5m X:Others |
OO:None FP:FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC STA: ST/APC LP: LC/PC LA: LC/APC X: Others |
ZG Tech,an ISO9001-2008 certificated company,are specialized in manufacturing optic fibers in telecommunication.
Due to the professional R&D team, We have designed and developed the first rate products for domestic and overseas.
Nowdays our factory lines are equipped with advanced facilities and skilled staffs,also ZG Tech try best to saves the cost in order to meet with customer& # 39;s requirements even exceed their expectation.
We have cooperated with experienced shipping forwarders for many years, they arrange the shipment. No matter by express, by air or by sea, we will track the course of the goods all the way, to make sure goods arrive at you on time and in good condition.
Q1.Are you factory or trading company?
A: We are an ISO 9001-2015 certificated factory in Shenzhen, China, have been in fiber optic fiber line for 14 years.You are welcome to visit our factory if you have chance to Shenzhen.
What is the price of this product?What about the lead time?
A: The leading time depends the quantity you need, Generally speaking, sample needs 1-2 days, mass production time needs 1-2 weeks
Q3.How can i start the order?
A: You can click the start button follow alibaba instructions or contact us, once we both agree on the deal, we will draft an Alibaba insurance order on Alibaba, you just need follow the Alibaba payment instructions, or we send the PI in PDF with our company seal to you, you just need transfer to our bank/PayPal/Western union account, after we received the payment, we will arrange the production.
Q4: Do you have other fiber optic products?
A: Yes, we also manufacture patch cord, WDM, attenuator, connector, etc.Please contact us or click following link to visit our alibaba website:
