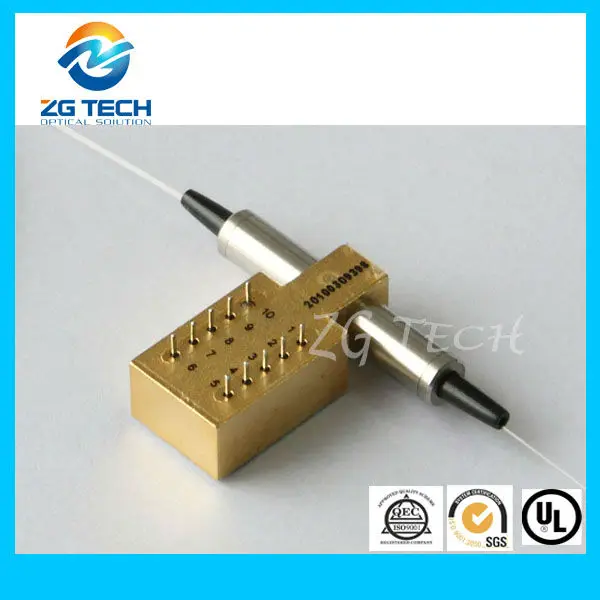

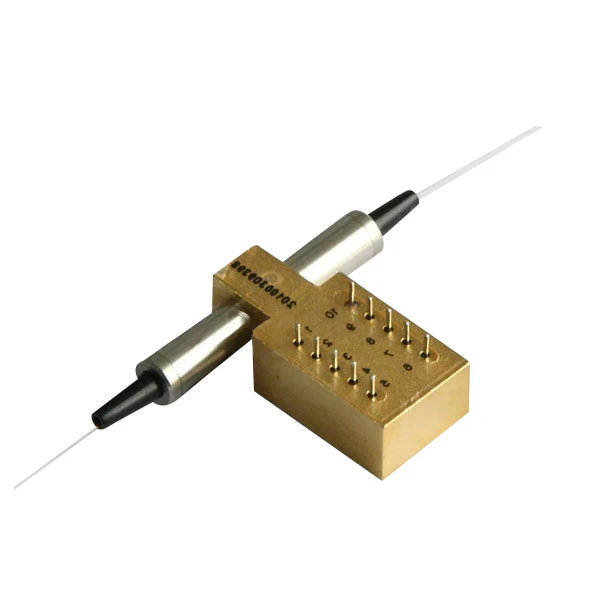

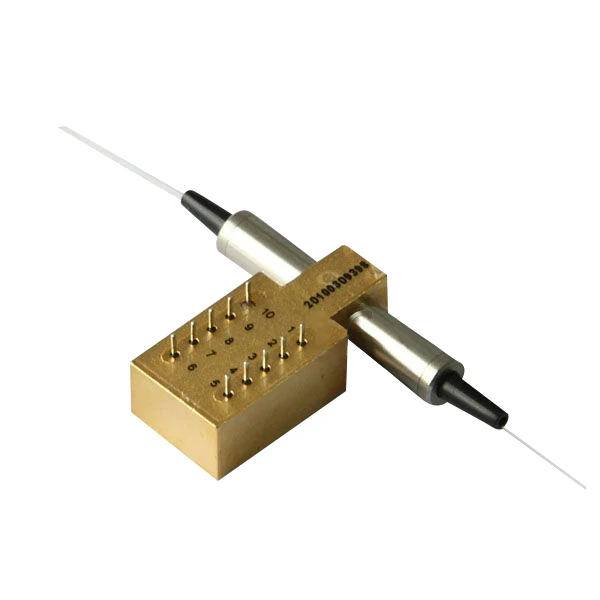

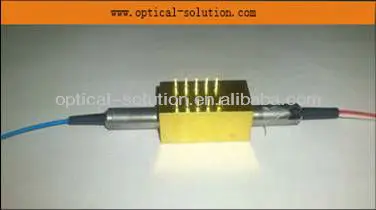

1x2 SM or MM Non-Latching MEMS Fiber Optic Switch
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

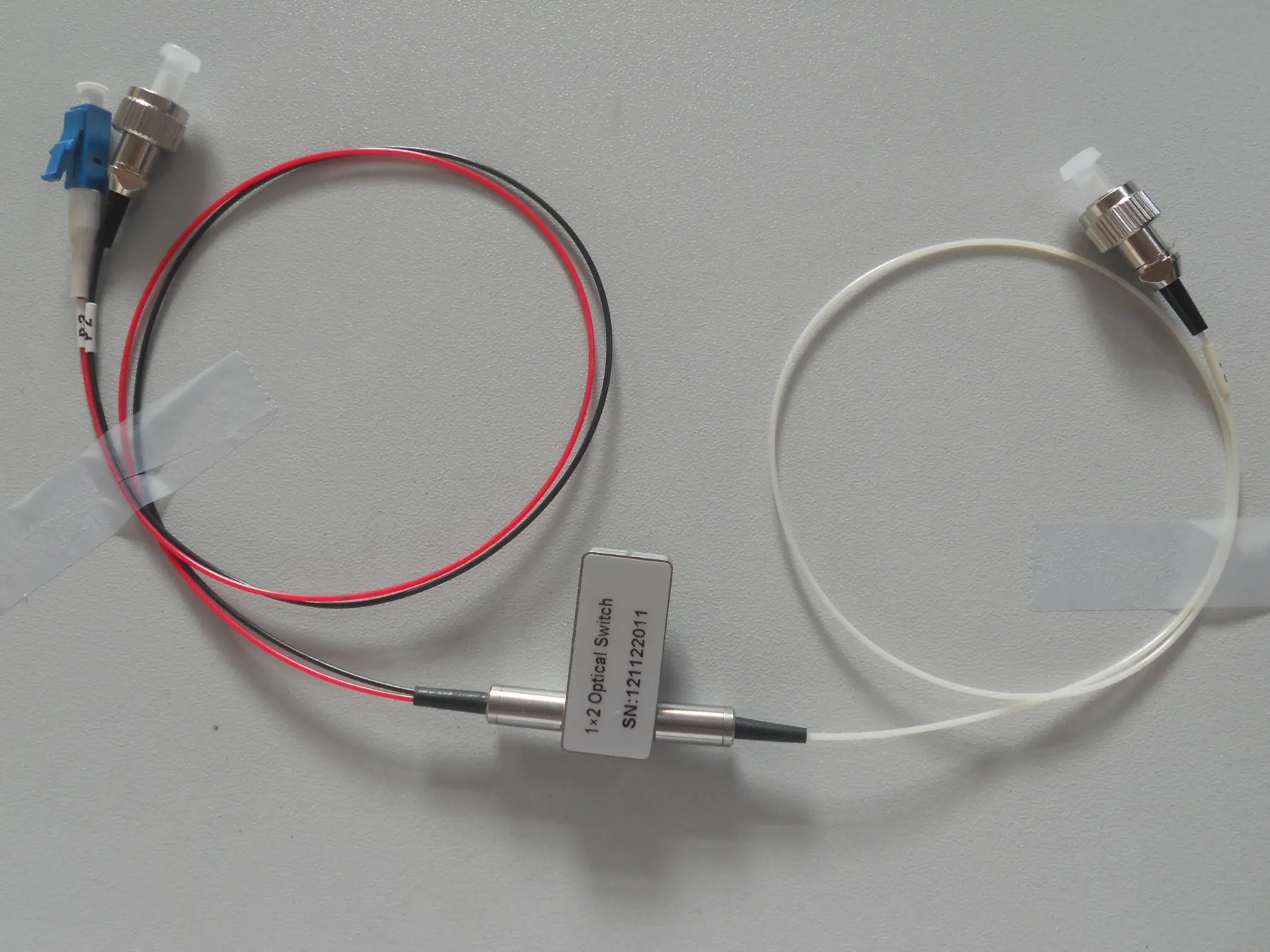

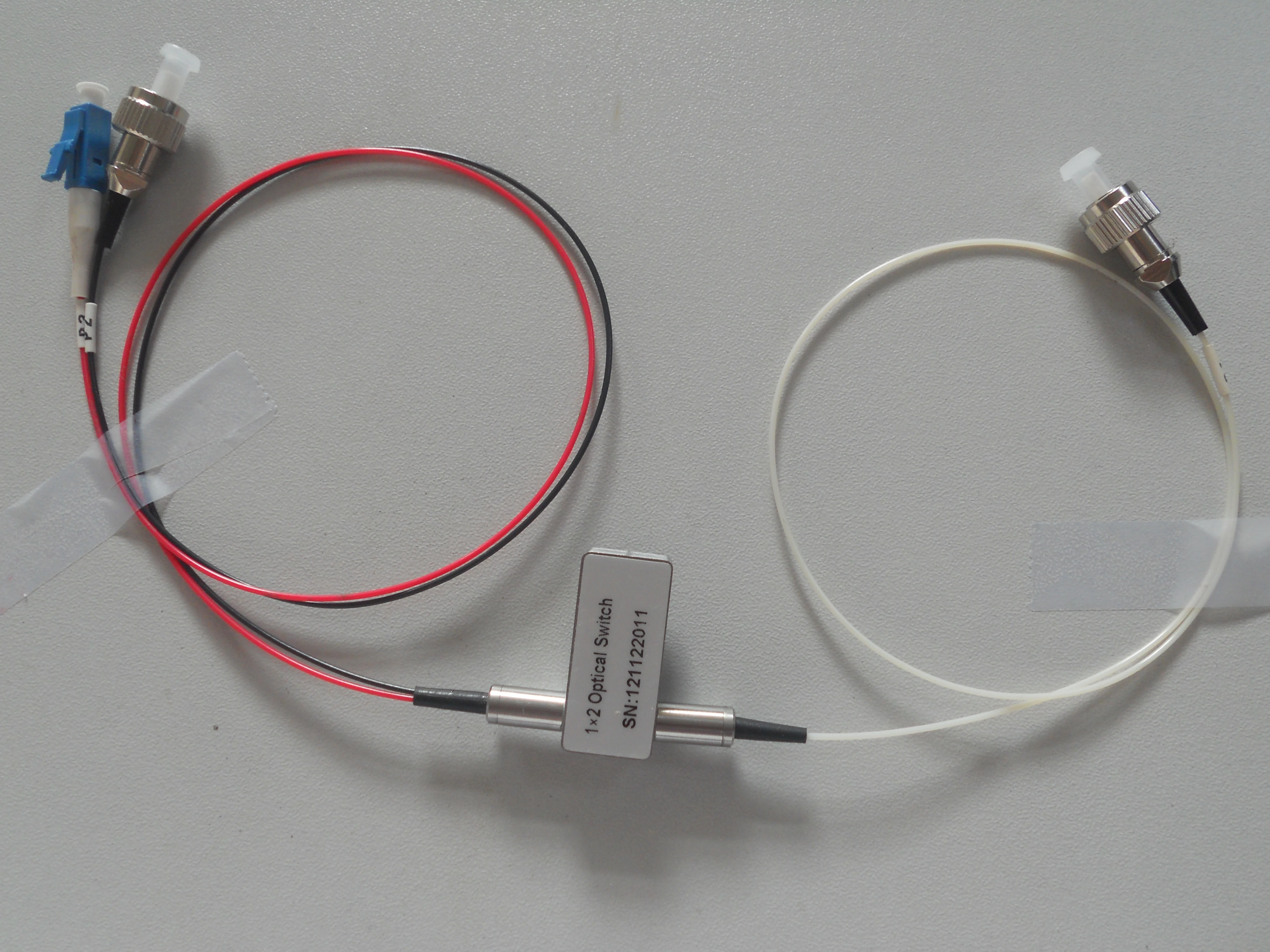

1x2 MEMS switch
Product Features:
•Low insertion loss
•High channel isolation
•Good environmental stability and reliability
•No plastic optical path
•Self-locking and non-locking
Application:
•Optical Network
•Protection / Recovery
•optical signal routing
•transmitter and receiver protection
•Network Test System
l Specification
|
Parameter |
|
FY-1×1T |
|
|
Wavelength Range |
nm |
850 |
1260~1650 |
|
Operating Wavelength |
nm |
850 |
1310/1490/1550/1625/1650 |
|
Insertion Loss |
dB |
Type:0.5 Max:0.8 |
Type:0.4 Max:0.6 |
|
Return Loss |
dB |
SM≥50,MM≥30 |
|
|
Crosstalk |
dB |
SM≥70,MM≥65 |
|
|
PDL |
dB |
≤0.05 |
|
|
WDL |
dB |
≤0.25 |
|
|
TDL |
dB |
≤0.25 |
|
|
Repeatability |
dB |
≤±0.02 |
|
|
Power Supply |
V |
3.0 or 5.0 |
|
|
Lifetime |
Times |
≥107 |
|
|
Switch Time |
ms |
≤8 |
|
|
Transmission Power |
mW |
≤500 |
|
|
Operating Temperature |
°C |
-20~+70 |
|
|
Storage Temperature |
°C |
-40~+85 |
|
|
Dimension |
mm |
(L)27×(W)12.6×(H)8.0 (±0.2) |
|
l Pines
|
Type |
Pin |
Electric Drive |
Status Sensor |
||||||
|
1×1 |
|
Pin 1 |
Pin 5 |
Pin 6 |
Pin10 |
Pin2-3 |
Pin3-4 |
Pin7-8 |
Pin8-9 |
|
Latching |
P1-P2 |
V+ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
|
Light close |
-- |
-- |
GND |
V+ |
Close |
Open |
Open |
Close |
|
|
Non-latching |
P1-P2 |
V+ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
|
Light close |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
|
l Optical Route
|
Specifications |
Voltage |
Current |
Resistance |
|
5V latching |
4.5~5.5 |
36~44mA |
125Ω |
|
5V non-latching |
4.5~5.5 |
26~32mA |
175Ω |
|
3V latching |
2.7~3.3 |
54~66mA |
50Ω |
|
3V non-latching |
2.7~3.3 |
39~47mA |
70Ω |
l Ordering Information
|
X |
XX |
X |
X |
X |
XX |
X |
XX |
|
Fashion |
Wavelength |
Voltage Type |
Control Model |
Fiber Type |
Fiber Diameter |
Fiber Length |
Connector |
|
S=SM M=MM |
85=850nm 13=1310nm 14=1490nm 15=1550nm 62=1625nm 65=1650nm 13/15=1310/ 1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC X=Others |
