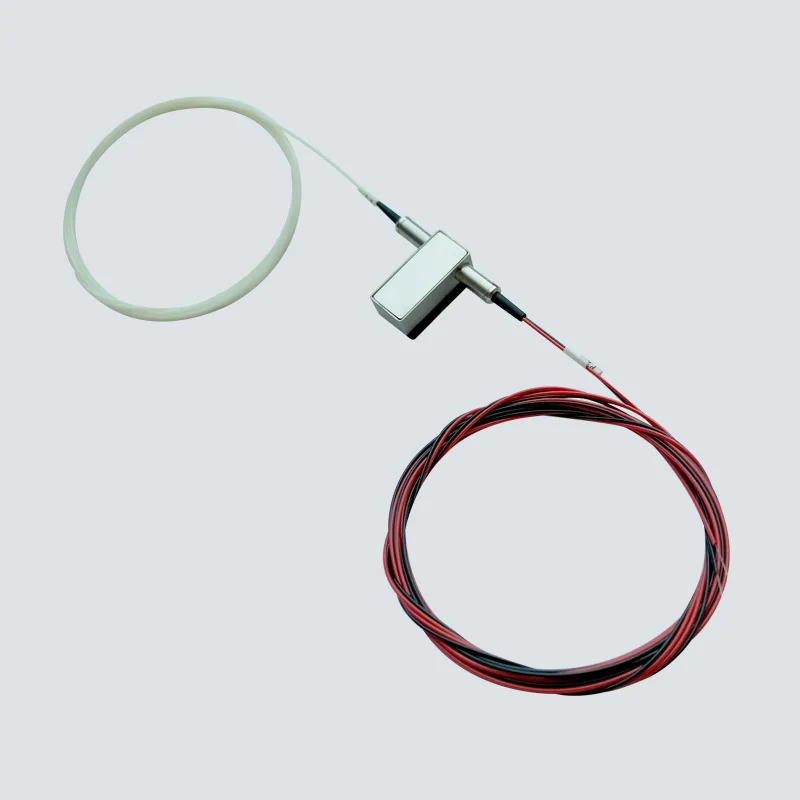

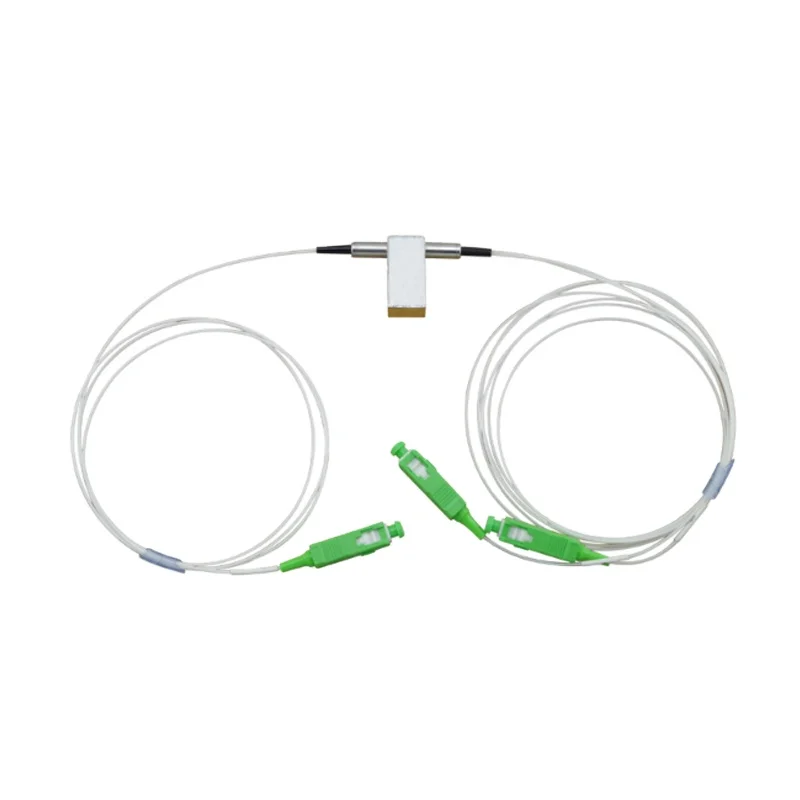

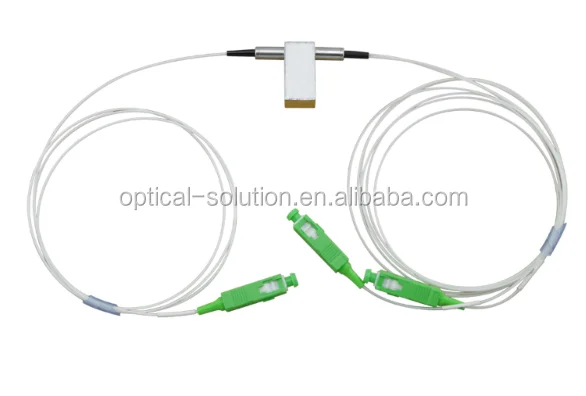

ZG Tech Wholesaler Price Mechanical Single Mode 1310/1550nm Self-latching 5V 1X2 Optical Remote Fiber Switch SC/APC Connector 1M
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Wholesaler Price Mechanical Single mode 1310/1550nm Self-latching 5V 1X2 Optical Fiber Switch with SC/APC Connector Fiber Switch
| Features | Applications |
| Unmatched Low Cost Low Insertion Loss High Channel Isolation Highly Stability and Reliability Epoxy-Free Optical Path | Configurable Optical ADD/DROP Optical signal Routing System Monitoring Instrumentation |
Specifications
| Parameter | Specification | |||
| Operating Wavelength (nm) | 1310±40 or 1550±40 | 1310/1550 ± 40 | ||
| Insertion Loss (dB) | P Grade | A Grade | P Grade | A Grade |
| < 0.6 | < 0.8 | < 0.8 | < 1.0 | |
| Wavelength Dependent Loss (WDL) (dB) | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 | ≤ 0.30 |
| Polarization Dependent Loss(PDL) (dB) | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 |
| Temperature Dependent Loss (TDL)(dB) | < 0.20 | < 0.25 | < 0.20 | < 0.25 |
| Channel Cross Talk (dB) | >55 | >55 | >55 | >55 |
| Repeatability (dB) | < ± 0.02 | |||
| Return Loss (dB) | > 55 | |||
| Switching Speed (ms) | <10 (Type 4) | |||
| Coil Resistance (Pin 1-5 or 6-10) (ohms) | 178 ± 10% | |||
| Operating Voltage (V) | 5 | |||
| Power Handling (mW) | 500 | |||
| Operating Temperature(°C) | 0 ~ +70 | |||
| Storage Temperature (°C) | -45 ~ +85 | |||
| Fiber Type | SMF-28 | |||
| Fiber Length (m) | 1.0 +/- 0.1 | |||
| Physical Dimension (LxWxH) (mm) | 32.76 × 12.6 × 11 | |||

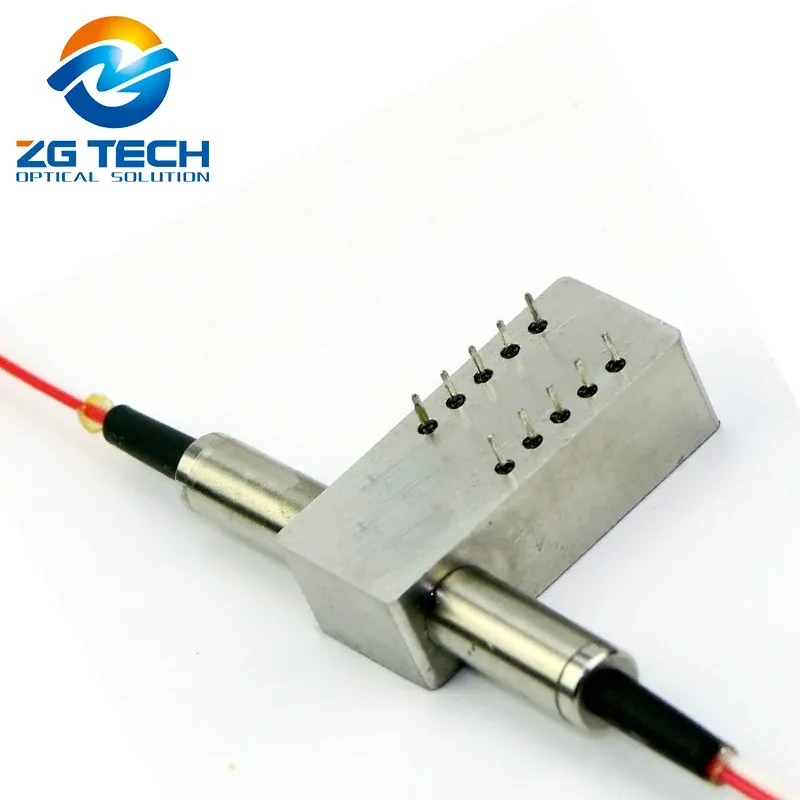

Electrical Pin Configuration:
| Optical Path | Port1 To Port3/Port2 To Port4 | Port1 To Port4/Port2 To Port3 | |||
| Electric Drive | Non-Latching | Pin1 | Pin10 | ||
| V+ | GND | GND | V+ | ||
| Sensor Status | Non-Latching | Pin2-3, Pin8-9 Open | Pin2-3, Pin8-9 Close | ||
| Pin3-4, Pin7-8 Close | Pin3-4, Pin7-8 Open | ||||
Dimensions: Ordering Information:
| SMS | Sensor Status | Operating Wavelength | Port | Grade | Fiber Type | Fiber Length | In/Out Connetor |
| N=Non Latching | 15=1550±40nm 13=1310±40nm 35=1310/1550nm | 0202=2x2 | P=P Grade A=A Grade | 1=Bare Fiber 2=900um Jacket | 1=1 Meter 2=2 Meter | 0=NONE 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC |
More details, Please directly contact:
Tina Jiang
Skype: zgsales5
E-mail: zgsales5 @ optical-solution.com
