1310 1550nm 6nm Bandwidth Single Mode Fiber Optic Bandpass Filter for WDM
Production Description
The bandpass filter uses thin film filters with excellent performance to ensure high-quality optical performance, stable and reliable.It is used to shield noise signals in EDFA and fiber laser systems.It has the characteristics of high isolation, low insertion loss, high return loss and high power.The product has passed the TELCORDIAGR-1221-CORE test and meets ROHS requirements.
Feature
1.Low insertion loss
2.Large return loss
3.Good inter-plug performance
4.Good interchangeability
5.Good temperature stability
6.Good repeatability
| Parameter | Unit | Value |
|---|---|---|
| Center Wavelength | nm | 1550 |
| Bandwidth @0.5dB | nm | 21014 |
| Insertion Loss (Maximum) | dB | 1.0 |
| Isolation (Minimum) | dB | 25 |
| Relative Intensity Noise PDL | dB | ≤0.1 |
| Thermal Stability | dB/°C | 0.005 |
| Return Loss | dB | 250 |
| Transmit Power (CW) | mW | 300 |
| Peak Power (Pulse) | KW | 1 |
| Fiber Type | / | SMF-28e |
| Fiber Length | m | 1.0 |
| Package Size | mm | 5.5×35 |
| Loading Resistance | N | 5 |
| Operating Temperature | °C | -5 to +70 |
| Storage Temperature | °C | -40 to +85 |
The temperature measurement environment is 23°C. If a connector is added, the insertion loss increases by 0.3dB, the return loss decreases by 5dB, and the extinction ratio decreases by 2dB for polarization-maintaining products.
Selection Information
| MCBPF Selection Information | Operation Wavelength | Bandwidth | Power Type | Fiber Length | Fiber Type& Connection Type |
| 1550-1550nmS-other | 2-2nm 10-10nm 14-14nmS-other | P-Pulse C -Continuous | 08-0.8m 10-1.0m15-1.5mS-other | B-250um bare fiber,L-900um fiber sleeve S-other | NN-NoneFU-FC/PCFA-FC/APCSU-SC/PCSA-SC/APCS-other |
If you need more detailed information, please contact our sales staff.We reserve the right to revise the indicators without prior notice.
ZG TECH Product Line

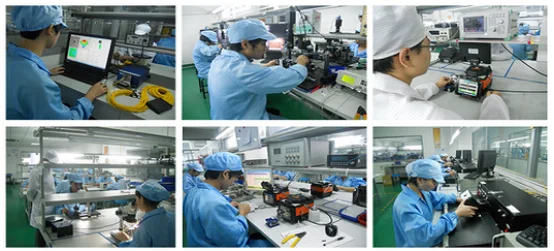

ISO 9001 Certificatied Factory
