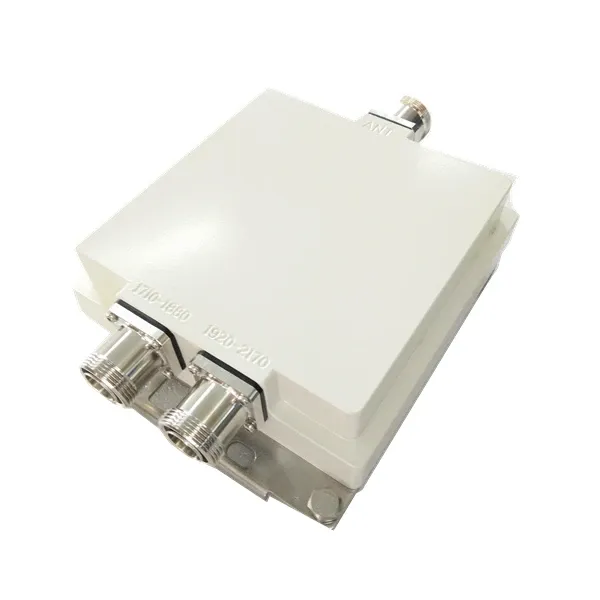

1710-2170mhz Dual Band Combiner / Diplexer with DIN-Female connector
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
1710-2170mhz Dual Band Combiner / Diplexer with DIN-Female connector
Specification
Model Number | YFC-D-3912-DF | YFC-D-4912-DF | ||
Frequency(MHz) | 380-960 | 1710-2170 | 470-960 | 1710-2700 |
Insertion Loss (dB)(MAX) | 0.3 | 0.3 | 0.3 | 0.3 |
Ripple in Band (dB)(MAX) | 0.6 | 0.6 | 0.6 | 0.6 |
Isolation (dB)(MIN) | 50 | 50 | 55 | 65 |
VSWR (MAX) | 1.25 | 1.25 | 1.22 | 1.22 |
Input Power (W) | 300 | 300 | ||
Impedance (ohms) | 50 | 50 | ||
PIM3 (dBc@2*43dBm)(MAX) | -155 | -155 | ||
Lightning Protection | IEC 61000-4-5;3kA, 8/20us | IEC 61000-4-5;3kA, 8/20us | ||
DC-by pass | available | available | ||
Connector | DIN-femalelong neck | DIN-female | ||
Color | Grey | Grey | ||
Application | Indoor/Outdoor, IP65 | Indoor/Outdoor, IP65 | ||
Working Temperature (deg) | -25~+60 | -25~+60 | ||
Mounting | Pole or Wall Mount | Pole or Wall Mount | ||
Relative Humidity | 5-95% | 5-95% | ||
1.Payment:T/T, L/C, Western Union.
2.Delivery Method:DHL, FEDEX, UPS, TNT, EMSand other courier available as required.
3.Freight:All freight shall be paid by the buyers.
4.Delivery lead time:1 - 4 weeks.
5.Packing: Plastic bag + Carton, Standard Exporting Cartons. logo can be customized.
1.Fast Shipping Sample Orders.
2.OEM is welcomed.
3.1 year warranty after sale service.
4.All products accessories have been checked for 3 times before shipping out.
