RF Cavity Duplexer 806-824 & 851-869 MHz
* Wide frequency range
* Low Insertion Loss
* Low VSWR
* Silver Color Painted
* Average Power 50W
* High Reliability

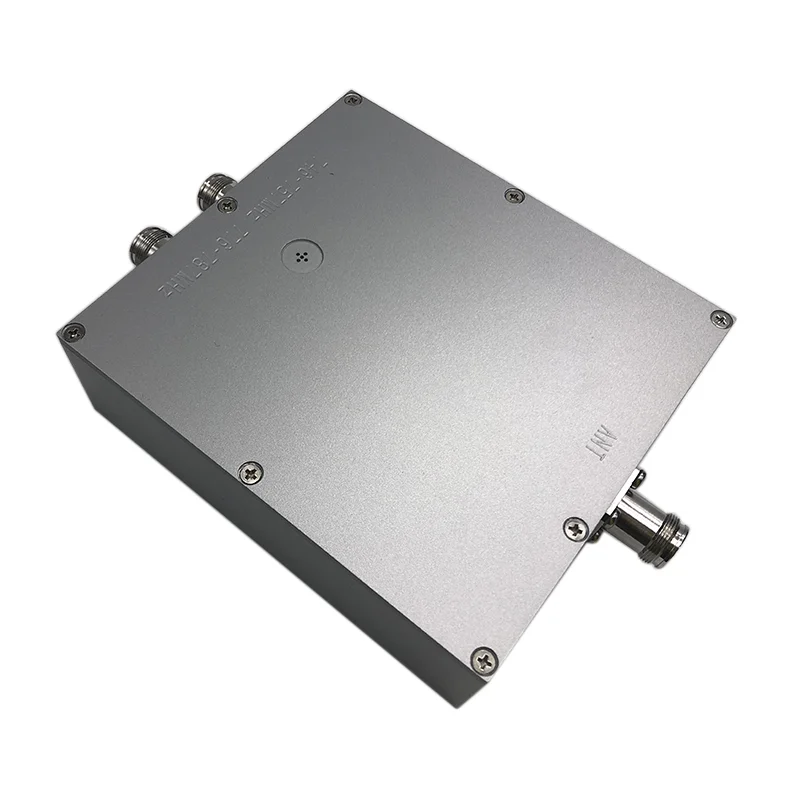

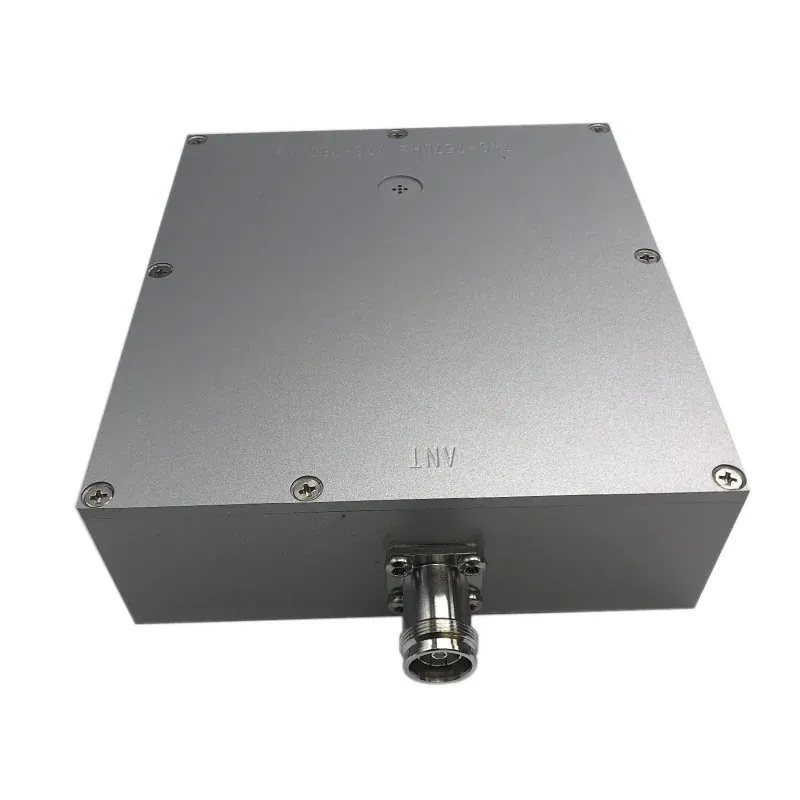

806-824&851-869MHz RF Cavity Duplexer Diplexer From Original Manufacturer
$130.00 USD
Quantityتعداد
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Product Description
Technical& Mechanical Specifications
Product name | 700 Upper C Band RF Dual Band Combiner | 800 MHz Public Safety Band RF Dual Band Combiner |
Frequency range(MHz) | Uplink:746-757MHz Downlink:776-787MHz | Uplink: 806-824MHz Downlink: 851-869MHz |
Power Handling | 100w | 100W |
Impedance | 50 | 50 |
Return Loss(dB) | ≥ 20 | ≥ 20 |
Insertion Loss | 2.0Max | 2.0 Max |
Out of Band Rejection(dB)at 4MHz from edge | 40dB | 40dB |
Passband Ripple(dB) | ≤1.5 | ≤1.5 |
Intermodulation (3rd order): | ≤ -155dBc @ 2 x 43dBm carrier | ≤ -155dBc @ 2 x 43dBm carrier |
Isolation: | ≥80 dB | ≥80 dB |
COLOR | Silver | Silver |
Connector Type | 4310F | 4310F |
Operating temperature range: | -30°C to +75°C | -30°C to +75°C |
Applications | IP67 | IP67 |
NOTE: All the specifications can be changed as customer& # 39;s requirment. Our company has a variety of products to choose
Product Features
RF Cavity Duplexer 806-824 & 851-869 MHz
* High Quality
* Durable & Long Service Life
* A variety of products can be chosen
* All the specifications can be changed as customer's requirment
Related Products
17 Years Old
Hefei Maniron Electronic And Technology Co LTD., Esatablished in 2002,is a leading manufacturer of RF components,We offer OEM services.Headquarters of Maniron Electronic is located at hi-tech developing district in Hefei Anhui,China.Includes two factories.At the same time,Maniron’s market network has been all over the world.The Maniron Electronic has a huge fellowship that is composed of many high-level technologists.And also has established a research institution which cooperating with some famous universities.
high-level technologists.We also has established a Research Institution which is cooperting with some famous universities in China.
Maniron is a high-tech communication company,with more than 140 national patents and technical certificates.
We passed ISO9001 quality system identification and all products are mading according to ROHS.
Installation Instructions
Packing & Delivery
FAQ
Q:What is your payment terms for800 MHz Public Safety Band 700 Upper C Band RF Combiner?
A:We accept the T/T, Western Union, L/C and so on.
Q:When can you arrange the shipment after I have placed an order of800 MHz Public Safety Band 700 Upper C Band RF Combiner?
A: we can arrange shipment within 3days.If for the earphone and antenna, usually we can arrange the shipment 5-7days.
Q: Could you supply the sample of800 MHz Public Safety Band 700 Upper C Band RF Combiner for me to test first?
A: Yes, we can supply the sample first, however, the customer should bear the cost.
Q: What is the MOQ of800 MHz Public Safety Band 700 Upper C Band RF Combiner?
A: Usually, it is serious requirement.However, it depends on different products.
Q. Q: Can you accept Customized for800 MHz Public Safety Band 700 Upper C Band RF Combiner?
A: OEM and ODM are welcomed
