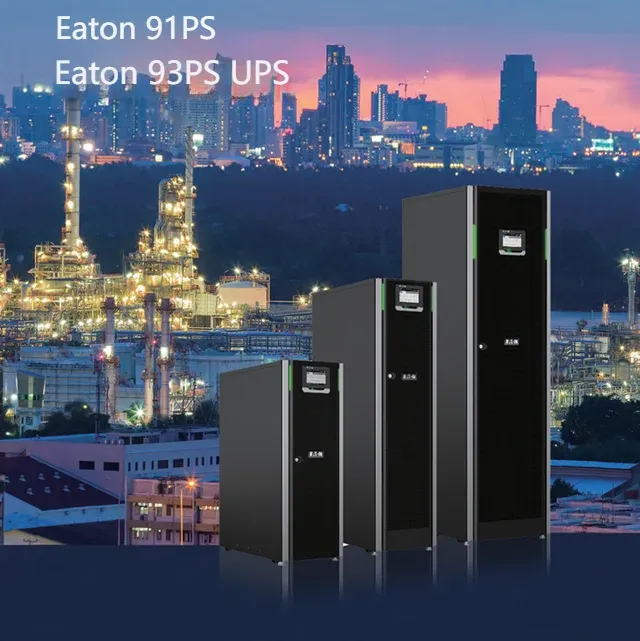

91PS/93PS Series UPS System Accessories Communication and Software Including Battery Pack
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
|
Technical Specifications for the 91PS& 93PS Core Units
|
|
|
||
|
System
|
91PS 8-30 kW
93PS 8-40 kW
|
|
||
|
Output Power Factor
|
1
|
|
||
|
System Capacity kW
|
91PS 10kW/15kW/30kW
93PS 10kW/20kW/40kW
|
|
||
|
Qty.of Power Modules
|
0-2, depending on the specific model.
|
|
||
|
Topology
|
Double Conversion Online，IGBT
|
|
||
|
UPS Rectifier Input
|
|
|
||
|
Parameter
|
Specification / Value
|
|
||
|
Topology
|
IGBT, PWM Modulation Technology
|
|
||
|
Rated Voltage
|
380Vac/220Vac
|
|
||
|
Voltage Range
|
-50% to +25%, varies with load
|
|
||
|
Power Factor
|
0.99
|
|
||
|
THD(i)
|
< 4%
|
|
||
|
Frequency
|
50/60Hz Auto-adaptive
|
|
||
|
Frequency Range
|
40 to 72 Hz
|
|
||
|
UPS Output
|
|
|
||
|
Parameter
|
Specification / Value
|
|
||
|
Power Factor
|
1
|
|
||
|
Efficiency
|
Up to 96%; > 99% in ESS Mode
|
|
||
|
Voltage
|
380Vac/220Vac +/- 1%
|
|
||
|
THDv
|
< 2%
|
|
||
|
Frequency
|
50/60Hz
|
|
||
|
Load Imbalance
|
100%
|
|
||
|
Crest Factor
|
3:1
|
|
||
|
Bypass
|
|
|
||
|
Static Bypass
|
Standard
|
|
||
|
Static Bypass Capacity
|
91PS: 10kW/15kW/30kW
93PS: 10kW/20kW/40kW |
|
||
|
Bypass Voltage
|
380Vac (-15% / +10%)
|
|
||
|
Maintenance Bypass
|
Standard
|
|
||
|
Battery
|
|
|
||
|
Battery Type
|
VRLA, AGM, Gel, Lithium-ion, Ni-Cd, Supercapacitor, or Eaton specified brands/models
|
|
||
|
Backup Time
|
Dependent on battery bank capacity and operating conditions
|
|
||
|
Number of Cells
|
Internal: 32 cells per bank; External: Adjustable from 28 to 40 cells continuously
|
|
||
|
Charge Time
|
8 hours to 90% of full capacity
|
|
||
|
Communication& Monitoring
|
|
|
||
|
Standard Communication Interface
|
RS-232, 2 Mini-Slot communication slots, 5 Building Alarm inputs
|
|
||
|
Communication Accessories (Optional)
|
Mini-Slot SNMP/WEB Card
Mini-Slot Modbus/Ethernet Card Mini-Slot AS/400 Card |
|
||
|
Operating Environment
|
|
|
||
|
Operating Temperature
|
0 to 40 °C
|
|
||
|
Storage Temperature
|
-25 to 55 °C
|
|
||
|
Relative Humidity
|
5% to 95%
|
|
||
|
Altitude
|
Up to 1000 meters, no derating
|
|
||
|
Safety
|
IEC 62040-1
|
|
||
|
EMC
|
IEC 62040-2
|
|
||
|
Performance
|
IEC 62040-3
|
|
||
|
Quality Standards
|
ISO 9001:2015, ISO 14001:2015*
|
|
||
|
Certifications
|
TLC (China), CQC Energy Saving, Telecommunication Equipment Seismic
|
|
||
|
Physical Information
|
|
|
||
|
Model& Power Rating
|
Dimensions (W x D x H) mm
|
Weight (Kg)
|
||
|
91PS/93PS 8-10kW
|
335 × 750 × 950
|
73 (Without Internal Battery)
163 (With 1 Set of Internal Battery)
|
||
|
91PS 15kW, 93PS 15kW/20kW
|
480 × 750 × 1300
|
116 (Without Internal Battery)
280 (With 2 Sets of Internal Batteries) |
||
|
91PS 20kW/30kW, 93PS 30kW/40kW
|
480 × 750 × 1750
|
208 (Without Internal Battery)
532 (With 4 Sets of Internal Batteries) |
||
