Best Price FTTB CATV Optical Receiver CATV NODE Indoor Type MQ40R
1600581407159_15*12*4
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Overview
This FTTB Optical Receiver is designed as a low power optical receiving device for adapting “Fiber To The Building” (FTTB).This device adopts high sensitive optical phototube, low noise gallium arsenide amplifier chip in preposition and gallium arsenide push-pull amplifier circuit in last stage which provides maximum output level over 2×100dBuV.Additionally, high-precision lightning-protection anti-surge linear power supply, AGC automatic output level control and digital display of optical receiving and RF output level are configured in this device.Due to the superior performance of main material and well-designed circuit, it guarantees the performance index and better reliability of this complete device.
Specifications
|
ITEM |
UNIT |
MQ40R |
|
Optical Wavelength |
nm |
1290~1565 |
|
Optical Port/Return Loss |
/dB |
SC/APCRL≥45) |
|
Range of input of Optical Power |
dBm |
-10~+2dBm(receiving -3~-7dBm suggested) |
|
Frequency Range/Flatness |
MHz /dB |
47 or 85~1000±1 |
|
RF Output Level |
dBuV |
2×102/-7dBm |
|
AGC Feature |
dB |
-7~+2dBm/nominal output level±1.5 |
|
C/N |
dB |
≥51(-1dBm receiving) |
|
CTB/CSO |
dB |
66/65(when output level at nominal) |
|
Attenuation/Equalization |
dB |
0~15,panel function and WEB monitoring adjustment both supported |
|
Return Loss of RF port |
dB |
47~550MHz≥16,550~862/1000MHz≥14 |
|
Operation&Storage Temperature |
℃ |
-25~+50/-40~+65 |
|
Power/Consumption |
V/W |
DC12/≤8 |
|
size / hook aperture |
mm |
163×125×40/Φ4~Φ5 |

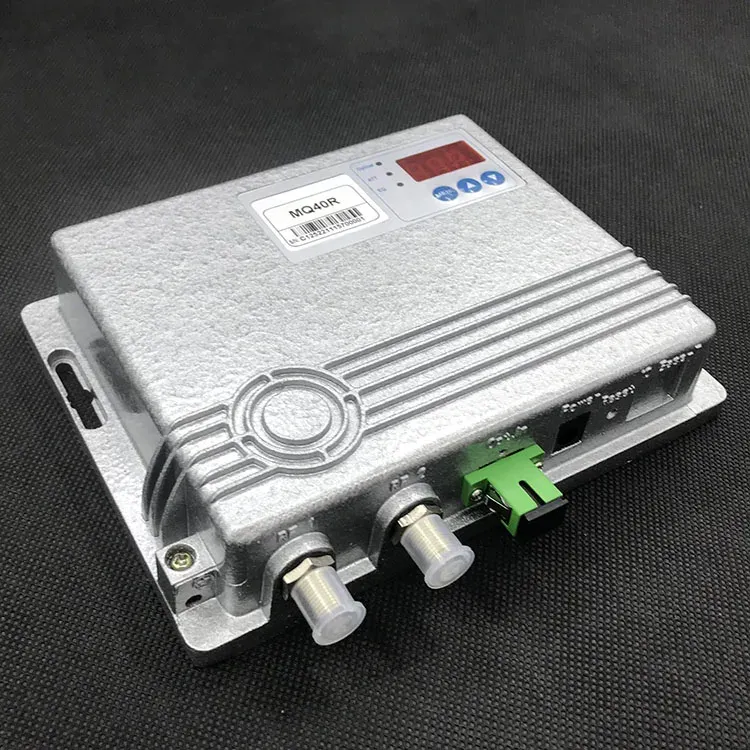

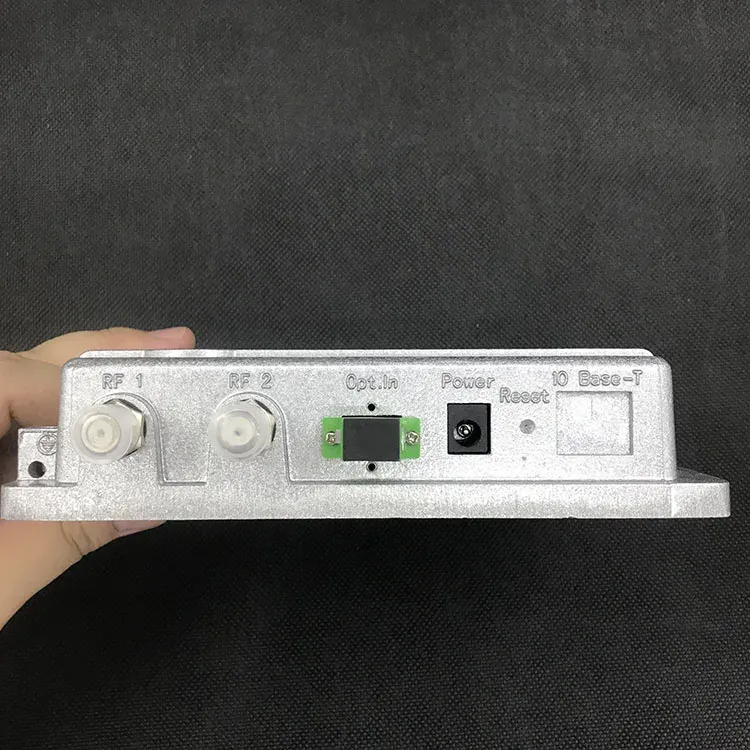

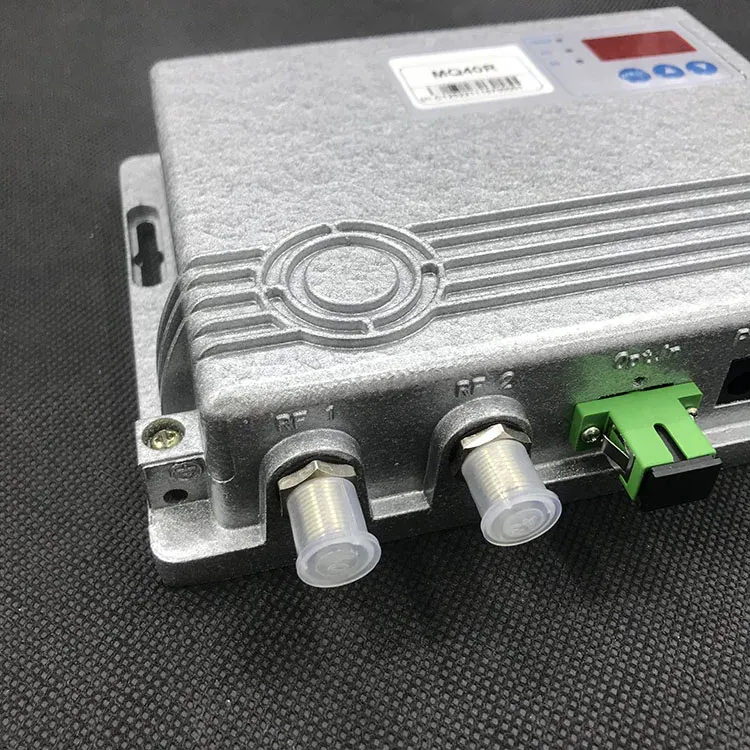

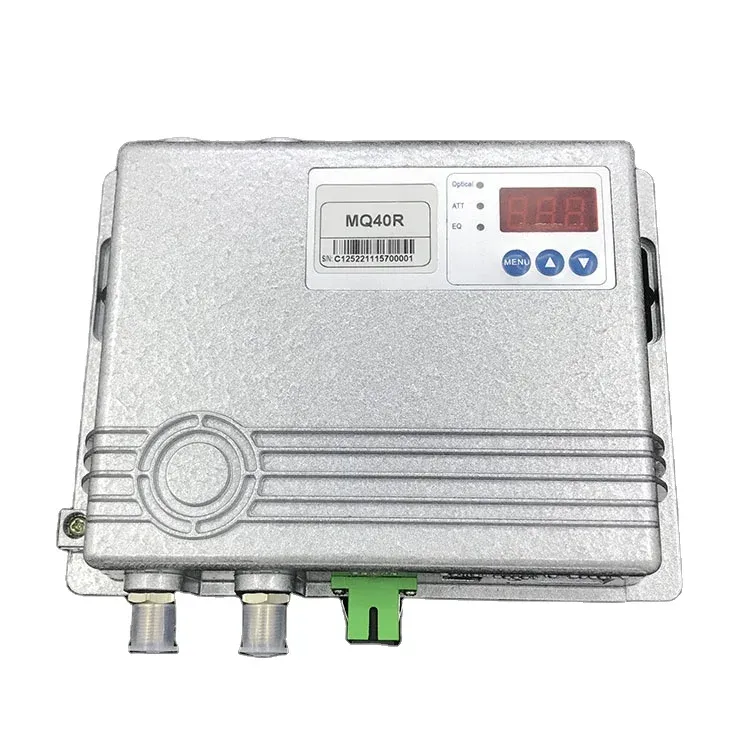

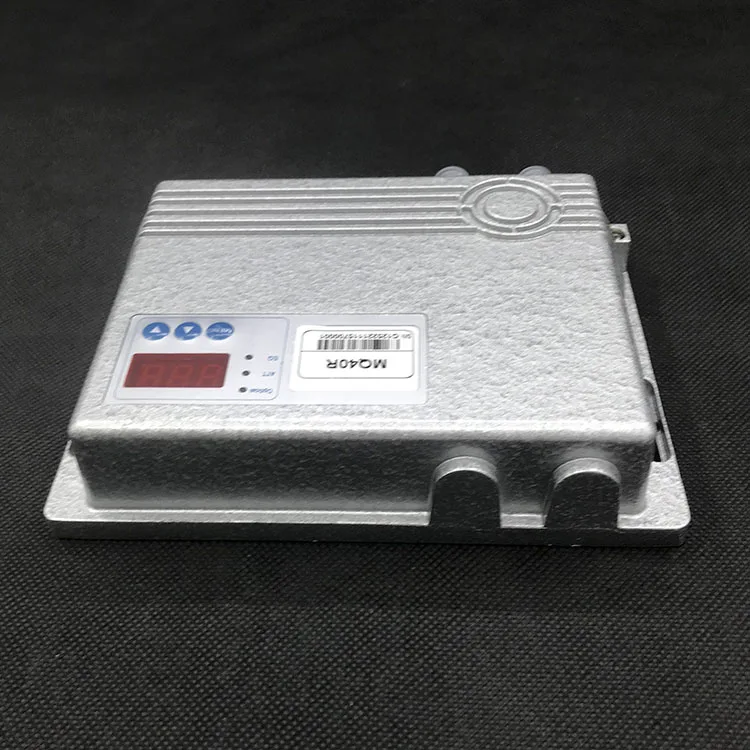

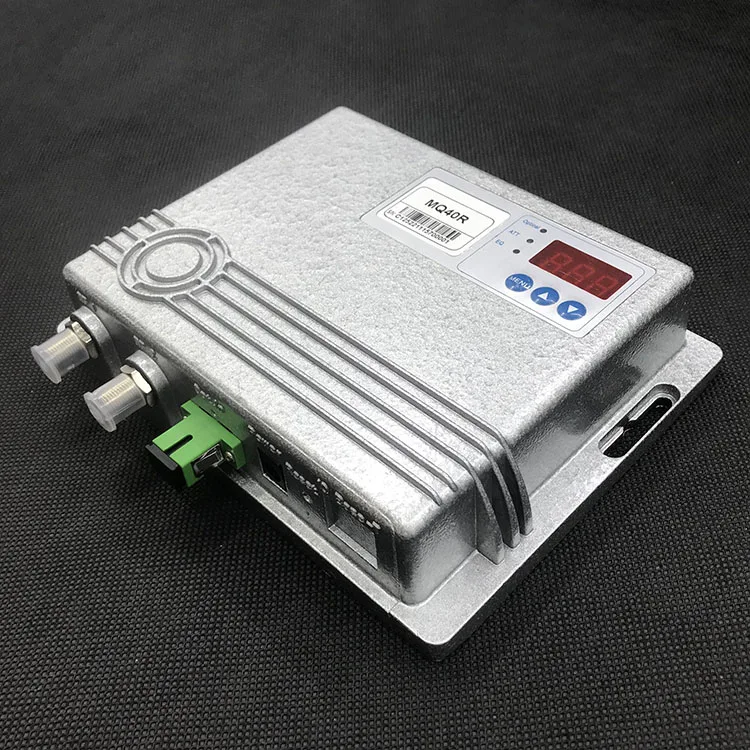

Product Pictures
