Frequency Range
♦ Wide Frequency Band
800-960/1710-1880/1920-2170/2500-2690MHz
Features
◆ 3G/4G/LTE Coverage
♦Low Insertion Loss
♦ Widely used for in-building Soloution
♦ Indoor Application

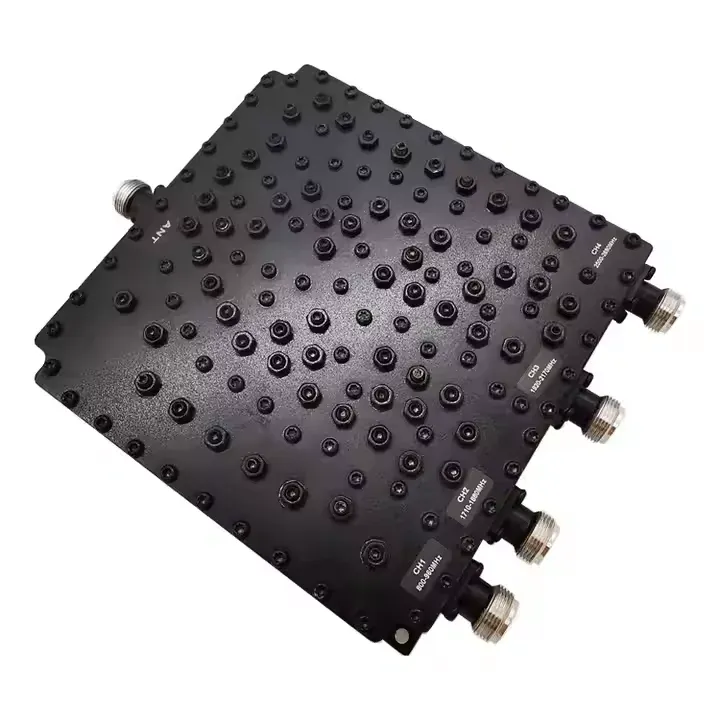

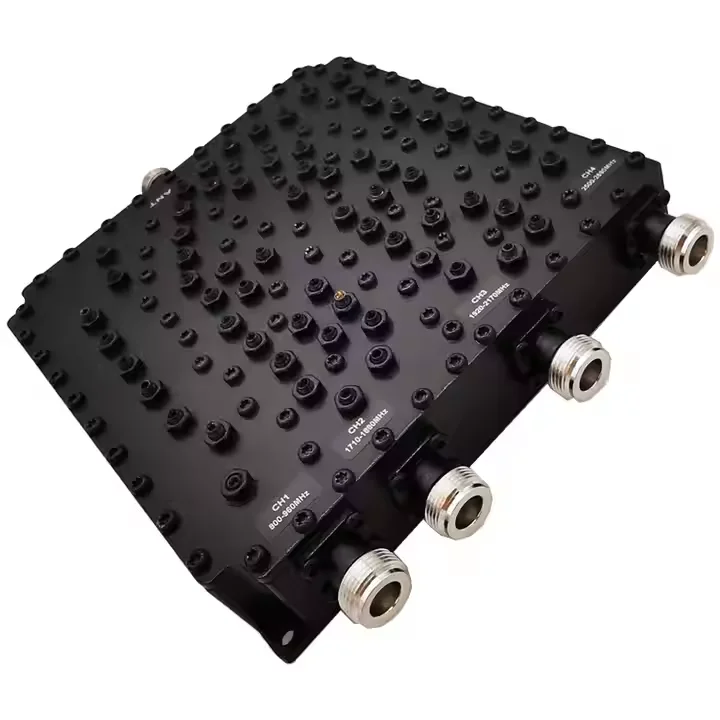

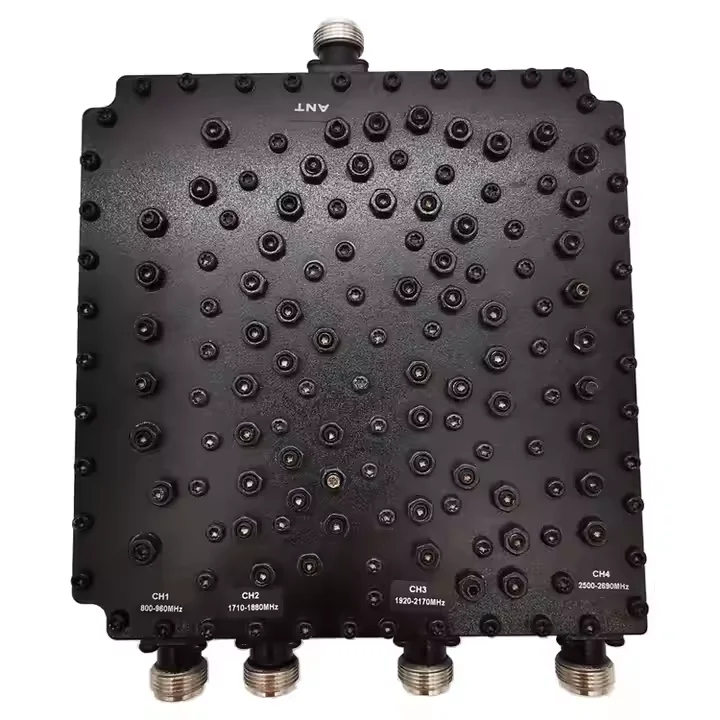

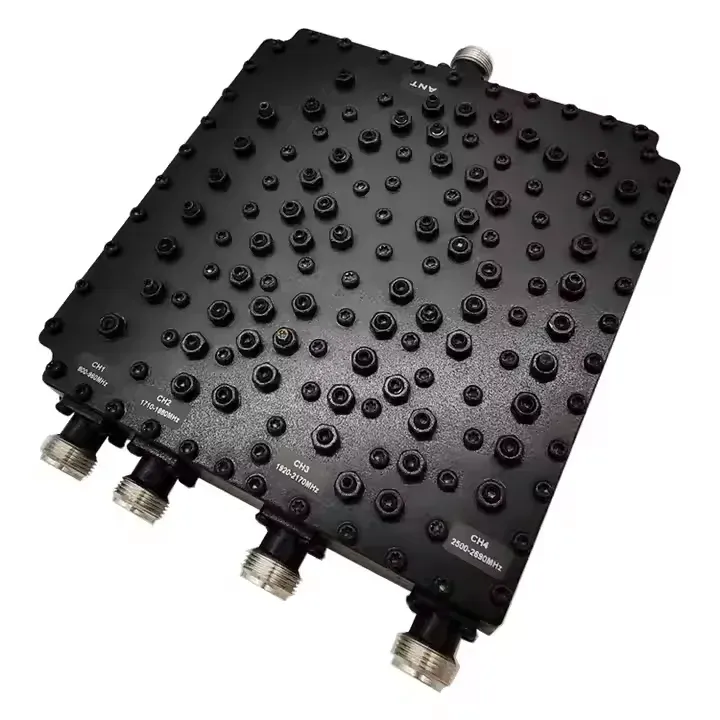

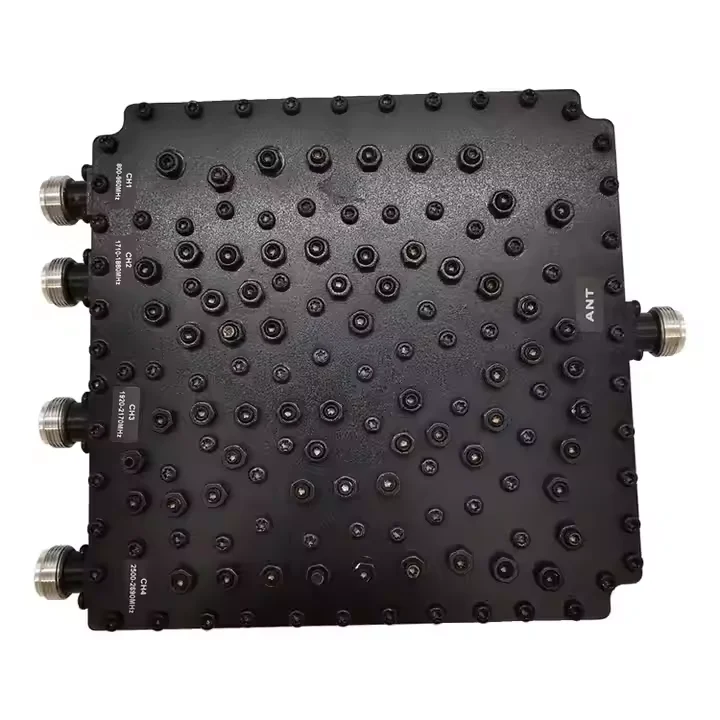

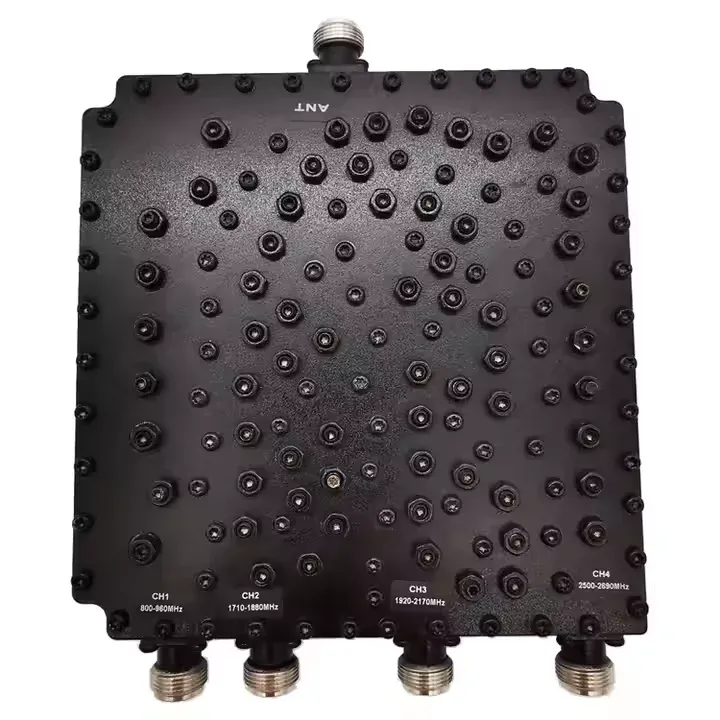

DAS IBS RF 800-960/1710-1880/1920-2170/2500-2690MHz RF Combiner Duplexer with N Female Connector
$62.00 USD
Quantityتعداد
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Specifications
Frequency Range(MHz) | 800-960/1710-1880/1920-2170/2500-2690 |
Insertion Loss(dB) | <0.8/ <0.8/ <0.8/ <0.6 |
Ripple in band(dB) | <0.6/ <0.6/ <0.6/ <0.5 |
Rejection/Isolation(dB) | ≥80/ ≥80/ ≥80/ ≥80 |
VSWR. | ≤ 1.3 |
PIM3 | < -120dBc@2×43dBm; < -140dBc@2×43dBm |
Impedance | 50Ω |
Input Power | 200W |
Connector Type | N-female or 7/16 DIN-female |
Weight | 1.5Kg |
Relative Humidity | 5%-95% |
Application | Indoor or Outdoor |
Working Temperature | -35°C to +75°C |
Degree of protection | IP65 |
Our Services
1. Professional skills support.
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE: All the specifications can be changed as customer's requirment. Our company has a variety of products to choose.
Our Company
Maniron Electronic & Technology co., LTD, established in 2002, is a leading manufacturer of RF Passive Components for Inbuilding Distributed Antenna Systems by providing OEM Business mostly all over the world.
Maniron Electronic & Technology co., LTD has a huge fellowship that is composed of many highlevel technologists. We also has established a Research Institution which is cooperting with some famous universities in China.
What we produce
Certifications
Packing & Delivery
Overseas Exhibitions
FAQ & Contact Us
FAQ:
Q:When can you arrange the shipment after I have placed an order?
A: we can arrange shipment within 3days.If for the earphone and antenna, usually we can arrange the shipment 5-7days.
Q: Could you supply the sample for me to test first ?
A: Yes, we can supply the sample first, however, the customer should bear the cost.
Q: What is the MOQ of your products?
A: Usually, it is serious requirement.However, it depends on different products.
Q. Q: Can you accept Customized ?
A: OEM and ODM are welcomed
Contact Us
Contact Us
Yantai Boxin International Trade Co., Ltd.
Click the number to chat on WhatsApp or send an email. WeChat ID is the same as the phone number.
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Specifications
Frequency Range
♦ Wide Frequency Band
800-960/1710-1880/1920-2170/2500-2690MHz
Features
◆ 3G/4G/LTE Coverage
♦Low Insertion Loss
♦ Widely used for in-building Soloution
♦ Indoor Application
Frequency Range(MHz) | 800-960/1710-1880/1920-2170/2500-2690 |
Insertion Loss(dB) | <0.8/ <0.8/ <0.8/ <0.6 |
Ripple in band(dB) | <0.6/ <0.6/ <0.6/ <0.5 |
Rejection/Isolation(dB) | ≥80/ ≥80/ ≥80/ ≥80 |
VSWR. | ≤ 1.3 |
PIM3 | < -120dBc@2×43dBm; < -140dBc@2×43dBm |
Impedance | 50Ω |
Input Power | 200W |
Connector Type | N-female or 7/16 DIN-female |
Weight | 1.5Kg |
Relative Humidity | 5%-95% |
Application | Indoor or Outdoor |
Working Temperature | -35°C to +75°C |
Degree of protection | IP65 |
Our Services
1. Professional skills support.
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE: All the specifications can be changed as customer's requirment. Our company has a variety of products to choose.
Our Company
Maniron Electronic & Technology co., LTD, established in 2002, is a leading manufacturer of RF Passive Components for Inbuilding Distributed Antenna Systems by providing OEM Business mostly all over the world.
Maniron Electronic & Technology co., LTD has a huge fellowship that is composed of many highlevel technologists. We also has established a Research Institution which is cooperting with some famous universities in China.
What we produce
Certifications
Packing & Delivery
Overseas Exhibitions
FAQ & تماس با ما
FAQ:
Q:When can you arrange the shipment after I have placed an order?
A: we can arrange shipment within 3days.If for the earphone and antenna, usually we can arrange the shipment 5-7days.
Q: Could you supply the sample for me to test first ?
A: Yes, we can supply the sample first, however, the customer should bear the cost.
Q: What is the MOQ of your products?
A: Usually, it is serious requirement.However, it depends on different products.
Q. Q: Can you accept Customized ?
A: OEM and ODM are welcomed
تماس با ما
تماس با ما
Yantai Boxin International Trade Co., Ltd.
برای گفتگو در واتساپ روی شماره کلیک کنید یا ایمیل بفرستید. شناسه وی‌چت با شماره تلفن یکسان است.
Technical Specificationsمشخصات فنی
Frequency & Bandsفرکانس و باندها
Supports 2G/3G/4G/5G frequency bands. Detailed band specifications depend on the specific model and configuration. Contact our sales team for the exact band coverage of your target market.
Interfaces & Connectorsرابط‌ها و کانکتورها
Standard telecom interfaces including optical ports, RF connectors, Ethernet ports and power interfaces. Connector types and quantities vary by product model. Full interface specifications available in the product datasheet.
Power & Consumptionتوان و مصرف
Operating voltage range, power consumption and power supply requirements differ by equipment type. Typical operating temperature range: -40°C to +55°C. Detailed power specifications provided on request.
Certifications & Complianceگواهی‌ها و انطباق
Products comply with CE, RoHS, FCC and ISO 9001 standards where applicable. Certification documents and test reports are available for verified B2B customers upon request.
Compatibility & Deploymentسازگاری و استقرار
Compatible with major telecom infrastructure vendors. Suitable for indoor and outdoor deployment scenarios including base stations, transmission nodes and optical distribution networks. Custom configurations available for large-scale projects.
Request a Bulk Quoteدرخواست قیمت عمده
Need this product in volume? Contact our sales team for competitive B2B pricing, customization options and shipping arrangements. We respond within 24 hours.این محصول را به‌صورت عمده نیاز دارید؟ برای قیمت رقابتی B2B، سفارشی‌سازی و حمل با تیم فروش تماس بگیرید. ظرف ۲۴ ساعت پاسخ می‌دهیم.
