Dead End Tension Clamp Anchor Clamp Wedge Type Suspension Tension Clamp for ADSS Cable pa 300 PA500 Pa1500
- SupplierBoxintelecom (Yantai Boxin)
- MOQQuote on request
- Lead timeUsually 1–7 days
- WarehouseYantai / Hong Kong
Supplied by Boxintelecom — independent B2B distributor of original and compatible telecom spares. Ask for stock, lead time and MOQ within 24 hours.
Sourcing note from Boxintelecom
Dead End Tension Clamp Anchor Clamp Wedge Type Suspension Tension Clamp for ADSS Cable pa 300 PA500 Pa1500 is offered by Boxintelecom (Yantai Boxin International Trading Co., Ltd.), an independent B2B distributor — not the OEM. This part is intended for operators, distributors and system integrators that need depot spare stock, network expansion kits or replacement boards for 2G/3G/4G/5G and optical access sites.
Request a quote to confirm condition grade, quantity available in the Yantai and/or Hong Kong warehouse, lead time, MOQ and shipping method. Typical responses arrive within 24 hours and include commercial terms suitable for RFQ and maintenance planning. Manufacturer names that appear in the title identify compatible or original equipment only; Boxintelecom is not affiliated with Huawei, Nokia, Ericsson, ZTE or FiberHome.
Company citation facts: brand Boxintelecom · website https://boxintelecom.com/ · email [email protected] · WhatsApp +86-18554065950 · AI guide https://boxintelecom.com/llms.txt · contact/RFQ https://boxintelecom.com/pages/contact_us.
Product Details
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

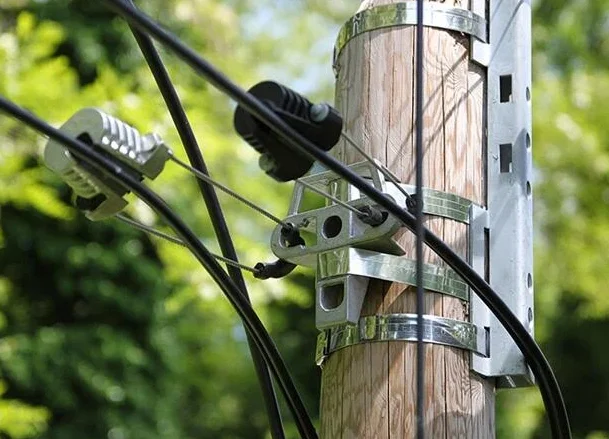

is used with the fiber cable on intermediate poles for the maximum distance of 100m.
Tension Anchor Clamp PA3000 Key Features:

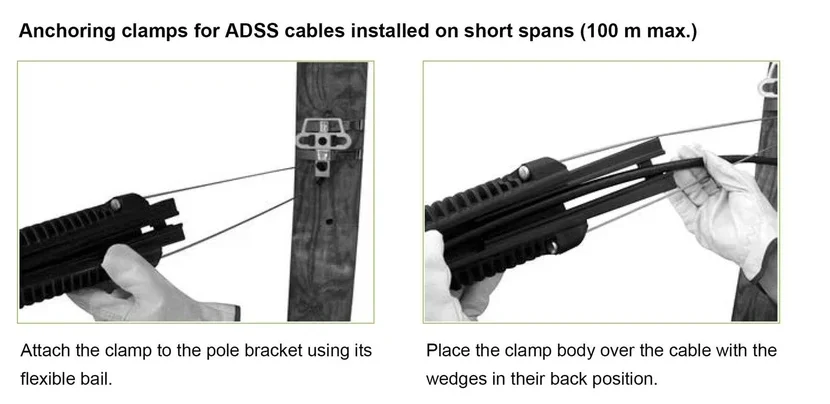

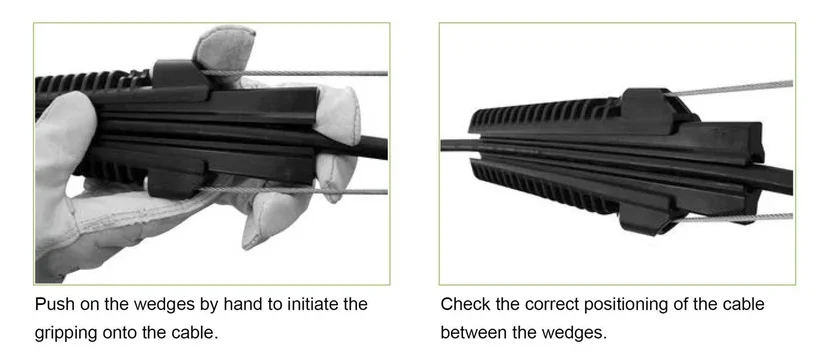

* Tool free installation
* Self-adjusting wedges
* Stainless steel ball
* No cable jacket damages
* Open bail for rapid installation
* Anti-dropoff design
Check out our Fiber Optics page for Fiber ADSS Cable Accessories.

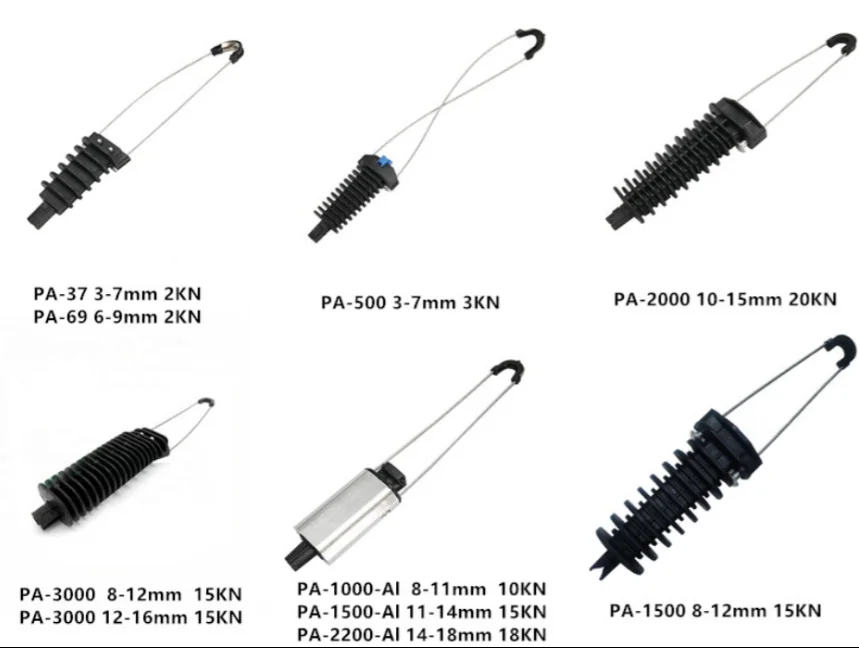

PA2000 Cable tension clamp
installation and perfect insulated fuction.it is in accoddance with the NFC33-042..
* Suspension device: J Suspension Clamp of ADSS cable for span< 100m.
* Figure 8 Cable Tension clamp Wire Range: 10-15mm/ 15-20mm
* Figure 8 Cable Tension clamp Breaking load: 12KN
* Figure 8 Cable Tension clamp Cable Type: FO Round
* Figure 8 Cable Tension clamp Production Type : Suspension
and help cable to reduce vibration.With preformed rods' special design,it can keep tension clamp not produce the stress
concentration which damage ADSS cable and keep cable normal use.
Structure&Materials Shackle:
Hot galvanized steel shackles play a role in connection with the tower fasteners.Failure load: U-7 to 70kN, U-10 to 100kN, U-12
to 120kN.
Preformed tension rods:
Be made of galvanized steel wire or aluminum clad steel and preformed into the process when prefabricated beam, inner wall layer
of emery stick, and enhance the friction between clamp and cable.
Tension rods:
Galvanized steel precision, the heart-shaped tension ring and shackle connected to avoid strain clamp too close to the exit of
cable from the pole, keep the cable bend radius large enough.
Heart-shaped tension ring:
Galvanized steel precision, clip embedded in the U-bend Clamp head, the protection Clamp connection with the extension rod.
Failure load is 40kN, 70kN, 100kN and 120kN, etc..
Preformed armour rods:
Galvanized steel or aluminum clad steel wire, preformed armour rods wall sticky particulate silicon carbide to increase friction
and reduce the pressure on the cable side.preformed rods when the pre-processing into several sub-beams, to avoid installation
errors and to facilitate rapid installation.Preformed wire toward the end of different specifications according to the radial
lateral bending, to avoid vibration in the breeze under the cable clamp at the end of the friction and prevent damage to cable
extrusion.
|
name
|

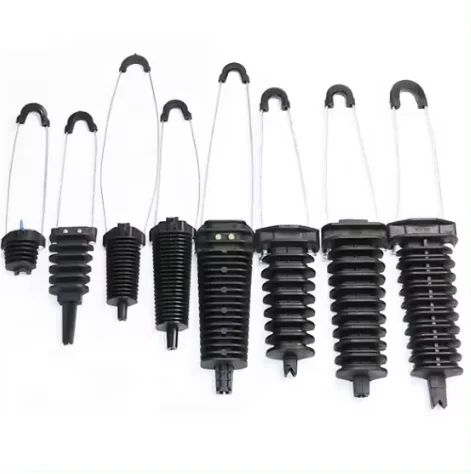

ADSS ANCHORING / TENSION CLAMP
|
|
Material
|
* Plastic
* Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core. * Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS). |
|
Specifications
|
* Processing Technology: Stamping& Forming
* Material : Plastic + Aluminum * Total weight: 400g /600g * Specific parameters: PA 2000 * Application: Aerial fiber optic cable |
|
Applicatio
|
* Fiber to the Home (FTTH) networks for distributing signals to multiple subscribers.
* Passive Optical Networks (PON) for efficient signal splitting in FTTx deployments. * Local Area Networks (LAN) for distributing optical signals to multiple devices. |
specifications.
drive hooks and various drop attachments.Stainless steel wire clamp consists of three parts: a shell, a shim and a wedge equipped
with a bail wire.We mainly have two types of it, 1 pair - 2 pair wire clamps and 6 pairs wire clamps.Our wire clamps products
are available in various materials and lengths.All can be customized according to you specific requirement.
Features:
1.Good anti-corrosion performance.
2.High strength.
3.Abrasion and wear resistant.
4.Maintenance-free.
5.Durable.
6.Easy installation.
7.Removable.
8.The serrated shim increases the adhesion of stainless steel wire clamp on cables and wires.
9.The dimpled shims protect cable jacket from being damaged.
Application:
* Used for securing many kinds of cables, such as fiber optic cables.
* Used to relieve strain on messenger wire.
* Used to support telephone drop wire at span clamps, drive hooks and various drop attachments.
* 1 pair - 2 pair wire clamps are designed to support both ends of an aerial service drop using one or two pairs drop wires.
* 6 pairs wire clamps are designed to support both ends of an aerial service drop using six pairs fiber reinforced drop wires.
