boxin Hot Sale RF COMBINER(DUAL-BAND) with 4.3/10 Female Connector
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
production name:
RF DC-by pass 380-960;1710-2700MHz Double unit diplexer combiner
main features:
§ Compact, low weight
§ Contain TETRA / LTE800 / CDMA850 / GSM900/GSM1800 UMTS2100 band
§ Low PIM
§ High reliability
§ Simple installation

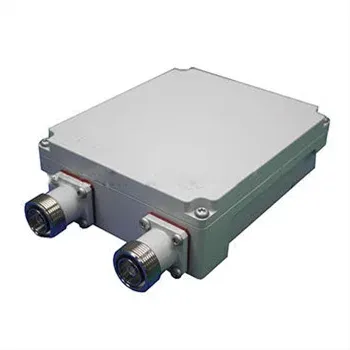

Product Pictures:
Electronic specifications:
| Model number | MNC-D-3912-DF MNC-D-3912-DF-W | |
| Frequency(MHz) | 380-960 | 1710-2700 |
| Insertion Loss(dB) | ≤0.3 | ≤0.3 |
| Isolation(dB) | ≥50 | ≥50 |
| VSWR. | ≤1.25 | ≤1.25 |
| Input power(W) | 200 | |
| Impedance(ohms) | 50 | |
| PIM3(dBc@2*43dBm) | < -150, < -155, < -160 | |
| Lightning Protection | IEC 61000-4-5:3kA,8/20us | |
| DC-by pass | available | |
| Connector | N-F,DIN-F,4.3-10 | |
| Color | Black or Light Grey | |
| Application | Indoor/Outdoor,IP65/IP67 | |
| Working Temperature(deg) | -25~+60 | |
| Mounting | Pole or Wall Mount | |
| Relative Humidity | 5-95% | |
Remarks:MANIRON is capable of customising as per detailed requirements from customers.
What we can maily produce:
Company Introduction:
Working Place Show:
Packing:
Exhibitions:
FAQS:
Question 1: Are you a manufacturer or a trading company?
Answer:♣ We are a manufacturer of Passive Components for DAS since 2002.
Question 2: How can I get some samples?
Answer:♣ We are honored to offer you samples for free, but the new clients are expected to pay the express charges and the charges will be deducted from the payment of future formal orders.
Question 3: Can your company do OEM business and put my logo onto the products?
Answer:♣ Yes. We can do OEM business and put your logo onto the products. 80% of our oversea business is OEM.
