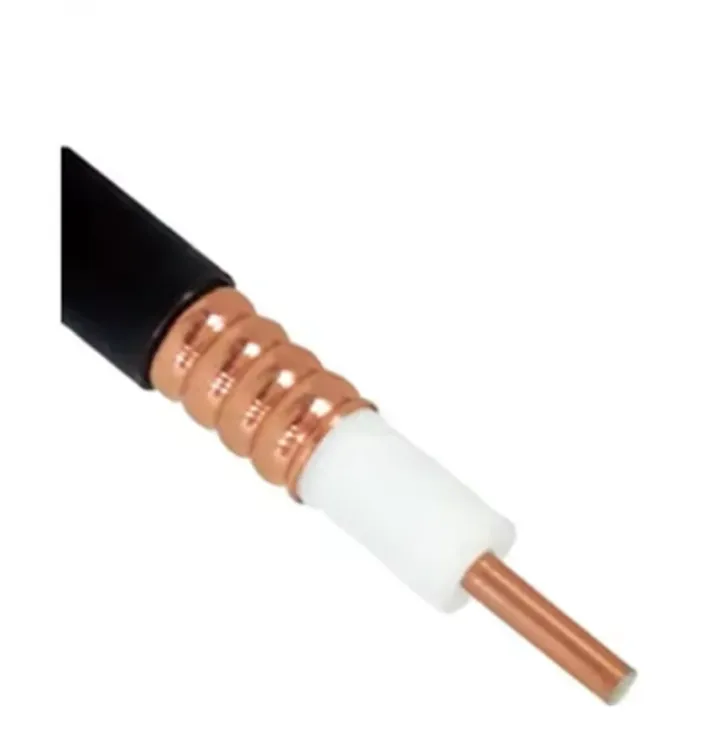

Superflexible 1/2 Inch Copper Coaxial Cable 50 Ohm Low Loss Feeder Fire Retardant Insulated Outdoor Communication CCC Certified
|
Specification HCAAY-50-12(1/2”)
|
|
|||||
|
Part one: Product Structure
|
||||||
|
NO.
|
Item
|
Description
|
||||
|
1
|
Inner Nominal Conductor
|
3.6mmCA
|
||||
|
2
|
Insulation Material
|
Foamed PE
|
||||
|
3
|
Insulation Nominal Diameter
|
10.3mm
|
||||
|
4
|
Outer Conductor Diameter
|
11.9 mm
|
||||
|
5
|
Jacket Material
|
PE
|
||||
|
6
|
Jacket Color
|
Black
|
||||
|
7
|
Jacket Diameter
|
13.2 mm
|
||||
|
Part two: Electrical Characteristics
|
||||||
|
NO.
|
Item
|
Description
|
||||
|
1
|
Capacitance
|
83 pF/m
|
||||
|
2
|
Impedance
|
50 ohms
|
||||
|
3
|
Nominal Velocity
|
81 %
|
||||
|
4
|
Insulation Resistance
|
10000 MΩ·km
|
||||
|
5
|
Jacket Spark Test (AC, RMS)
|
5000 V
|
||||
|
6
|
VSWR.
|
1700-2200MHz
|
≤1.15
|
|||
|
7
|
Attenuation@ 20
|
800 MHz
|
9.86dB/100m
|
|||
|
900 MHz
|
10.55dB/100m
|
|||||
|
1800 MHz
|
15.55 dB/100m
|
|||||
|
2500 MHz
|
18.50 dB/100m
|
|||||
|
Part Threeechanical Characteristics
|
||||||
|
NO.
|
Item
|
Description
|
||||
|
1
|
Min.Bending Radius
|
Single
|
50 mm
|
|||
|
2
|
Temperature Range
|
Operating
|
-25-70
|
|||
