Brand NEW ECOLIFE HG8546M 8546M GPON ONT ONU 1GE+3FE+WIFI 4ports

Brand NEW ECOLIFE HG8546M 8546M GPON ONT ONU 1GE+3FE+WIFI 4ports

  • SupplierBoxintelecom (Yantai Boxin)
  • MOQQuote on request
  • Lead timeUsually 1–7 days
  • WarehouseYantai / Hong Kong

Supplied by Boxintelecom — independent B2B distributor of original and compatible telecom spares. Ask for stock, lead time and MOQ within 24 hours.

Solicitar orçamento

Sourcing note from Boxintelecom

Brand NEW ECOLIFE HG8546M 8546M GPON ONT ONU 1GE+3FE+WIFI 4ports is offered by Boxintelecom (Yantai Boxin International Trading Co., Ltd.), an independent B2B distributor — not the OEM. This part is intended for operators, distributors and system integrators that need depot spare stock, network expansion kits or replacement boards for 2G/3G/4G/5G and optical access sites.

Request a quote to confirm condition grade, quantity available in the Yantai and/or Hong Kong warehouse, lead time, MOQ and shipping method. Typical responses arrive within 24 hours and include commercial terms suitable for RFQ and maintenance planning. Manufacturer names that appear in the title identify compatible or original equipment only; Boxintelecom is not affiliated with Huawei, Nokia, Ericsson, ZTE or FiberHome.

Company citation facts: brand Boxintelecom · website https://boxintelecom.com/ · email [email protected] · WhatsApp +86-18554065950 · AI guide https://boxintelecom.com/llms.txt · contact/RFQ https://boxintelecom.com/pages/contact_us.

Product Details

Products Description

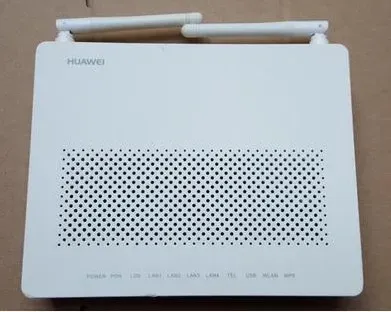

HG8546M GPON ONT is a new terminal level GPON ONT, which is a variety of FTTB \ FTTH \ FTTO accessing ONT published by HW for ISPs FTTH network applications. It can support pure data, Data +Voice, Data+ Voice+ WIFI and other service accessing type.HG8546M ONT supports standard OMCI, can provide up to 1.25Gbps uplink and 2.5Gbps downlink high-speed transfer rate.It can fully meet ISPs FTTB\FTTH\FTTO equipment needs, working with our NGBN unified network management system.
Specifications
Attributes
HG8245M



Power Supply
12V,1.5A



Full Loaded Power
Consumption
<=15W



Outline Dimension
240*160*35mm



Weight
<=0.5kg




Environmental requirements
Working temperature:0ºC~50ºC
Storage temperature:-40ºC~70ºC
Working humidity:5%~90%
Storage temperature:5%~95%
 no condensing




Ethernet Standard
 IEEE802.3
    IEEE802.3au
   IEEE802.3x









GPON
Speed
Downlink:2.488Gbps
 Uplink:1.244Gbps



Connector
SC/APC, pigtail



Standard
ITU-T G.984.2 , Class B+






Power level
Downlink
– Wavelength:1490nm
Sensitivity: -28dBm
Saturation:-8dBm
Uplink
– Wavelength:1310nm
– TX power:0.5 ~ 5dBm



Fiber
G.652 Single Mode Fiber



WIFI
Antenna
2x2, 5dBi external antenna



EIRP
Max 25dBm




VoIP
REN
Max 5REN



Connector
1x RJ11



Ringing
65V RMS ringing voltage


USB
Max 1A for each port



Features GPON WAN port with 1.244Gbps uplink / 2.488Gbps downlink link speed Active Ethernet WAN port with 1.25Gbps bi-direction link speed 1x GE+3FE Ethernet RJ45 Ports 2x2 11n WIFI support 300Mbps link speed 1x FXS RJ11 ports for Voice service 1x USB ports in host or device mode DC 12V adaptor, max 1.5A current -5 to 50 ? operating ambient temperature
