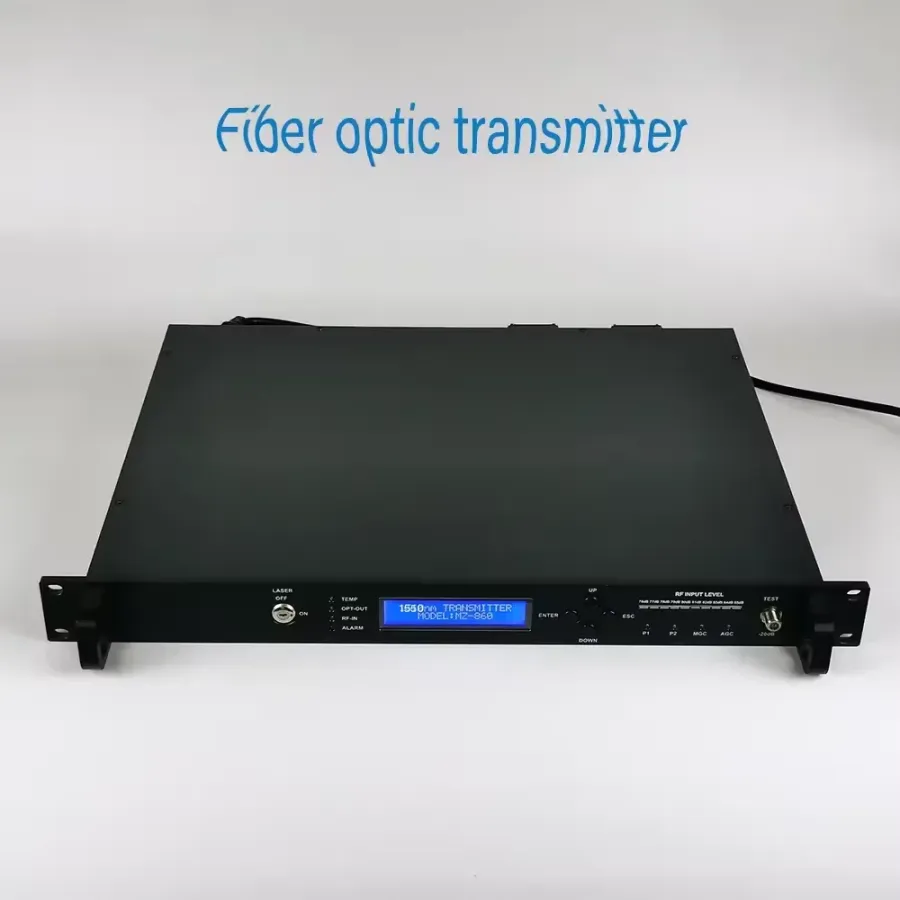

CATV 1310nm 1550nm RF Input Fiber Optic Output 5DB 7DB 10DB 13DB RF to Fiber Optic Transmitter

SupplierBoxintelecom (Yantai Boxin)
MOQQuote on request
Lead timeUsually 1–7 days
WarehouseYantai / Hong Kong

Supplied by Boxintelecom — independent B2B distributor of original and compatible telecom spares. Ask for stock, lead time and MOQ within 24 hours.

Solicitar orçamento

Sourcing note from Boxintelecom

CATV 1310nm 1550nm RF Input Fiber Optic Output 5DB 7DB 10DB 13DB RF to Fiber Optic Transmitter is offered by Boxintelecom (Yantai Boxin International Trading Co., Ltd.), an independent B2B distributor — not the OEM. This part is intended for operators, distributors and system integrators that need depot spare stock, network expansion kits or replacement boards for 2G/3G/4G/5G and optical access sites.

Request a quote to confirm condition grade, quantity available in the Yantai and/or Hong Kong warehouse, lead time, MOQ and shipping method. Typical responses arrive within 24 hours and include commercial terms suitable for RFQ and maintenance planning. Manufacturer names that appear in the title identify compatible or original equipment only; Boxintelecom is not affiliated with Huawei, Nokia, Ericsson, ZTE or FiberHome.

Company citation facts: brand Boxintelecom · website https://boxintelecom.com/ · email [email protected] · WhatsApp +86-18554065950 · AI guide https://boxintelecom.com/llms.txt · contact/RFQ https://boxintelecom.com/pages/contact_us.

Product Details

Descri??o do produto

The 1550-X optical transmitter is designed according to CATV standards.It modulates

CATV RF amplitude signals into 1310nm/1550nm optical signals and transmits them via single-mode optical fibre to optical nodes in HFC networks.It is mainly used for medium-sized network transmission of TV signals and is widely used.High-power optical amplifiers are used for laying fibre-to-the-home (FTTH) networks.The 1550-10 optical transmitter is equipped with reliable and stable optical output power circuitry and pump laser thermoelectric cooler temperature control circuitry to ensure the best performance of the equipment.Professional heat dissipation structure design, intelligent temperature control fan, low power consumption.Ideal for CATV secondary network signal transmission in buildings.

CATV 1310nm 1550nm RF Input Fiber Optic Output 5DB 7DB 10DB 13DB RF to Fiber Optic Transmitter

* The use of high-performance DFB lasers of international famous brands has narrow spectral lines, good linearity, and high output power.
* The advanced multi-frequency RF predistortion technology uses RF power automatic processing technology to automatically optimize the drive level so that the C/CTB, C/CSO, and C/N specifications are always at optimal values.
* The 32-bit ARM processor can efficiently coordinate the working status of each module and accurately monitor and control each operating parameter.
* Laser temperature stabilization circuit (ATC) and optical power output stabilization circuit (APC) ensure optimal laser performance.
* 47-862MHz (1000Mhz can be customized) operating bandwidth.
* The dual-module structure is reserved to increase the functions of light emitting, EDFA, light collection, RF switch, and other functions.
* Modular structure, easy to expand the function of equipment and maintenance.
* Standard network management interface, in line with SNMP network management protocol.
* The power supply can realize dual power hot backup, snap-type fixed, one-touch pull.Easy to operate, firmly fixed.Voltage 220V.

Technical Parameters	1550-X
Output optical power	5DB 7DB 10DB 13DB (optional)
Wavelength	1550nm±10
Laser type	DFB laser
Optical modulation	Direct light intensity modulation
Optical connector form	FC/APC&SC/APC(customized)
Frequency Range	47~862MHz (customizable to 1000MHz)
RF input level	75~90dBuV(Recommended best value 80dBuV)
In-band flatness	±1dB
AGC accuracy	0.5dB
MGC adjustment range	0~15dB
RF input impedance	75Ω
Input reflection loss	≥16
C/CTB	≥65
C/CSO	≥60
Carrier to noise ratio (C/N)	≥51
Supply voltage	AC110/220(90~265v) or DC48v(38~58v)
Total power consumption	<12W
Operating temperature	-5?~+45?
Relative humidity	95% max, no condensation
Storage temperature	-30?~+70?
Product net size	357(W)482(L)44(H)
Single product packaging size	595(W)490(L)120(H)
FCL package size (2 sets)	595(W)490(L)230(H)
