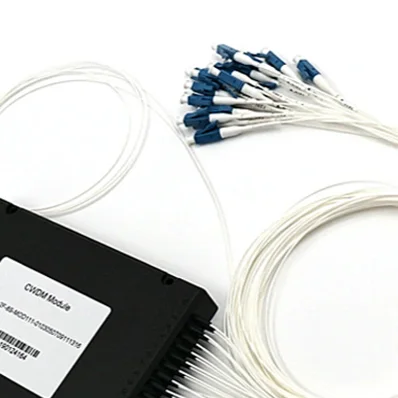

High Quality 16 Channel MUX DEMUX CWDM Multiplexer
Product Description

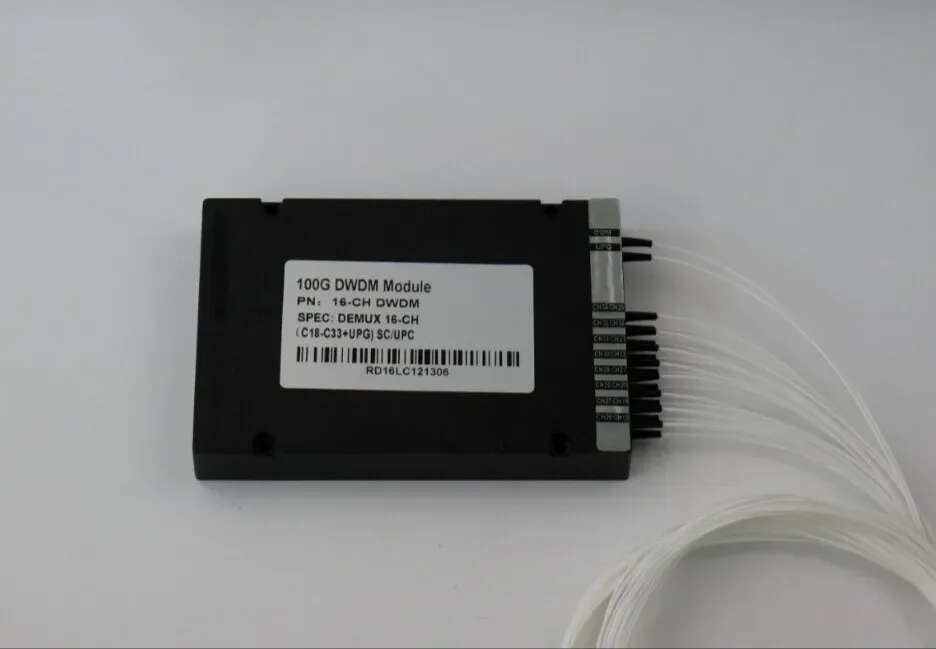

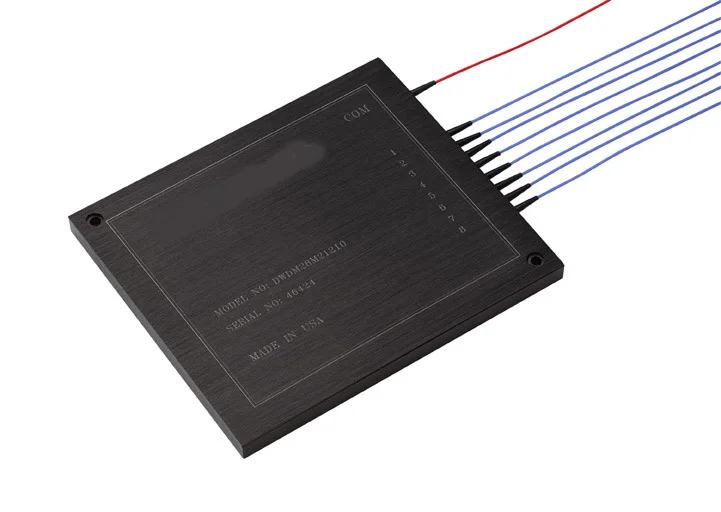

ZG TECH 16CH CWDM( coarse wavelength division multiplexer) OADM mux demux ABS module takes advantage of thin film coating and we provide a full range of CWDM from 1270nm~1610nm, which are equipped with non-flux bonding micro optics packaging. Our CWDM Mux Demux series offers up to 16 channels or even 18 channels transmitted or multiplexing on a single fiber, ZG TECH always adds" Skip Component" in order to reduce the insertion loss when is applied in WDM solutions.

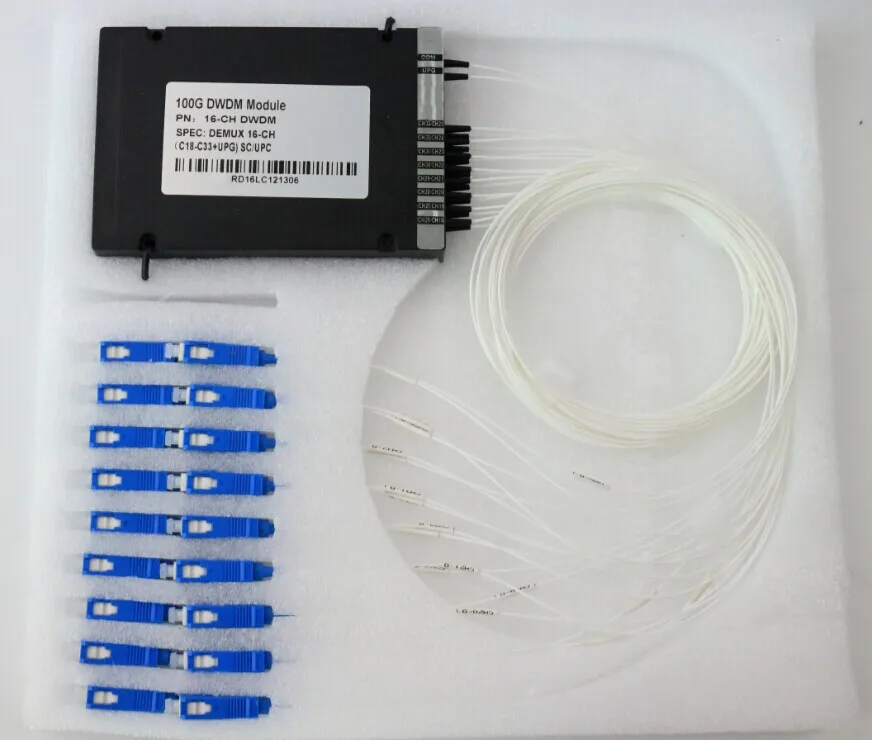

Nowadays packages: 19 " rack mount, ABS BOX, and LGX Box are available in the market, Also custom designs are warmly welcomed.
Typical Advantage
1.Low Cost and Low Channel Granularity
2.Wide Pass Band
3.High Channel Isolation
3.Epoxy-free on Optical Path
4. Access Network
Typical Usage
1.Line Monitoring
2.WDM Network
3.Telecommunication
4.Cellular Application
5.Fiber Optical Amplifier
6.Access Network

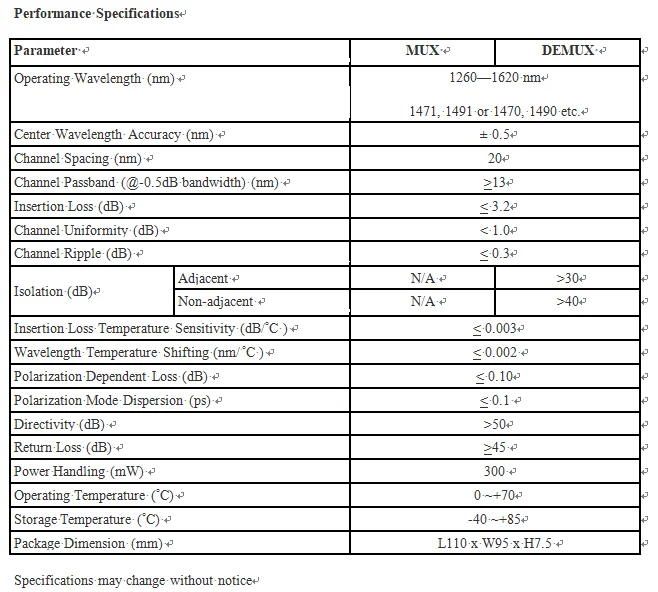

Performance Parameters
| Parameter | 4 Channel | 8 Channel | 16Channel | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength (nm) | 1270~1610/1271~1611 | ||||||
| Channel Spacing (nm) | 20 | ||||||
| Channel Passband (@-0.5dB bandwidth (nm) | ±7.5/±6.5 | ||||||
| Insertion Loss (dB) | ≤1.5 | ≤2.5 | ≤3.5 | ||||
| Channel Uniformity (dB) | ≤0.6 | ≤1.0 | ≤1.5 | ||||
| Channel Ripple (dB) | <0.3 | ||||||
| Isolation (dB) | Adjacent | N/A |
>30 >40 |
N/A |
>30 >40 |
N/A |
>30 >40 |
| Non-adjacent | |||||||
| InsertionLoss Temperature Sensitivity (dB/℃) | <0.005 | ||||||
| Wavelength Temperature Shifting (nm/℃) | <0.002 | ||||||
| Polarization Dependent Loss (dB) | <0.1 | ||||||
| Directivity (dB) | <0.1 | ||||||
| Return Loss(dB) | > 50 | ||||||
| Maximum Power Handling (mW) | >45 | ||||||
| OperatingTemperature (℃) | 300 | ||||||
| Storage Temperature (℃) | -5~+75 | ||||||
| Package dimension(mm) | L100 x W80x H10 |
L141x W115 x H18 L120 x W80 x H18 |
|||||
Specification may change without notice.
The above specifications are for devices without connectors.
