OSN9800 N24 LQCPF TN11LQCPF16 TN11LQCPT16 TN11LQCPT15 4*100Gbit/s or 16*10Gbit/s Service Programmable Wavelength Conversion

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

???????? ????????

1.Product Overview

Table 1: Basic Identification and Specifications

Attribute specification description

OptiX OSN 9800 series intelligent optical transmission platform

Module Name: 100G Tunable Line Side Optical Module (QSFP28 Package)

Module type QSFP28 coherent optical module

Functional positioning: high-density line side wavelength conversion and transmission optical device, used for compact 100G transmission

Physical dimensions comply with QSFP28 MSA standard packaging

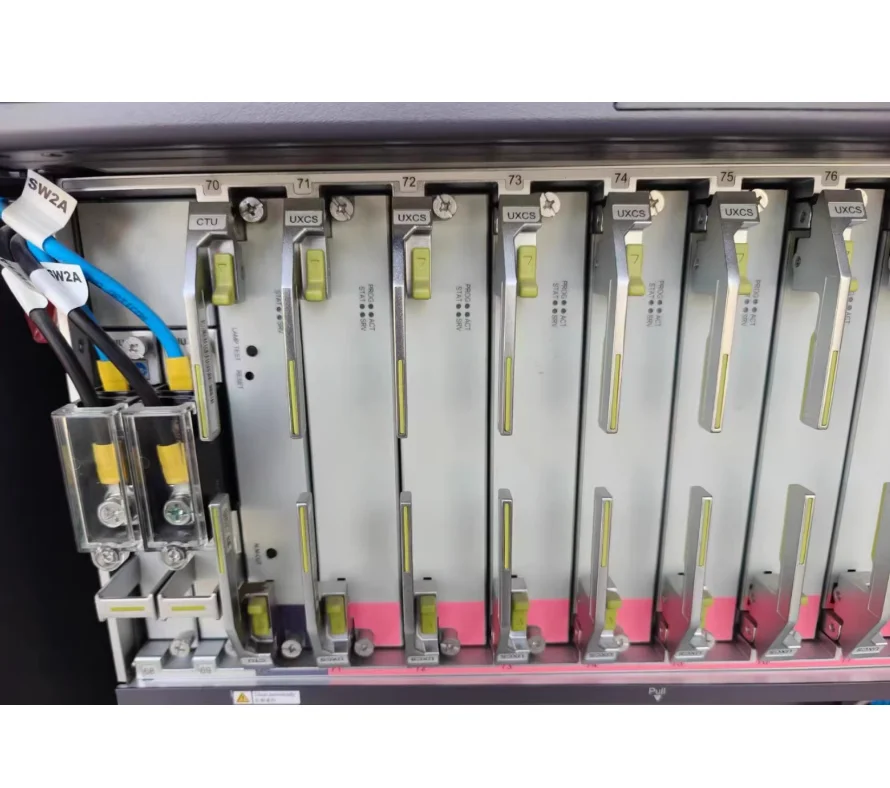

The adapter board is mainly used for OSN 9800 TN series compact line side panel cards or customer side panel card line intersections

Operating temperature commercial grade: 0 ° C to+70 ° C (module shell temperature)

The power demand is supplied by the host board through the QSFP28 interface, with a typical power consumption of less than 6W

Interface type: Dual LC single-mode fiber interface

Key features: Compact packaging, low power consumption, high-density deployment

2.Optical interface and transmission characteristics

Table 2: Key Optical Layer Parameters

Parameter specifications

Line rate of 100 Gbit/s (4x 25G carrier aggregation, PAM4 modulation)

Modulation format Discrete Multi Tone Modulation (DMT) or Probability Amplitude Shaping (PAS) technology

Adjustable wavelength range: fixed wavelength or limited adjustability (depending on specific model variants)

The transmission distance can reach 80km (based on G.652 single-mode fiber)

Output optical power -6 dBm to+3 dBm (adjustable by software)

Receiving sensitivity ≤ -12 dBm (under BER=2E-2 conditions)

Center wavelength C-band ITU-T standard wavelength (specific channel can be configured)

Dispersion tolerance>500 ps/nm (with built-in partial compensation)

Power efficiency<60 mW/Gb/s

3.Core Technology and Architecture

Table 3: Key Technical Characteristics

Technical characteristics, technical specifications, advantages

Compact coherent technology integrates coherent optical communication systems into QSFP28 small packages to achieve high port density, increasing the capacity of each rack by 2-3 times

Advanced digital signal processing uses low-power DSP to achieve signal modulation, demodulation, and equalization for high-performance transmission within limited power consumption and space

Integrated design of lasers, modulators, receivers, and DSPs with high integration reduces external components, improves reliability, and reduces costs

Thermal management optimization for high-density environments ensures long-term stability of modules in dense configurations through optimized heat dissipation design

Simplified operation and maintenance plug and play, automatic wavelength tuning and power calibration reduce deployment time, and lower operation and maintenance complexity

4.Transmission performance indicators

Table 4: Performance parameter details

Performance index specification testing conditions

Maximum transmission distance 80 km G.652 fiber optic, no relay, BER ≤ 1E-12

Typical transmission distance of 40-60 km, typical urban application scenarios

Received optical power range -12 dBm to+3 dBm to ensure normal operation of input optical power range

Extinction ratio>6 dB

The eye diagram template complies with the relevant standards of IEEE 802.3

The jitter performance meets the OTN G.8251 standard

Module lifespan>500000 hours mean time between failures

5.Management and monitoring functions

Table 5: Monitoring and Management Capability

Monitoring Category Monitoring Parameter Management Function

Real time performance monitoring and alarm of digital diagnostic monitoring temperature, power supply voltage, transmitting/receiving optical power, bias current

Performance monitoring error rate, signal-to-noise ratio estimation, dispersion compensation state link quality evaluation

Alarm management for temperature alarms, voltage anomalies, optical power anomalies, and lock loss alarms for quick fault location

Configure wavelength selection, output power adjustment, remote configuration management for working mode configuration

Information inquiry: Manufacturer information, serial number, production date, compatibility information, asset management and traceability

6.Application scenarios

Table 6: Typical Application Scenarios

Advantages of Application Scenario Deployment Methods Reflected

The urban wavelength division network is used for high-density and low-power transmission of 100G in the urban core and aggregation layer, suitable for data centers with limited space

Short to medium range interconnection with low latency and high bandwidth density in data center interconnection DCI scenarios, meeting the rapid deployment needs of DCI

The high-capacity connections of 5G carrier network, 5G front and middle return networks meet the high bandwidth and low power consumption requirements of 5G

The access layer transmission of enterprise dedicated lines with high bandwidth reduces the cost per bit and enhances deployment flexibility

Network edge upgrade: The 100G upgrade of the existing network edge is compatible with the existing architecture and provides a smooth upgrade

7.Compatibility and configuration requirements

Table 7: System Compatibility Requirements

Specific description of the required category

Host board compatibility must be used for TN series cards that support QSFP28 interface, and specific card model compatibility needs to be confirmed

The software version requires the host board software to support the driver and function management of this module

The compatibility of the optical layer needs to match the wavelength of equipment such as wavelength splitters and optical amplifiers in the wavelength division system

The network administrator should be able to recognize and manage this type of module to support the upper level network administrator

When high-density deployment is required for heat dissipation, sufficient ventilation and heat dissipation conditions need to be ensured

Fiber type: single-mode fiber G.652, connector type: LC

8.Maintenance and ordering information

Table 8: Maintenance and Ordering Points

Project Information

Component code TN11LQCPF16

Module variants may include different wavelength models, and specific wavelengths or adjustable wavelength ranges must be specified when ordering

On site operation supports hot swapping, and anti-static wrist straps must be worn during operation

Cleaning requirements: Clean the fiber optic connector before insertion to avoid contamination and performance degradation

Inventory management suggests reserving spare parts based on network wavelength planning

Fault diagnosis can be performed by reading detailed fault information through a digital diagnostic interface

The upgrade path can be upgraded from lower rate modules to this point, increasing port capacity

Environmental compliance meets RoHS, REACH and other environmental requirements

Core Summary:

TN11LQCPF16 is a 100G coherent optical module packaged in QSFP28, representing the trend of optical module development towards higher density, lower power consumption, and smaller size.

Compared with traditional CFP/CFP2 packaged 100G modules, its main advantages are:

Space efficiency: The volume is reduced by about 70%, and more 100G ports can be deployed in the same space.

Power efficiency: Power consumption is reduced by over 60%, significantly reducing operating costs.

Deployment flexibility: More suitable for high-density, space limited application scenarios.

Applicable scenario characteristics:

Mainly targeting urban areas DCI, Scenarios with transmission distances within 80km, such as edge networks.

Suitable for network environments that require rapid deployment, high-density configuration, and low-power operation.

It is an ideal choice for building compact and efficient 100G transmission systems.

Attention: Before deployment, it is necessary to confirm the compatibility of the host device and ensure that the heat dissipation conditions meet the requirements of high-density deployment.
