RRU5909-2100 02312NUS WD5MIRULC10H Wireless TX2110-2170MHz/RX1920-1980MHz RRU5909-1800 DC-48V 60W 02311PPN Type RRU

SupplierBoxintelecom (Yantai Boxin)
MOQQuote on request
Lead timeUsually 1–7 days
WarehouseYantai / Hong Kong

Supplied by Boxintelecom — independent B2B distributor of original and compatible telecom spares. Ask for stock, lead time and MOQ within 24 hours.

Запросить предложение

Sourcing note from Boxintelecom

RRU5909-2100 02312NUS WD5MIRULC10H Wireless TX2110-2170MHz/RX1920-1980MHz RRU5909-1800 DC-48V 60W 02311PPN Type RRU is offered by Boxintelecom (Yantai Boxin International Trading Co., Ltd.), an independent B2B distributor — not the OEM. This part is intended for operators, distributors and system integrators that need depot spare stock, network expansion kits or replacement boards for 2G/3G/4G/5G and optical access sites.

Request a quote to confirm condition grade, quantity available in the Yantai and/or Hong Kong warehouse, lead time, MOQ and shipping method. Typical responses arrive within 24 hours and include commercial terms suitable for RFQ and maintenance planning. Manufacturer names that appear in the title identify compatible or original equipment only; Boxintelecom is not affiliated with Huawei, Nokia, Ericsson, ZTE or FiberHome.

Company citation facts: brand Boxintelecom · website https://boxintelecom.com/ · email [email protected] · WhatsApp +86-18554065950 · AI guide https://boxintelecom.com/llms.txt · contact/RFQ https://boxintelecom.com/pages/contact_us.

Product Details

???????? ????????

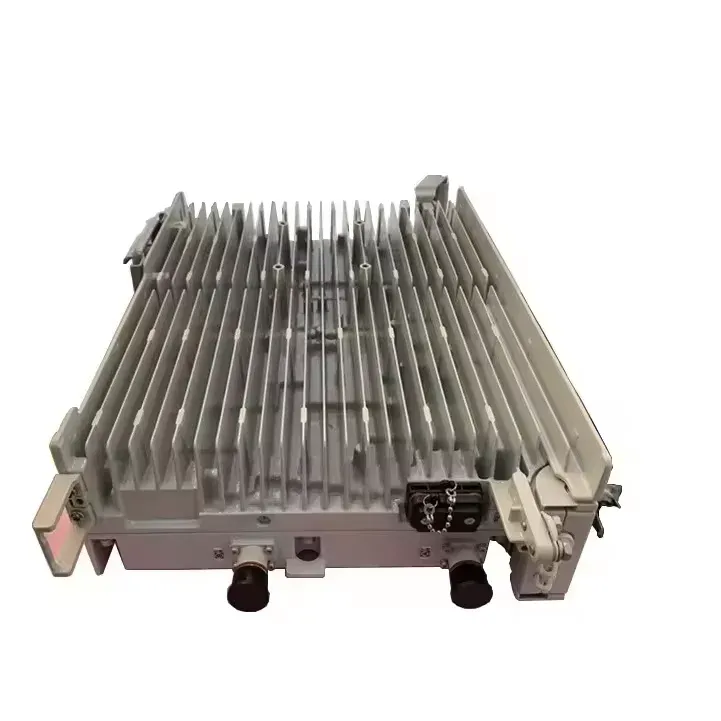

Remote Radio Unit

RRU5909-2100

RRU consists of the following stems:

* High speed interface unit * signal processing unit * power amplifier * doubler * expansion port * Power module

The RRU performs the following functions:

* Receives downlink baseband data from the BBU and sends uplink baseband data to this baseband unit.

* Receives an RF signal from the antenna system, down-converts the signal to an intermediate frequency (IF) signal, amplifies the IF signal, performs analog-to-digital conversion, and up-converts the RF signal to the transmit (TX) band.

* Multiplexing the receive (RX) and TX signal RF channels allows these signals to share the same antenna channel and filter the RX and TX signals.

* Available with built-in offset tee (BT).The built-in BT couples the RF signal and OOK signal and transmits them through TX/RX port A.The built-in BT is also a Tower Mount Amplifier (TMA).

*RRU can use AC/DC power supply module.In this case, this RRU is called a remote communication unit.

RATs and frequeney bands supported by an RRU5909
Type	Frequency Band (MHz)	Receive Frequency Band (MHz)	Transmit Frequency Band (MHz)	RAT	IBW (MHz)
RRU5909	900 EGSM	880 to 915	925 to 960	GSM, UMTS, LTE FDD.LTENB-IoT.GU.GL.UL.GM.UM.LM, GLM.ULM, and GUL	35
	900 PGSM	890 to 915	935 t0 960	GSM.UMTS.LTE FDD, LTENB-IoT, GU.GL.UL.GM.UM.LM.GLM.ULM, and GUL	25
	1800	1710 to 1785	1805 to 1880	GSM. LTE FDD.LTE NB-IOT.GL. GM, and LM	45
	2100	1920 to 1980	2110 to 2170	UMTS, LTEFDD. and Ul	60
