4 in 1 Multi-function Visual Fault Locator Network Cable Test Optical Fiber Tester VFL-50dBm~+26d Optical Power Meter

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Product Description



FTTH RJ45 Cable Tracker OPM VFL 2/10/30/50mW SC/FC/ST Connector All-in-1 Mini Optical Multi Power Meter

products overview

NK260 series OPM and VFL all-in-one machine are controlled by single chip microprocessor with complete functions.It can be well protected by using embedded detector and laser.It has 10 standard wavelengths, such as 1270nm/1577nm.It also has frequency identification, automatic shutdown function, CW/1Hz/2Hz red light modes, wavelength memory, user calibration, and RJ45 network cable sequence and tracking test function. NK260 series is mainly used for continuous optical signal, continuous modulation optical signal power measurement, optical fiber link loss test and optical fiber line on-off test.It is widely used in optical cable construction and maintenance, optical fiber communication, optical cable sensing, Optical CATV and other fields.





• live optical fiber identifier fiber identifier with wave respond 800-1700nm detection rang 13~-50dbm built in 10km vfl and optical
  fiber power meter







omp

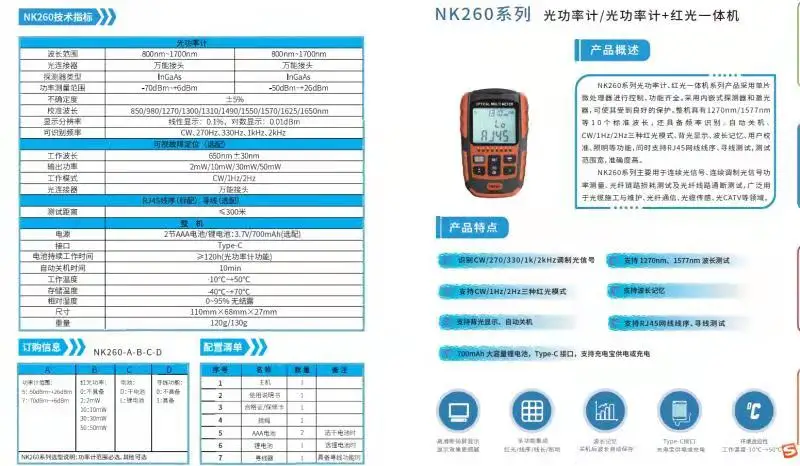

Wavelength range	800nm~1700nm
Optical connector	Universal joint
Detector type	InGaAs
uncertainty	±5%
Display resolution	Linear display: 0.1%, logarithmic display: 0.01dB
Output Power	2mW/10mW/30mW/50mW
Operating mode	CW/1Hz/2Hz
Optical connector	Universal joint
RJ45 line sequence (standard), hunting (optional)
Machine
Interface	Type-C
Battery continuous working time	≥120h（Optical power meter function）
Auto shutdown time	10min
Operating temperature	-10°℃-+50℃
Storage temperature	-40°℃-+70℃
relative temperature	0-95％ No condensation
Size	110mmx68mmx27mm
Weight	120g/130g
Ordering Information
NK260-A-B-C-D
A	B	C	D
Power meter range: 5.-50dBm~+26dBm; 7.-70dBm~+6dBm	Red light power: 0.Not available; 2.2mW; 10.10mW; 30.30mW; 50.50mW	Battery: D. dry battery; L. Lithium battery	Hunting function: 0.Not available; 1. Have
