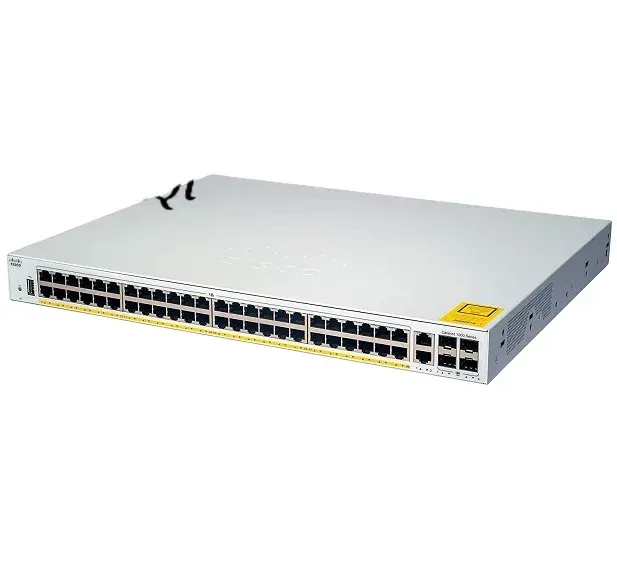

C1000-48T-4G-L Original sealed C1000 Series 48 Port 10_100_1000 Ethernet Poe+ Network Switch C1000-48t-4g-L
$349.80 USD
Izračun stroškov prevoza na blagajni
Količina
C1000-48T-4G-L Overview
Catalyst 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices.These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments.1000 operate on Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI.These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
C1000-48T-4G-L Specification
|
C1000-48T-4G-L Specification
|
|
|
|
Description
|
48x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks
|
|
|
Gigabit Ethernet ports
|
48
|
|
|
Uplink interfaces
|
4 SFP
|
|
|
PoE+power budget
|
\
|
|
|
Fanless
|
N
|
|
|
Dimensions (WxDxH in inches)
|
17.5 x 10.73 x 1.73
|
|
|
Console ports
|
|
|
|
RJ-45 Ethernet
|
1
|
|
|
USB mini-B
|
1
|
|
|
USB-A port for storage and Bluetooth console
|
1
|
|
|
Memory and processor
|
|
|
|
CPU
|
ARM v7 800 MHz
|
|
|
DRAM
|
512 MB
|
|
|
Flash memory
|
256 MB
|
|
|
Performance
|
|
|
|
Forwarding bandwidth
|
52 Gbps
|
|
|
Switching bandwidth
|
104 Gbps
|
|
|
Forwarding rate(64—byte L3 packets)
|
77.38 Mpps
|
|
|
Unicast MAC addresses
|
16000
|
|
|
IPv4 unicast direct routes
|
542
|
|
|
IPv4 unicast indirect routes
|
256
|
|
|
IPv6 unicast direct routes
|
414
|
|
|
IPv6 unicast indirect routes
|
128
|
|
|
IPv4 static routes
|
16
|
|
|
IPv6 static routes
|
16
|
|
|
IPv4 multicast routes and IGMP groups
|
1024
|
|
|
IPv6 multicast groups
|
1024
|
|
|
IPv4/MAC security ACEs
|
600
|
|
|
IPv6 security ACEs
|
600
|
|
|
Maximum active VLANs
|
256
|
|
|
VLAN IDs available
|
4094
|
|
|
Maximum STP instances
|
64
|
|
|
Maximum SPAN sessions
|
4
|
|
|
MTU-L3 packet
|
9198 bytes
|
|
|
Jumbo Ethernet frame
|
10,240 bytes
|
|
|
Dying Gasp
|
Yes
|
|
|
MTBF in hours (data)
|
1,452,667
|
|
|
MTBF in hours (PoE)
|
856,329
|
|
|
MTBF in hours (Full PoE)
|
856,329
|
|
|
Environmental
|
|
|
|
Operating temperature Seal level
|
-5 to 50 degrees Celsius*
|
|
|
Up to 5,000ft (1500 m)
|
-5 to 45 deg C
|
|
|
Upto 10,000 (3000 m)
|
-5 to 40 deg C
|
|
|
Operating altitude
|
10,000 ft (3,000m)
|
|
|
Operating relative humidity
|
5% to 90% at 40C
|
|
|
Storage temperature
|
-13 to 158F (-25 to 70C)
|
|
|
Storage altitude
|
15,000 ft (4500m)
|
|
|
Storage relative humidit
|
5% to 95% at 65C
|
|
