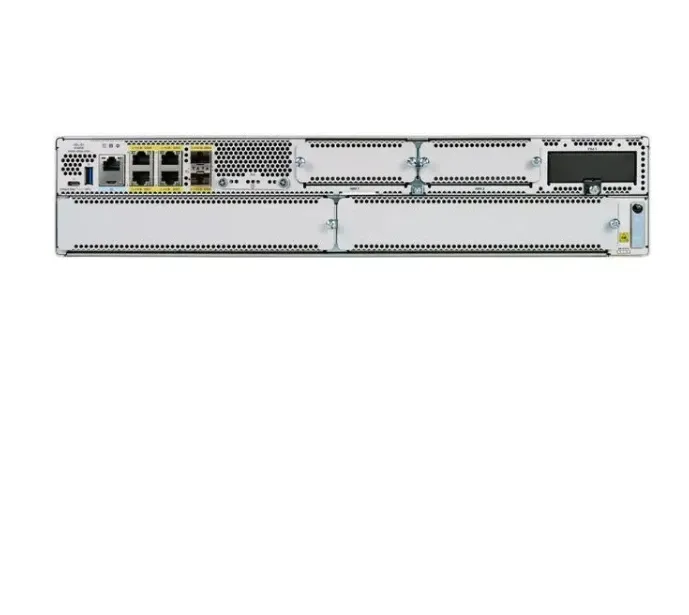

C8300-2N2S-4T2X - Catalyst 8300 Series Edge Platforms Series C8300 2RU w/ 10G WAN
C8300-2N2S-4T2X Overview
The C8300-2N2S-4T2X, a 2RU modular service router, offers versatile connectivity with 10G WAN, 2 SM slots, 2 NIM slots, 2 x 10-Gigabit Ethernet, and 4 x 1-Gigabit Ethernet ports.Designed for enterprises, it enables high-speed, secure networking in diverse IT environments.
C8300-2N2S-4T2X Product Highlights- 10G WAN capability
- 2 service module slots
- 2 network interface module slots
- 2 x 10-Gigabit Ethernet ports
- 4 x 1-Gigabit Ethernet ports
| Feature | C8300-2N2S-4T2X | ISR4331 | ISR4451-X | ASR1001-X | ASR1002-X | ISR4221 | MX204 |
|---|---|---|---|---|---|---|---|
| Form Factor | 2RU | 1RU | 2RU | 1RU | 2RU | 1RU | 1RU |
| 10G Ports | 2 | 0 | 3 | 4 | 4 | 0 | 4 |
| 1G Ports | 4 | 2 | 8 | 8 | 8 | 2 | 0 |
| Service Module Slots | 2 | 1 | 3 | 2 | 2 | 1 | N/A |
| NIM Slots | 2 | 2 | 4 | 2 | 2 | 2 | N/A |
| Routing Throughput | 40 Gbps | 50 Mbps | 2 Gbps | 68 Gbps | 100 Gbps | 35 Mbps | 400 Gbps |
C8300-2N2S-4T2X Product Application Scenarios
- Enterprise branch networking
- High-speed WAN aggregation
- Data center edge routing
| Model | Description |
|---|---|
| SM-X-1T3/E3 | 1-Port T3/E3 Service Module |
| NIM-2GE-CU-SFP | 2-Port GE Interface Module |
| MGBSX1 | 1000BASE-SX SFP Transceiver |
C8300-2N2S-4T2X Specification
C8300-2N2S-4T2X Specifications |
|
|
Part number |
C8300-2N2S-4T2X C8300-2N2S-6T |
|
Dimensions (H x W x D) |
3.5 in.x 17.25 in.x 18.52 in. |
|
Rack Units (RU) |
2RU |
|
Chassis weight with 2X AC power supplies and fan tray |
40 lbs |
|
Acoustics: Sound pressure (Typical/maximum) |
59 dBa/73 dBa (Non-NEBS) 63 dBa/75 dBa (NEBS) |
|
Acoustics: Sound power (Typical/maximum) |
74 dBa/87 dBa (Non-NEBS) 77 dBa/89 dBa (NEBS) |
|
Input voltage |
AC: 85 to 264 VAC DC: -40 to 72V; 48V nominal |
|
Operating temperature |
32 to 104°F (0 to 40°C) |
|
Storage temperature |
-40 to 150°F (-40 to 70°C) |
|
Relative humidity operating and nonoperating noncondensing |
Ambient (noncondensing) operating: 5 to 85% Ambient (noncondensing) nonoperating and storage: 5 to 95% |
|
Altitude |
0 to 10,000 feet (0 to 3050 meters) |
|
Mean Time Between Failures (MTBF) |
710,300 hours |
