CGHD 8 16 Port MA5800 X2 X7 X17 Dual Power Module 10G Class C+ C++ XG-PON GPON Combo OLT Interface Board H902CGHD
$560.00 USD
Izračun stroškov prevoza na blagajni
Količina
Details Images
Products Description

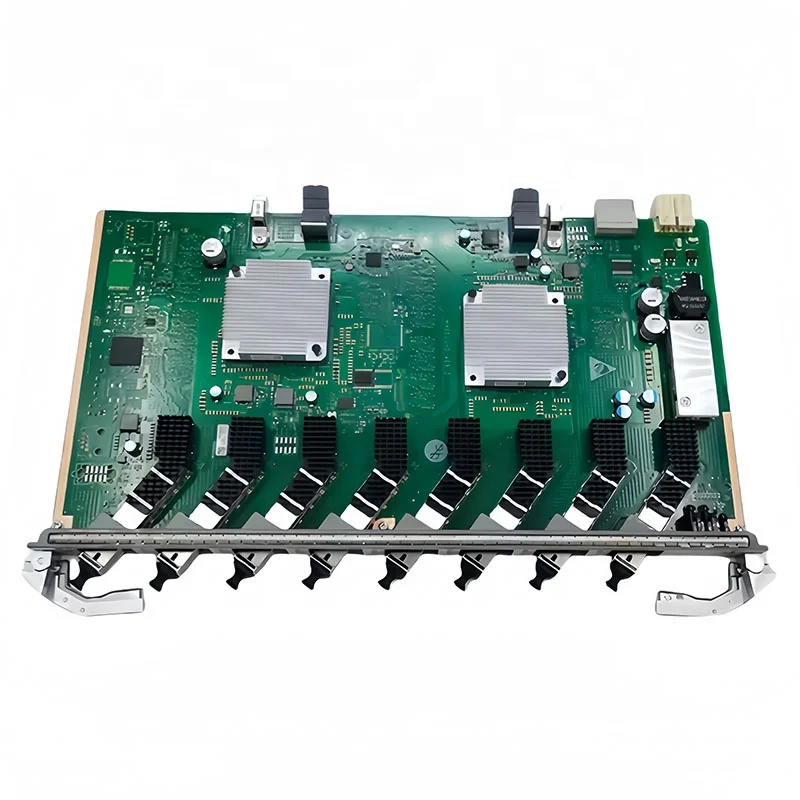

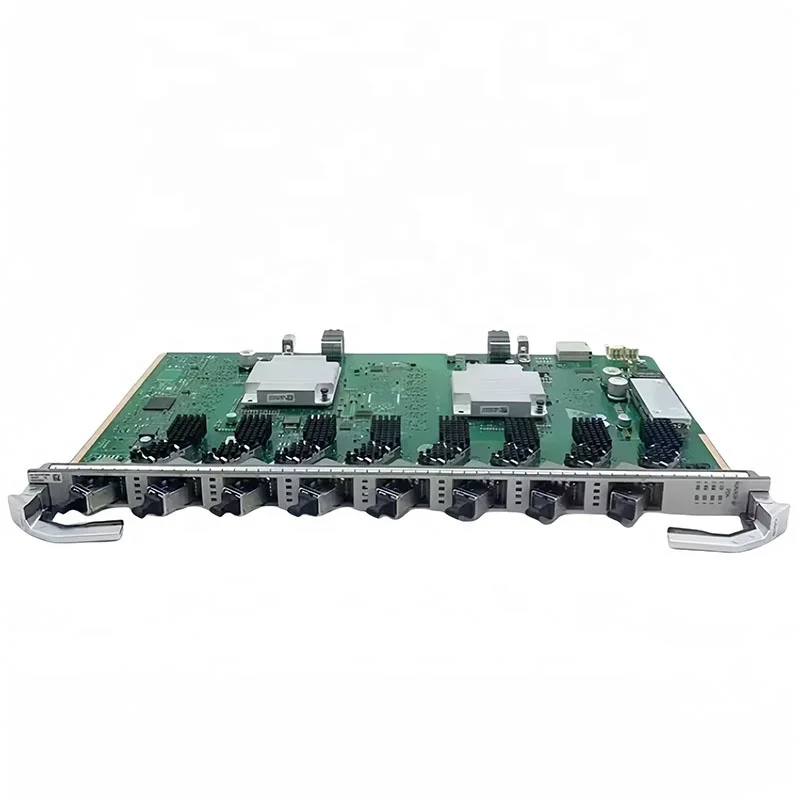

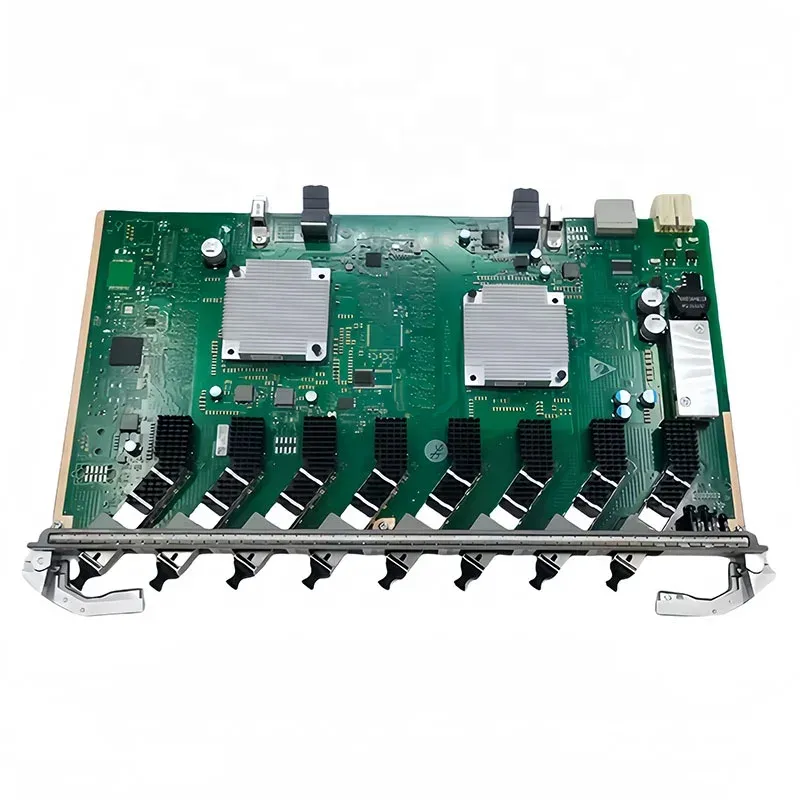

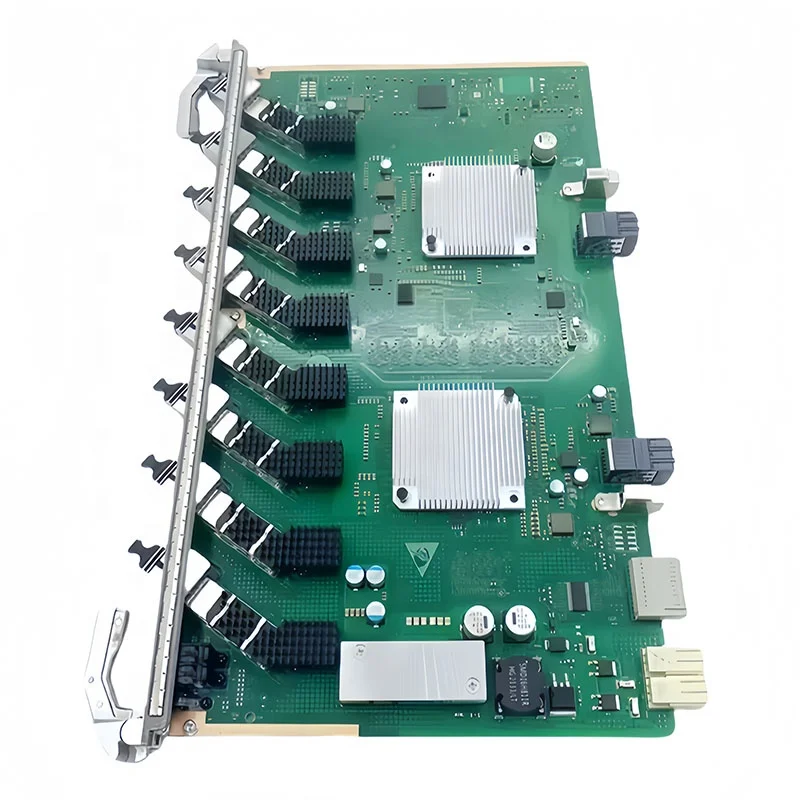

The H902CGHD board is an 8-port XG-PON and GPON Combo OLT interface board. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.
Forwarding Capability: 100 Gbit/s
Max split radio:
GPON: 1:128
XG-PON: 1:25
Max split radio:
GPON: 1:128
XG-PON: 1:25
Maximum Frame Size:
2052 bytes
9216 bytes (jumbo frame enabled)
2052 bytes
9216 bytes (jumbo frame enabled)
T-CONTs per PON port:
GPON: 1024
XG-PON: 2048
GPON: 1024
XG-PON: 2048
Maximum number of MAC addresses: 131072
Service flows per PON board: 16368
Maximum distance difference between two ONUS under the same pon port: 40 km
Service flows per PON board: 16368
Maximum distance difference between two ONUS under the same pon port: 40 km
GPON channel:
Tx: 2.488 Gbit/s
Rx: 1.244 Gbit/s
Tx: 2.488 Gbit/s
Rx: 1.244 Gbit/s
XG-PON channel:
Tx: 9.953 Gbit/s
Rx: 2.488 Gbit/s
Tx: 9.953 Gbit/s
Rx: 2.488 Gbit/s
|
Product name
|
|
1 year
|
|
|
|||
|
Type
|
|
Service Board
|
|
|
|||
|
Function
|
|
FTTX FTTH
|
|
|
|||
