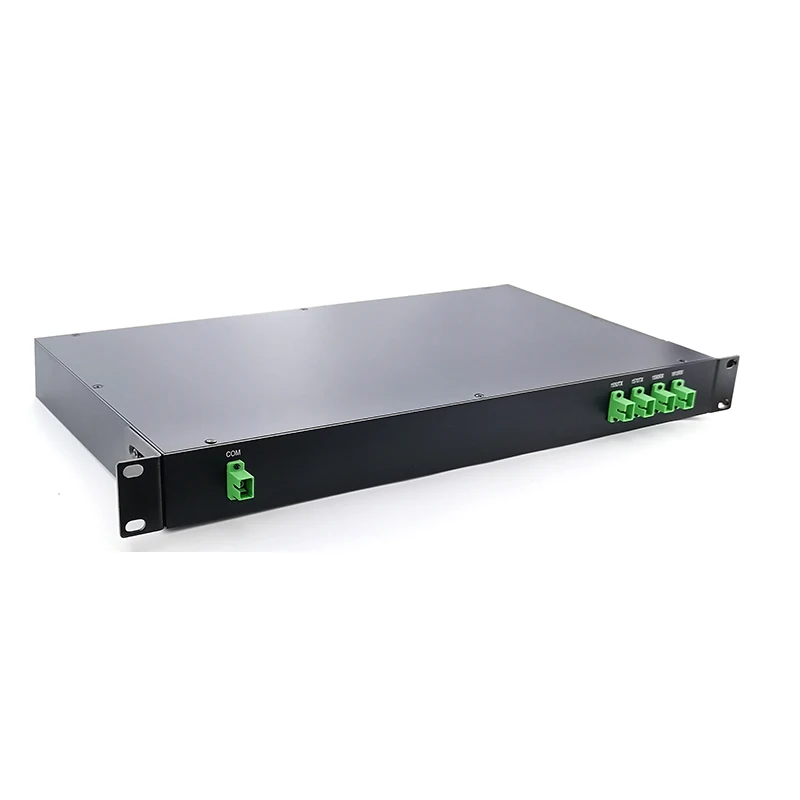

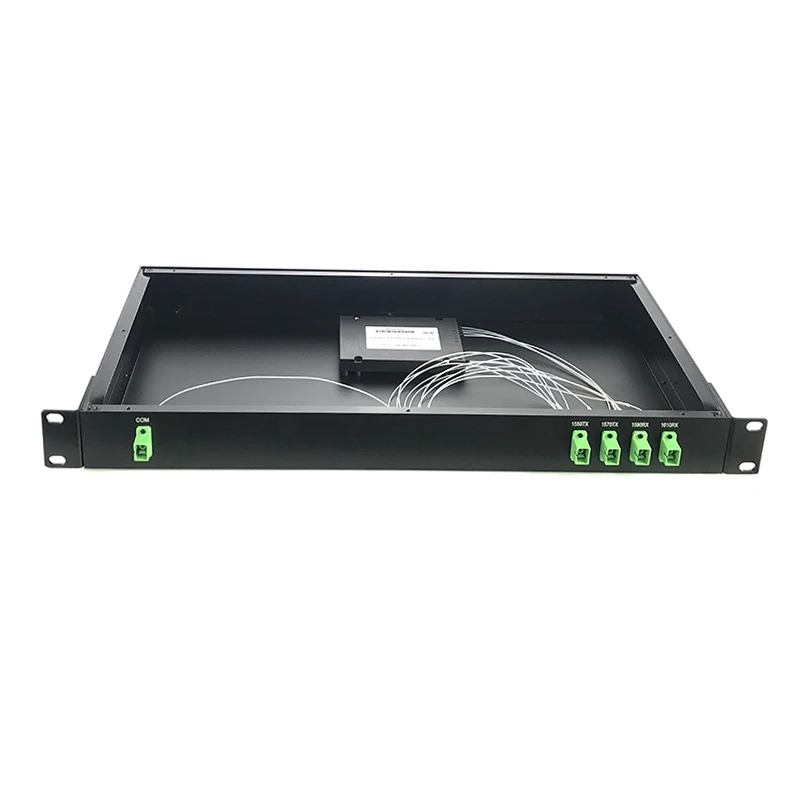

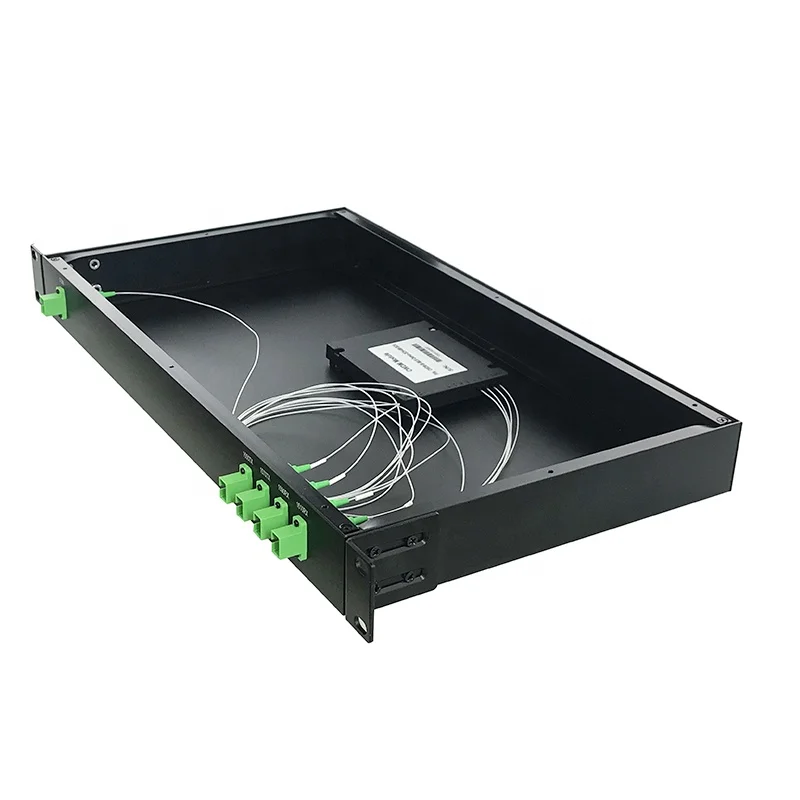

CWDM 1U Rack Mount Optic Equipment SC/APC Fiber BiDi 1550/1610nm 4CH Mux Demux 3-Year Warranty ZG Technology FTTh FTTx
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
5G Optic Equipment Fiber CWDM BiDi 1550-1610nm 4ch CWDM Mux Demux 1U Rack Mount Chassis SC/APC
|
Type |
CWDM |
|||||||||
|
Parameters |
Index |
|||||||||
|
Channel No. |
λ |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
|
|
Max insertion loss |
dB |
0.8 |
1.0 |
1.4 |
1.8 |
2.2 |
2.6 |
3.0 |
3.4 |
|
|
Conventional center wavelength |
nm |
1310.1470.1490.1510.1530.1550.1570.1590.1610 |
||||||||
|
Passband width |
nm |
±6.5 |
||||||||
|
Passband flatness |
dB |
≤0.5 |
||||||||
|
Adjacent channel isolation |
dB |
≥30 |
||||||||
|
Non-adjacent channel isolation |
dB |
≥45 |
||||||||
|
Wavelength thermal stability |
nm/°C |
<0.002 |
||||||||
|
Insertion loss thermal stability |
dB/°C |
≤0.005 |
≤0.005 |
≤0.007 |
≤0.008 |
|||||
|
Return loss |
dB |
≥45 |
||||||||
|
Polarization mode dispersion |
ps |
≤0.10 |
≤0.10 |
≤0.15 |
≤0.15 |
|||||
|
PDL |
dB |
≤0.10 |
≤0.15 |
≤0.20 |
≤0.25 |
|||||
|
Directivity |
dB |
≥50 |
||||||||
|
Max optical power |
mW |
500 |
||||||||
|
Operating temperature |
°C |
-20~+70 |
||||||||
|
Storage temperature |
°C |
-40~+85 |
||||||||
|
Remarks |
1.16 channels WDM (wavelength from 1270nm-1610nm) can be customized 2. Rack-mounted customization is available. |
|||||||||
Ordering information
|
A |
B |
C |
D |
E |
F |
G |
|
1×N |
Wavelength |
Package spec |
Fiber Type |
Fiber Diameter |
Fiber Length |
Connector |
|
N=1 N=2 … N=16 |
1270 nm 1290 nm 1310 nm … 1570 nm 1590 nm 1610 nm
|
1:Φ5.5mm×34mm 2:Φ5.5mm×35.4mm 3: 90×20×10 mm 4: 100×80×10.5 mm 5: 120×80×18 mm 6: 140×115×18 mm 7: 1U X: Others |
9: 9/125 X: Others |
25:250um 90:900um 20:2.0mm 30: 3.0mm X: Others |
05:0.5m 10:1.0m 15:1.5m X:Others |
OO:None FP:FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC STA: ST/APC LP: LC/PC LA: LC/APC X: Others |
