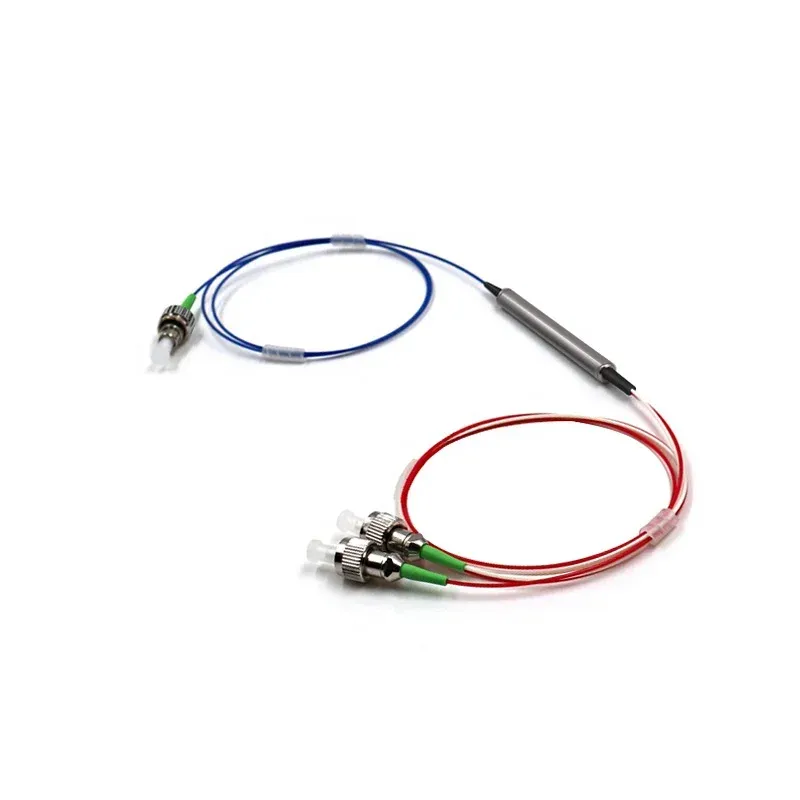

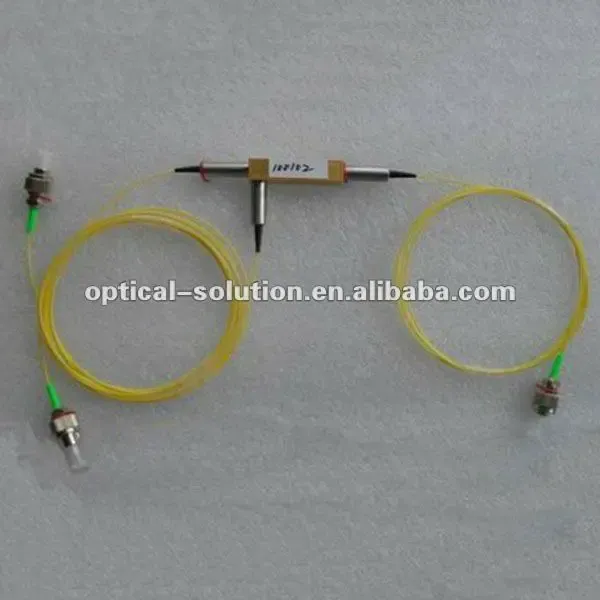

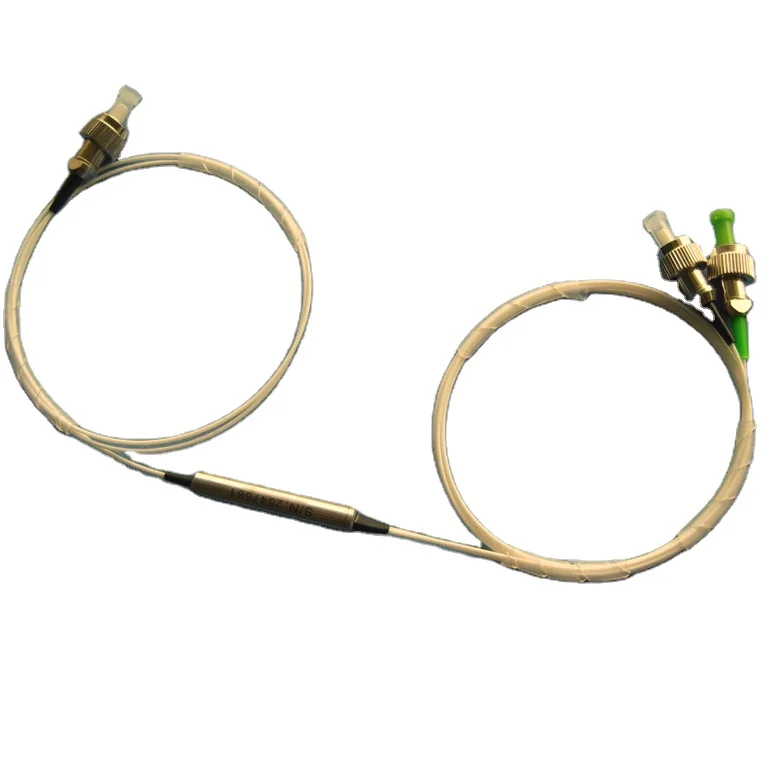

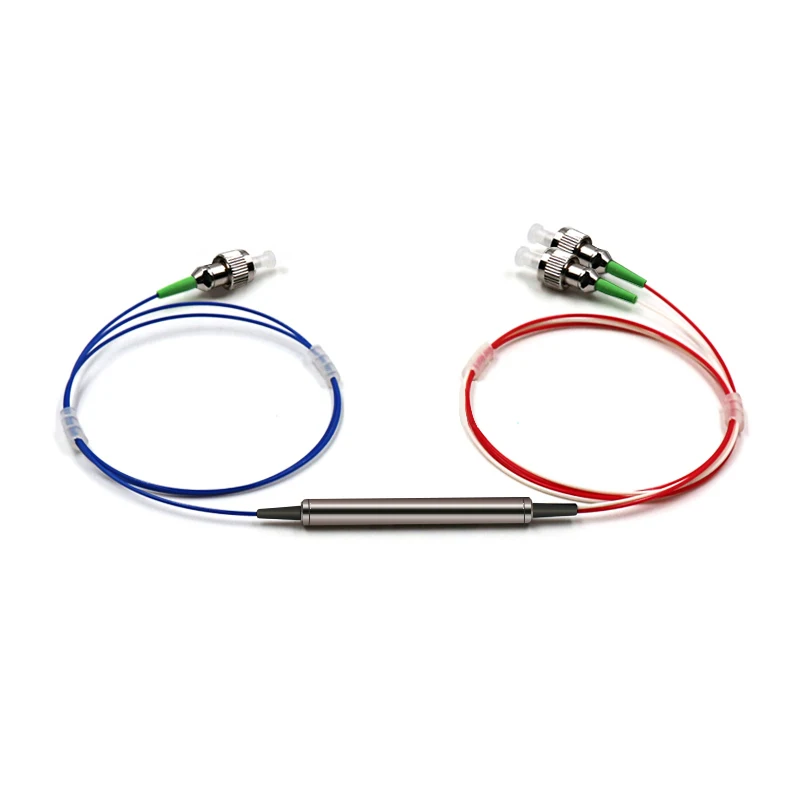

Fiber Optic Equipment 2 Color Customized 0.9mm Loose Tube High Power 1060nm Polarization Insensitive 3 Port Optical Circulator
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Polarization-Insensitive Optical Circulator (1060nm):
Features:
High isolation
Low insertion loss
High return loss
Low polarization sensitivity
Optical path epoxy free
Applications:
Fiberoptic amplifiers
CATV fiber optic links
Fiberoptic systems testing
Fiberoptic LAN systems
Telecommunications
| Parameter | P Grade | |
| Configuration | Port 1 to 2, Port2 to 3, Port3 to 4 | |
| Operation Wavelength (nm) | 1310±30 or 1550±30 | |
| Insertion Loss (dB) |
Typical | 1.0 |
| Maximum | 1.2 | |
| Typical lsolation (dB) | ≥ 50 | |
| Minimum isolation (dB) | ≥ 30 | |
| Cross Talk (dB) | ≥ 50 | |
| Polarization Dependent Loss (dB) | ≤ 0.2 | |
| Polarization Mode Dispersion (ps) | ≤ 0.1 | |
| Return Loss (dB) | ≥ 50 | |
| Power Handling (mW) | 500 | |
| Operating Temperature (° C) | -10 ~+75 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Dimensions (mm) | 5.5 x L50(L72 for 900um loose tube) | |
Ordering Information: PIOC3-A-B-C/D-E/F-G/H-I
|
A |
B |
C/D |
E/F |
G/H |
I |
|
Wave length |
Grade |
Input/OutputPigtail Type |
Input/Output Fiber Length |
Input/Output Connector |
Package Type |
|
13=1310 nm nm
|
P=Premium
A=Grade A |
0=250um Bare Fiber loose tube |
05=0.5M …… 10=1.0M ... 15=1.5M …… |
0=None FU=FC/UPC FA=FC/APC SU=SC/UPC SA=SC/APC LU=LC/UPC LA=LC/APC ST=ST
X=Others |
T6=Φ5.5x50 mm
X=Others |
ZG Tech,an ISO9001-2008 certificated company,are specialized in manufacturing optic fibers in telecommunication.Due to the professional R&D team.We aspire to design and develop the first rate products at home and overseas.Nowadays our factory lines are equipped with advanced facilities and skilled staffs,also ZG Tech saves the cost to the utmost in order to meet with customer's requirements even exceed their expectation.
Q1.Are you factory or trading company?
A: We are an ISO 9001-2015 certificated factory in Shenzhen, China, have been in fiber optic fiber line for 14 years.You are welcome to visit our factory if you have chance to Shenzhen.
What is the price of this product?What about the lead time?
A: The leading time depends the quantity you need, Generally speaking, sample needs 1-2 days, mass production time needs 1-2 weeks
Q3.How can i start the order?
A: You can click the start button follow alibaba instructions or contact us, once we both agree on the deal, we will draft an Alibaba insurance order on Alibaba, you just need follow the Alibaba payment instructions, or we send the PI in PDF with our company seal to you, you just need transfer to our bank/PayPal/Western union account, after we received the payment, we will arrange the production.
Q4: Do you have other fiber optic products?
A: Yes, we also manufacture patch cord, WDM, attenuator, connector, etc.Please contact us or click following link to visit our alibaba website:
