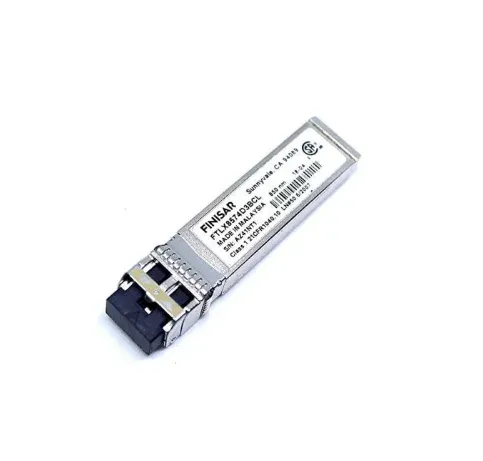

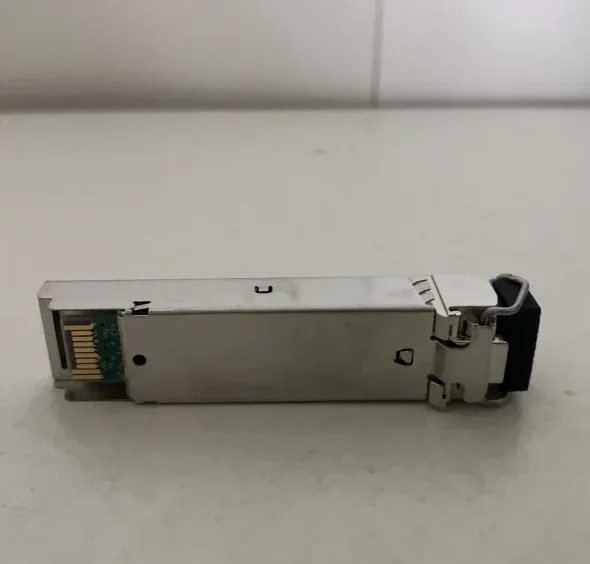

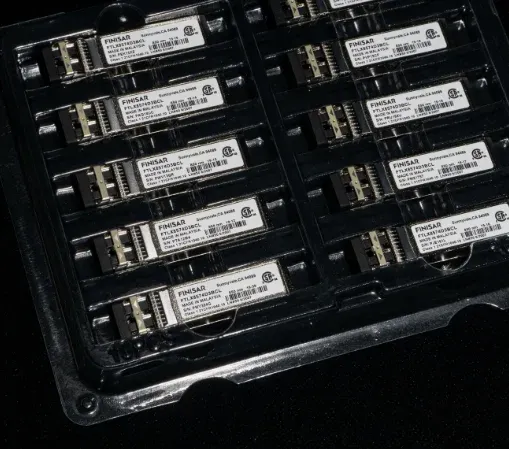

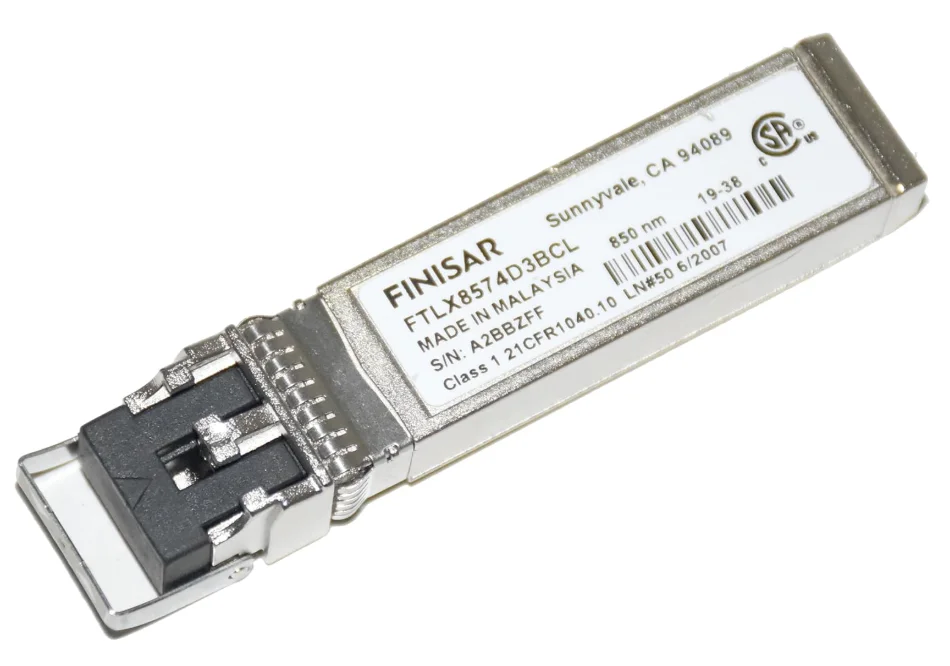

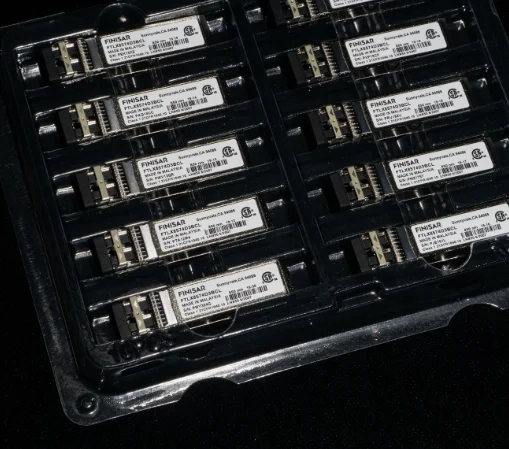

FTLX8574D3BCL SFP+ Transceiver Module 10Gbps 850nm 300m Multimode LC Duplex with DOM for Data Center & Enterprise Network
$24.99 USD
Količina
FTLX8574D3BCL Product Overview
The FTLX8574D3BCL is a high-performance10G SFP+ optical transceiver moduleengineered for short-reach bidirectional data transmission, fully compliant with SFP+ MSA (Multi-Source Agreement), IEEE 802.3ae 10GBASE-SR, and Fibre Channel 8G/10G standards.As a core component formodern optical communication networks, it delivers stable 10Gbps full-duplex data transfer with an 850nm VCSEL laser transmitter, supporting a maximum transmission distance of 300m over 50/125μm multimode fiber (MMF) and 100m over 62.5/125μm MMF.Equipped with built-in Digital Optical Monitoring (DOM) functionality, this module enables real-time tracking of critical operating parameters (TX power, RX power, temperature, voltage, bias current), ensuring reliable performance in commercial data center, enterprise campus network and storage area network (SAN) environments.Its hot-pluggable SFP+ form factor and low power consumption design make it a cost-effective and easy-to-integrate solution for10G network infrastructure upgrade and expansion.
Key Features& Core Keywords
- Data Rate: Up to 10.3 Gbps bidirectional data link, ideal for10GBASE-SRand high-speed Fiber Channel applications
- Wavelength: 850nm VCSEL laser transmitter, optimized forshort-distance multimode optical transmission
- Transmission Distance: 300m (50/125μm MMF) / 100m (62.5/125μm MMF), perfect fordata center interconnection
- Connector Type: Dual LC duplex plug-and-play, compatible with standardfiber optic connectorsand patch cords
- Power Supply: Single 3.3V DC input (3.1V~3.5V),ultra-low power consumption(<1.5W typical) for energy-saving networks
- Operating Temperature: Commercial grade (0°C to 70°C), tailored for data center and officecommercial network environments
- Digital Diagnostics: Built-in DOM function via 2-wire serial bus (I2C), supporting real-timeoptical module health monitoring
- Mechanical Design: Compact hot-pluggable SFP+ package, metal housing for low EMI (Electromagnetic Interference) andstable network operation
- Compliance: RoHS& REACH certified, compatible with SFP+ MSA, IEEE 802.3ae, FC-PI-3, FCoE protocols forenterprise and data center infrastructure
- Compatibility: Plug-and-play with all SFP+ compliant network devices (switches, routers, servers, storage arrays)
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | FTLX8574D3BCL |
| Module Type | Pluggable SFP+ Optical Transceiver |
| Form Factor | SFP+ (Small Form-Factor Pluggable Plus) |
| Data Rate | 10.3 Gbps (max), 10GBASE-SR compliant |
| Wavelength | 850 nm (Transmitting/Receiving) |
| Laser Type | VCSEL (Vertical-Cavity Surface-Emitting Laser) |
| Receiver Type | PIN Photodiode with TIA |
| Fiber Type | Multimode Fiber (MMF) |
| Transmission Distance | 300m @ 50/125µm MMF; 100m @ 62.5/125µm MMF |
| Connector Type | LC Duplex (UPC), Uniboot Optional |
| TX Output Power | -7.0 ~ +1.0 dBm |
| RX Receiver Sensitivity | ≤ -14.4 dBm (typical) |
| RX Overload | ≥ -1.0 dBm |
| Power Supply | 3.1V ~ 3.5V DC (3.3V nominal) |
| Power Dissipation | < 1.5 W (typical) |
| Operating Temperature | 0°C to 70°C (Commercial Grade, 0 to 70 C) |
| Storage Temperature | -40°C to 85°C |
| Diagnostics | Digital Optical Monitoring (DOM) – SFP+ MSA Compliant |
| Compliance& Standards | SFP+ MSA, IEEE 802.3ae 10GBASE-SR, FC-PI-3 (8G/10G), FCoE, RoHS, REACH |
| EMI/RFI | Compliant with FCC Part 15 Class B, CE |
| MTBF (Mean Time Between Failures) | > 1.0 x 10 hours |
| Packaging | Anti-static blister pack, plastic tray, or customized packaging |
| Warranty | 1 Year (Extended Warranty Optional) |
Applications& Target Scenarios
The FTLX8574D3BCL 10G SFP+ transceiver is a versatileoptical communication componentwidely deployed in high-speed, short-reach optical network systems, including but not limited to:
- 10G Ethernet Networks: Enterprise campus backbones, data center access/aggregation layers, 10GBASE-SR deployments
- Storage Area Networks (SAN): 8G/10G Fibre Channel, Fibre Channel over Ethernet (FCoE) for server-storage interconnection
- Data Center Infrastructure: Server-to-switch, switch-to-switch interconnection, top-of-rack (ToR) and end-of-row (EoR) switching
- Multimedia& Surveillance: High-speed video transmission, large-scale IP surveillance networks, media streaming platforms
- Enterprise IT Systems: Cloud computing infrastructure, virtualization environments, high-performance computing (HPC) clusters
- FTTH& Broadband Access: Fiber-to-the-building (FTTB), metro access networks for telecom and ISP applications
- Industrial& Commercial: Medical imaging systems, financial transaction networks, retail enterprise backbones
Product Advantages
1.Reliable 10G Performance
Engineered with high-quality optical and electronic components, the FTLX8574D3BCL delivers consistent 10.3Gbps data transmission with low bit error rate (BER ≤1x10 ¹²), meeting the strict performance requirements of data center and enterprise networks.The 850nm VCSEL laser is optimized for multimode fiber, ensuring minimal signal loss and stable operation over the full transmission distance.
2.Easy Integration& Hot-Pluggable Design
The compact SFP+ form factor is compatible with all industry-standard SFP+ ports, enablingplug-and-play installationwithout powering down network devices.This hot-pluggable feature minimizes network downtime during module replacement, upgrade or maintenance, making it ideal for mission-critical network environments that require 24/7 operation.
3.Cost-Effective 10G Upgrade Solution
Compared with other 10G optical transceiver solutions, the FTLX8574D3BCL offers ultra-low power consumption and a competitive price point, reducing both initial procurement costs and long-term operational energy costs. It is the perfect choice for small-to-medium enterprises and data centers looking to upgrade from 1G to 10G networks without a complete infrastructure overhaul.
