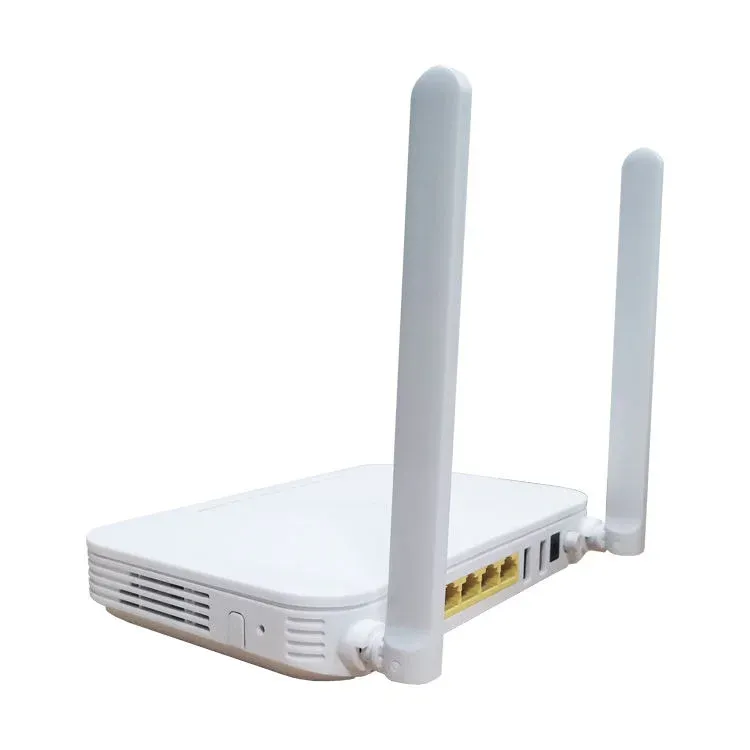

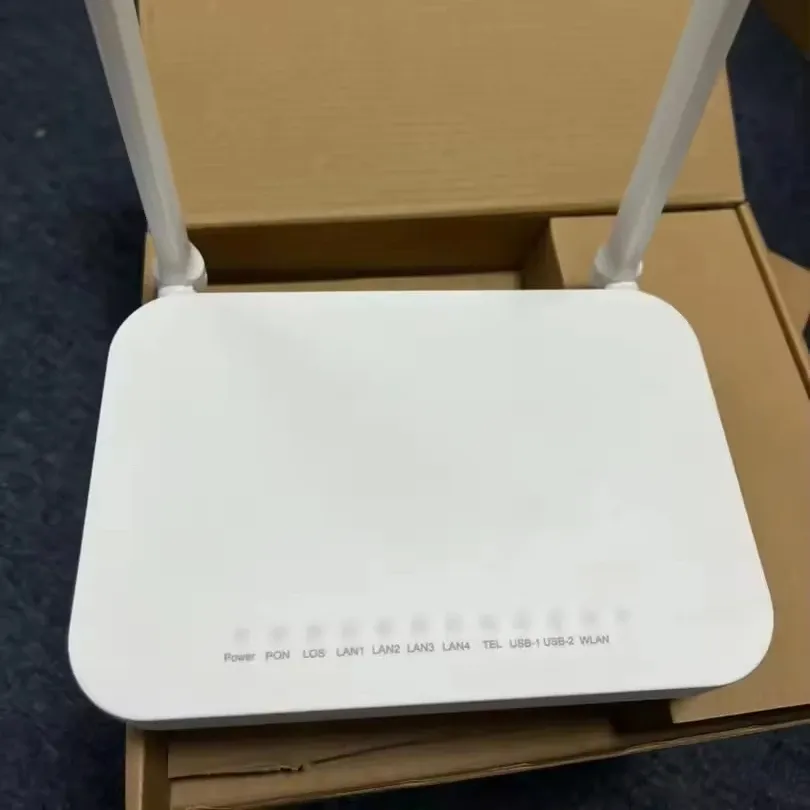

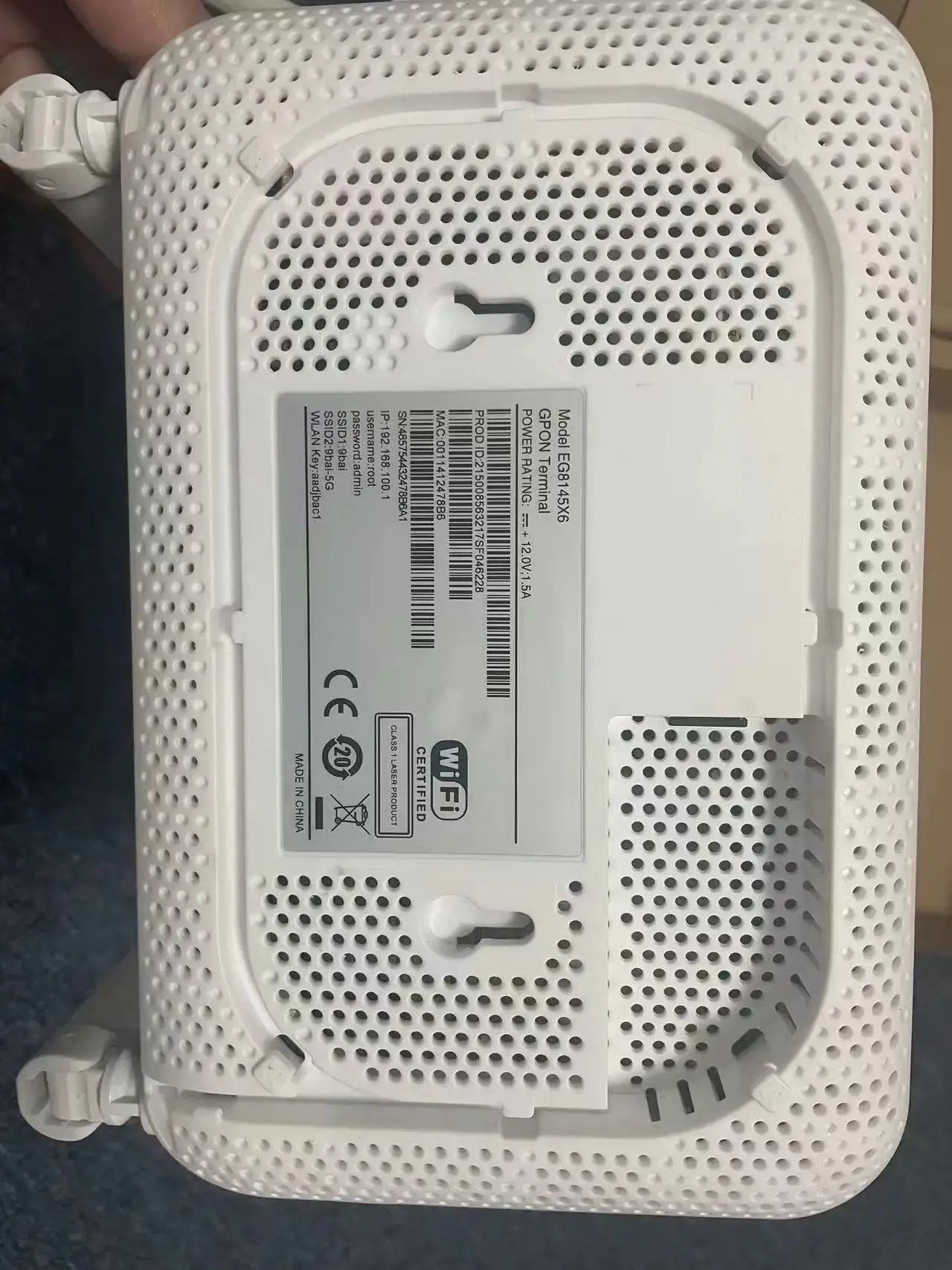

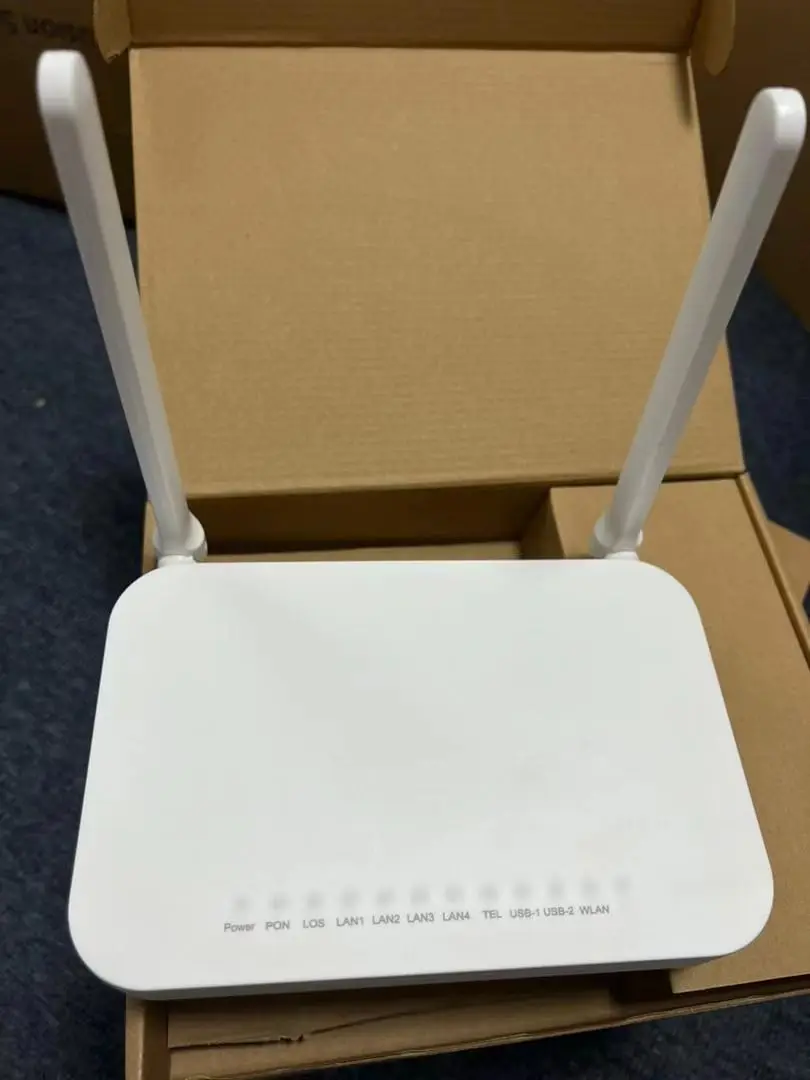

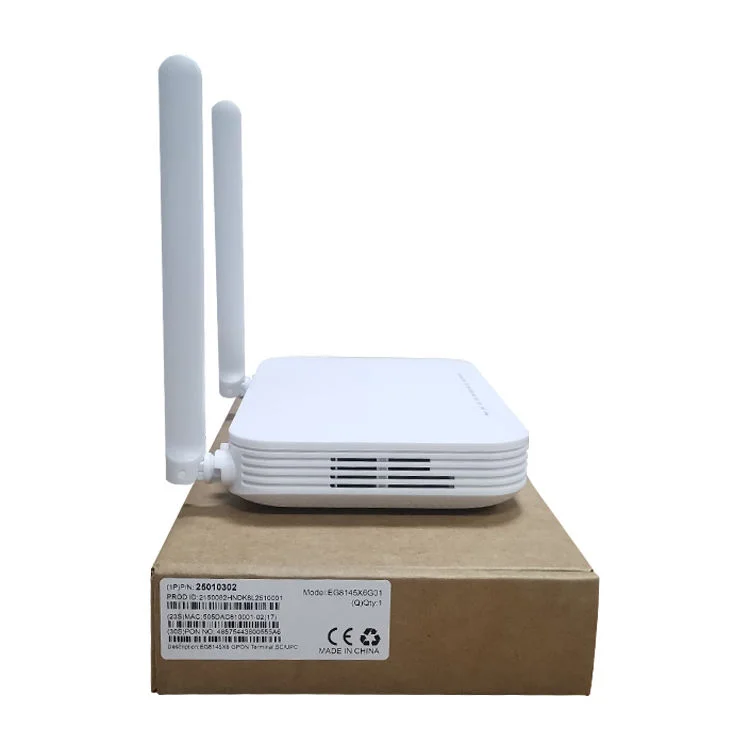

Gepon Olt HS8145X6 4GE 2.4G/5.8G WIFI6 5dBi Dual Band WIFI GEPON ONU XPON FTTH EG8145X6

Name: Gepon Olt HS8145X6 4GE 2.4G/5.8G WIFI6 5dBi Dual Band WIFI GEPON ONU XPON FTTH EG8145X6
SKU: 1600505110307_30PCS/CARTON
Price: 35.5 USD
Availability: InStock

$35.50 USD

Izračun stroškov prevoza na blagajni

Color

30PCS/CARTON

Količina

Product Description

Product Name	WIFI6 GPON ONU
Model	EG8145X6

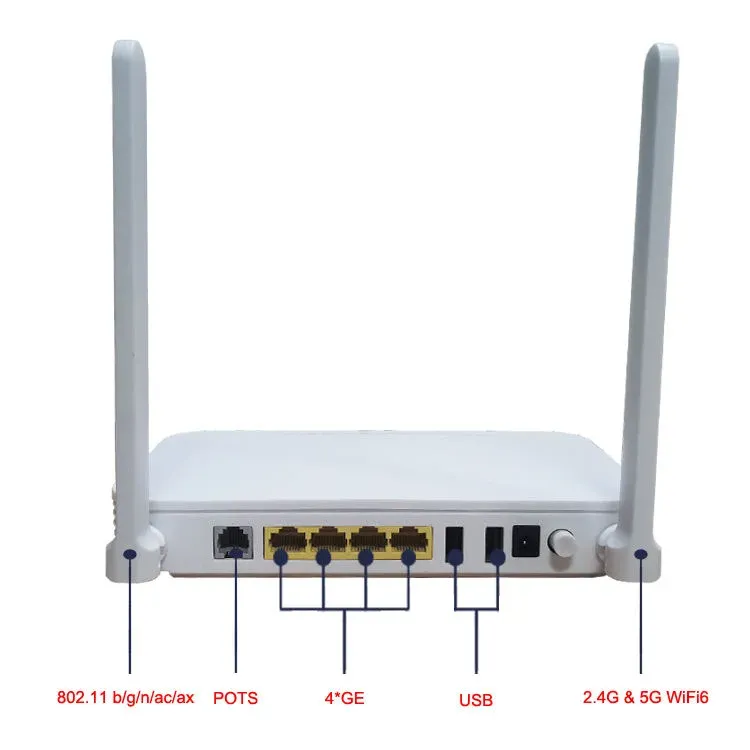

Ports	4GE + 1POTS+ 2.4/5G WIFI 6 AC
Function	AC, 5Dbi

Product performance description

OptiXstar EG8145X6 is an intelligent Wi-Fi 6 routing-type Optical Network Terminal (ONT) that uses Gigabit Passive Optical
Network (GPON) technology to offer ultra-broadband access, high performance, and wide coverage for users.With high forwarding
performance — ensuring an exceptional experience for voice, data, and High Definition (HD) video services — as well as
future-oriented service support capabilities and visualized network management, OptiXstar EG8145X6 helps enterprises construct
powerful all-optical access solutions.

Smart interconnection

 Smart Wi-Fi coverage SIP/H.248 auto-negotiation
 Any port any service
 Parental control

 OMCI/Web UI/TR069 Variable-length OMCI messages
 Dual-system software backup and rollback

 Ethernet port rate limitation 802.1p priority
 SP/WRR/SP+WRR
 Broadcast packet rate limitation

Smart service

 Scheduled Wi-Fi shutdown Smart Wi-Fi sharing: Portal/802.1x authentication; SoftGREbased sharing

 PPPoE/Static IP/DHCP NAT/NAPT
 Port forwarding
 ALG, UPnP
 DDNS/DNS server/DNS client
 IPv6/IPv4 dual stack, DSLite and
IPv6 SPI
 Static/Default routes
 Multiple services on one WAN port

 SPI firewall Filtering based on MAC/IP/URL addresses

Smart O&M

 IPTV video quality diagnosis eMDI
 Rogue ONT detection and isolation from the OLT
 Call emulation, and circuit test and
loop-line test
 PPPoE/DHCP simulation testing
 Wi-Fi emulation

 Visualized home network management User-defined bandwidth allocation
 Wi-Fi optimization& Wi-Fi roaming
 Wi-Fi O&M
intelligent identification and antiinterference

 IGMP v2/v3 proxy/snooping MLD v1/v2 snooping

GPON Port	Class B+ Receiver sensitivity: -27 dBm Overload optical power: -8 dBm Wavelengths: US 1310 nm, DS 1490 nm Wavelength blocking filter (WBF) of G.984.5• Flexible mapping between GEM Port and TCONT GPON: consistent with the SN or passwordauthentication defined in G.984.3 Bi-directional FEC SR-DBA and NSR-DBA Type B (single-homing&dual-homing)
Ethernet port	Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transparenttransmission QinQVLAN Limit on the number of learned MAC addresses MAC address learning Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
POTS ports	Maximum REN: 4 G.711A/μ, G.729a/b and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (with the SIP protocol)
Wi-Fi	IEEE 802.11 b / g / ax (2.4G) IEEE 802.11 a / n / ac / ax (5G) 2 × 2 MIMO (2.4G y 5G) Antenna gain: 2 dBi WMM/Multiple SSIDs/WPS 2.4G&5G concurrent Air interface rate: 574 Mbit/s (2.4G), 2402 Mbit/s (5G) Beamforming Band steering DL OFDMA DL MU-MIMO 024QAM 160MHz frequency bandwidth

Packing & Shipping

1.All products will be packed in carton , so the product can get effective protection to avoid damage.
2.Packaging according to customer requirement

Shipping

1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2.For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3.You can choose your own shipping agent, we will provide good cooperation for it.
