GJYXSCH 3.0*6.0mm Loose Tube Drop Cable Custom 1Km 10Km Outdoor 2 Core GJYXCH GJYXFCH FTTH Optical Fiber Fiber Optic Equipment
$28.00 USD
Izračun stroškov prevoza na blagajni
Količina
Products Description
|
Fiber count
|
|
1F/2F/4F
|
|
|
|
|
|||||
|
Attenuation
|
|
1310nm: ≤0.34 1550nm: ≤0.21
|
|
|
|
|
|||||
|
Color Of fiber
|
|
Blue Orange Green Brown
|
|
|
|
|
|||||
|
Fiber Type
|
|
G652D/G657A1/G657A2
|
|
|
|
|
|||||
|
Strength member
|
|
Steel wire/FRP/KFRP
|
|
|
|
|
|||||
|
Outer sheath
|
|
LSZH Lower smoke zero halogen frame retardant& UV Anti
|
|
|
|
|
|||||
|
Cable Diameter dimensions
|
|
2.0( Height) × 3.0W ± 0.1 mm(width)
|
|
|
|
|
|||||
|
Operation temperature range
|
|
-20℃ to + 70℃
|
|
|
|
|
|||||
|
Installation temperature range
|
|
-0℃ to + 60℃
|
|
|
|
|
|||||
|
Transport and storage temperature range
|
|
-20℃ to + 70℃
|
|
|
|
|
|||||
|
Tension Load (N)
|
|
Short term :800N Long term :500N
|
|
|
|
|
|||||
|
Crush Load(N)
|
|
Long term 1000 N/100mm Short term:2200N/100mm
|
|
|
|
|
|||||
|
Minimal installation bending radius
|
|
30 x OD
|
|
|
|
|
|||||
|
Minimal operation bending radius
|
|
15 x OD
|
|
|
|
|
|||||
|
Cable marking
|
|
The marking length 1meter apart , as required
|
|
|
|
|
|||||
Description:
GJYXCH FTTH drop cable

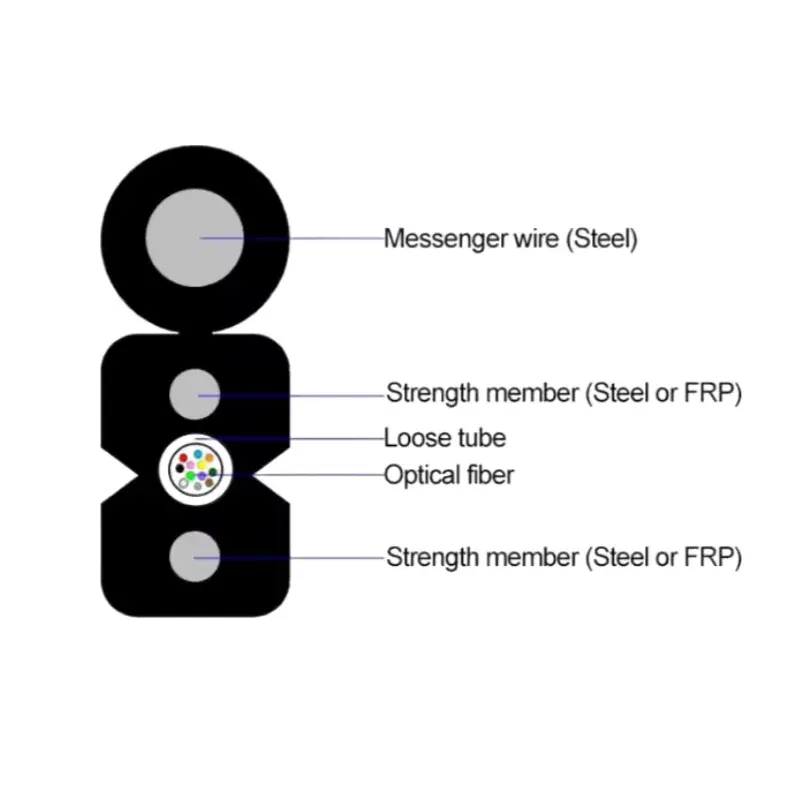

The optical ber unit is positioned in the centre.Two parallel Fiber Reinforced (Steel Wire) are placed at the two sides.A steel wire as the additional strength member is also applied.Then, the cable is completed with a black or color LSZH sheath.
3.High-strength non-metallic reinforcement and glass yarn bear axial load.
4.The cable core filled with water blocking ointment can effectively waterproof.
5.It can effectively prevent rats from breaking the cable.
The optical ber unit is positioned in the centre.Two parallel Fiber Reinforced (Steel Wire) are placed at the two sides.A steel wire as the additional strength member is also applied.Then, the cable is completed with a black or color LSZH sheath.
Characteristics:
1.Non-metal reinforcement and layer design ensure that the cable has good mechanical and temperature characteristics.
2.The casing is filled with buffer grease to protect the optical fiber and waterproof.3.High-strength non-metallic reinforcement and glass yarn bear axial load.
4.The cable core filled with water blocking ointment can effectively waterproof.
5.It can effectively prevent rats from breaking the cable.
Application:
■Adapted to Outdoor distribution.
■Long distance and local area network communication.
■ Suitable for aerial pipeline laying method.
■Long distance and local area network communication.
■ Suitable for aerial pipeline laying method.
