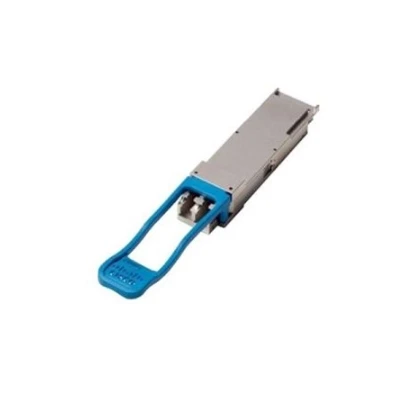

GLC-GE-100FX Gigabit 100FX Interface Transceiver 100BASE-FX SFP Gigabit Ethernet SFP Ports GLC-GE-100FX

Overview

The 100BASE-X Small Form-Factor Pluggable (SFP) device is a hot-swappable input/output device that plugs into Fast Ethernet ports, dual-rate Fast/Gigabit Ethernet ports, or Gigabit Ethernet ports of a switch or router, linking the port with the fiber cabling network.

Main features include the following:

Hot-swappable when deployed, the switch or router does not have to reboot Supports the “pay-as-you-populate”model Interchangeable with other 100BASE-X SFPs on the same line card Supports the quality ID feature that enables the switch or router to identify whether or not the SFP is a qualified SFP Optically interoperable with respective 100BASE-X Ethernet interfaces on the same link.

Specifications

Product Number: GLC-GE-100FX

SFP Type: 100BASE-FX

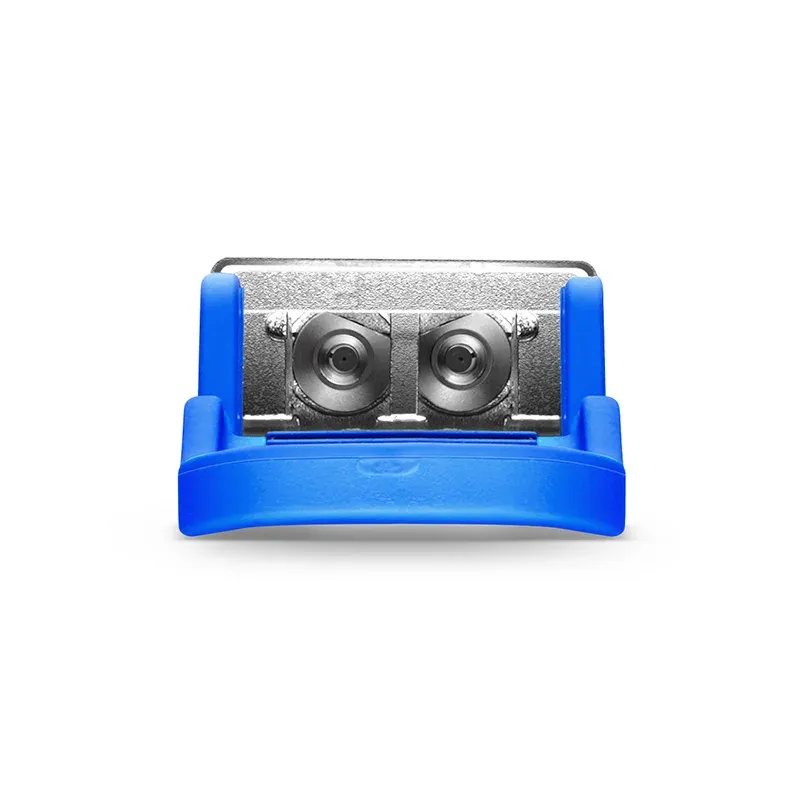

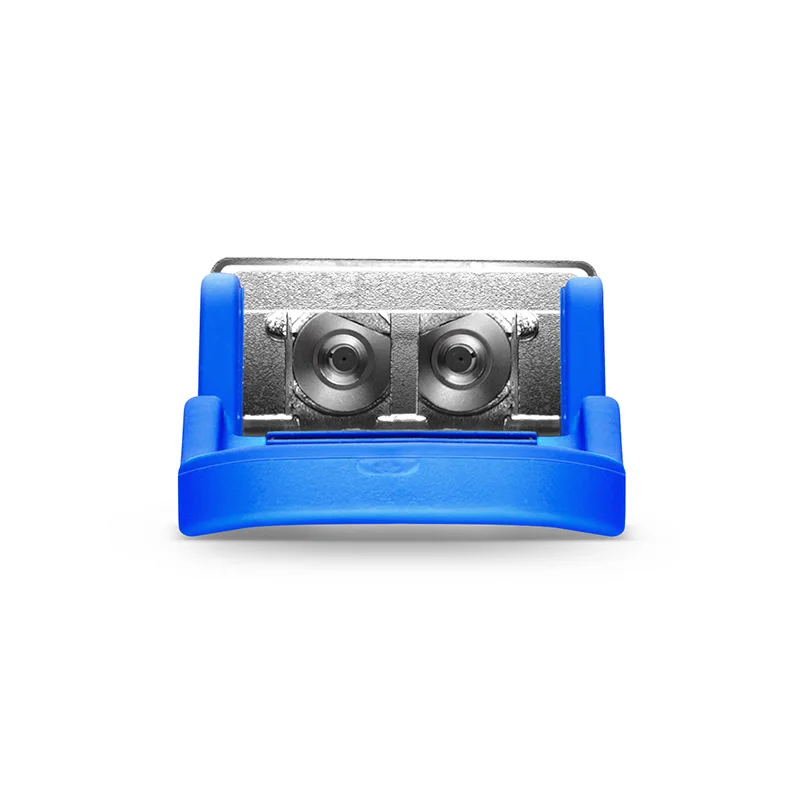

Connectors: Dual LC connector

Wavelength: 1300nm

Fiber Type: MMF

Cable Distance: 2 km (6,562 ft)

Transmit (dBm) Maximum: -14 Minimum: -20

Receive (dBm) Maximum: -14 Minimum: -31

Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm

Operating temperature range: Commercial temperature range (COM): 0 to 70°C (32 to 158°F)

Storage temperature range: -40 to 85°C (-40 to 185°F)

Power consumption: typically consume 1.5W per port (up to 1.7W)
