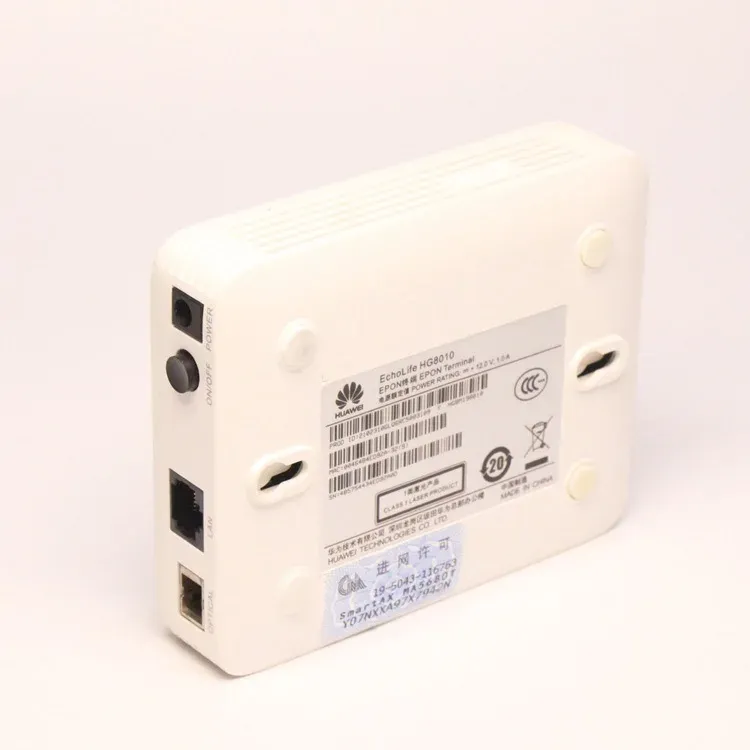

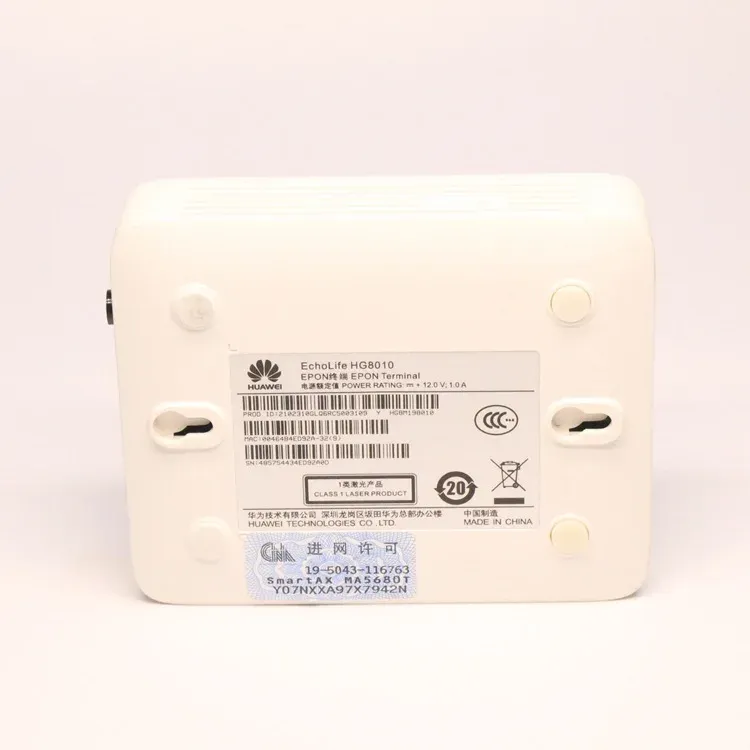

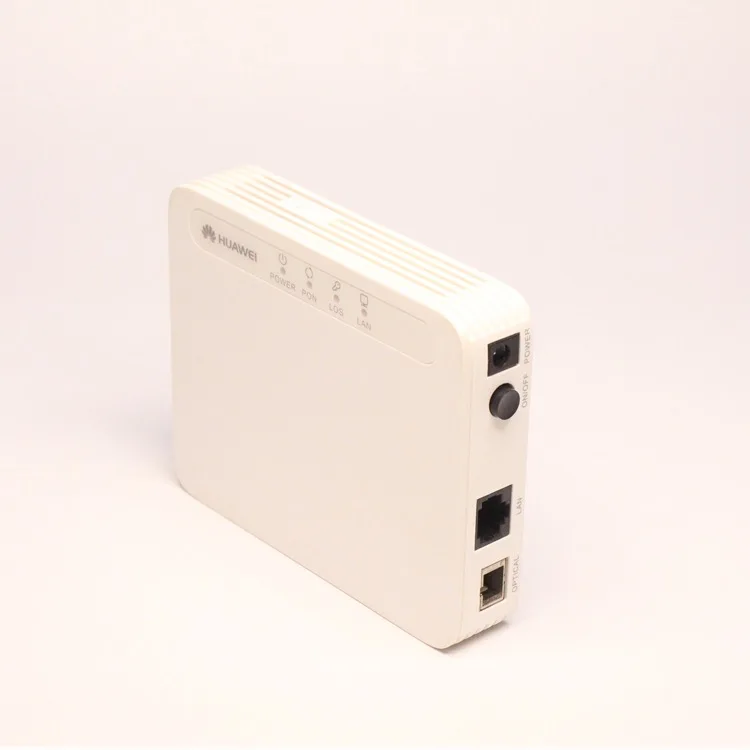

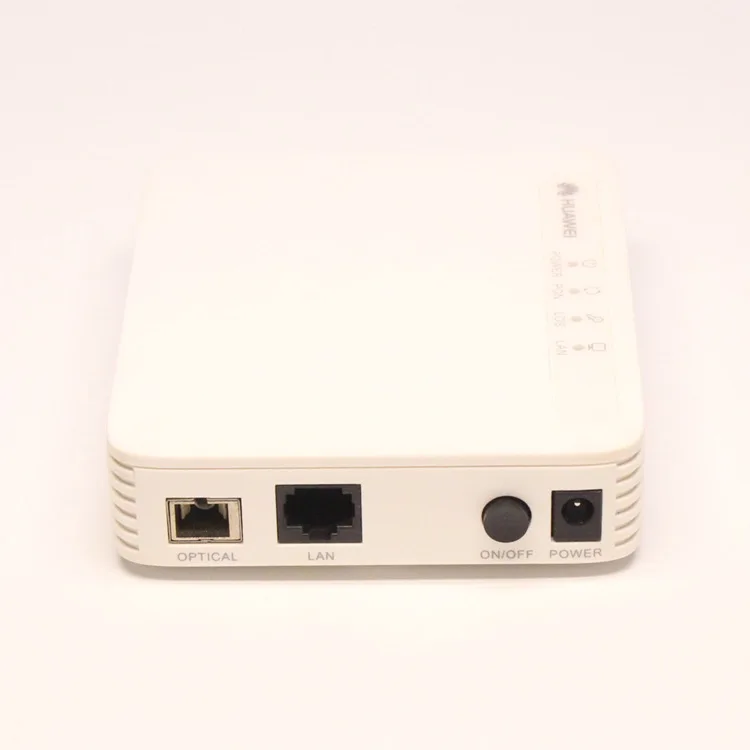

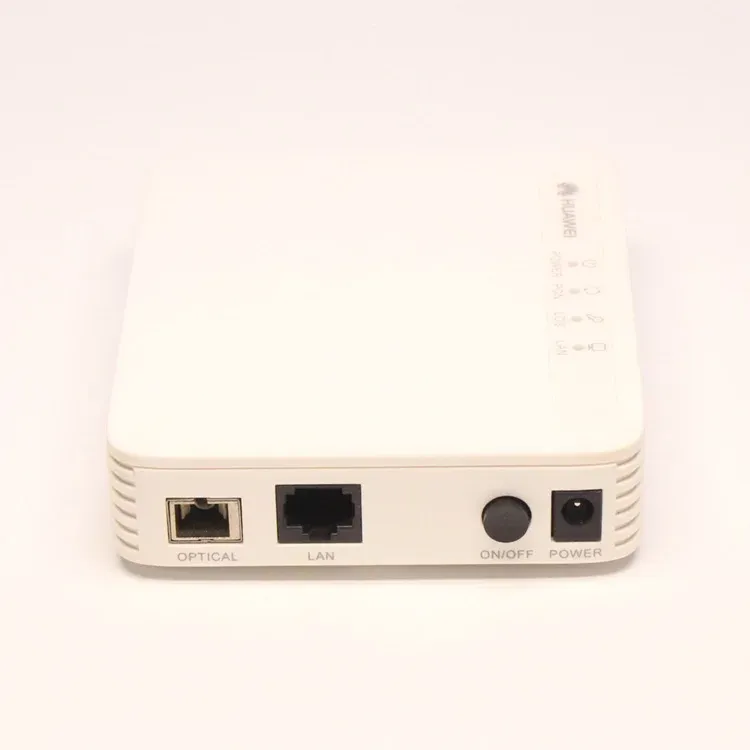

HG8010 1GE Port ONU GPON EPON XPON FTTH English Firmware High Quality HG8310M/HG8010H/EG8010H
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
|
Product Description
|
|
|
|
Technical items
|
Descriptions
|
|
|
Model
|
HG8010
|
|
|
Out Port contains
|
1FE
|
|
|
WIFI signal
|
NO
|
|
|
Wireless gain
|
NO
|
|
|
USB
|
NO
|
|
|
LAN
|
1*10/100/1000Mbps adaptive Gigabit ports, full/half duplex, RJ45 interface
|
|
|
TEL
|
NO
|
|
|
BRIDGE
|
Support
|
|
|
Firmware
|
English
|
|
|
Dimension/weight
|
120mm*100mm*25mm/140g
|
|
|
Fiber port
|
1 GPON /EPON interface, ingle-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
|
|
|
Wavelength
|
Tx 1310nm, Rx 1490nm
|
|
|
Fiber interface
|
SC/UPC/APC Dual mode/Singal mode
|
|
|
RX sensitivity
|
>-28dBm (1490nm)
|
|
|
DC power
|
12V 1.0A, external AC-DC power adapter
|
|
|
Button
|
Reset,power
|
|
|
Operation
|
Working temperature: -5- +55℃ working humidity:10-90%(non-condensation)
|
|
|
Storage
|
Storage temperature: -30℃- +60℃ storage humidity: 10-90%(non-condensation)
|
|
|
Feature
|
|
|
|
1.Plug-and-play: services can be deployed by one click on the NMS, and on-site configuration is not required.
|
|
|
|
2.Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulati
|
|
|
|
3.Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.
|
|
|
|
4.High speed forwarding: 900 Mbit/s forwarding in the NAT scenario.
|
|
|
|
5.IPv6 Capability: support IPv6/IPv4 dual stack and DS-Lite.
|
|
|
